Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Column Control Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Steering Column Control Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector. (2)
Courtesy of GENERAL MOTORS COMPANY

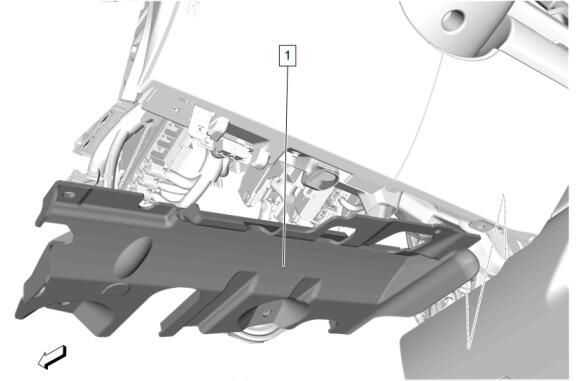

Insert the right side of the instrument panel upper trim panel insulator (1) behind the front floor console extension panel.
Install the instrument panel upper trim panel insulator (1), lining up the holes for the retainers.
Courtesy of GENERAL MOTORS COMPANY

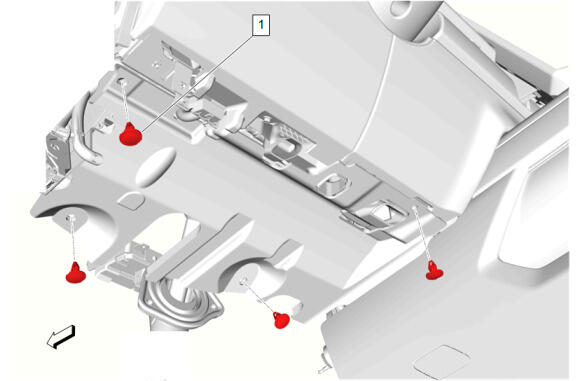

Instrument Panel Lower Insulator Retainer (1) - Install [4x]
Program the steering column control module. Control Module References
