Removal Procedure
- Remove underbody panels as necessary. Underbody Panel Component Locator
- Drain the drive motor battery cooling system. Drive Motor Battery Cooling System Draining and Filling
- Disable the high voltage system. High Voltage Disabling
Drive Motor Battery Charger Bracket Bolt (1) - Remove [2x]
- Retainer (2) - Disconnect

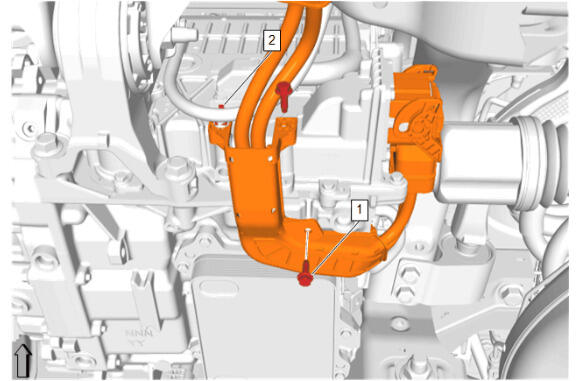

Drive Motor Battery Charger Bracket Bolt (1) - Remove
- High Voltage Connector (2) - Disconnect - High Voltage Connectors

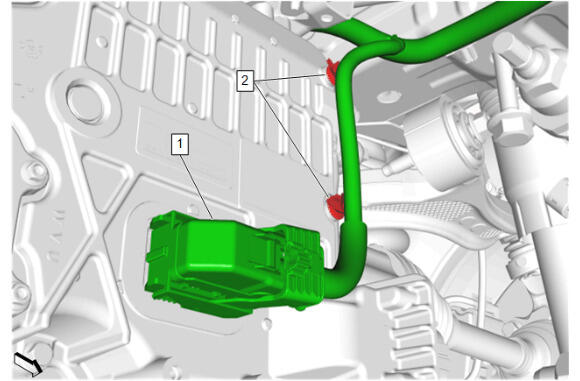

Electrical Connector (1) - Disconnect
- Wiring Harness Retainer (2) - Disconnect [2x]
- Position a suitable jack under the rear drive unit to support it.

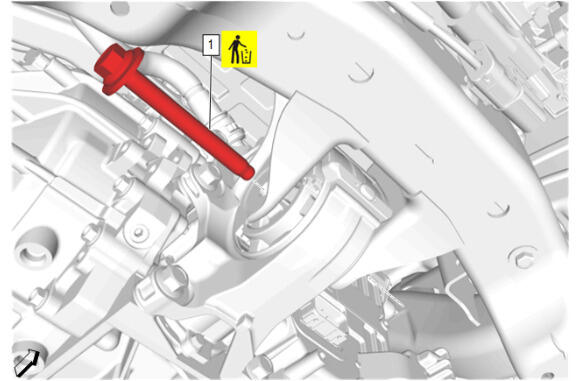

Rear Drive Motor Mount Bolt - M14 x 125.43 (1) - Remove and DISCARD
Reposition the jack as necessary to remove rear drive motor mount.

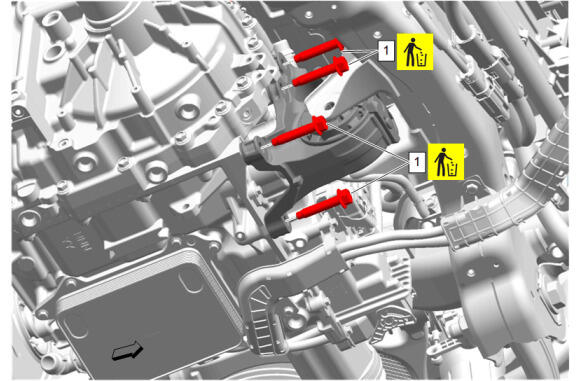

- Rear Drive Motor Mount Bolt - M12 x 60.90 (1) - Remove and DISCARD [4x]

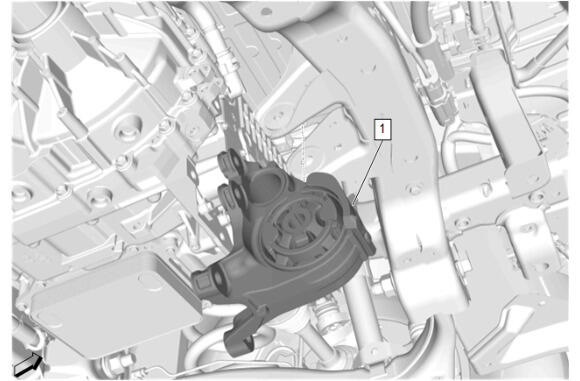

Rear Drive Motor Mount (1) - Remove

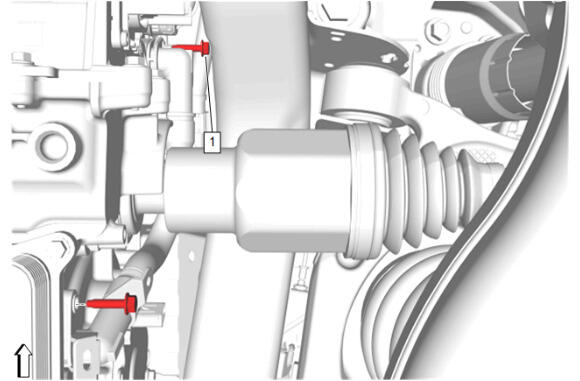

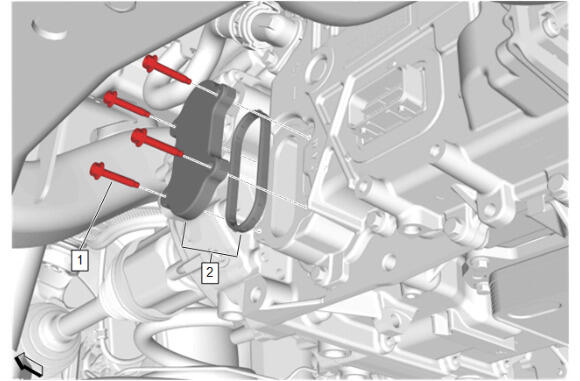

Transmission Fluid Cooler Pipe Bolt (1) - Remove [2x]
- NOTE:
Transmission fluid cooler pipe seals are not serviceable separately.

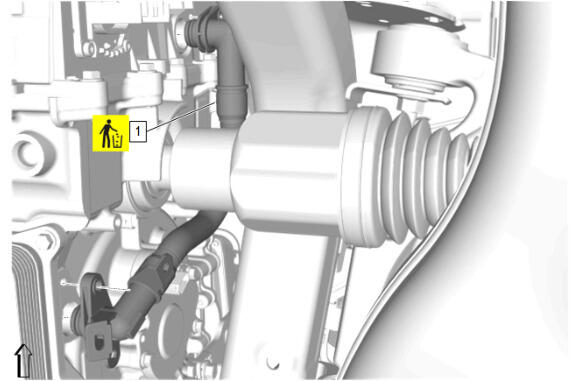

Transmission Fluid Cooler Pipe (1) - Remove and DISCARD

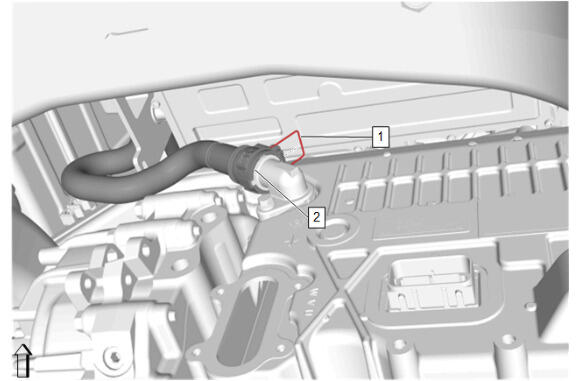

Retainer (1) - Disengage
- Rear Electric Drive Transmission Module Coolant Hose (2) - Remove
Drive Motor Power Inverter Module Cover Bolt (1) - Remove [4x]
- Drive Motor Power Inverter Module Cover (2) - Remove

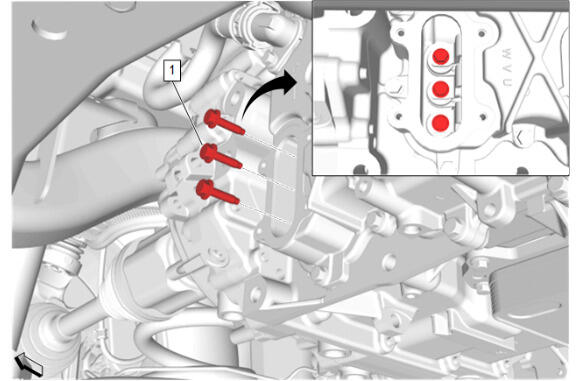

Using a magnetic socket, remove the 3 drive motor power inverter module connector terminal bolts (1).

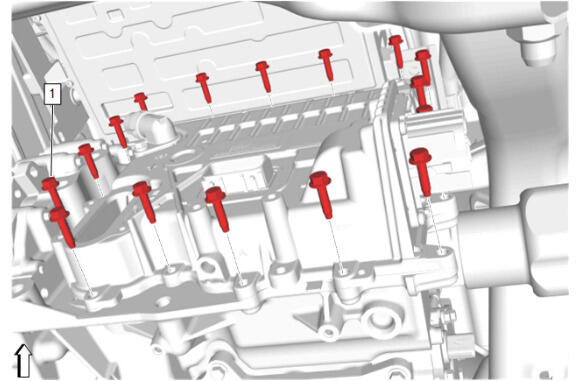

Drive Motor Power Inverter Module Bolt (1) - Remove [16x]

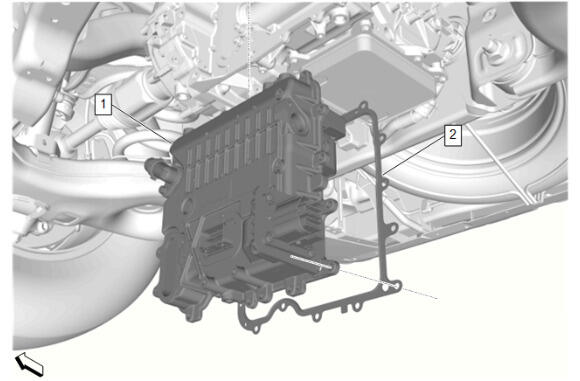

Drive Motor Control Module 2 (1) - Remove
- Drive Motor Power Inverter Module Cover Gasket (2) - Remove
Drive motor power inverter module cover seal is not serviceable separately.
