Installation Procedure

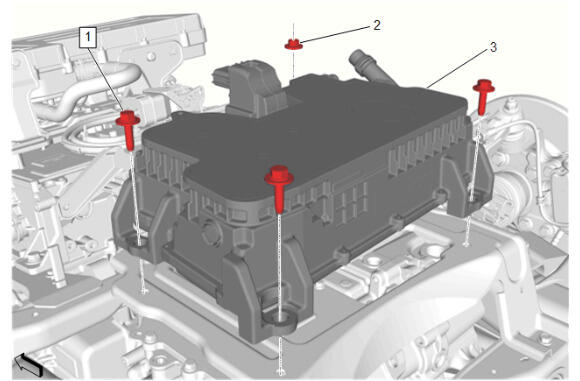

  1. GM6309764Courtesy of GENERAL MOTORS COMPANY

    DC/AC Converter Control Module (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. High Voltage Battery DC/AC Converter Control Module Nut (2) - Install and tighten - Fastener Specifications
  3. High Voltage Battery DC/AC Converter Control Module Bolt (1) - Install and tighten [3x] - Fastener Specifications
  4. GM6302477Courtesy of GENERAL MOTORS COMPANY

    High Voltage Connector (1) @DC/AC Converter Control Module - Connect - High Voltage Connectors

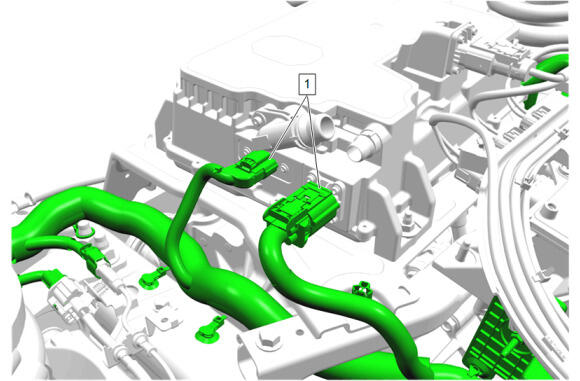

  5. GM6309730Courtesy of GENERAL MOTORS COMPANY

    Chassis Rear Wiring Harness (1) @DC/AC Converter Control Module - Connect [2x]

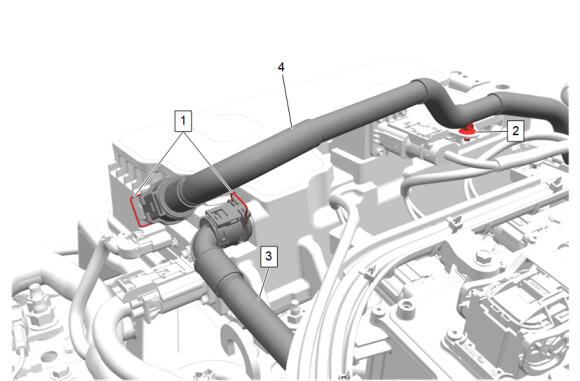

  6. GM6309684Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Distribution Control Module Hose (4) @DC/AC Converter Control Module - Install

  7. Rear Electric Drive Transmission Module Coolant Hose (3) @DC/AC Converter Control Module - Install
  8. Transmission Fluid Cooler Pipe Clip (2) - Engage
  9. Retainer (1) - Engage [2x]
  10. Rear Suspension Cradle - Install - Rear Suspension Cradle Removal and Installation
