Home >> GMC >> 2024 >> Sierra EV >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Outlets >> Repair Instructions >> Accessory Power Receptacle Retainer Replacement >> Installation Procedure

Installation Procedure

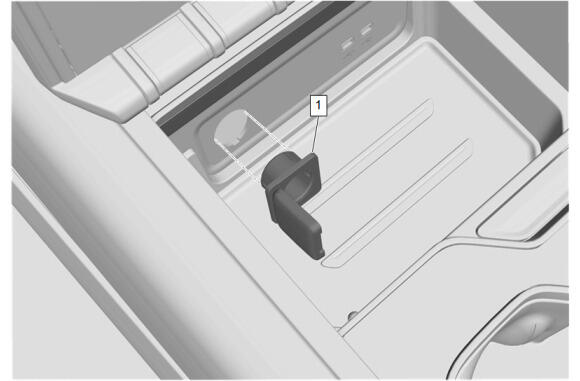

  1. GM6539194Courtesy of GENERAL MOTORS COMPANY

    Accessory Power Receptacle Retainer (1) - Install

  2. Connect the electrical connector.

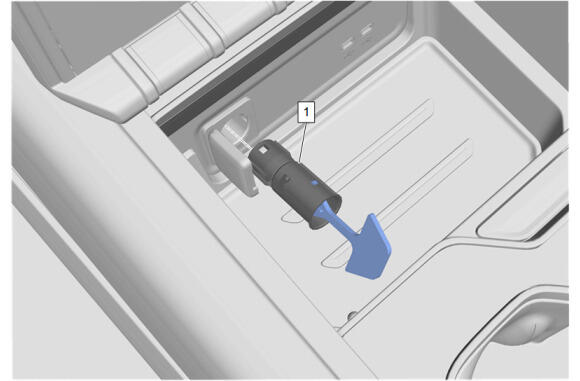

  3. GM6539195Courtesy of GENERAL MOTORS COMPANY

    Install the accessory power receptacle (1) by pressing into place until fully seated.

  4. Install the auxiliary power outlet fuse.
