Fastener Specifications
Front Power Seats

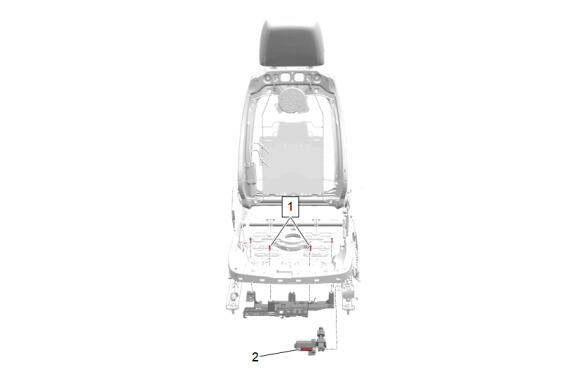

| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Seat Wiring Harness Connector Bracket Replacement |
| 2 | Front Seat Vertical Adjuster Actuator Bolt | - | - | 8 N.m (71 lb in) | Front Seat Tilt Adjuster Actuator Replacement |
