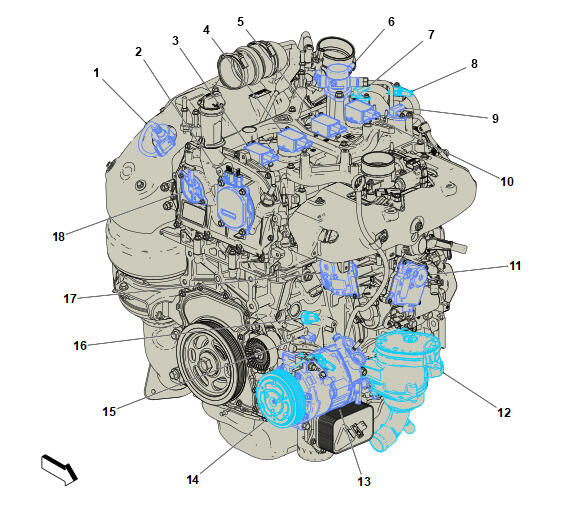

Top Right of Engine Components

GM6483856Courtesy of GENERAL MOTORS COMPANY
Items
B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1
M163 Intake / Single Camshaft Position Actuator M163 Intake / Single Camshaft Position Actuator X1 , or M163 Intake / Single Camshaft Position Actuator X2
T8A Ignition Coil 1 T8A Ignition Coil 1
T8B Ignition Coil 2 T8B Ignition Coil 2
T8C Ignition Coil 3 T8C Ignition Coil 3
G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure
B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
B321 Crankcase Pressure Sensor B321 Crankcase Pressure Sensor
B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
T8D Ignition Coil 4 T8D Ignition Coil 4
Q97M Engine Coolant Flow Control Valve - Main Q97M Engine Coolant Flow Control Valve - Main
G59 Engine Coolant Pump G59 Engine Coolant Pump
Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve
Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch
B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor
B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block
Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
