Left Rear of Engine Components

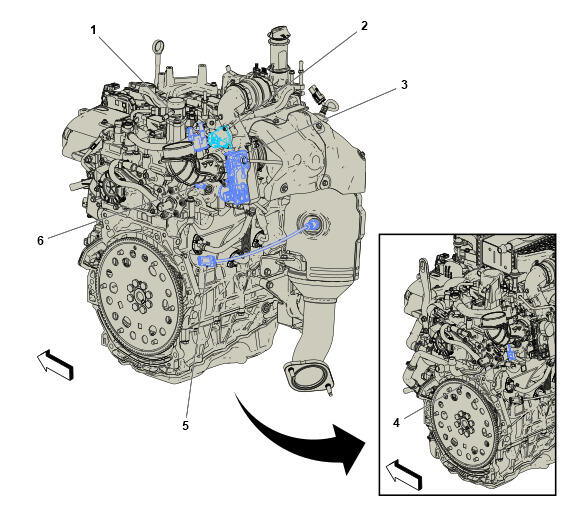

GM6483857Courtesy of GENERAL MOTORS COMPANY
Items
Q12 Evaporative Emission Canister Purge Solenoid Valve Q12 Evaporative Emission Canister Purge Solenoid Valve
Q40 Turbocharger Bypass Valve Solenoid Q40 Turbocharger Bypass Valve Solenoid
M128 Turbocharger Wastegate Actuator M128 Turbocharger Wastegate Actuator
G58 Evaporative Emission Canister Purge Pump G58 Evaporative Emission Canister Purge Pump
B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2
B34E Engine Coolant Temperature Sensor 5 B34E Engine Coolant Temperature Sensor 5
