Front of Engine Components

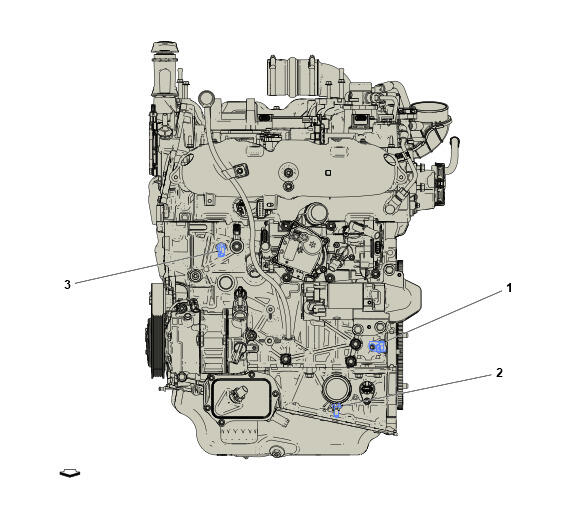

GM6483858Courtesy of GENERAL MOTORS COMPANY
Items
B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor
B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2
B34F Engine Coolant Temperature Sensor 6 B34F Engine Coolant Temperature Sensor 6
