Installation Procedure

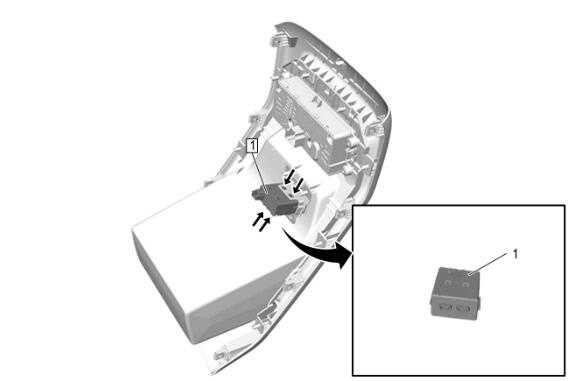

  1. GM6458396Courtesy of GENERAL MOTORS COMPANY

    Dual Charge Only Receptacle (1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. GM6467021Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Front Floor Console Rear Trim Panel (1) - Install
