Fastener Specifications

GM5661509Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement
2 Front Side Door Window Belt Reveal Molding Yes - - Front Side Door Window Belt Reveal Molding Replacement
GM5523603Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Front Retainer Bolt [2x] - - 11 N.m (97 lb in) Front Side Door Window Channel Front Retainer Replacement
GM5523505Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement
GM5587493Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Front Applique Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Frame Front Applique Replacement
GM5582534Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Frame Rear Applique Replacement
GM5527123Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement (Power) , or Front Side Door Window Regulator Replacement (Manual)
GM5527163Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Motor Replacement
GM5587460Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Upper Reveal Molding Rivet [2x] Yes - - Front Side Door Window Upper Reveal Molding Replacement (DEN, DLF, or DEZ without UVS) , or Front Side Door Window Upper Reveal Molding Replacement (DEZ with UVS) , or Front Side Door Window Upper Reveal Molding Replacement (DPO) , or Front Side Door Window Upper Reveal Molding Replacement (DQS)
GM5639566Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.

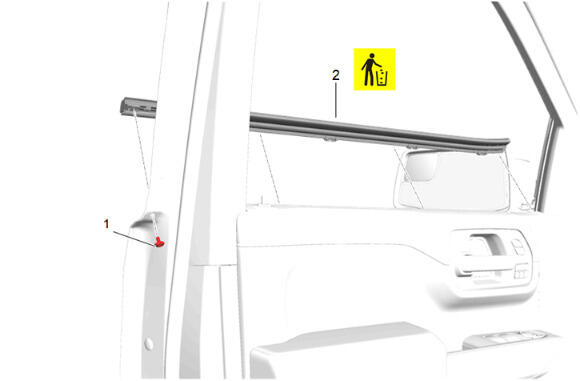

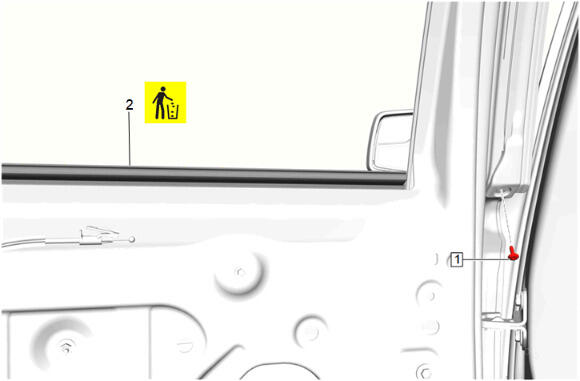

Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement
2 Rear Side Door Window Belt Reveal Molding Yes - - Rear Side Door Window Belt Reveal Molding Replacement
GM5583116Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Front Retainer Bolt [2x] - - 11 N.m (97 lb in) Rear Side Door Window Channel Front Retainer Replacement
GM5661798Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Front Applique Replacement
GM5661808Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.

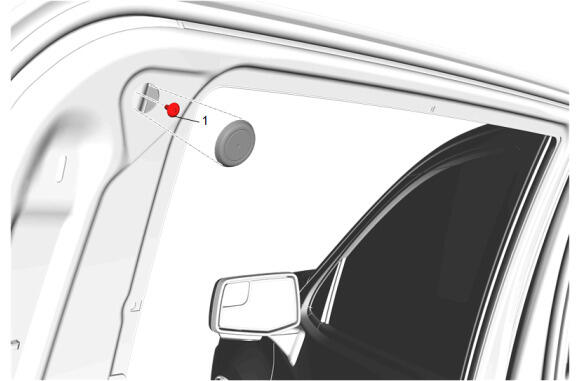

Rear Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Rear Applique Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Rear Applique Replacement
GM5642783Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [4x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement
GM6003501Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Side Door Window Rear Channel Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Rear Channel Bolt [2x] - Yes 11 N.m (97 lb in) Rear Side Door Window Replacement
GM5582598Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [3x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Motor Replacement
GM5645726Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.

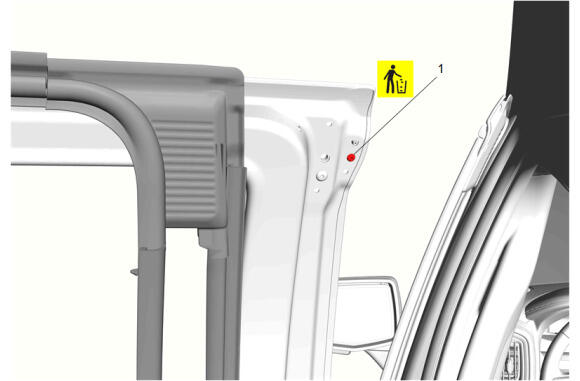

Rear Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Upper Reveal Molding Rivet Yes - - Rear Side Door Window Upper Reveal Molding Replacement
GM5662089Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.

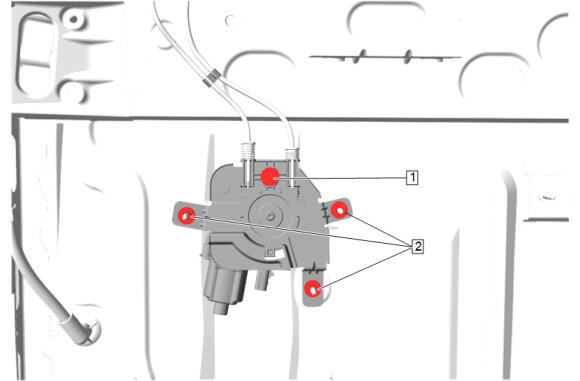

Rear Sliding Window Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Sliding Window Control Module Bolt - - 9 N.m (80 lb in) Rear Sliding Window Module Replacement
2 Rear Sliding Window Control Module Nut [3x] - - 9 N.m (80 lb in) Rear Sliding Window Module Replacement
GM5043801Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.

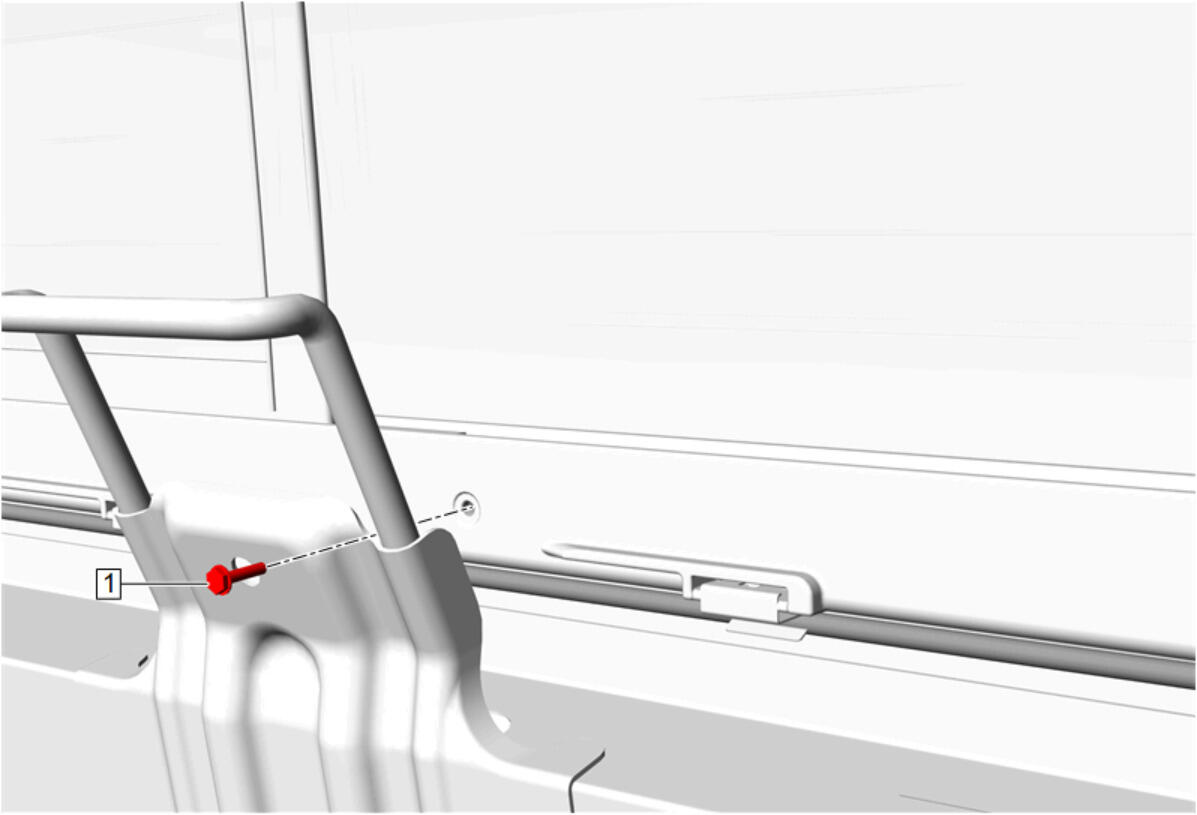

Rear Sliding Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Sliding Window Block Bolt - - 1.1 N.m (10 lb in) Rear Sliding Window Regulator Replacement
