Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

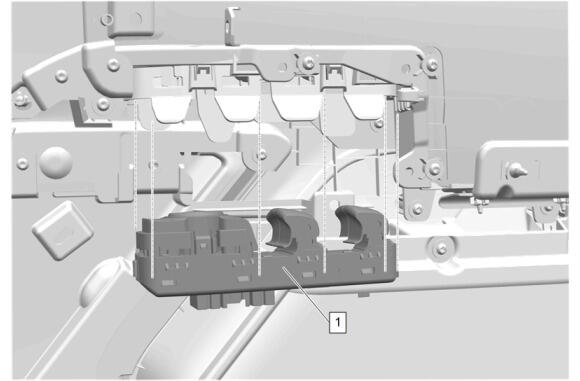

Front Side Door Window Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

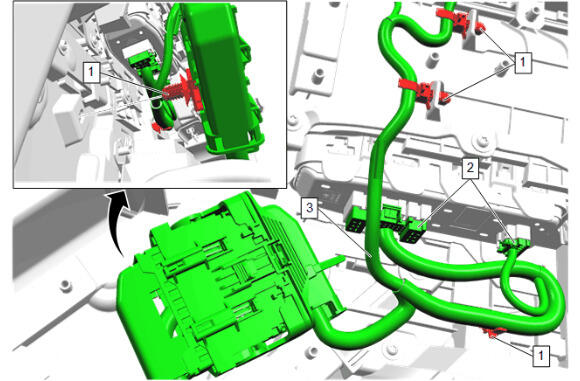

Electrical Connector (2) - Connect [2x]
Wiring Harness (3) - Move into position
Wiring Harness Retainer (1) - Install [4x]
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation (1SA - (A6Q & A6R)) , or Front Side Door Trim Removal and Installation (A6Q & A6R) , or Front Side Door Trim Removal and Installation (- 1SA)
