Installation Procedure
Image Processing Module (1) - Install
- Secure the retaining tabs.

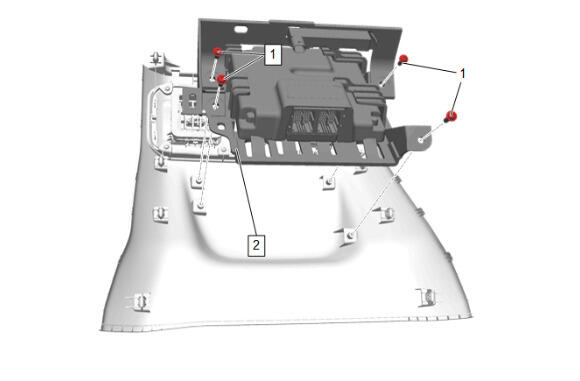

Active Safety Control Module Bracket (2) - Install
- Active Safety Control Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connectors and install the wiring harness retainers as necessary.

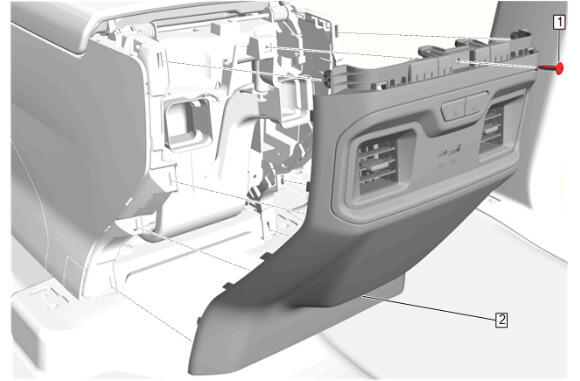

- Front Floor Console Rear Trim Panel (2) - Install
- Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications

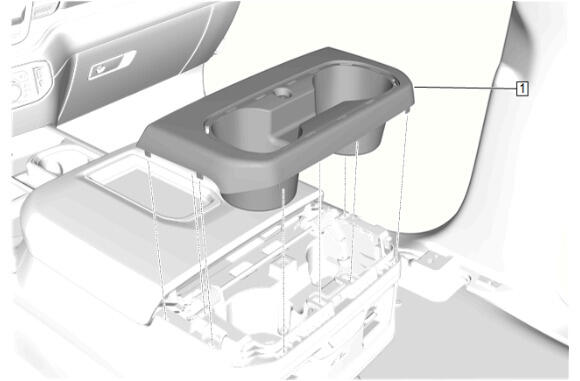

Front Floor Console Rear Cup Holder (1) - Install

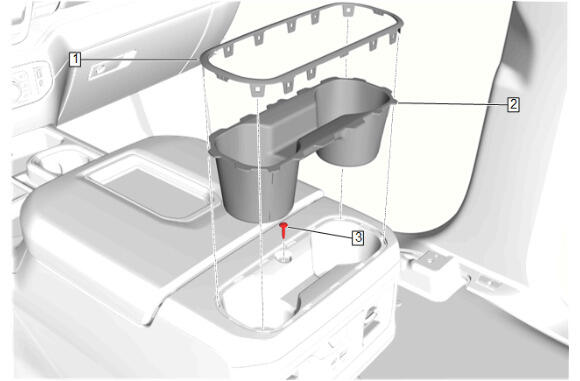

Front Floor Console Cup Holder Bolt (3) - Install and tighten - Fastener Specifications
- Front Floor Console Rear Cup Holder Liner (2) - Install
- Front Floor Console Cup Holder Opening Trim Plate (1) - Install
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
