Installation Procedure

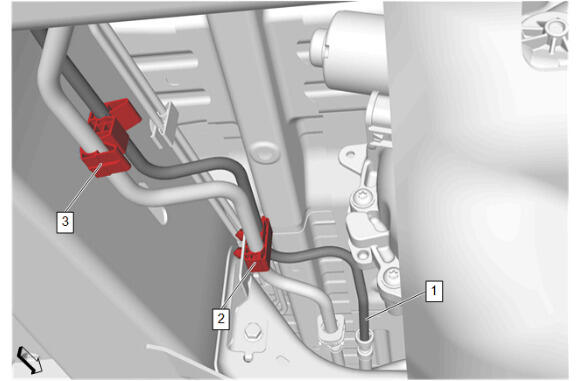

  1. GM6154137Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Rear Pipe (1) - Install

  2. Fuel Feed Rear Pipe (1) @ Fuel Feed Pipe Clip (3) - Engage
  3. Fuel Feed Rear Pipe (1) @ Fuel Feed and Evaporative Emission Canister Vent Pipe Clip (2) - Engage
  4. Fuel Feed Rear Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service

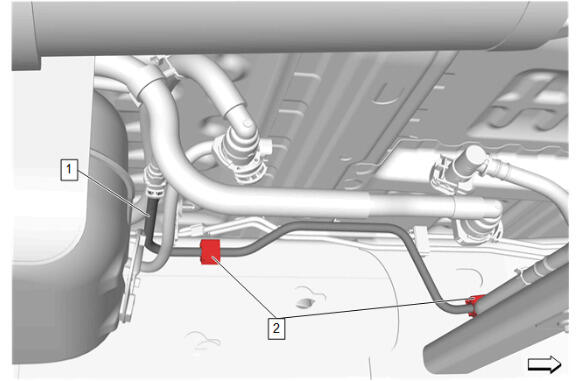

  5. GM6154135Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Rear Pipe (1) @ Fuel Feed and Evaporative Emission Canister Vent Pipe Clip (2) - Engage [2x]

  6. Fuel Feed Rear Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

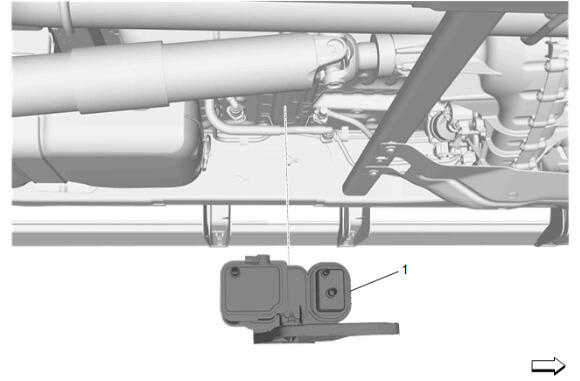

  7. GM6139230Courtesy of GENERAL MOTORS COMPANY

    Install the evaporative emission canister and bracket (1) as an assembly.

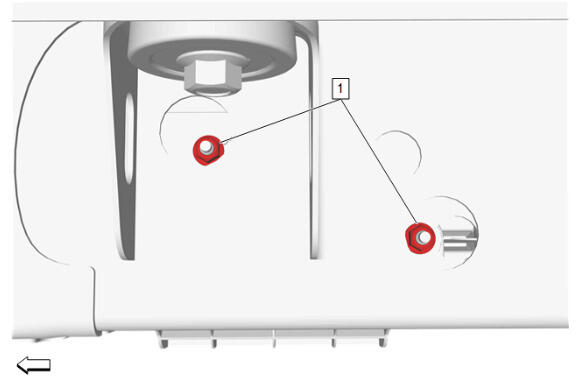

  8. GM6139229Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Evaporative Emission Canister Bracket Nut (1) - Tighten [2x] - Fastener Specifications

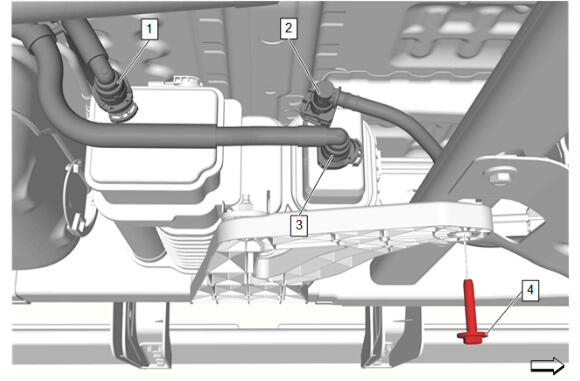

  9. GM6139228Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Bracket Bolt (4) - Install and tighten - Fastener Specifications

  10. Evaporative Emission Canister Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
  11. Evaporative Emission Rear Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  12. Evaporative Emission Canister Filter Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

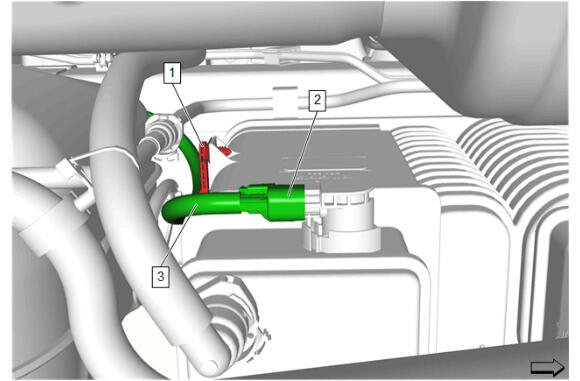

  13. GM6139227Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (3) - Install

  14. Connect the electrical connector. (2)
  15. Wiring Harness Clip (1) - Engage
  16. Remove the support and lower the vehicle.
