Fastener Specifications

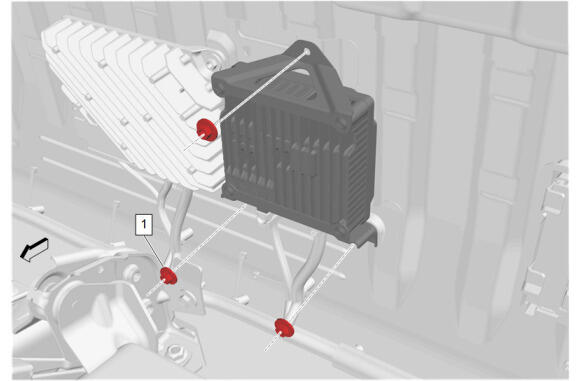

DC/AC Converter Control Module (KI6)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accessory AC and DC Power Control Module Nut [3x] | - | - | 9 N.m (80 lb in) | DC/AC Converter Control Module Replacement (K16) |

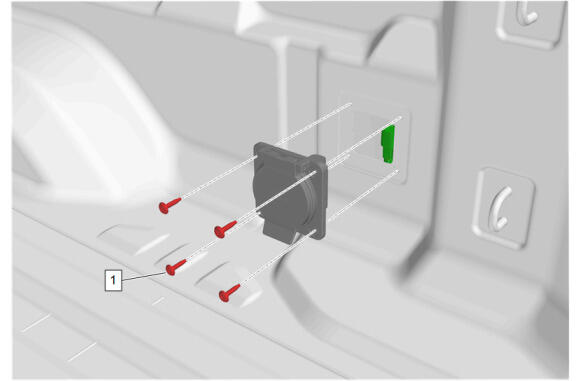

Pickup Box Accessory Power Receptacle (KC9)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accessory Power Receptacle Retainer Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Pickup Box Accessory Power Receptacle Replacement (KC9) |

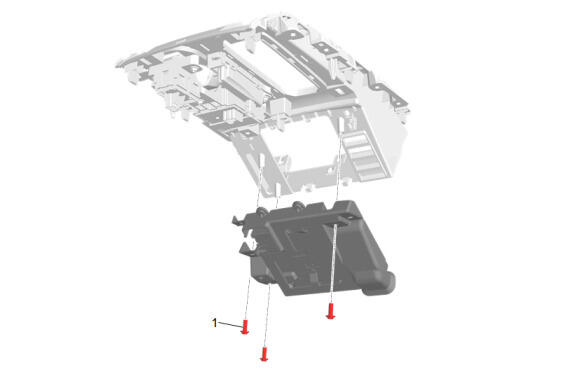

Wireless Accessory Charging Module (K4C)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wireless Charging System Module Bracket Bolt [3x] | - | - | 1 N.m (9 lb in) | Wireless Accessory Charging Module Replacement (K4C) |
