Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Ensure the retaining tabs are properly aligned.

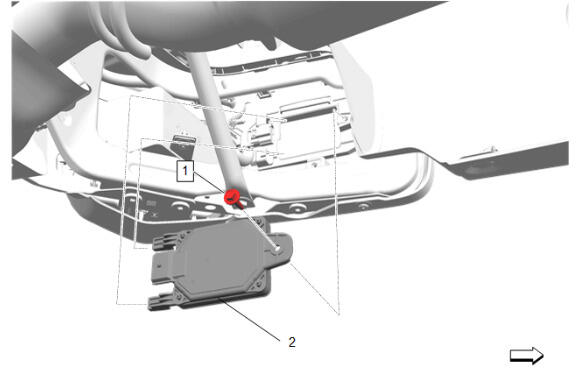

Side Obstacle Detection Control Module (2) - Install

CAUTION:

Short Range Radar Sensor Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Rear Bumper Fascia Rear Multifunction Carrier Opening Cover (2) Install
Short Range Radar Sensor Bolt (1) - Install and tighten - Fastener Specifications
Connect the wiring harness retainers.
Lower the vehicle.
Perform the necessary programming and setup procedure: Control Module References
