Installation Procedure

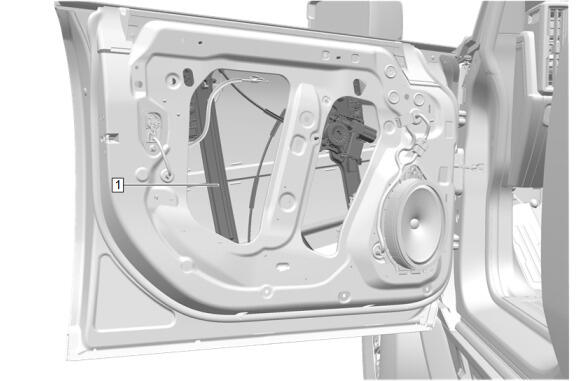

Install the front side door window regulator (1) through the door panel opening.
CAUTION:
Refer to Fastener Caution .

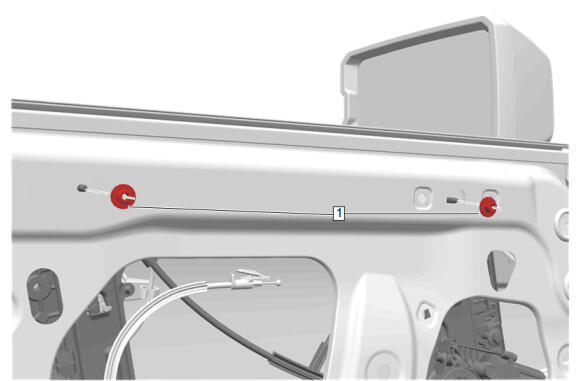

Install and tighten the 2 front side door window regulator upper nuts (1). Fastener Specifications

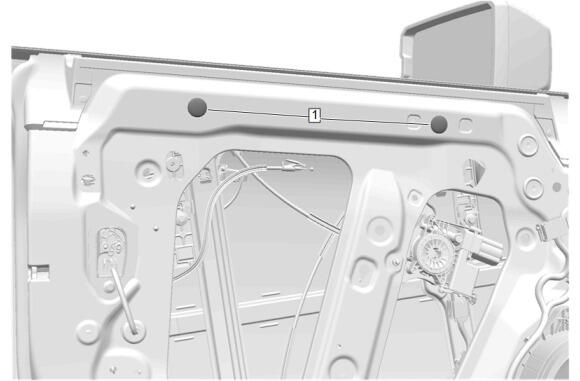

Install the 2 front side door window regulator upper access plugs (1).

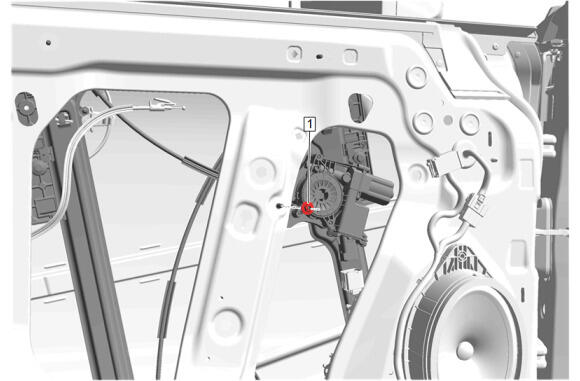

Front Side Door Window Regulator Nut (1) - Install and tighten - Fastener Specifications

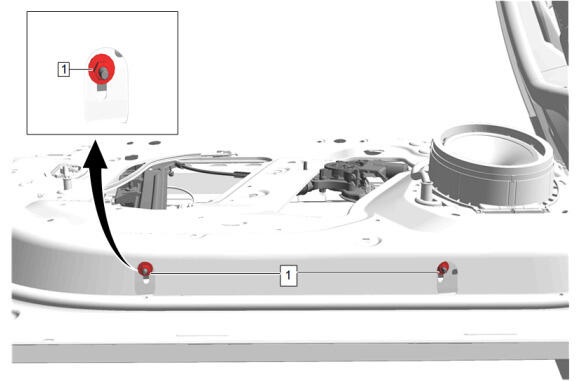

Align the 2 front side door window regulator lower nuts (1) to the marked location before removal.
Install and tighten the 2 rear side door window regulator lower nuts (1). Fastener Specifications

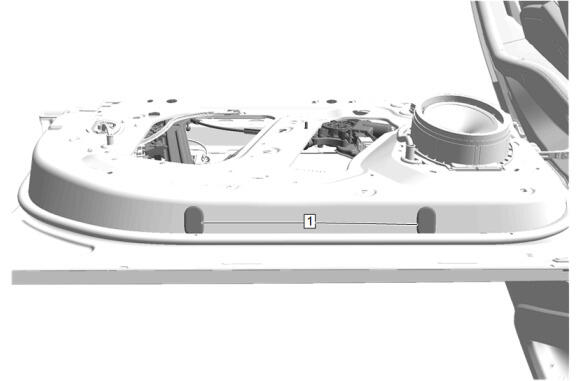

Install the 2 front side door window regulator lower access plugs (1).
Place the front side door window (1) into the door frame.
Install and tighten the 2 front side door window regulator sash retaining bolts (1). Fastener Specifications

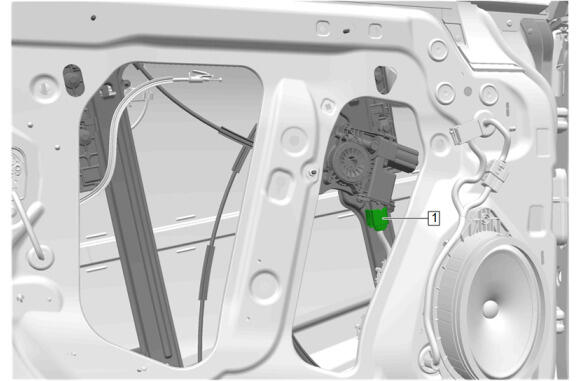

Connect the electrical connector (1).
NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Front Side Door Pull Handle Bracket (2) - Install
Front Side Door Pull Handle Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Removal and Installation (With Front Side Door Trim Bolt Cap)
Enable the SIR System. SIR Disabling and Enabling
