Installation Procedure

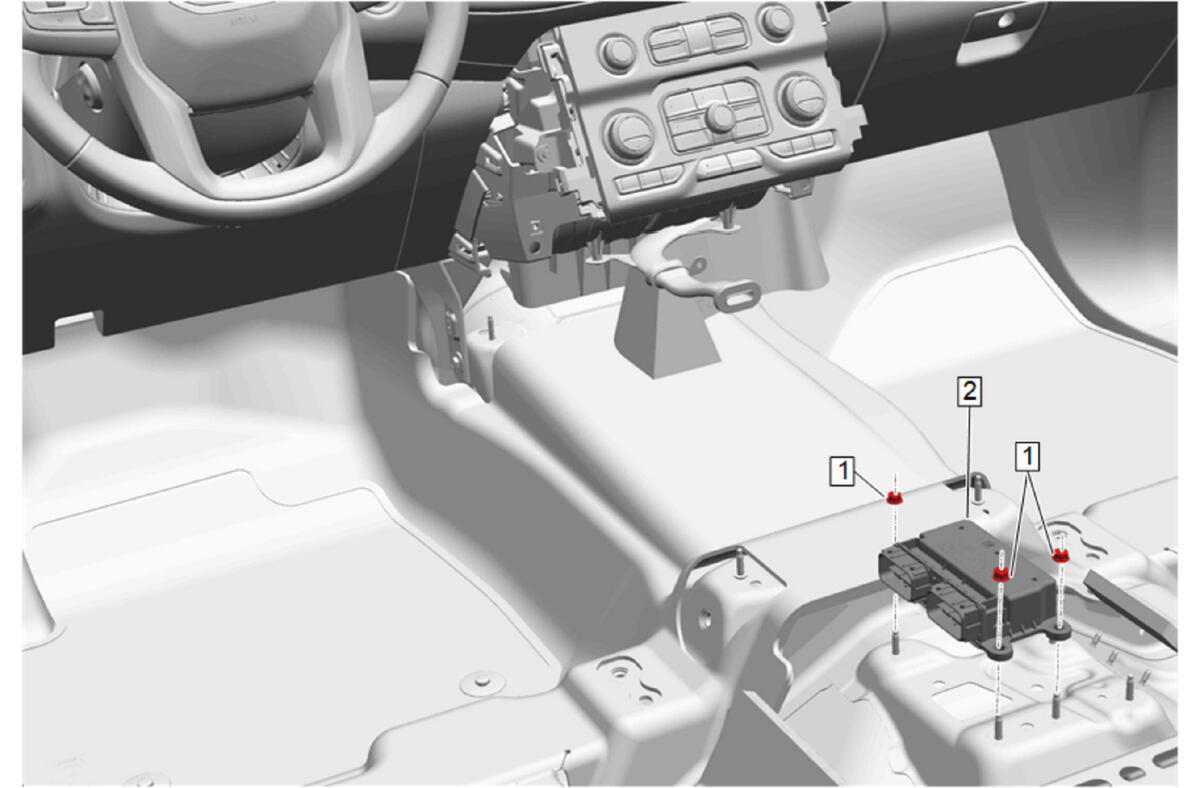

  1. GM5591345Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Restraints Control Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  4. Airbag Sensing and Diagnostic Module Nut (1) - Install and tighten [ 3x ] - Fastener Specifications
  5. Front Floor Console - Install - Front Floor Console Removal and Installation (D07 without Denali) , or Front Floor Console Removal and Installation (DCH without Denali) , or Front Floor Console Removal and Installation (D07 with Denali) , or Front Floor Console Removal and Installation (DCH with Denali)
  6. Enable the SIR System. SIR Disabling and Enabling .
  7. Perform the necessary programming and setup procedure: Control Module References
