Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Exhaust Gas Recirculation Valve Inlet Gasket (2) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

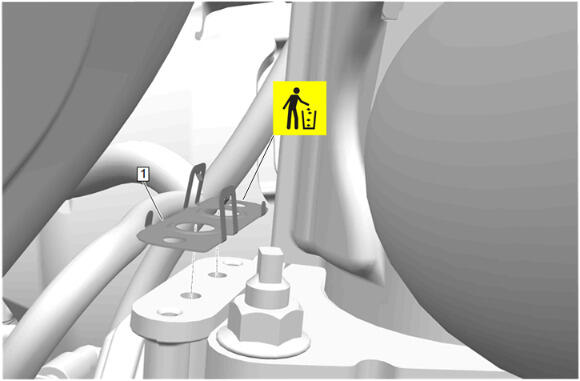

Turbocharger Coolant Feed and Return Pipe Gasket (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

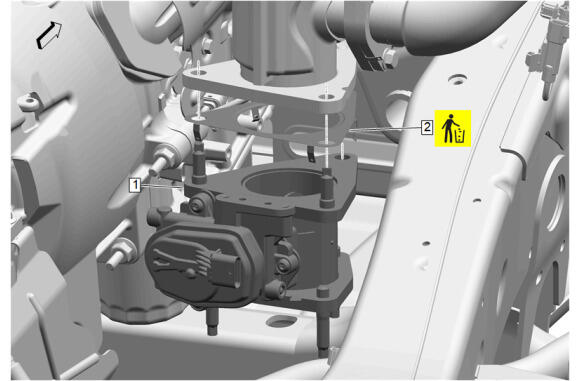

Exhaust Back Pressure Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

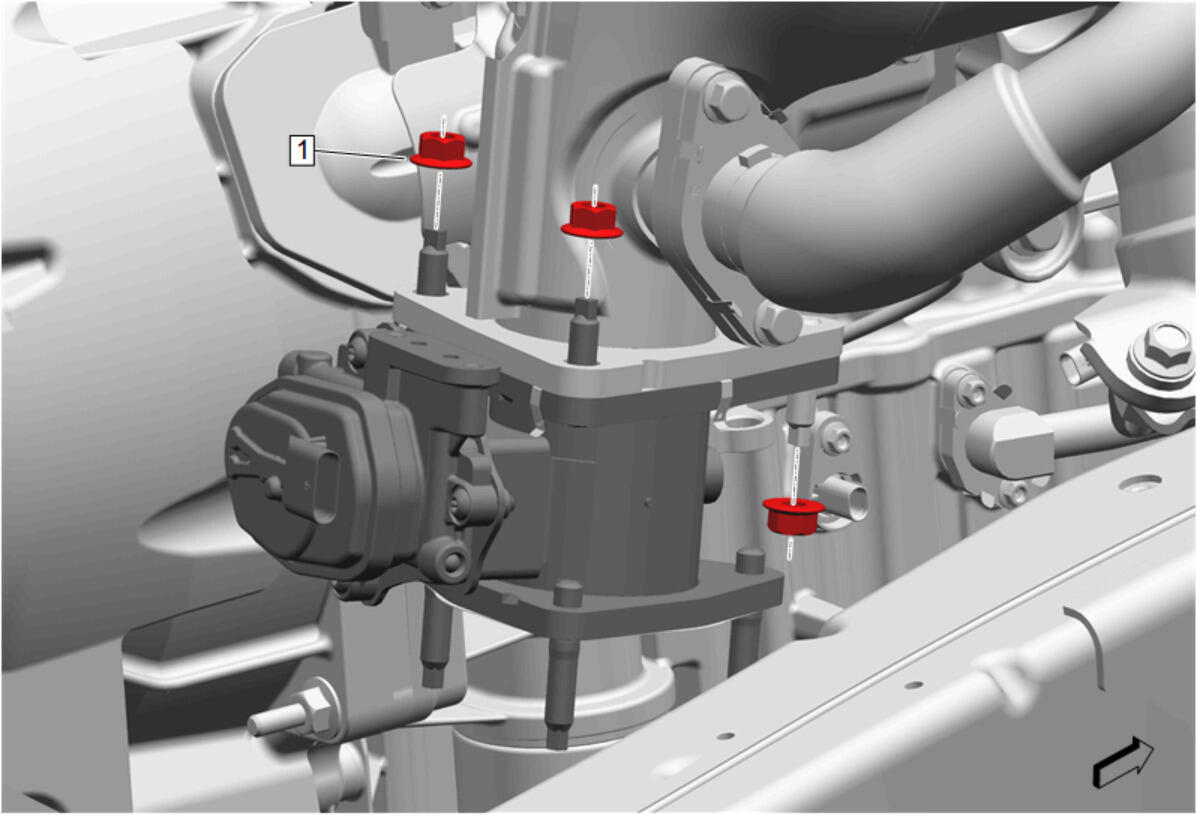

Catalytic Converter Nut (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

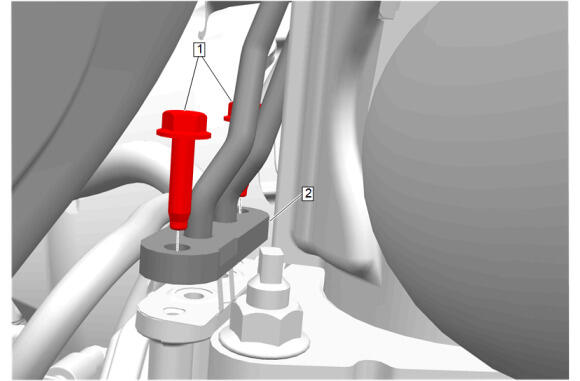

Exhaust Gas Recirculation Valve Cooling Return Hose (2) - Install
Exhaust Gas Recirculation Coolant Return Pipe Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

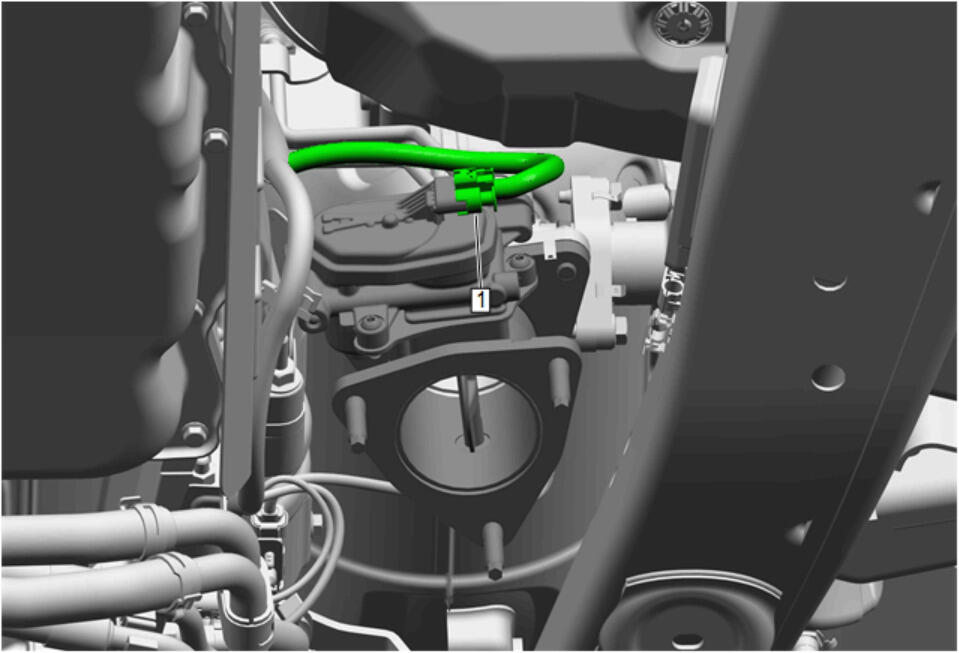

Electrical Connector (1) @ Exhaust Back Pressure Valve - Connect
Connect the wiring harness retainers.
Courtesy of GENERAL MOTORS COMPANY

Exhaust System Front Gasket (2) - Install NEW
Nitrogen Oxides Catalytic Converter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe Nut (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

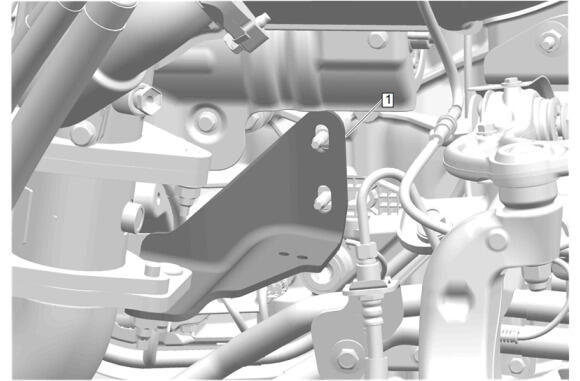

Catalytic Converter Brace Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe Nut (1) - Install [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Exhaust Pipe Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

Coat the threads with anti-seize compound. Adhesives, Fluids, Lubricants, and Sealers
Exhaust Particulate Sensor (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Coat the threads with anti-seize compound. Adhesives, Fluids, Lubricants, and Sealers
Nitrogen Oxides Sensor- Position 3 (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Coat the threads with anti-seize compound. Adhesives, Fluids, Lubricants, and Sealers
Nitrogen Oxides Sensor- Position 2 (1) - Install and tighten - Fastener Specifications
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

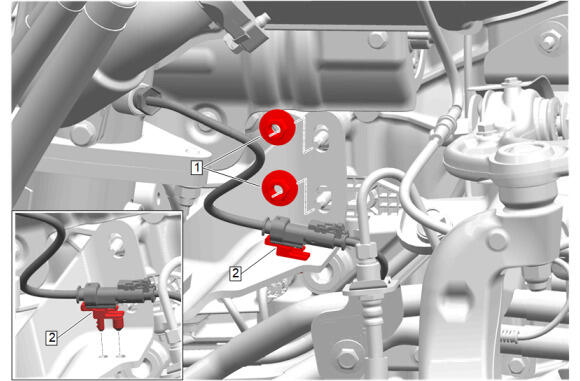

Wiring Harness Retainer (2) - Install
Catalytic Converter Brace Bracket Nut (1) - Install and tighten [ 2x ] - Fastener Specifications
Front Wheelhouse Liner- Right Side - Install - Front Wheelhouse Liner Replacement
Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716 L84, L87) , or Cooling System Draining and Filling (Static L84, L87) , or Cooling System Draining and Filling (Static LM2) , or Cooling System Draining and Filling (GE 47716 LM2)
Start the engine and check for coolant leaks.
Inspect the exhaust system for leaks.
