Installation Procedure

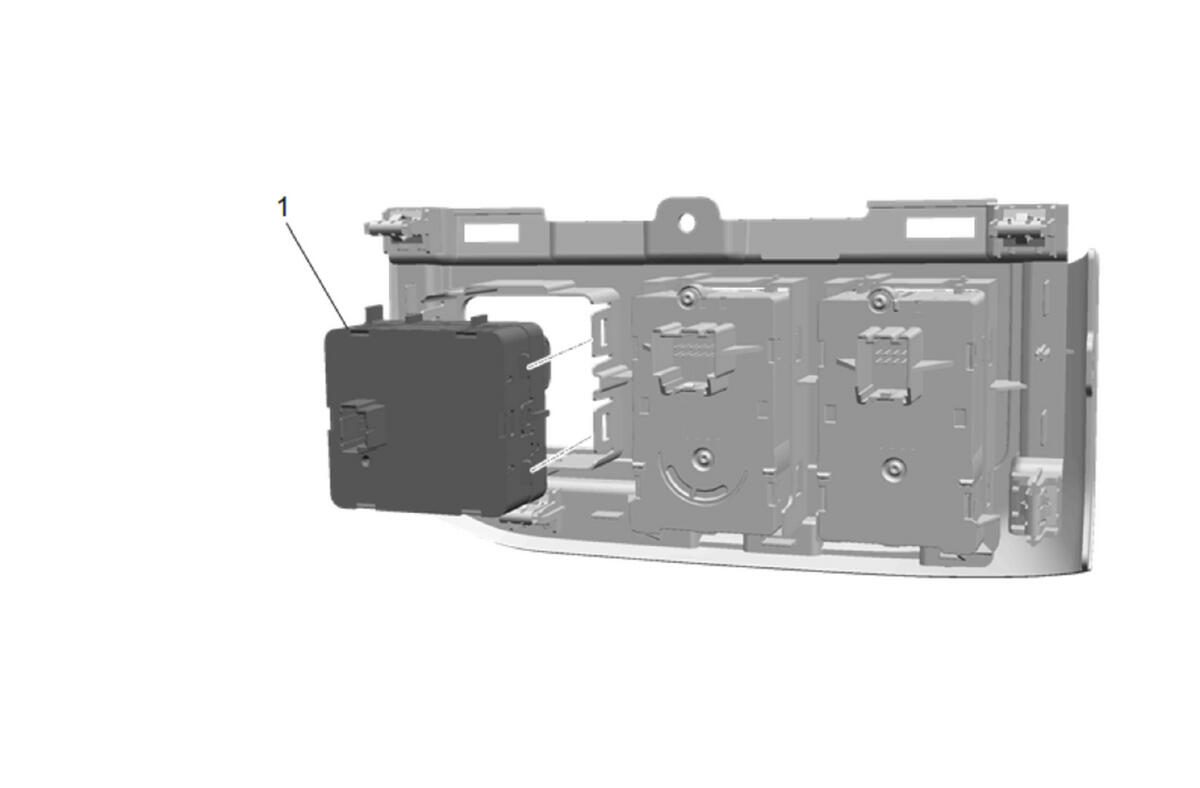

  1. GM5605309Courtesy of GENERAL MOTORS COMPANY

    Trailer Brake Control Switch (1) @ Instrument Panel Switch Trim Plate - Install

  2. Ensure the retaining tabs are fully secured.
  3. GM5596403Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Instrument Panel Switch Trim Plate (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
  6. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Instrument Panel Trim Pad (2) - Install
  8. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  9. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  10. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
