Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

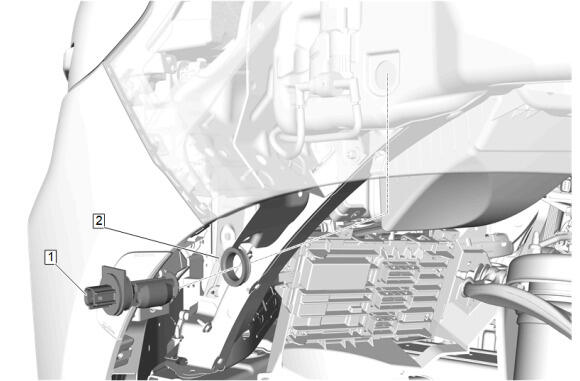

When installing the windshield washer solvent container level sensor grommet (2), use full strength windshield washer fluid as a lubricant on the grommet.
Push the windshield washer solvent container level sensor grommet (2) into the windshield washer solvent container until fully seated.
Windshield Washer Solvent Container Level Sensor (1) - Install
Connect the electrical connector.
Remove the drain pan from under the windshield washer solvent container.
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Retainer (2) - Install

NOTE:

Quantity of fasteners may vary based on option content.

Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Front Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications
Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)
Refill the windshield washer solvent container.
