Installation Procedure

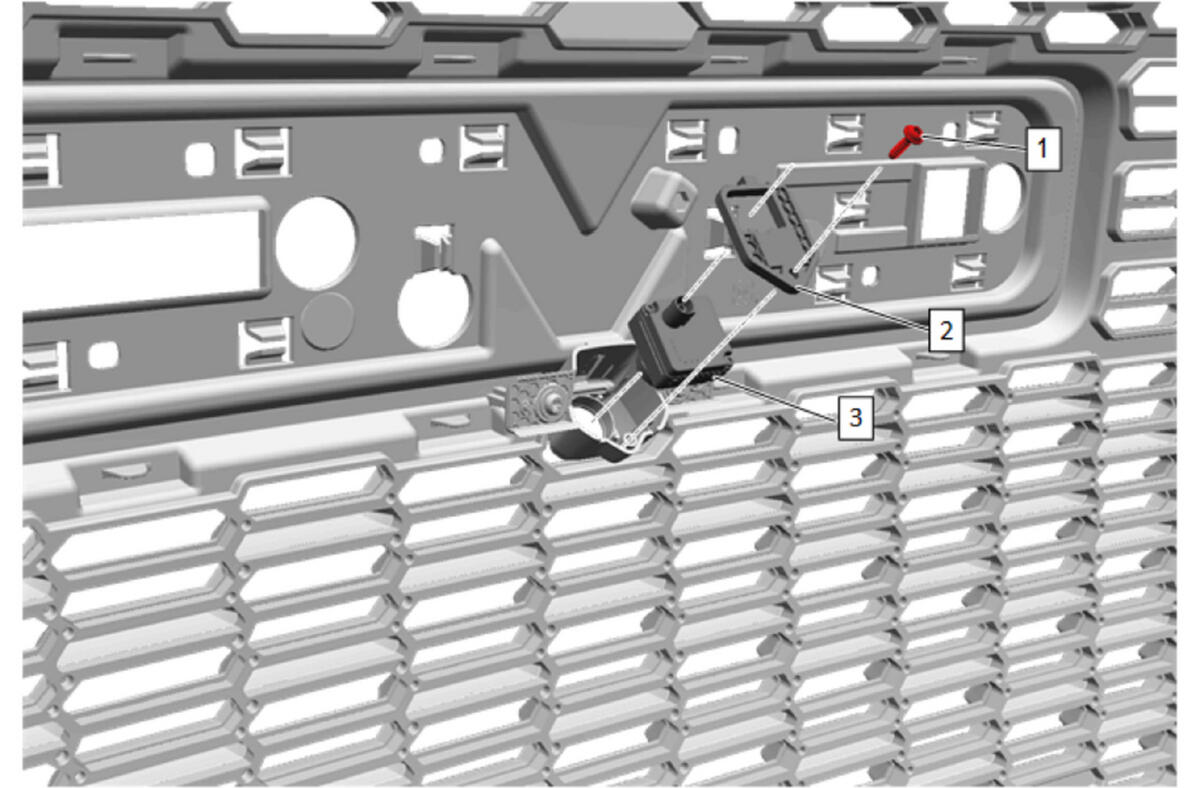

Courtesy of GENERAL MOTORS COMPANY

Front View Driver Information Camera (3) - Install
Camera Back Plate (2) - Install

CAUTION:

Refer to Fastener Caution .

Front View Camera Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)
