Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

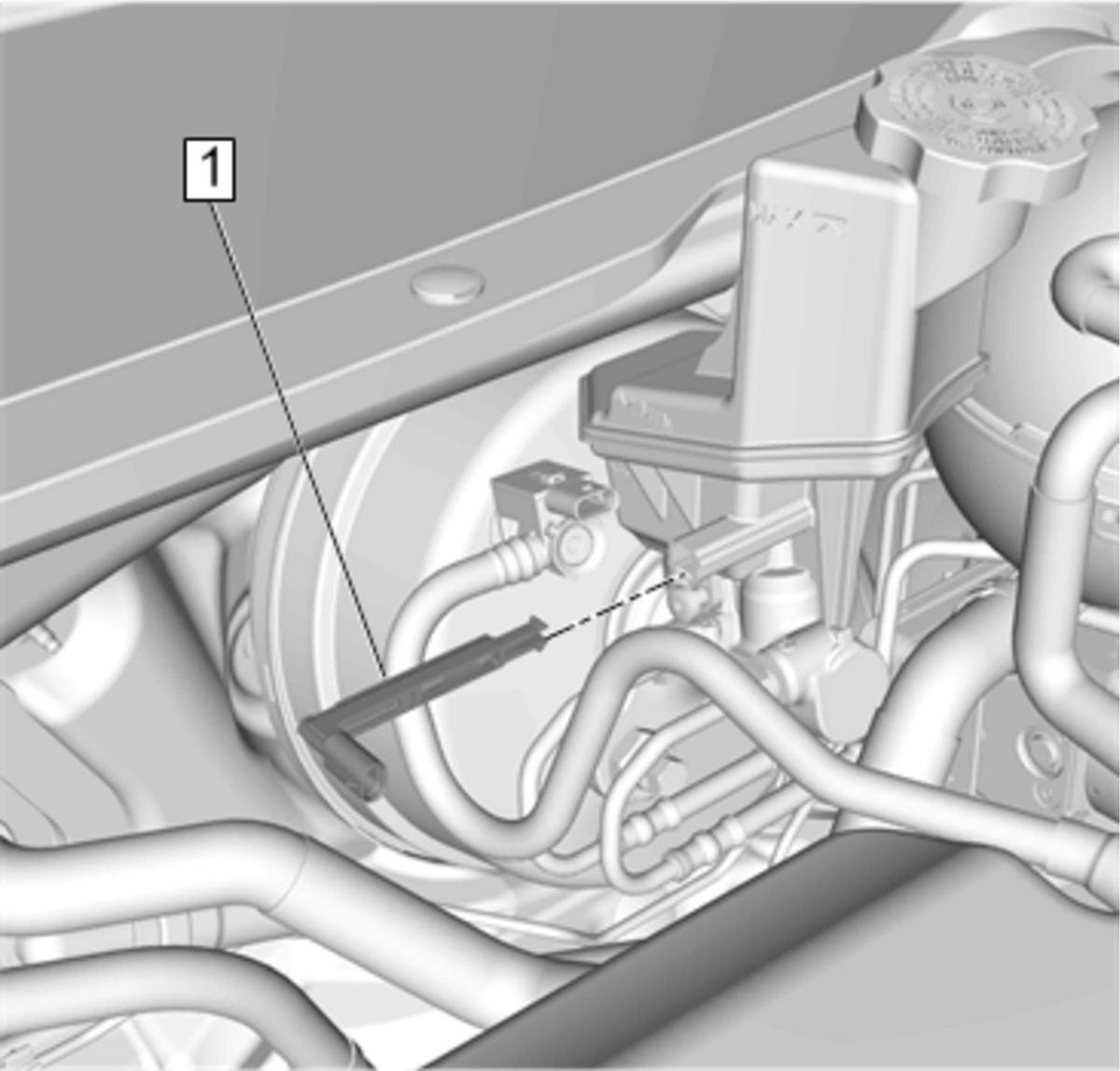

    Fig 1: Brake Fluid Level Indicator Switch
    GM4598686Courtesy of GENERAL MOTORS COMPANY
  1. Install Brake Fluid Level Indicator Switch.

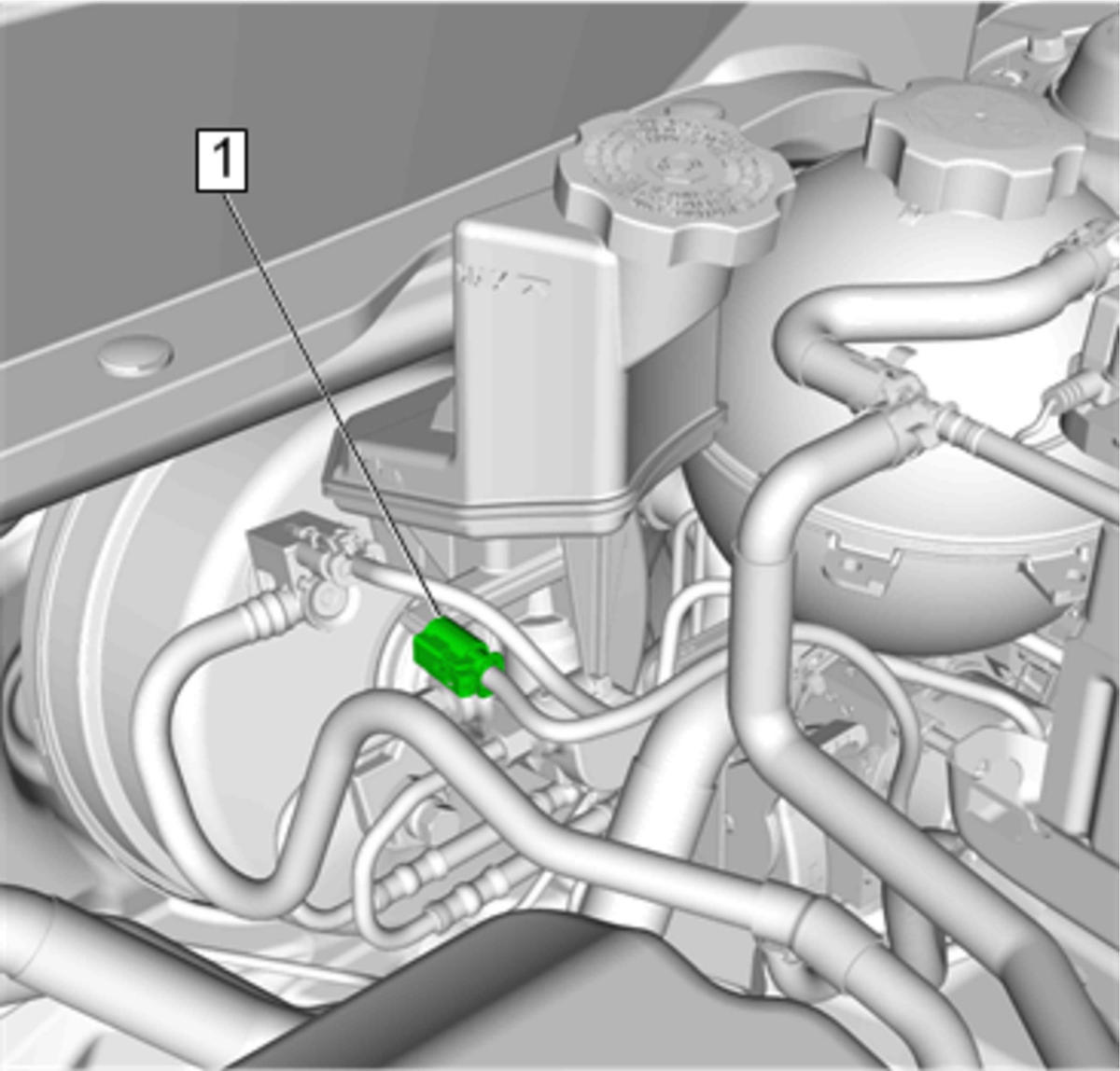

    2. Fig 2: Brake Fluid Level Indicator Switch Electrical Connector
    GM4598680Courtesy of GENERAL MOTORS COMPANY
  2. Connect Brake Fluid Level Indicator Switch Electrical Connector.
