Installation Procedure

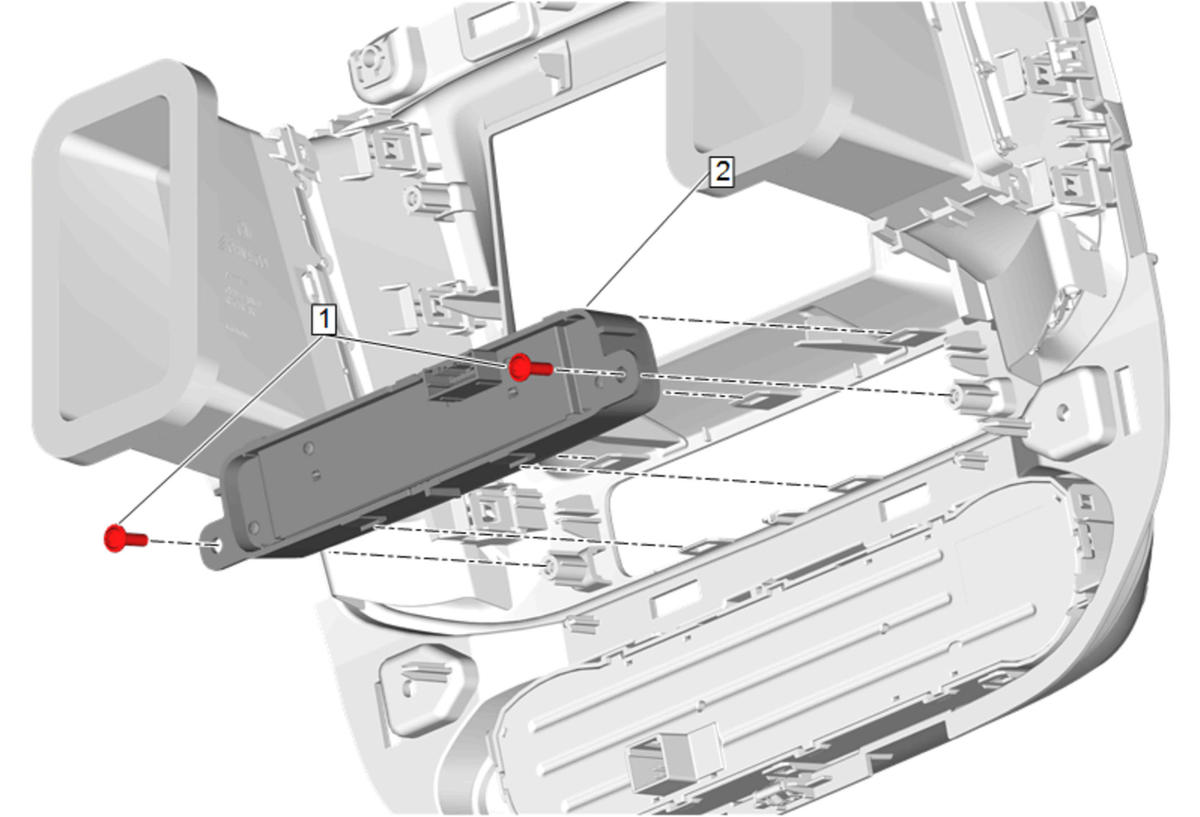

  1. GM5047547Courtesy of GENERAL MOTORS COMPANY

    Radio Function Switch(2) - Install

    2. CAUTION:

    Fastener Caution

  2. Radio Control Bolt(1)@Radio Function Switch - Install and tighten[2x]1.5N.m (13 lb in)

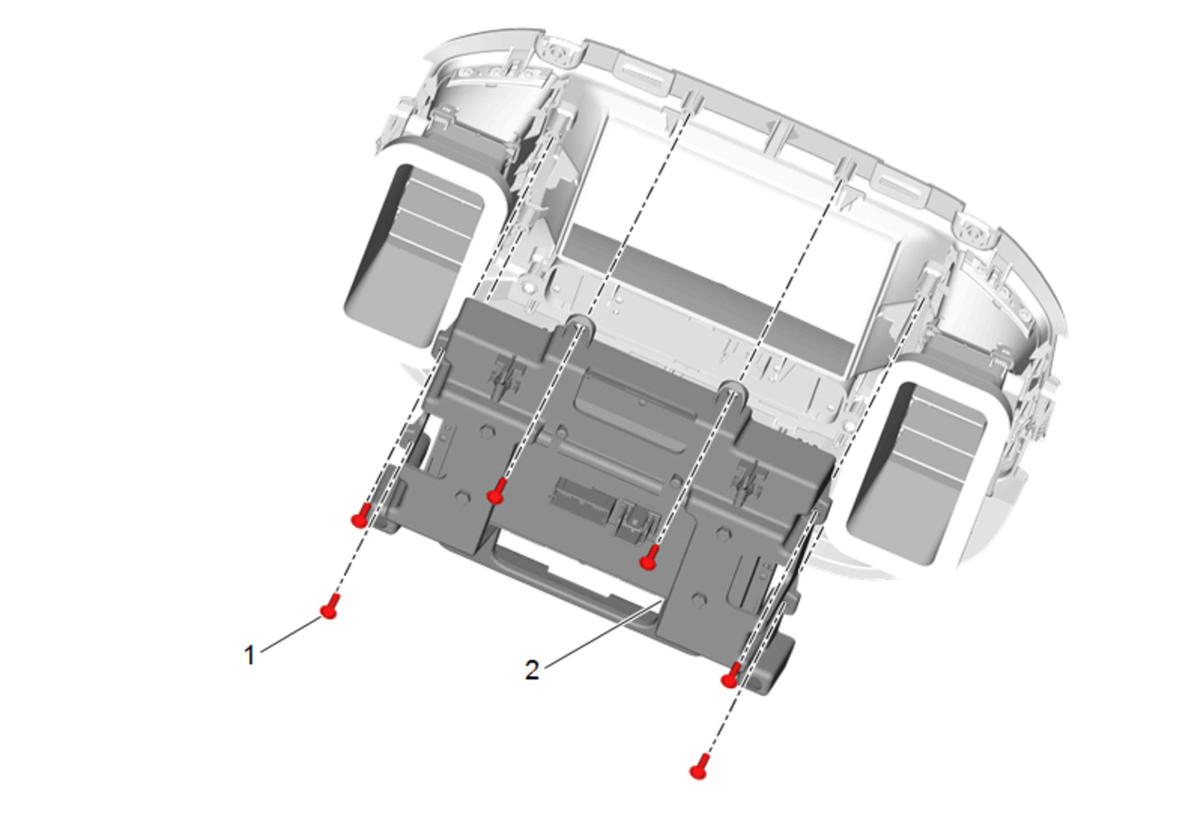

  3. GM5046657Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bracket(2) - Install

  4. Radio Control Bolt(1)@Radio Control Bracket - Install and tighten[6x]1.5N.m (13 lb in)
  5. Connect the electrical connectors.

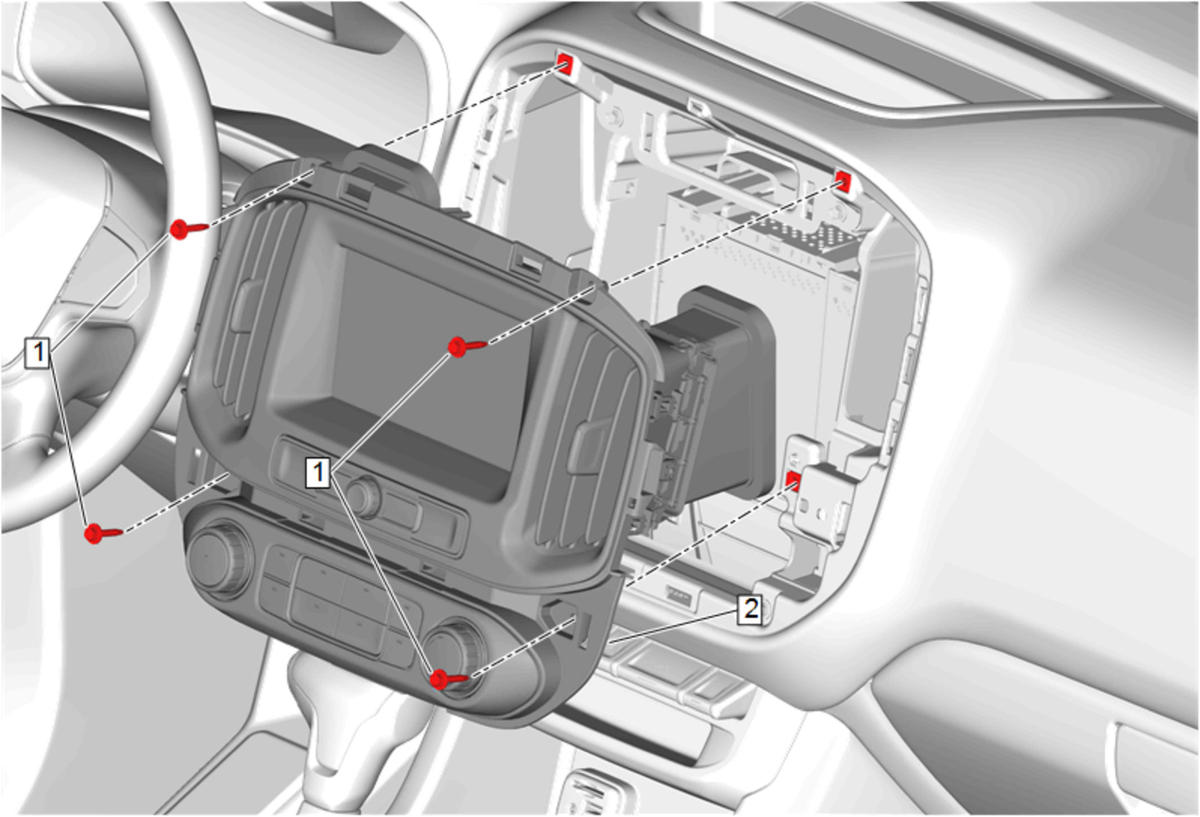

  6. GM5046602Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate(2) - Install

  7. Radio Control Bolt(1)@Instrument Panel Radio Front Trim Plate - Install and tighten[4x]2.5N.m (22 lb in)

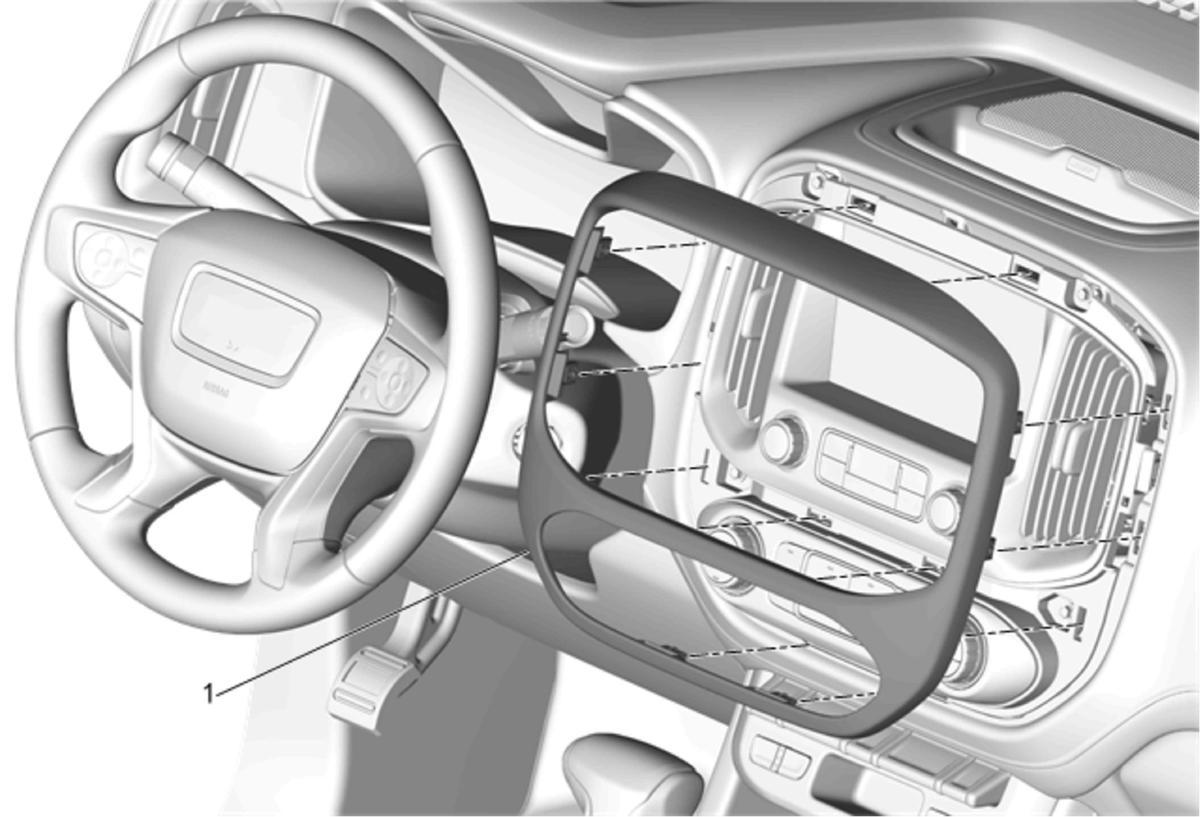

  8. GM3685203Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Center Trim Plate(1) - Install - Instrument Panel Accessory Center Trim Plate Replacement
