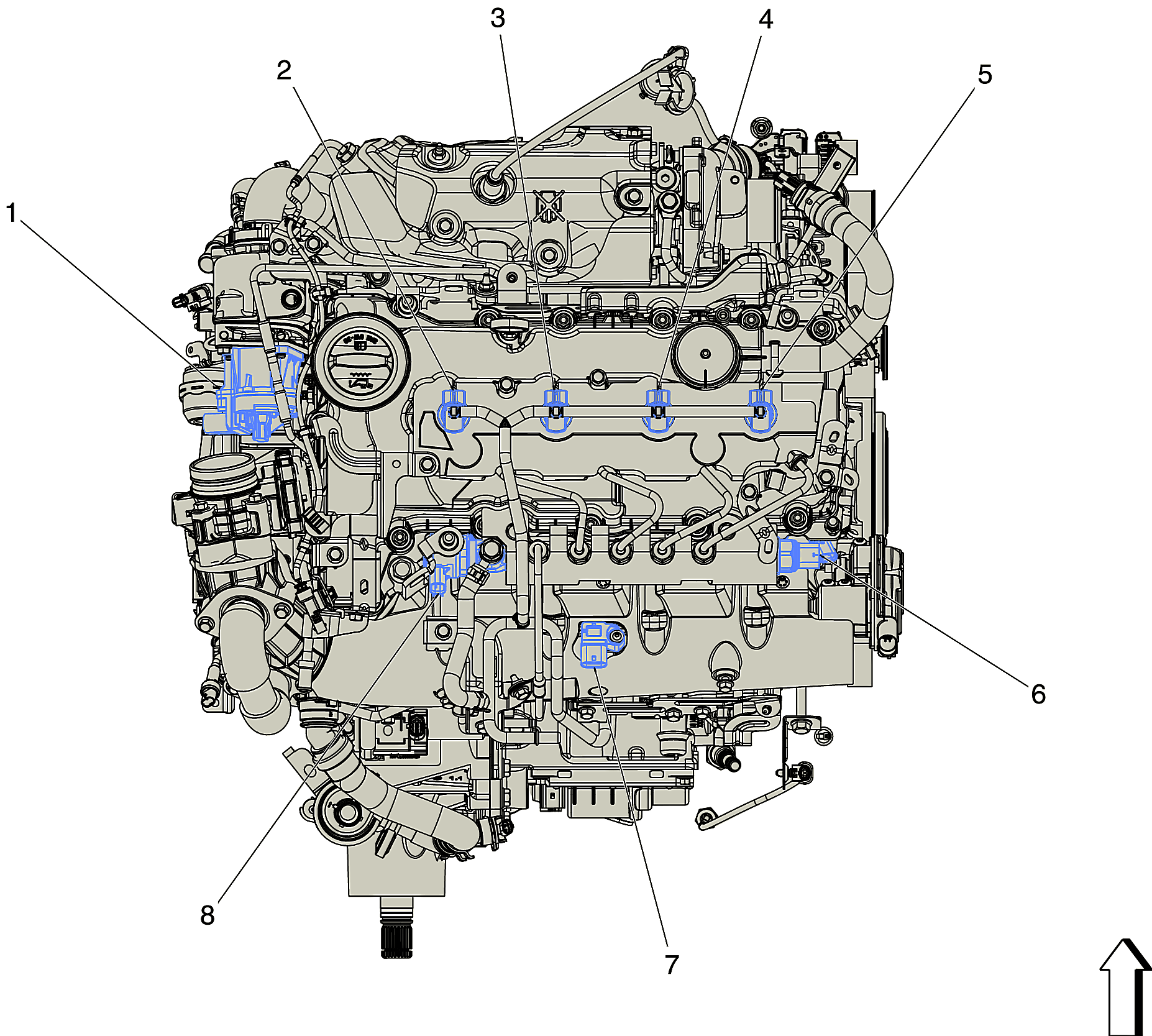

Top Of The Engine (LH7)
Top Of The Engine (LH7)
| Items |
|---|
| 1. Q14 Exhaust Gas Recirculation Valve (LH7) Q14 Exhaust Gas Recirculation Valve (LH7) |
| 2. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LH7) |
| 3. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LH7) |
| 4. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LH7) |
| 5. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LH7) |
| 6. B47B Fuel Rail Pressure Sensor (LH7) B47B Fuel Rail Pressure Sensor (LH7) |
| 7. B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor (LH7/LYX) |
| 8. Q18B Fuel Pressure Regulator 2 (LH7) Q18B Fuel Pressure Regulator 2 (LH7) |
