Charge Air Cooler Replacement

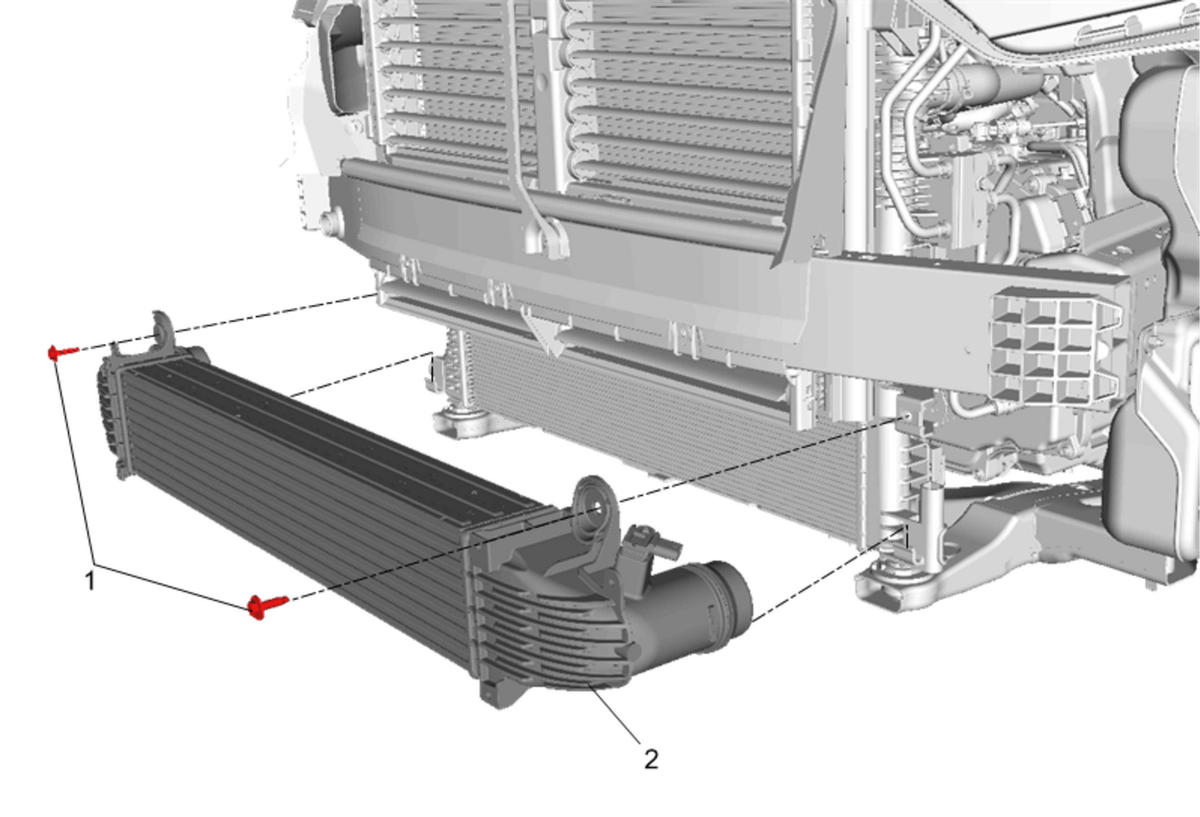

Fig 1: Charge Air Cooler
GM4597334Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Radiator Air Lower Baffle Replacement (LH7 LTG LYX)
  2. Disconnect Charge Air Cooler Outlet Air Tube@Charge Air Cooler - Charge Air Cooler Outlet Air Tube Replacement
  3. Disconnect Charge Air Cooler Inlet Air Tube@Charge Air Cooler - Charge Air Cooler Inlet Air Tube Replacement
  4. Disconnect the electrical connector.
1 Charge Air Cooler Bolt[2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Charge Air Cooler
