Fuel Level Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

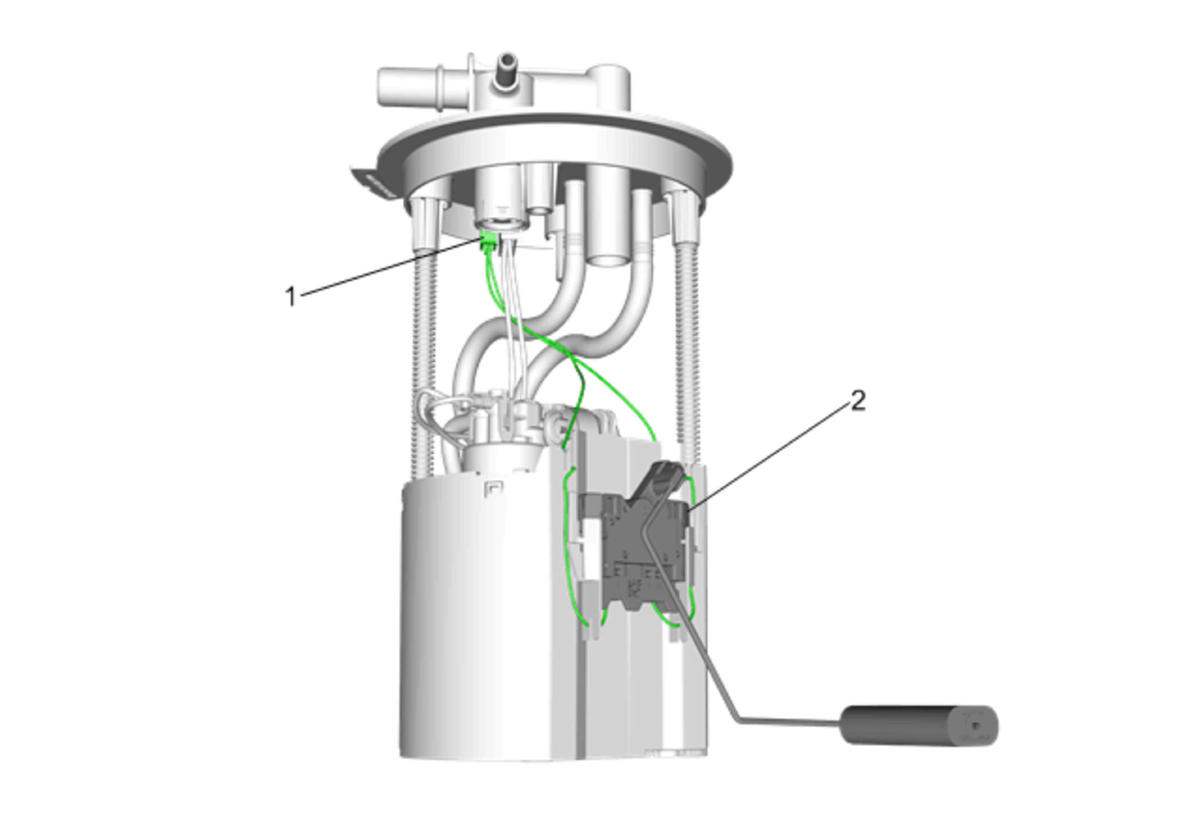

Callout	Component Name
Preliminary Procedure Fuel Tank Fuel Pump Module Replacement Replace the fuel filter. Fuel Filter Replacement
1	Fuel Level Sensor Electrical Connector
2	Fuel Level Sensor Procedure Push the plastic tabs inward and simultaneously pull upward.

Callout

Component Name

Preliminary Procedure

Fuel Level Sensor Electrical Connector

Fuel Level Sensor
Procedure
Push the plastic tabs inward and simultaneously pull upward.
