Installation Procedure

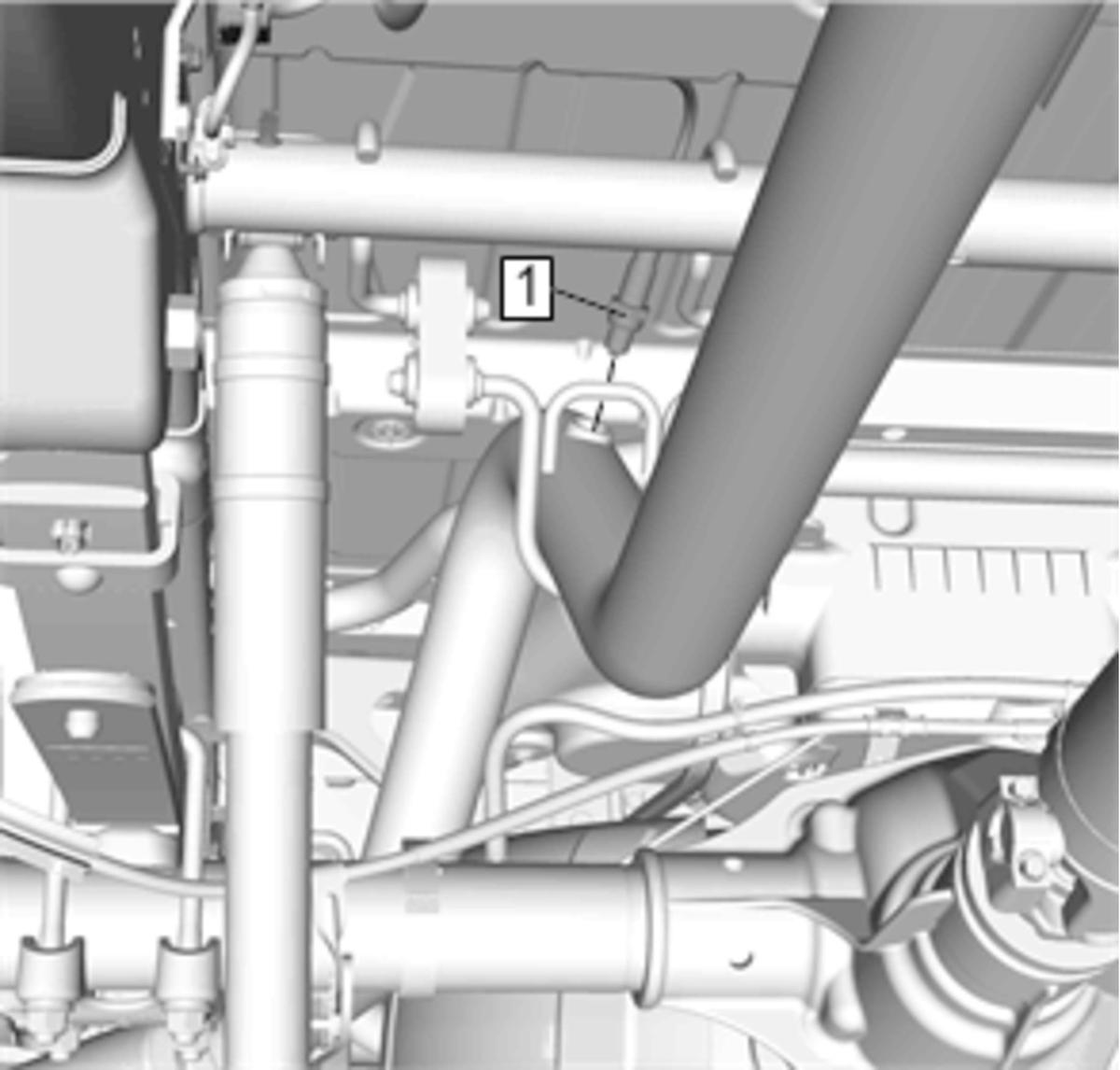

  1. GM4177072Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Exhaust Particulate Sensor (1) - Install and tighten50 N.m (37 lb ft)

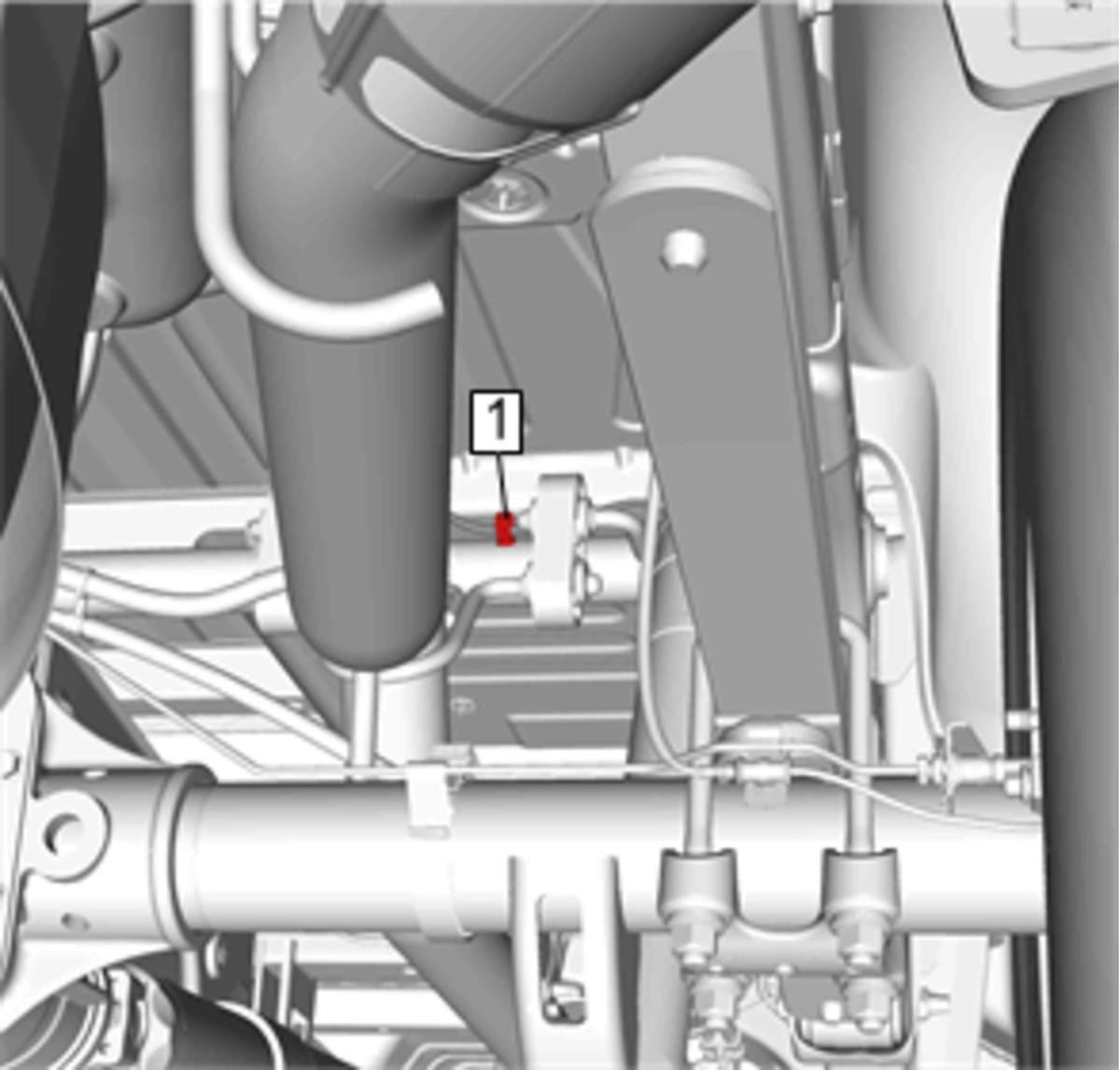

  2. GM4177054Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

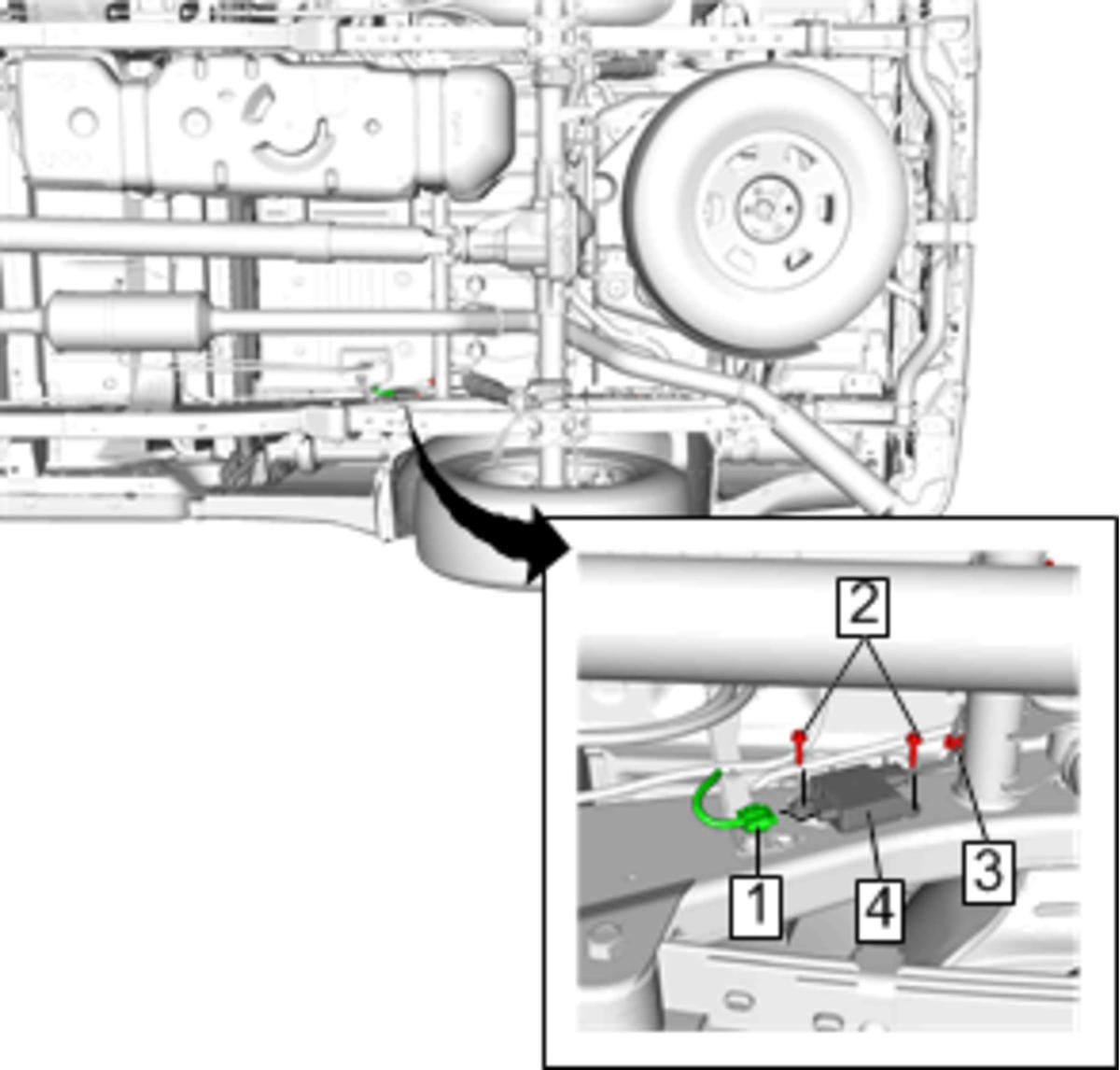

  3. GM4177030Courtesy of GENERAL MOTORS COMPANY

    Retainer (3) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Exhaust Particulate Sensor Fastener (2) - Install and tighten[2x]9 N.m (80 lb in)
  5. Electrical Connector (1)@Exhaust Particulate Sensor (4) - Connect
  6. Lower the vehicle. Lifting and Jacking the Vehicle
  7. Battery Negative Cable Disconnection and Connection - Connect
