Turn Signal Switch Bracket Replacement

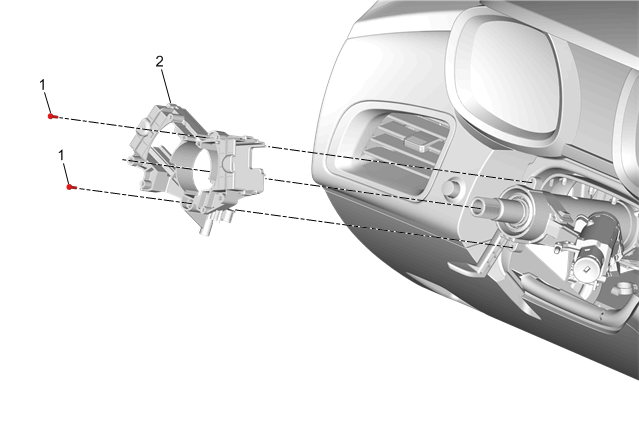

Fig 1: Turn Signal Switch Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Wheel Airbag Coil Replacement Turn Signal Multifunction Switch Replacement Windshield Wiper and Washer Switch Replacement Theft Deterrent Module Replacement
1	Turn Signal Switch Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)
2	Turn Signal Switch Bracket

Callout

Component Name

Preliminary Procedures

Turn Signal Switch Bracket Bolt (Qty: 2)

CAUTION:

Tighten
15 N.m (11 lb ft)

Turn Signal Switch Bracket
