Home >> GMC >> 2012 >> Canyon 4D Pickup, 2.9L Eng VIN 9 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Class 2 Serial Data

Class 2 Serial Data

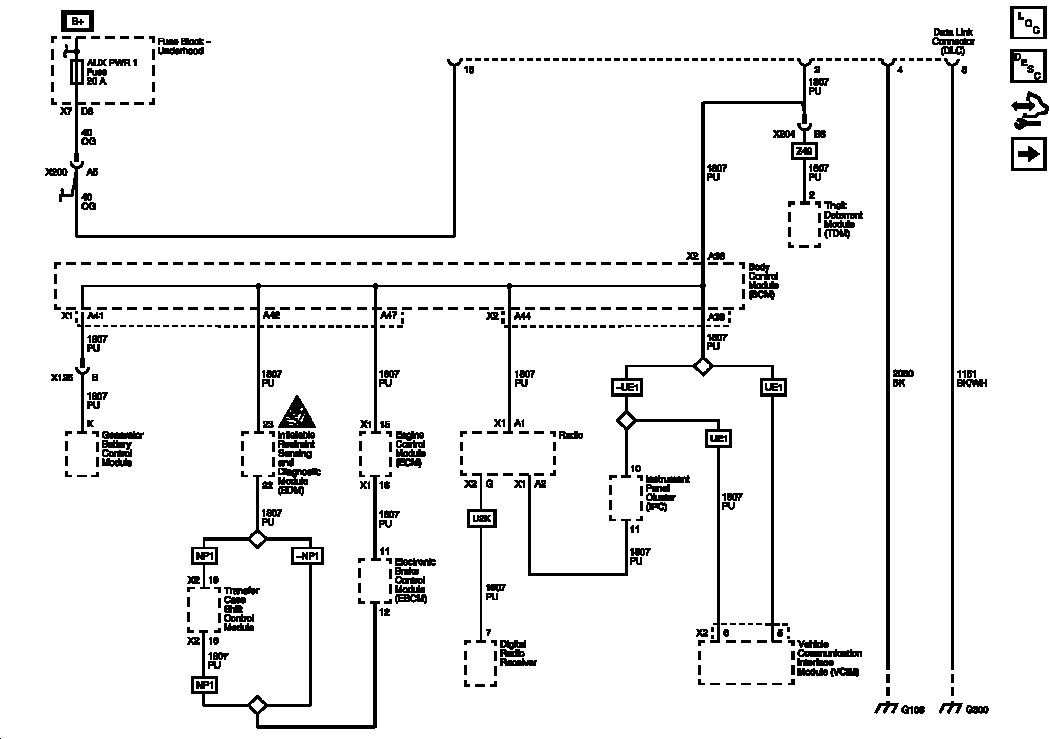

Fig 1: Class 2 Serial Data Wiring Schematic

GM2565504

Courtesy of GENERAL MOTORS COMPANY
