Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

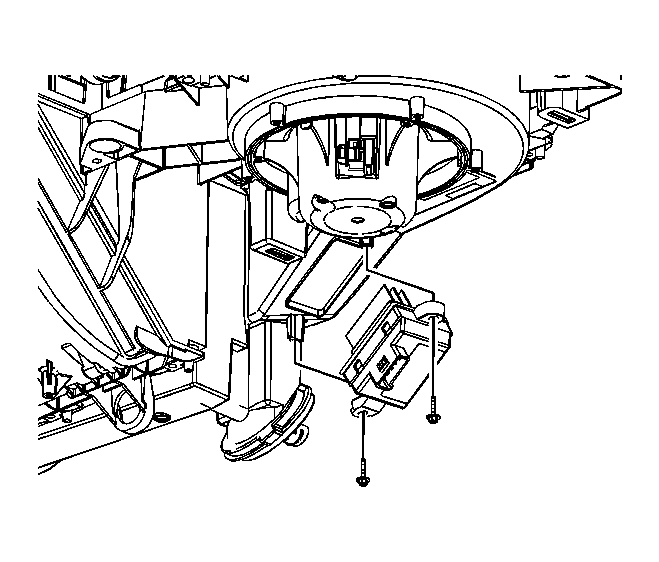

    Fig 1: Identifying Blower Motor Control Processor & Screws
    GM1582725Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor control processor.
    2. NOTE: Refer to Fastener Notice .
  2. Tighten the blower motor control processor screws.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

  3. Install the blower motor control processor wire harness connector.
  4. Install the right closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
