Removal Procedure

Fig 1: View Of Breather Tube At Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Cleaner Outlet Duct Retaining Wingnut

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating IAT Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

Fig 4: Air Intake Tube Routing

Courtesy of GENERAL MOTORS CORP.

Remove the air cleaner outlet duct from the throttle body.
Remove the intermediate steering shaft. Refer to Intermediate Steering Shaft Replacement - Lower in Steering Wheel and Column.

Fig 5: Locating Engine Coolant Temperature (ECT) Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Fig 6: View Of Radiator Inlet Hose Support Bracket & Nut

Courtesy of GENERAL MOTORS CORP.

Remove the radiator inlet hose support bracket and nut.
Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Disconnect the exhaust pipe from the exhaust manifold. Refer to Exhaust Manifold Pipe Replacement .
Lower vehicle.
Remove the front tire to gain access to the rear exhaust manifold bolts. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

Fig 7: View Of Wheelhouse Extension

Courtesy of GENERAL MOTORS CORP.

Remove the fender wheelhouse extension.
Working through the wheel house opening disconnect the spark plug wires from the spark plugs.
1. Rotate the spark plug wire boot one half turn.
2. Pull outward on the spark plug wire boot to release from the spark plug.

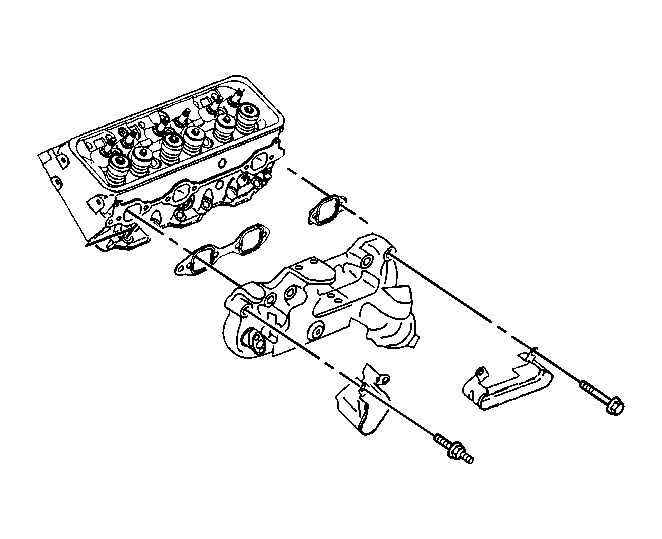

Fig 8: View Of Exhaust Manifold Bolts & Stud

Courtesy of GENERAL MOTORS CORP.

Remove the exhaust manifold bolts and the stud.
Lower the vehicle.
From under the hood remove the exhaust manifold and the spark plug wire shields from the engine.

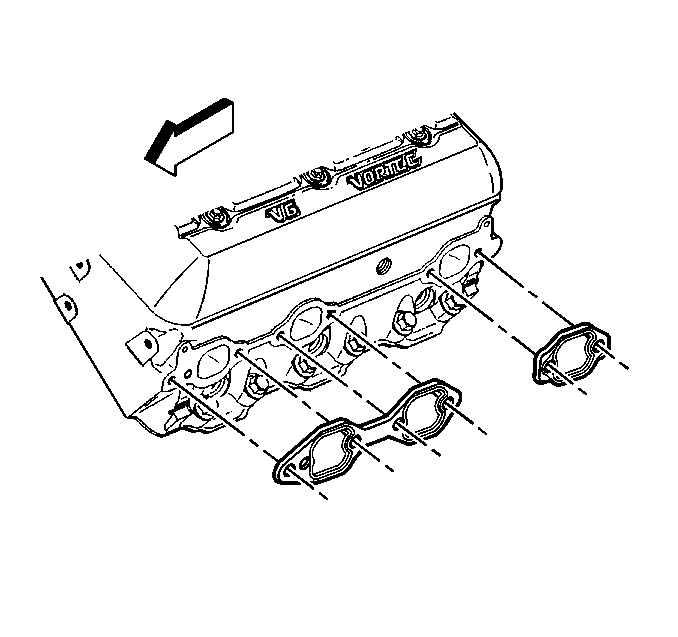

Fig 9: Removing Exhaust Manifold Gaskets

Courtesy of GENERAL MOTORS CORP.

Remove and discard the exhaust manifold gaskets.
Clean all gasket surfaces. Refer to Exhaust Manifold Cleaning and Inspection in Engine Mechanical - 4.3L Unit Repair.
