Installation Procedure

  1. Position the seat on the 3 seat mounting studs on the floor of the vehicle.

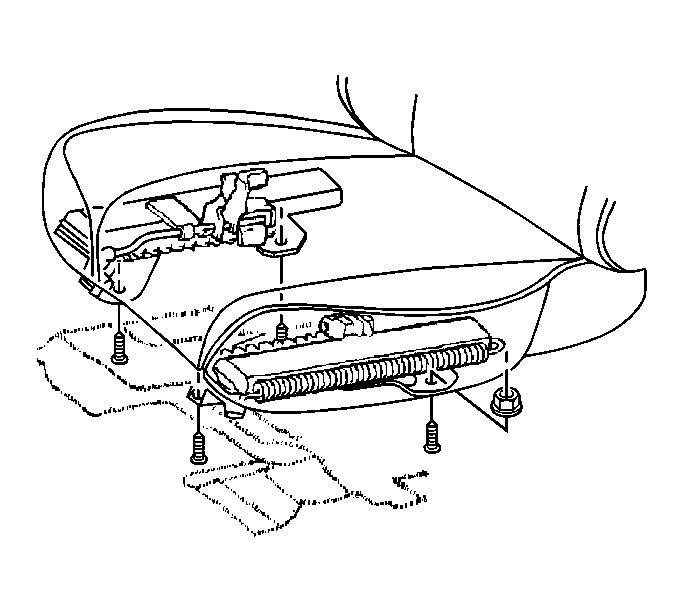

    2. Fig 1: View Of Bucket Seat Mounting
    GM298921Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat mounting bolt.

    Tighten:  Tighten the seat mounting bolt to 70 N.m (52 lb ft).

    Install the seat mounting nuts.

    Tighten:  Tighten the seat mounting nuts to 45 N.m (33 lb ft).

  3. Install the seat adjuster trim covers. Refer to Seat Adjuster Track Cover Replacement - Front (Power)  or Seat Adjuster Track Cover Replacement - Front (Manual) .
