Engine Coolant Temperature Sensor Connector End View

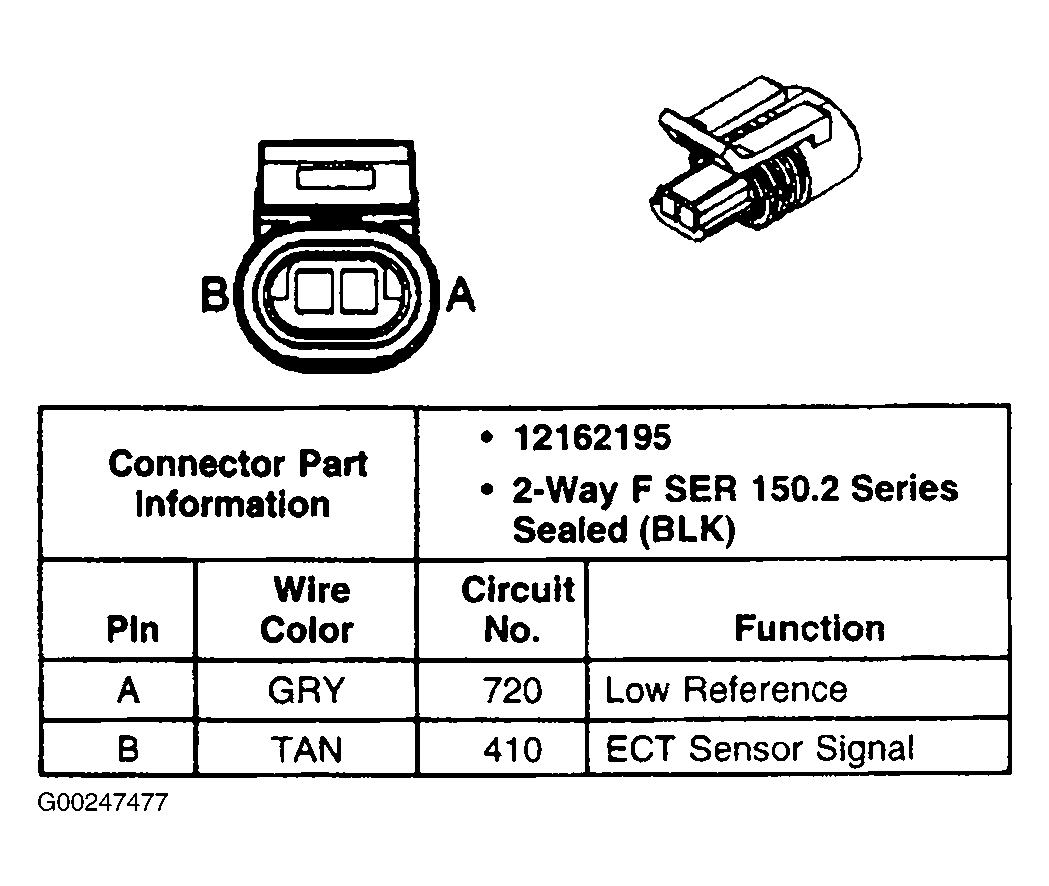

Fig 1: Engine Coolant Temperature Sensor Connector End View

G00247477

Courtesy of GENERAL MOTORS CORP.
