Disassembled Views

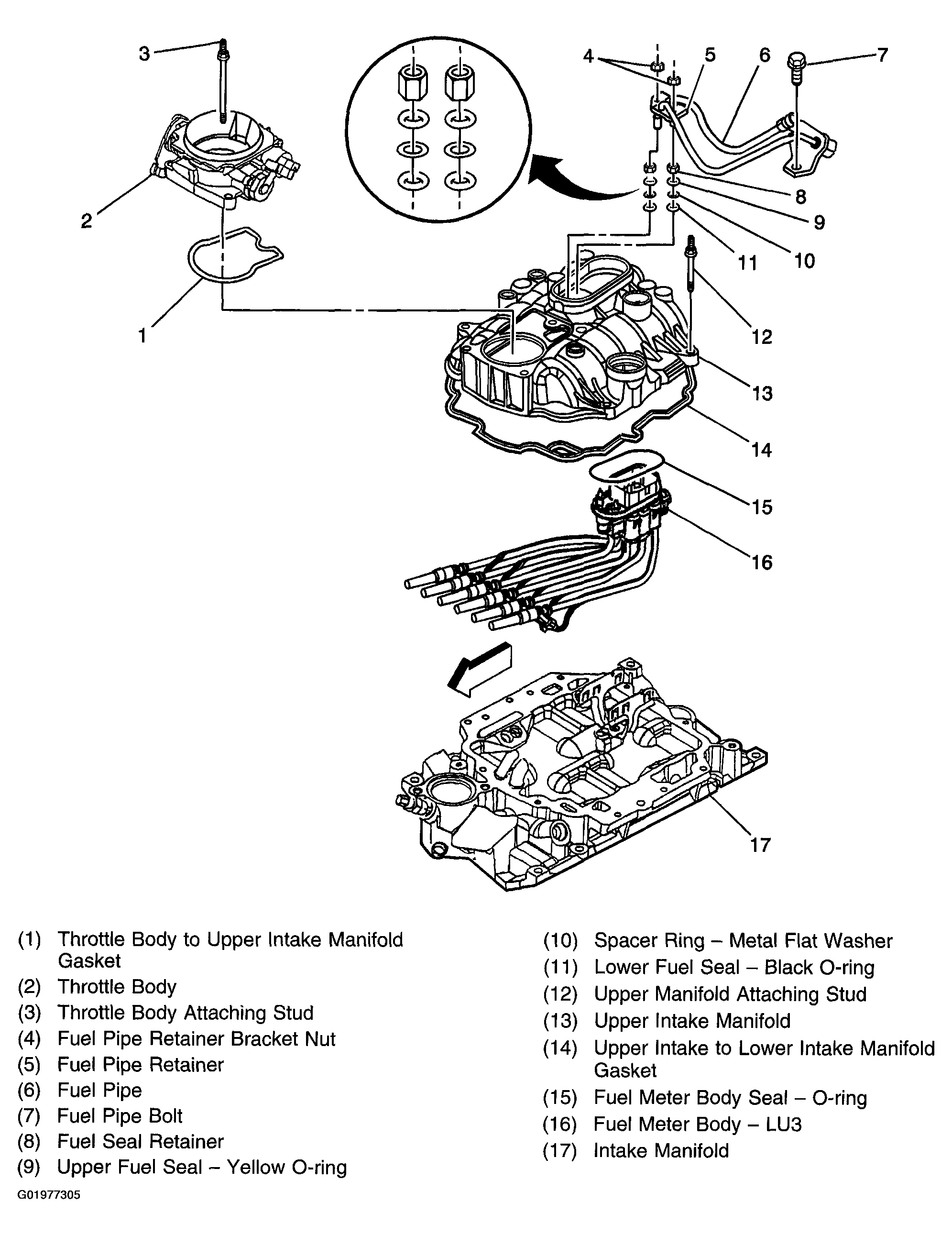

Fig 1: Upper and Lower Intake Manifold Disassembled View
G01977305Courtesy of GENERAL MOTORS CORP.

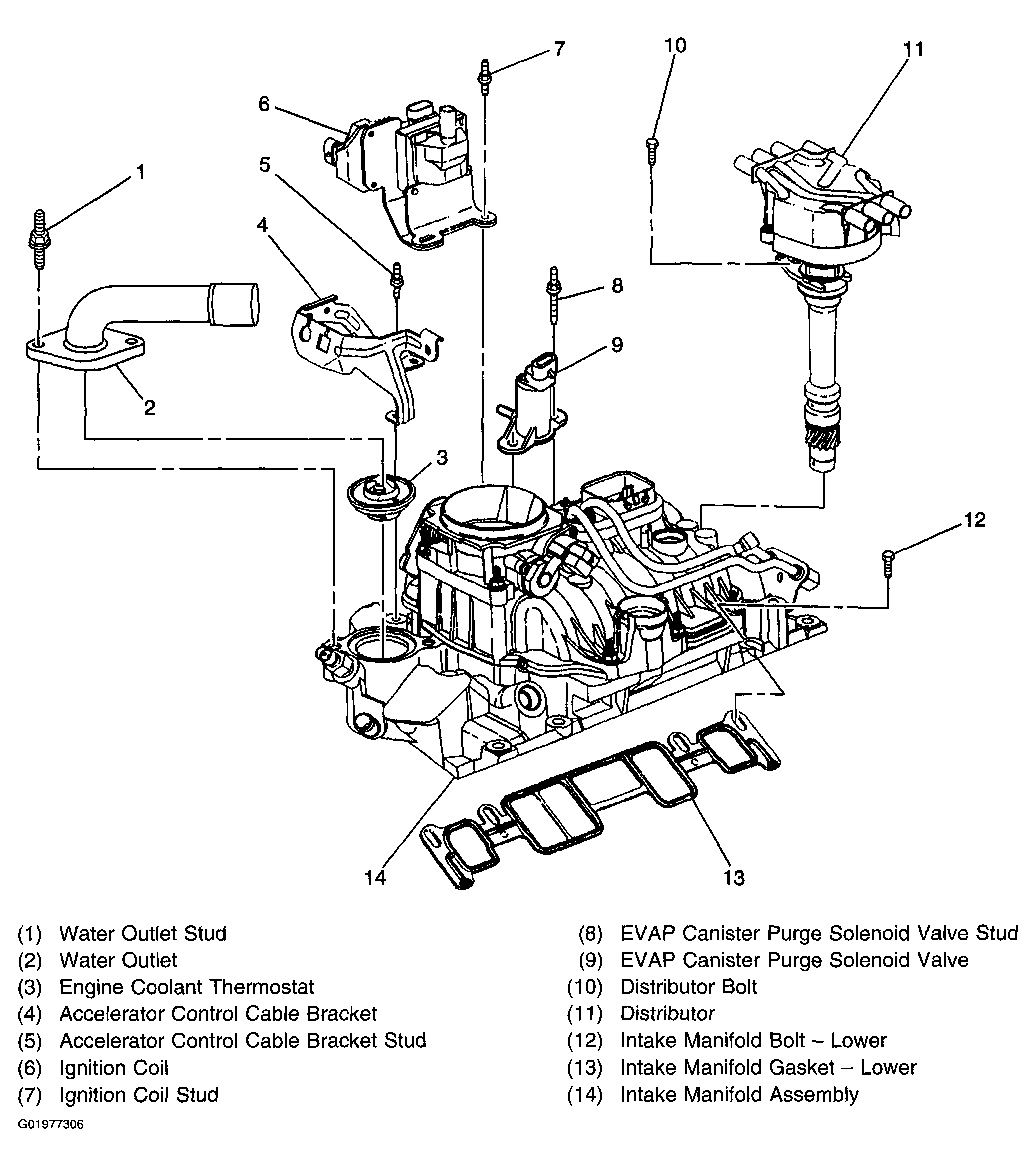

Fig 2: Upper Engine Disassembled View (1 Of 2)
G01977306Courtesy of GENERAL MOTORS CORP.

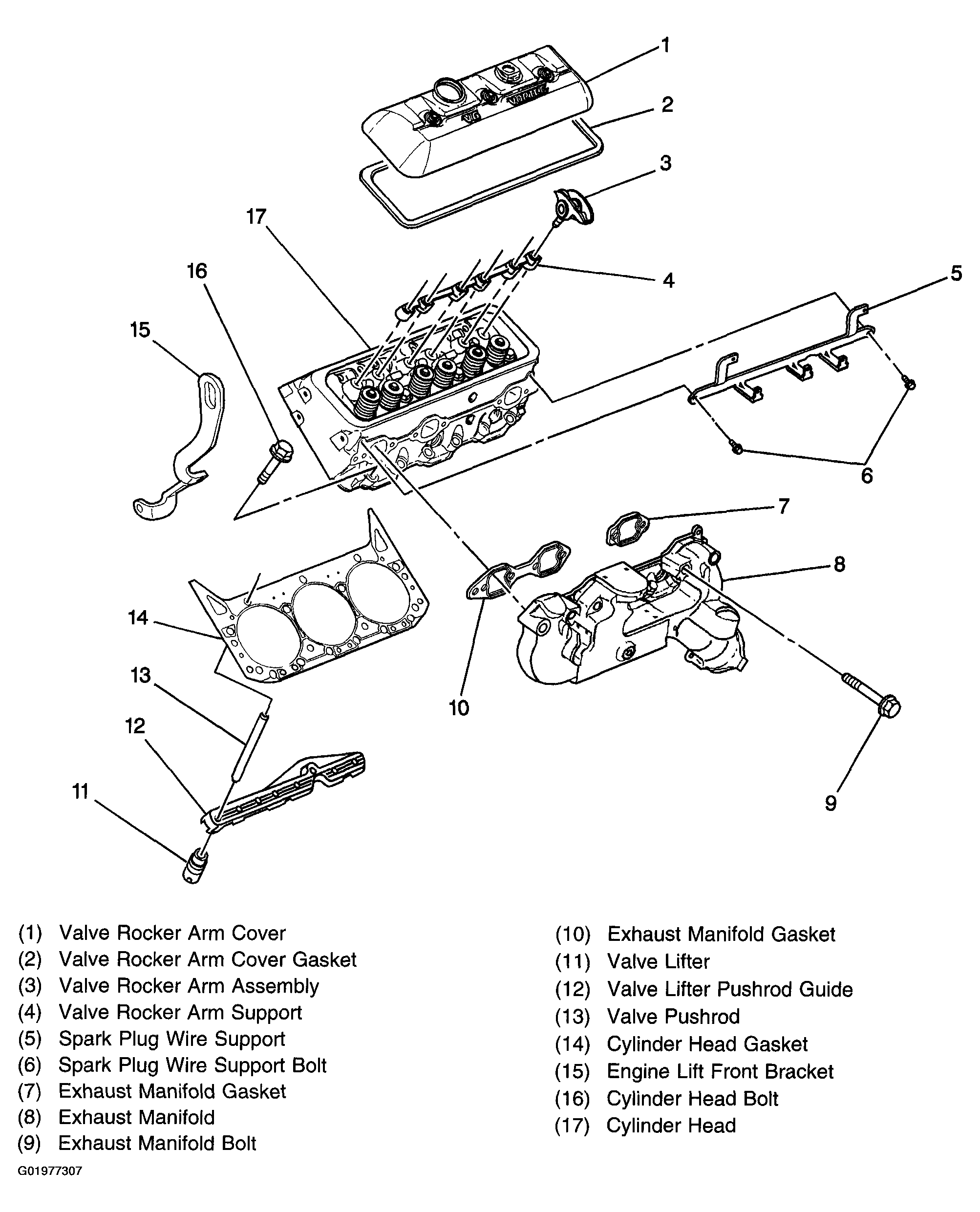

Fig 3: Upper Engine Disassembled View (2 Of 2)
G01977307Courtesy of GENERAL MOTORS CORP.

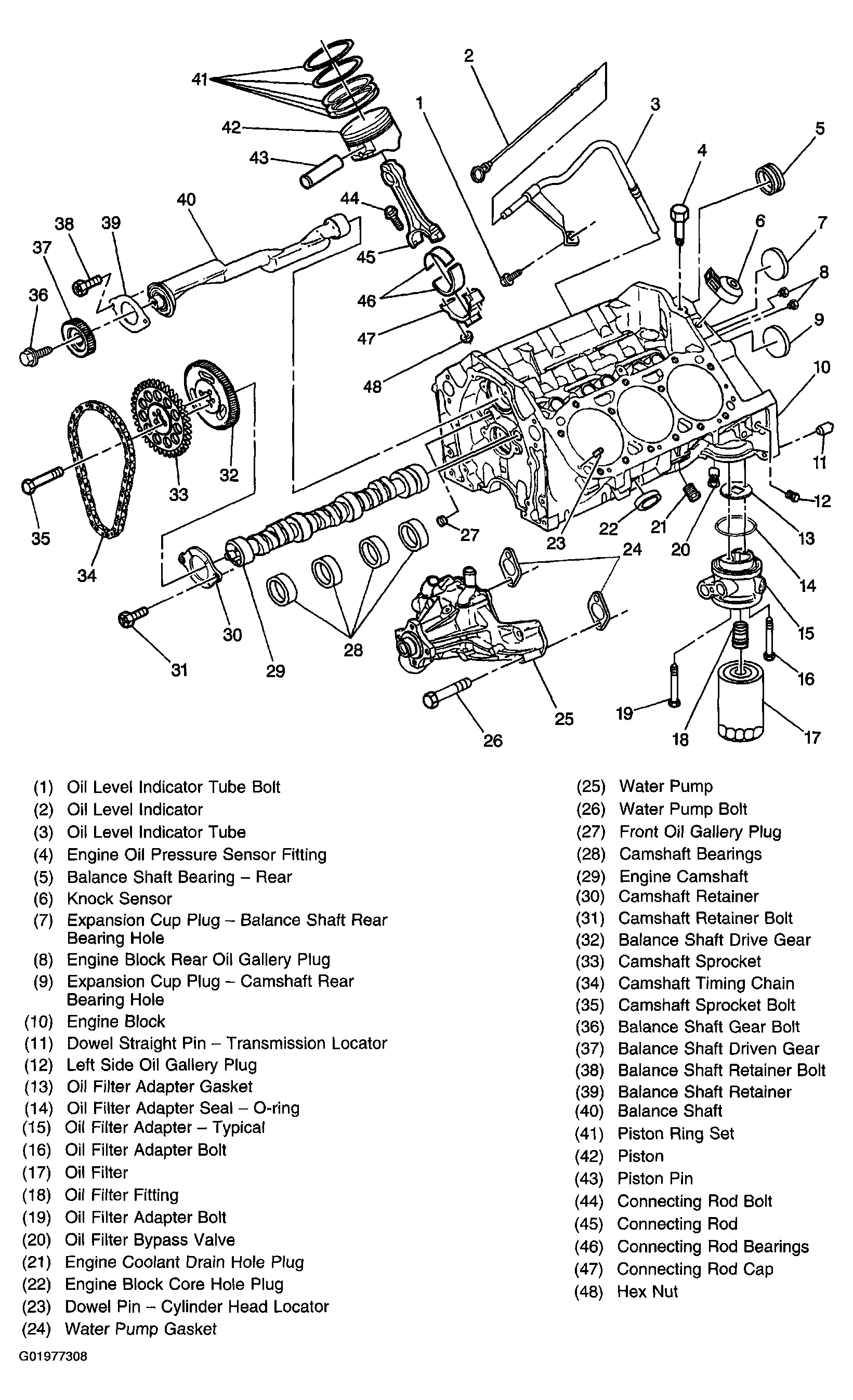

Fig 4: Upper Engine Disassembled View (1 Of 2)
G01977308Courtesy of GENERAL MOTORS CORP.

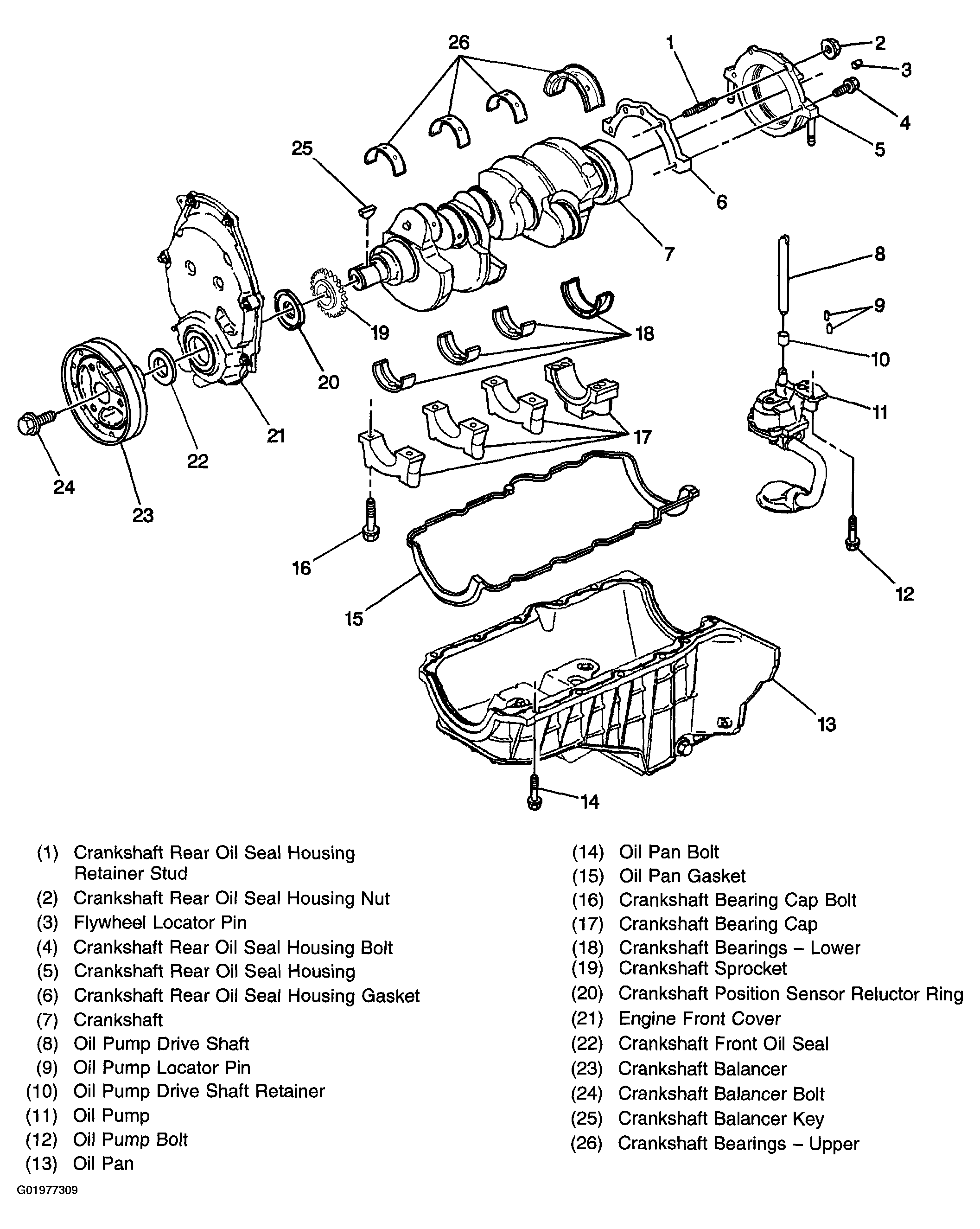

Fig 5: Upper Engine Disassembled View (2 Of 2)
G01977309Courtesy of GENERAL MOTORS CORP.
