Knee Bolster: Installation

Install the lap cooler hose. Connect the brake release cable. Snap the knee bolster into the instrument panel assembly. Install the knee bolster screws. See Fig 1 . Tighten the knee bolster screws to 18 INCH lbs. (2 N.m).

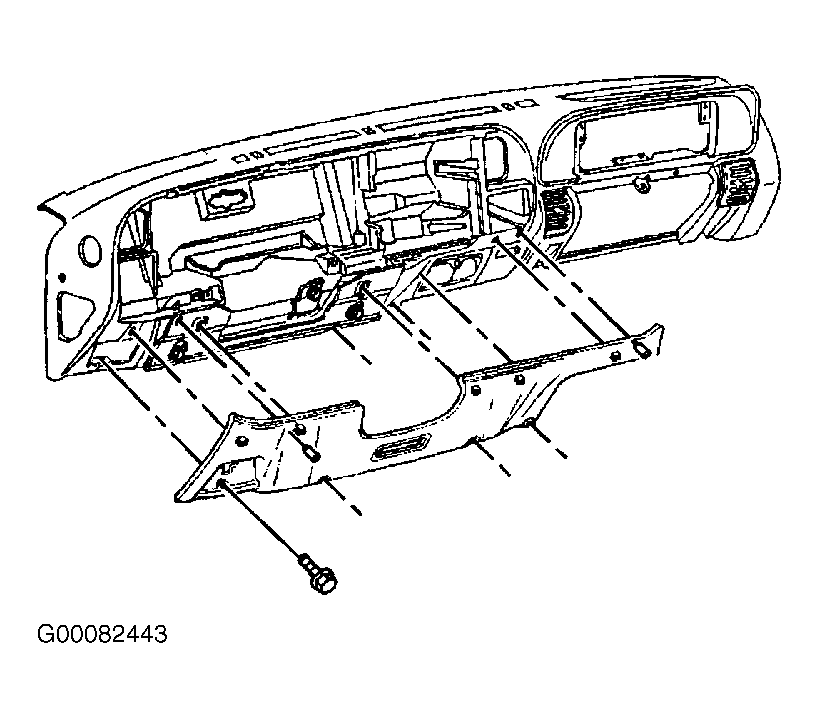

Fig 1: Removing & Installing Knee Bolster

Courtesy of GENERAL MOTORS CORP.
