Transfer Case Shift Control Module - C1 Connector End View (2 Of 2)

Fig 1: Transfer Case Shift Control Module - C1 Connector End View (2 Of 2)
G01668650Courtesy of GENERAL MOTORS CORP.

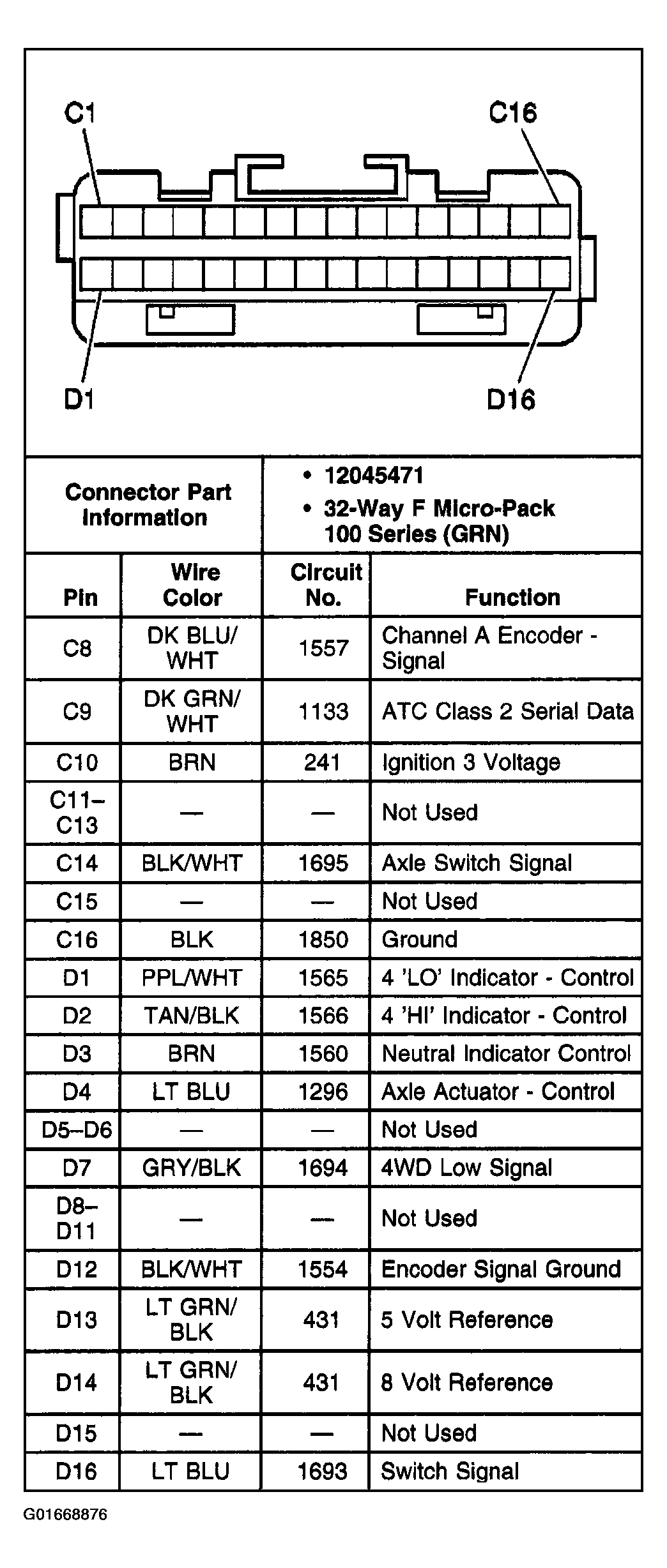

Fig 1: Transfer Case Shift Control Module - C1 Connector End View (2 Of 2)
G01668876Courtesy of GENERAL MOTORS CORP.
