A/C High Pressure Recirculation Switch Connector End View

Fig 1: A/C High Pressure Recirculation Switch Connector End View
G01666741Courtesy of GENERAL MOTORS CORP.

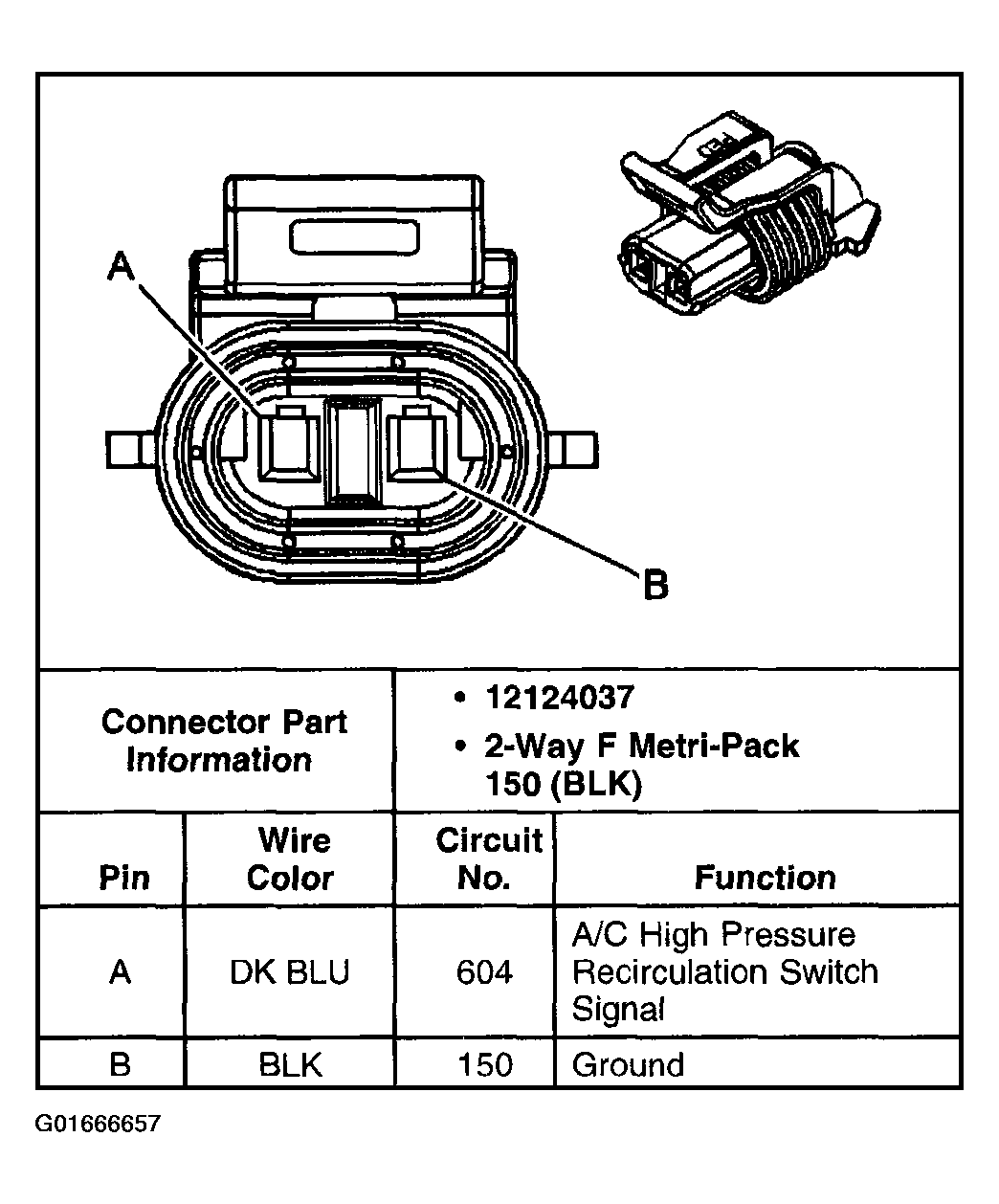

Fig 1: A/C High Pressure Recirculation Switch Connector End View
G01666657Courtesy of GENERAL MOTORS CORP.
