Connector Identification

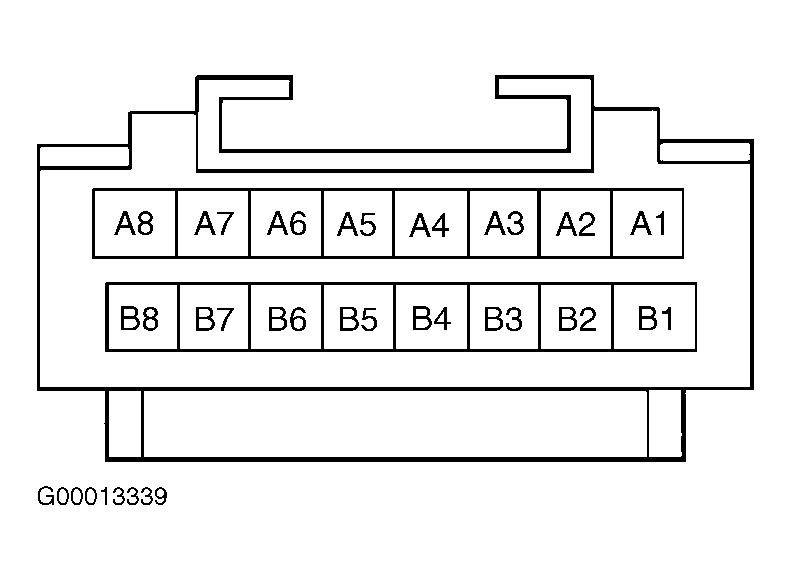

Fig 1: (Automatic) Transfer Case (ATC) Control Module Connector Connector End View (C1)

Courtesy of GENERAL MOTORS CORP.

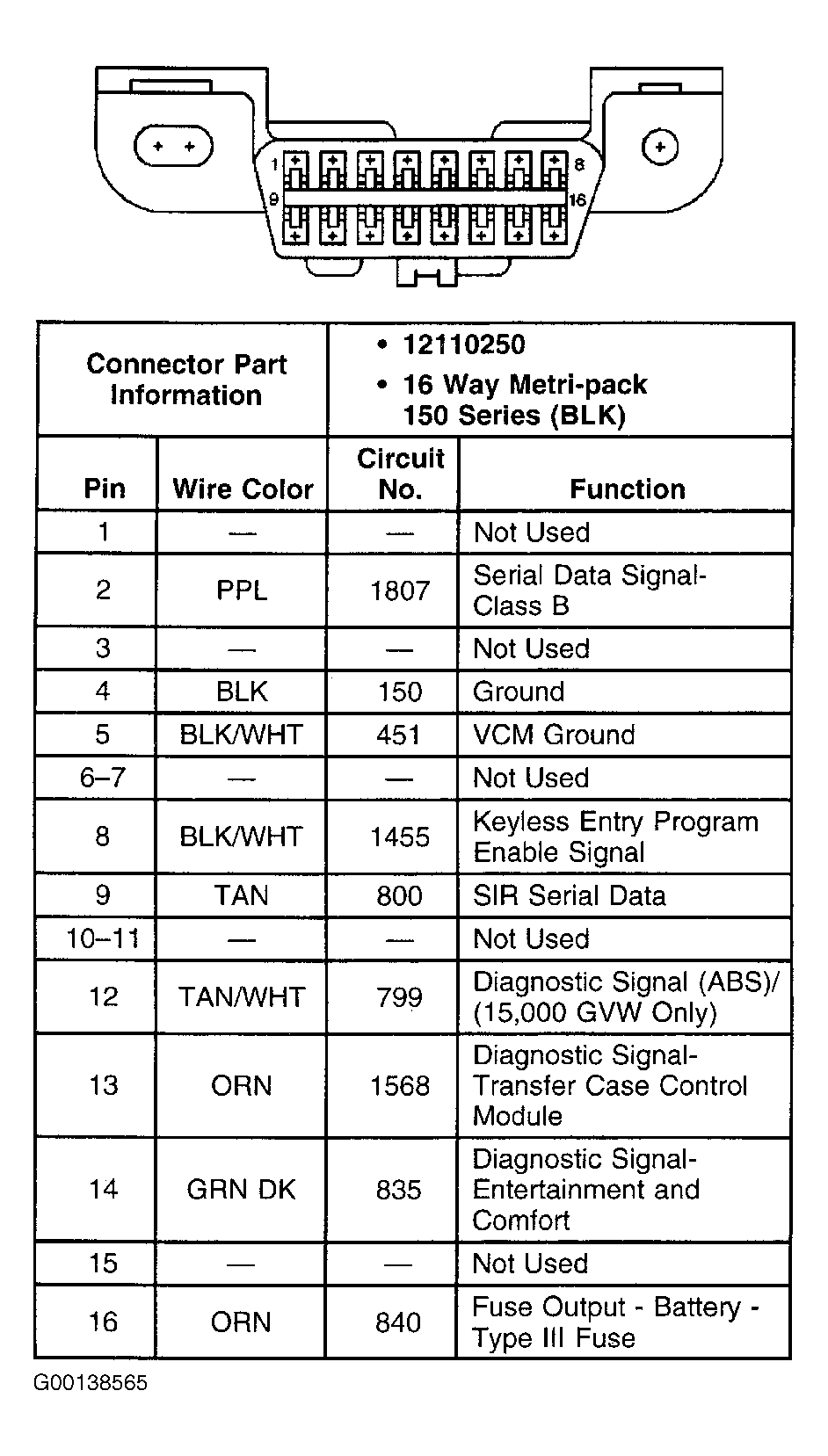

Fig 2: Data Link Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 3: Electronic Variable Orifice/Passlock™ Module Connector End View

Courtesy of GENERAL MOTORS CORP.

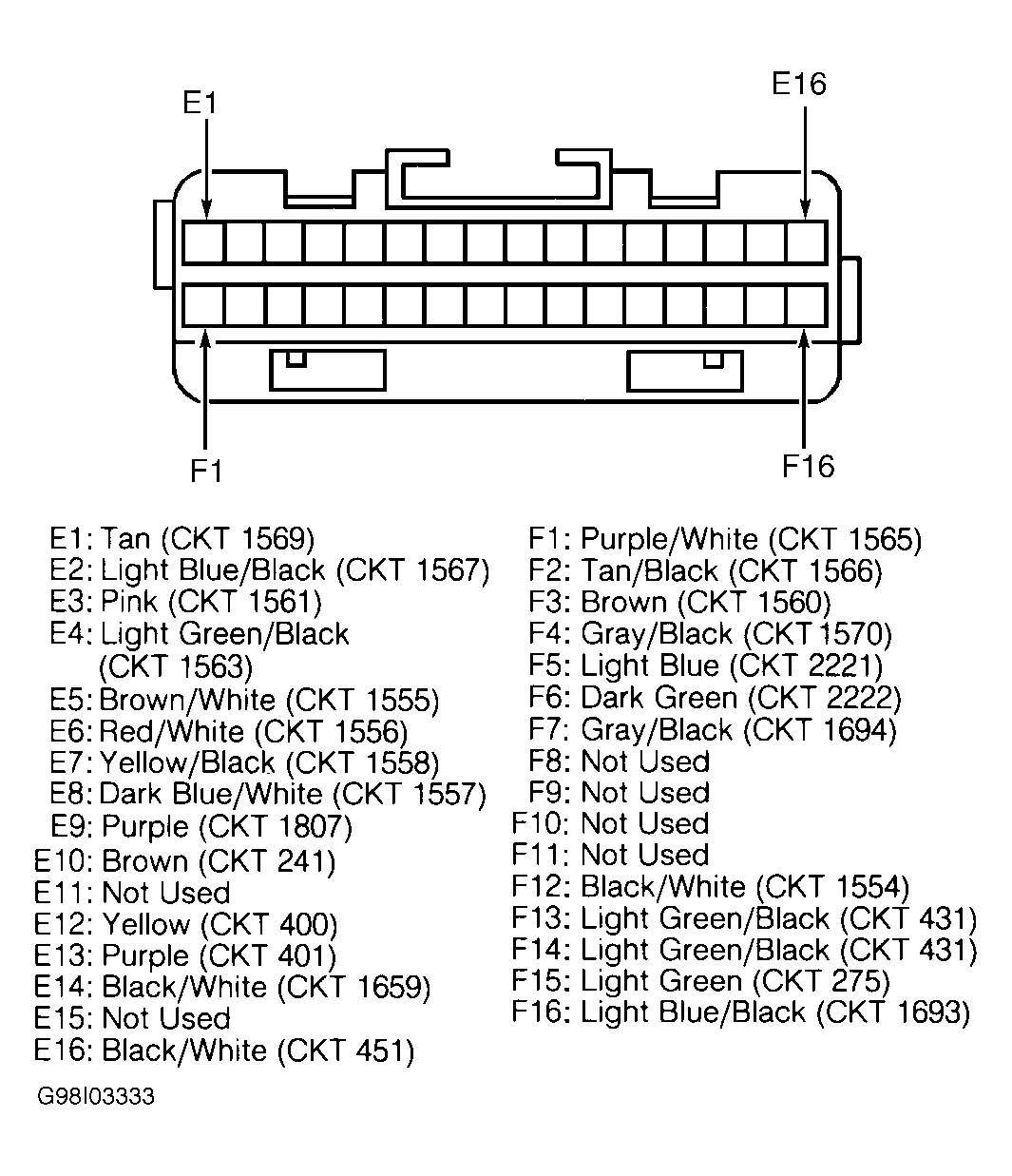

Fig 4: Powertrain Control Module Harness Connector End View (5.0L, 5.7L & 7.4L)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Powertrain Control Module Harness Connector End View (6.5L)

Courtesy of GENERAL MOTORS CORP.
