Connector Terminal Identification
>>
Headlamp Low Beam Bulb (Composite)
Headlamp Low Beam Bulb (Composite)

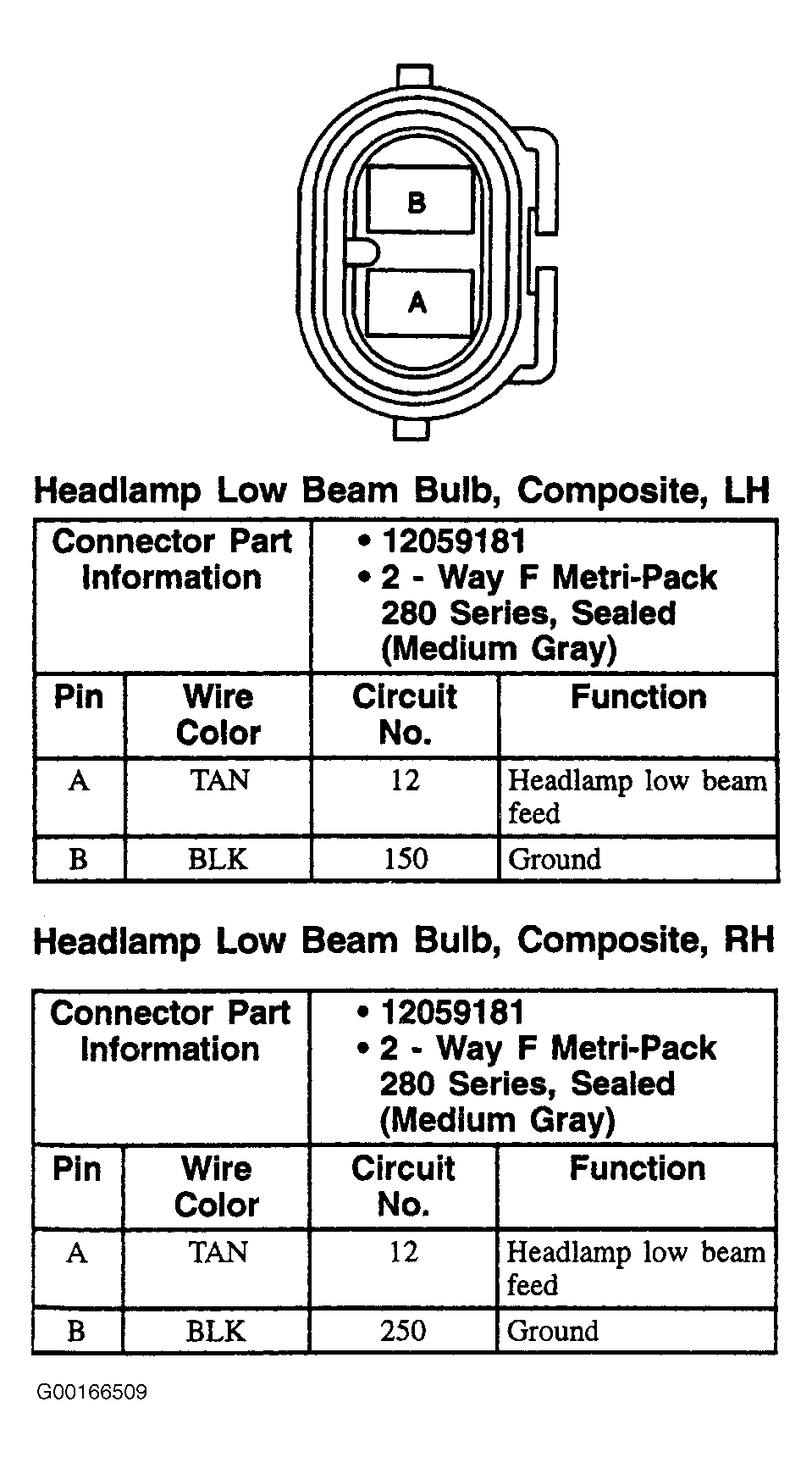

Fig 1: Headlamp Low Beam Bulb (Composite) - 2-Pin Connector (Medium Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
