C427 & C429

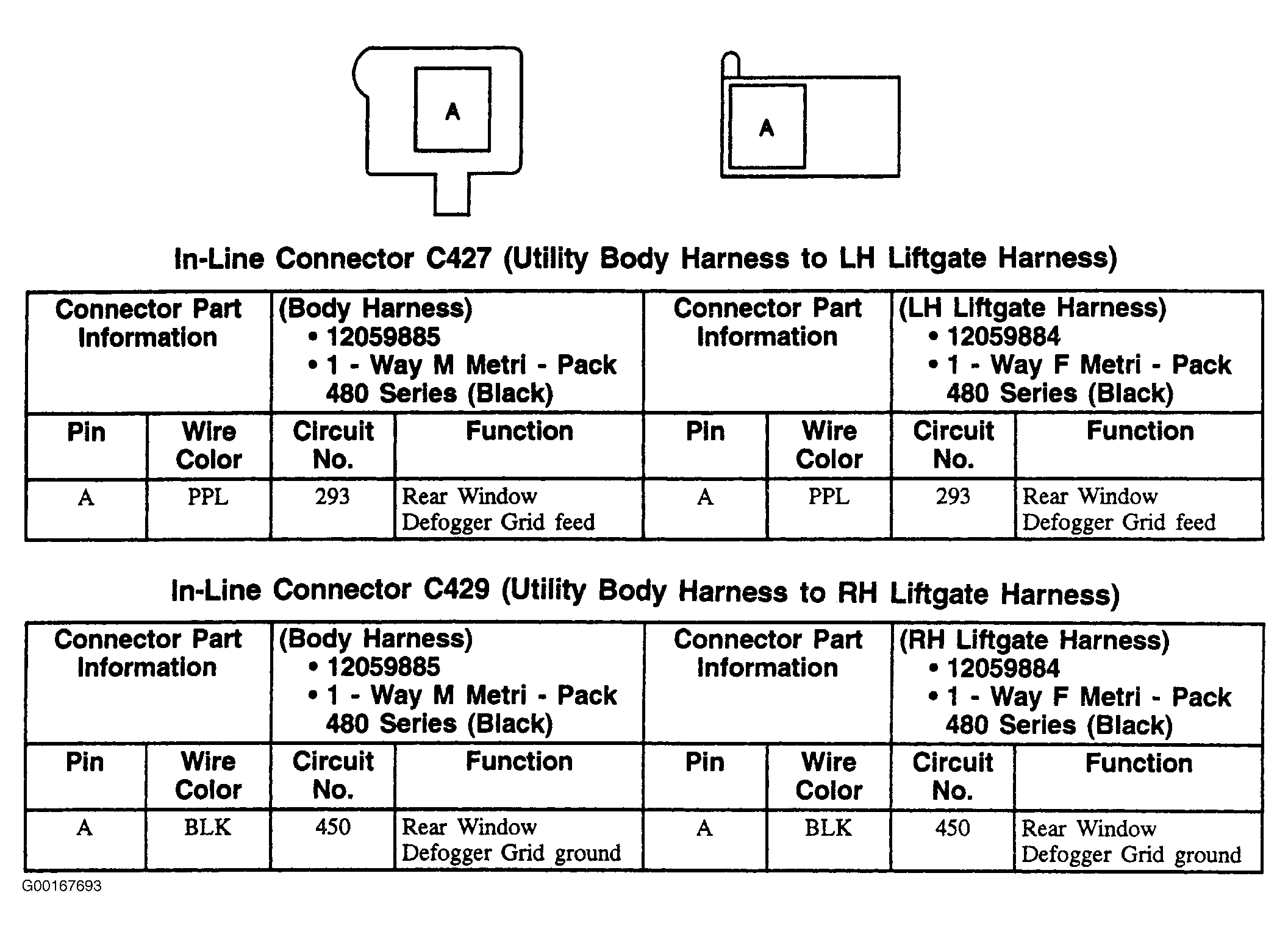

Fig 1: C427 & C429 - 1-Pin Connector, Black

G00167693

Courtesy of GENERAL MOTORS CORP.
