Wiring Diagrams

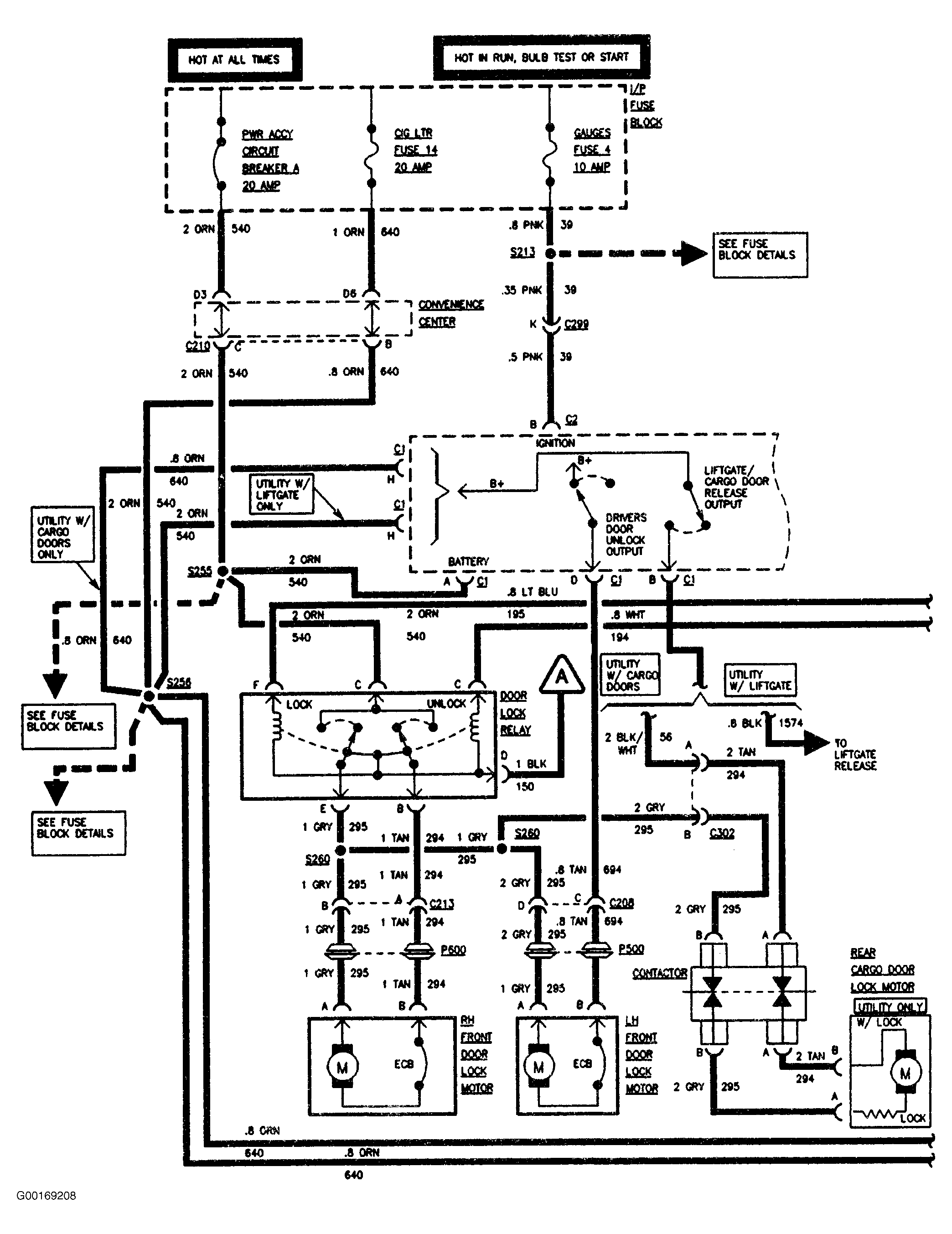

Fig 1: 2-Door Remote Keyless Entry Wiring Diagram (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

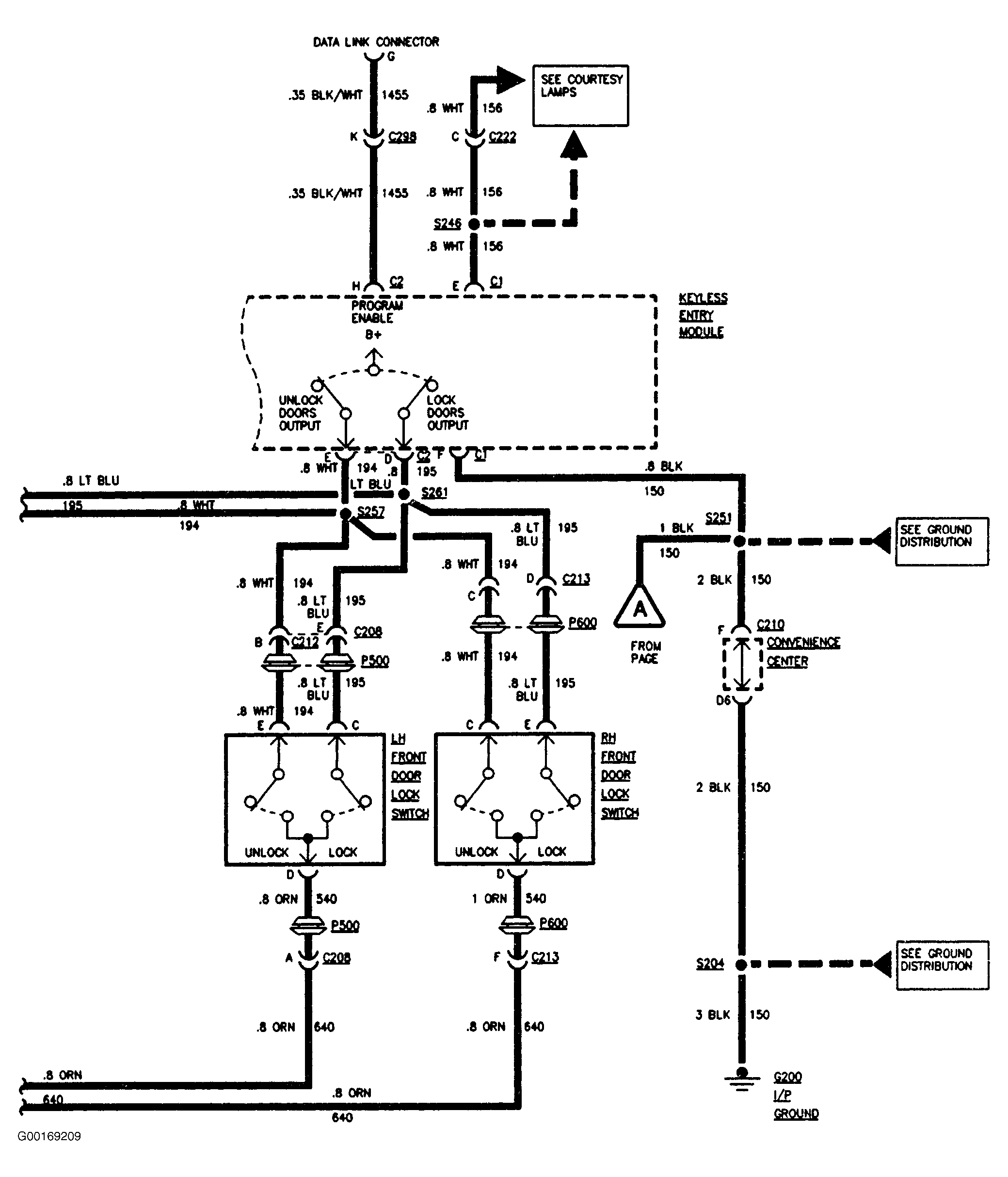

Fig 2: 2-Door Remote Keyless Entry Wiring Diagram (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

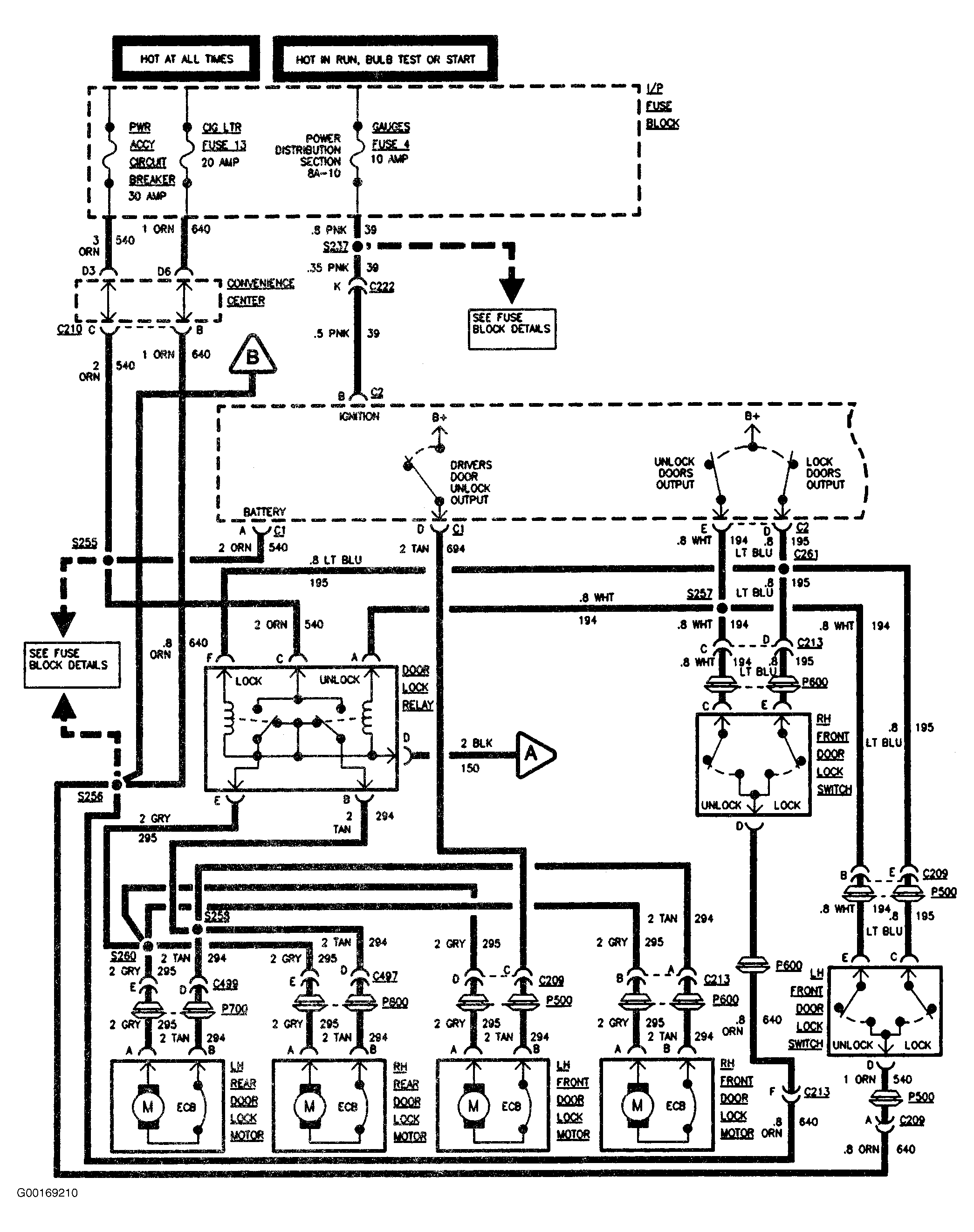

Fig 3: 4-Door Remote Keyless Entry Wiring Diagram (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

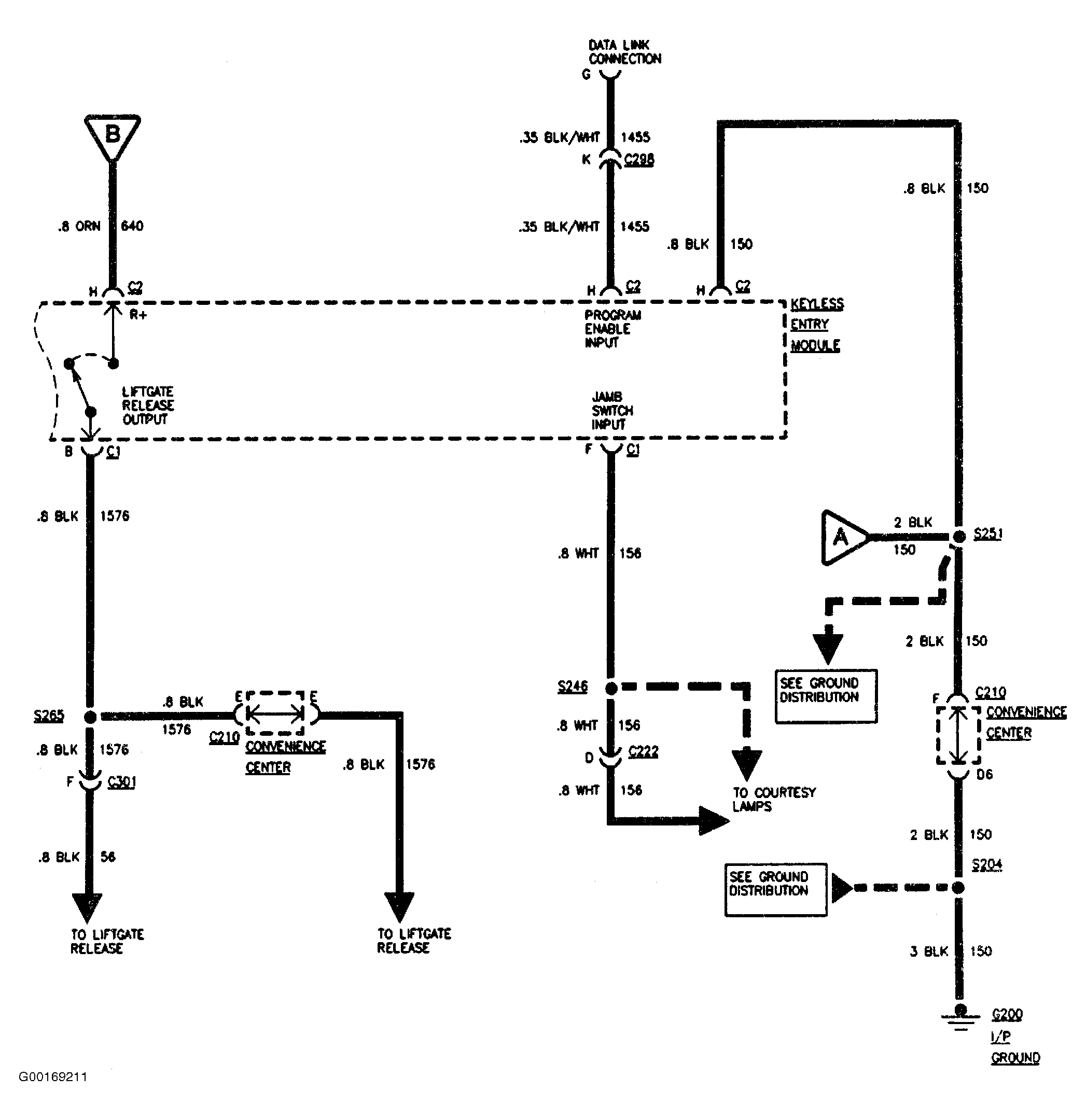

Fig 4: 4-Door Remote Keyless Entry Wiring Diagram (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
