Fuse Panel Identification

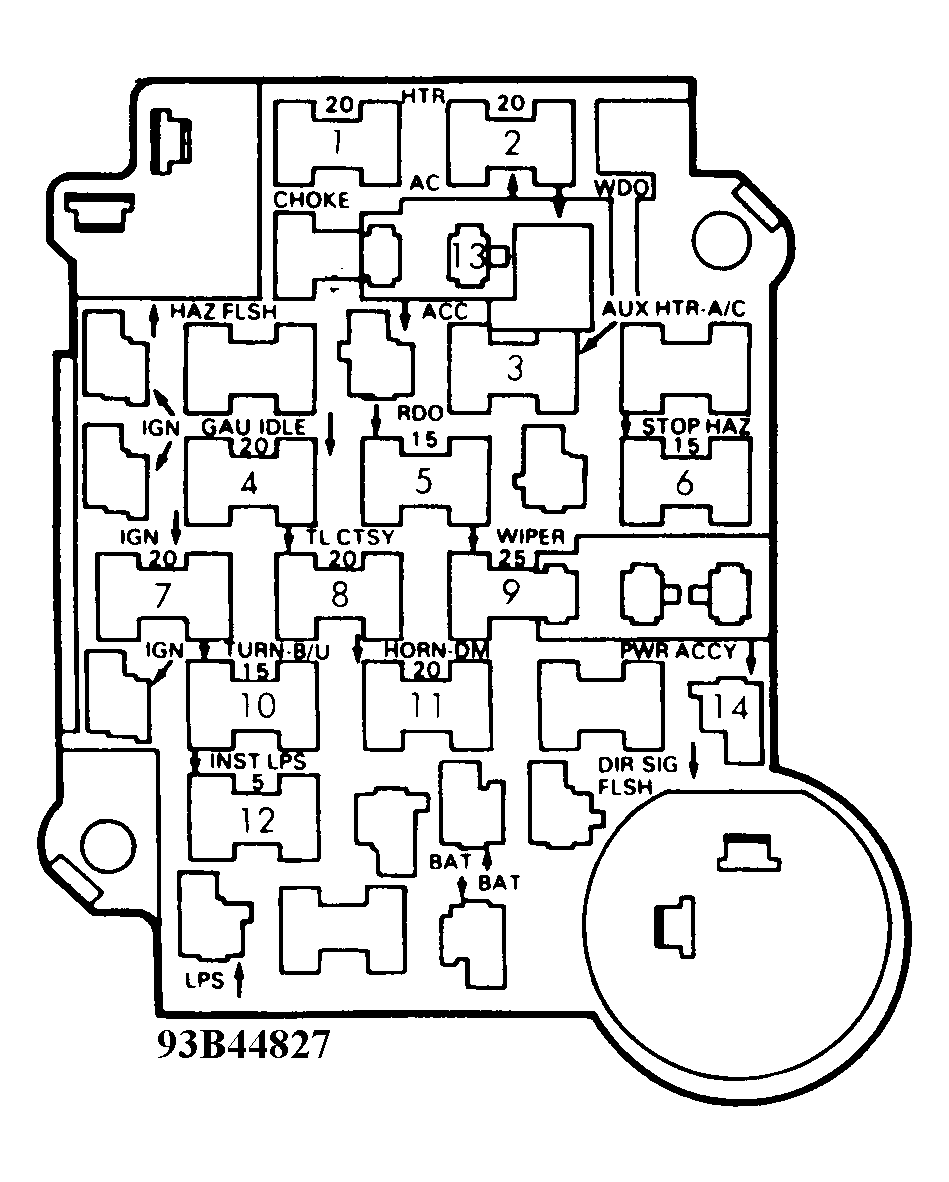

Fig 1: Fuse Panel Identification (1985-87)

G93B44827

Courtesy of GENERAL MOTORS CORP.
