OEM Ground Distribution: Grounds

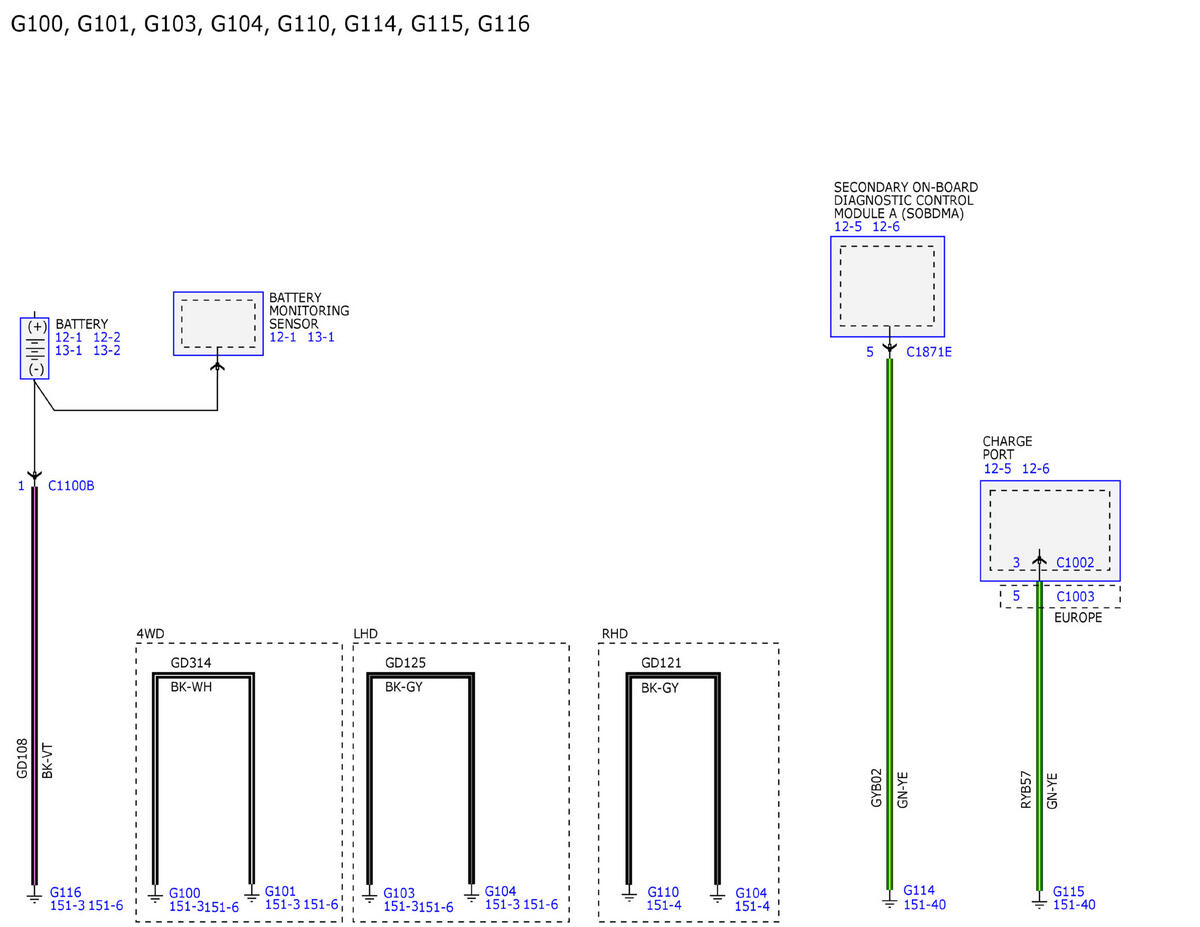

GFDWR254097Courtesy of FORD MOTOR COMPANY

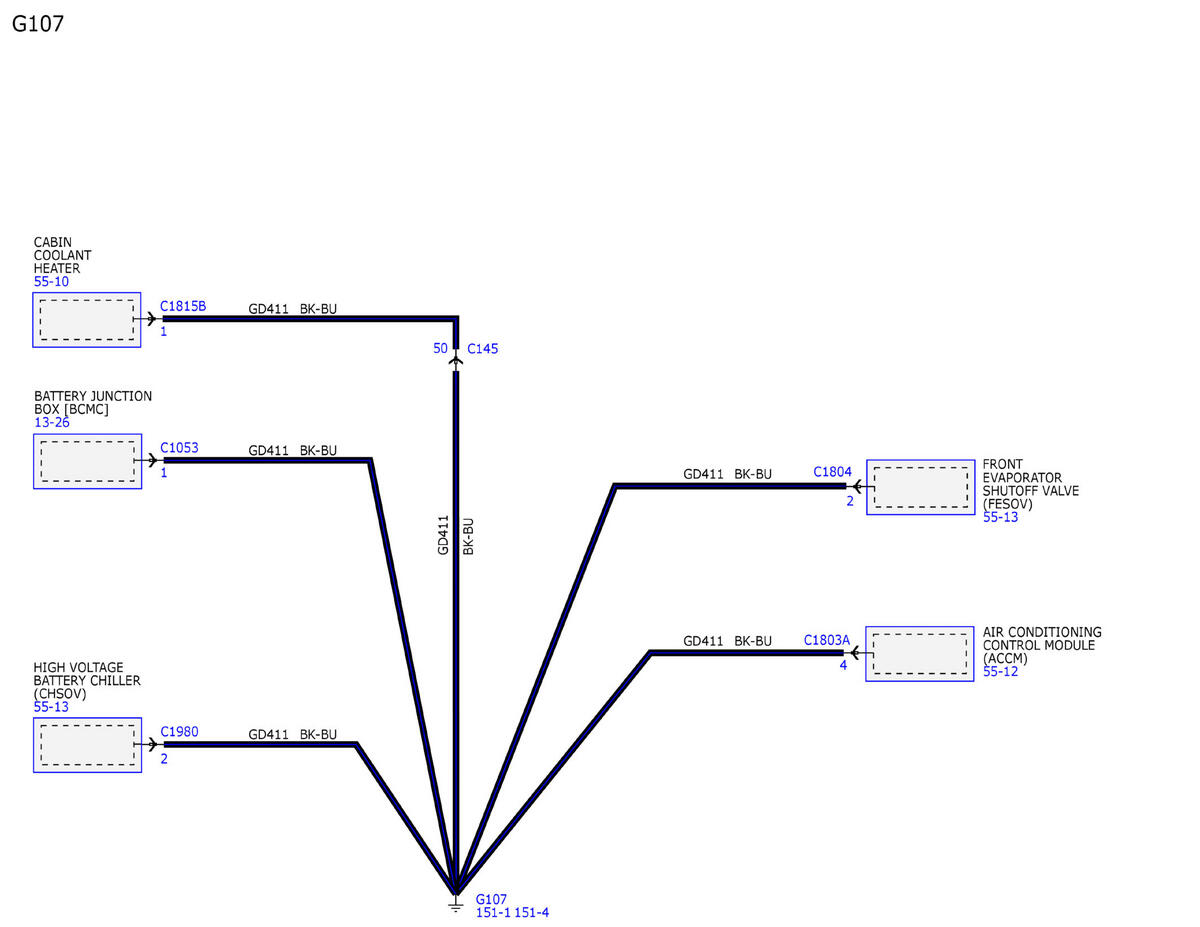

GFDWR254108Courtesy of FORD MOTOR COMPANY

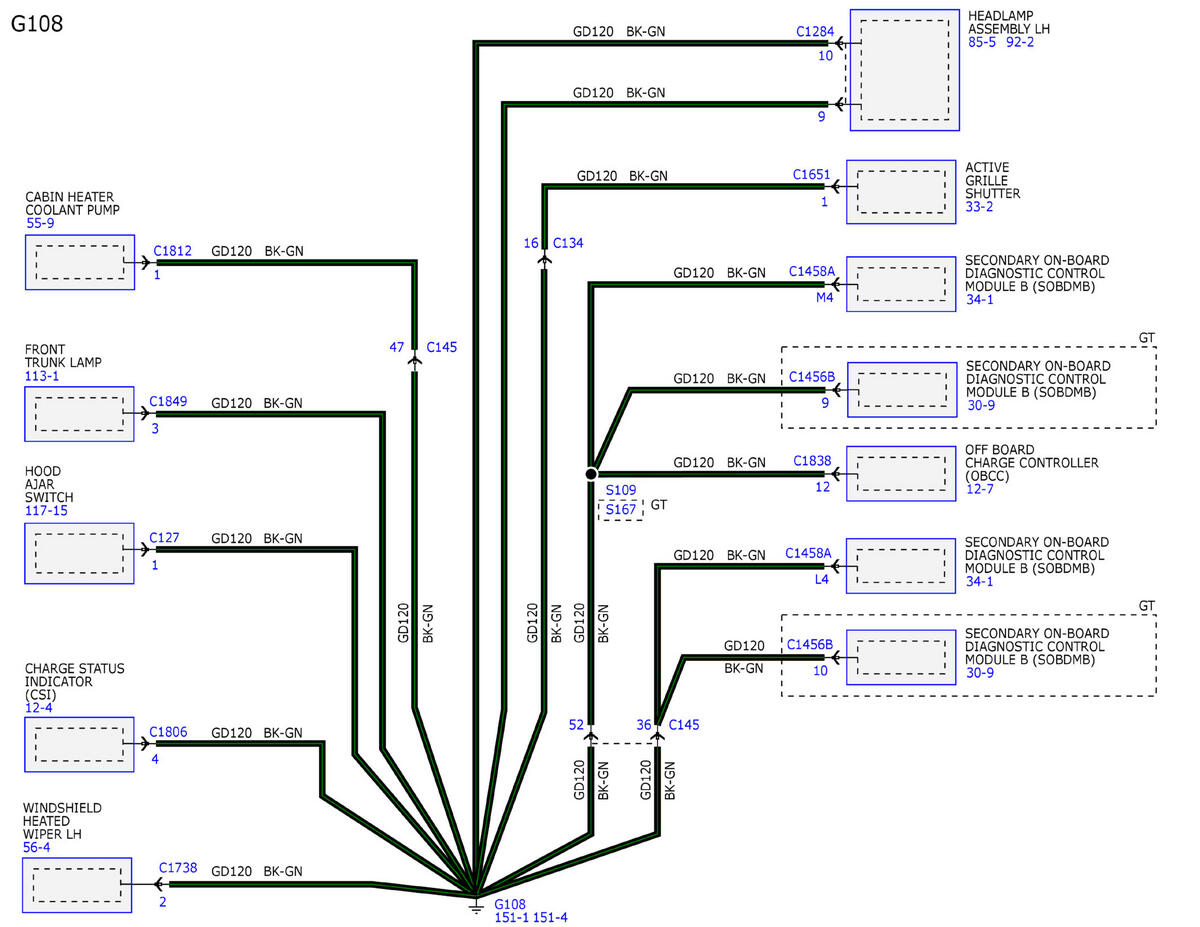

GFDWR254118Courtesy of FORD MOTOR COMPANY

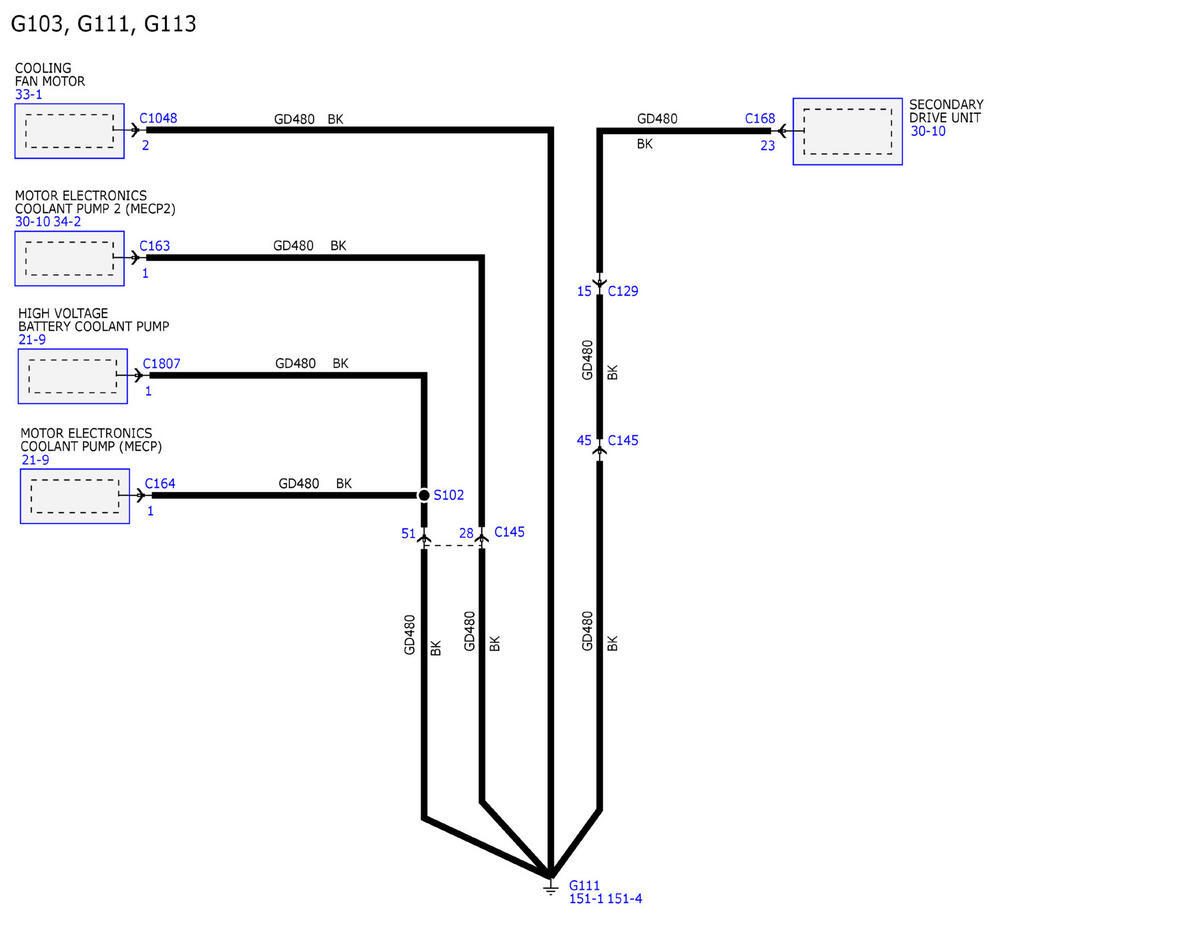

GFDWR254119Courtesy of FORD MOTOR COMPANY

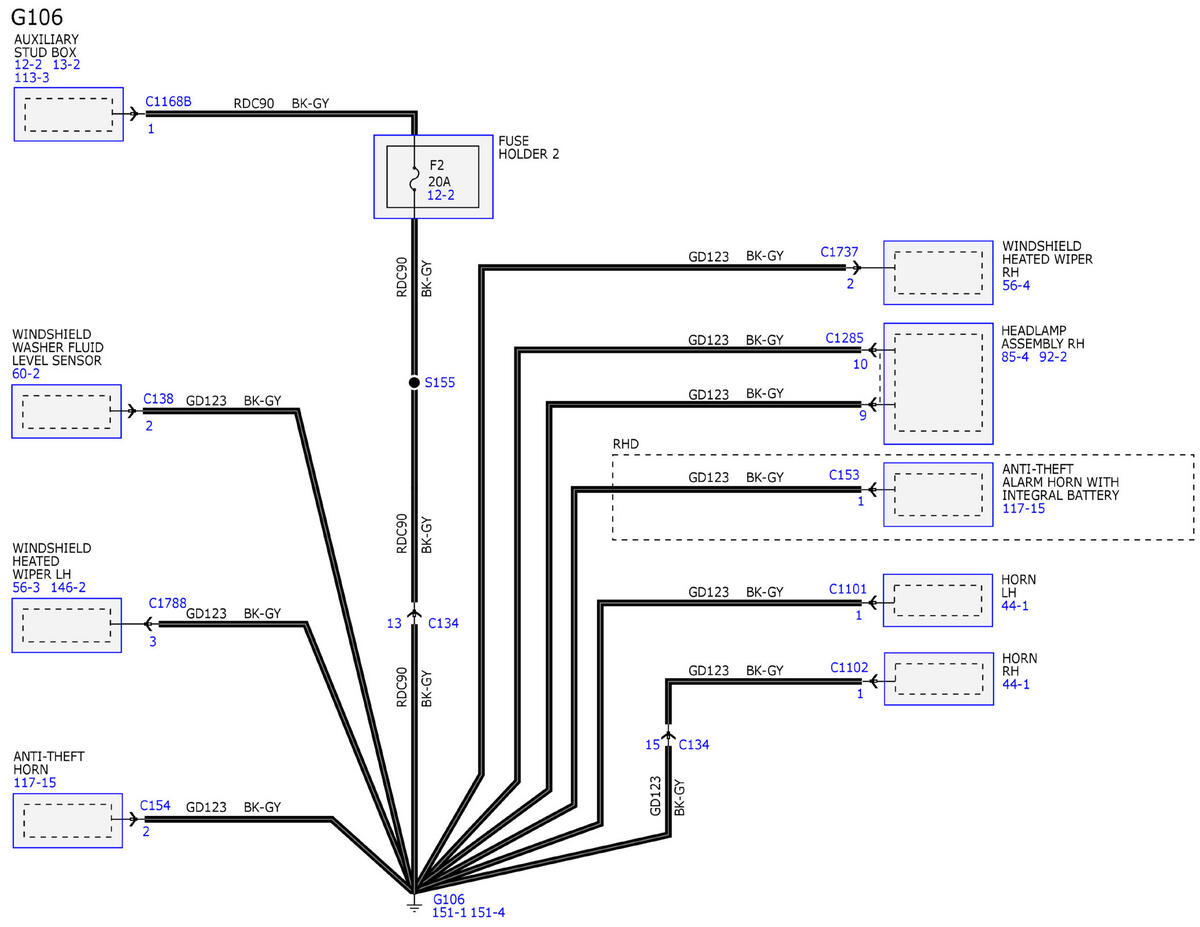

GFDWR254120Courtesy of FORD MOTOR COMPANY

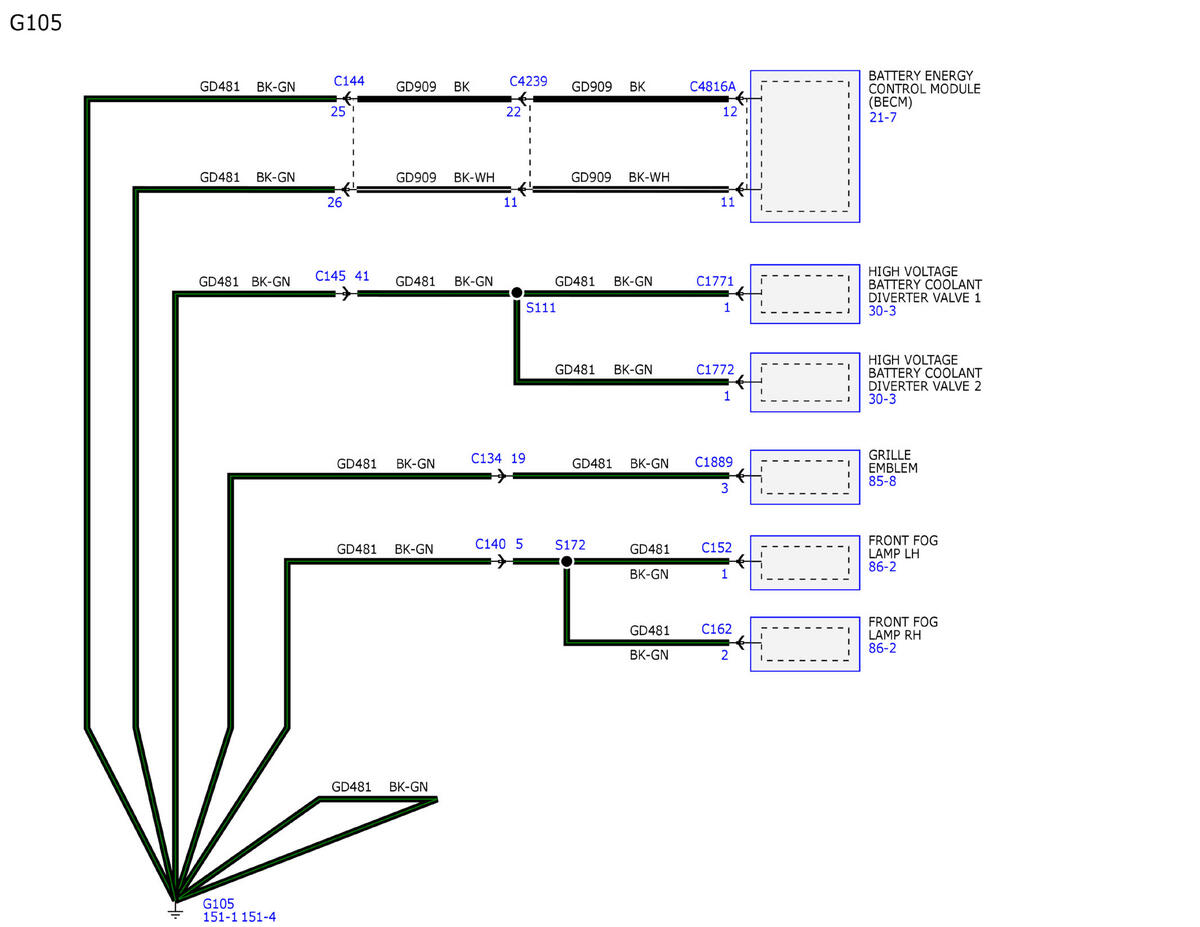

GFDWR254121Courtesy of FORD MOTOR COMPANY

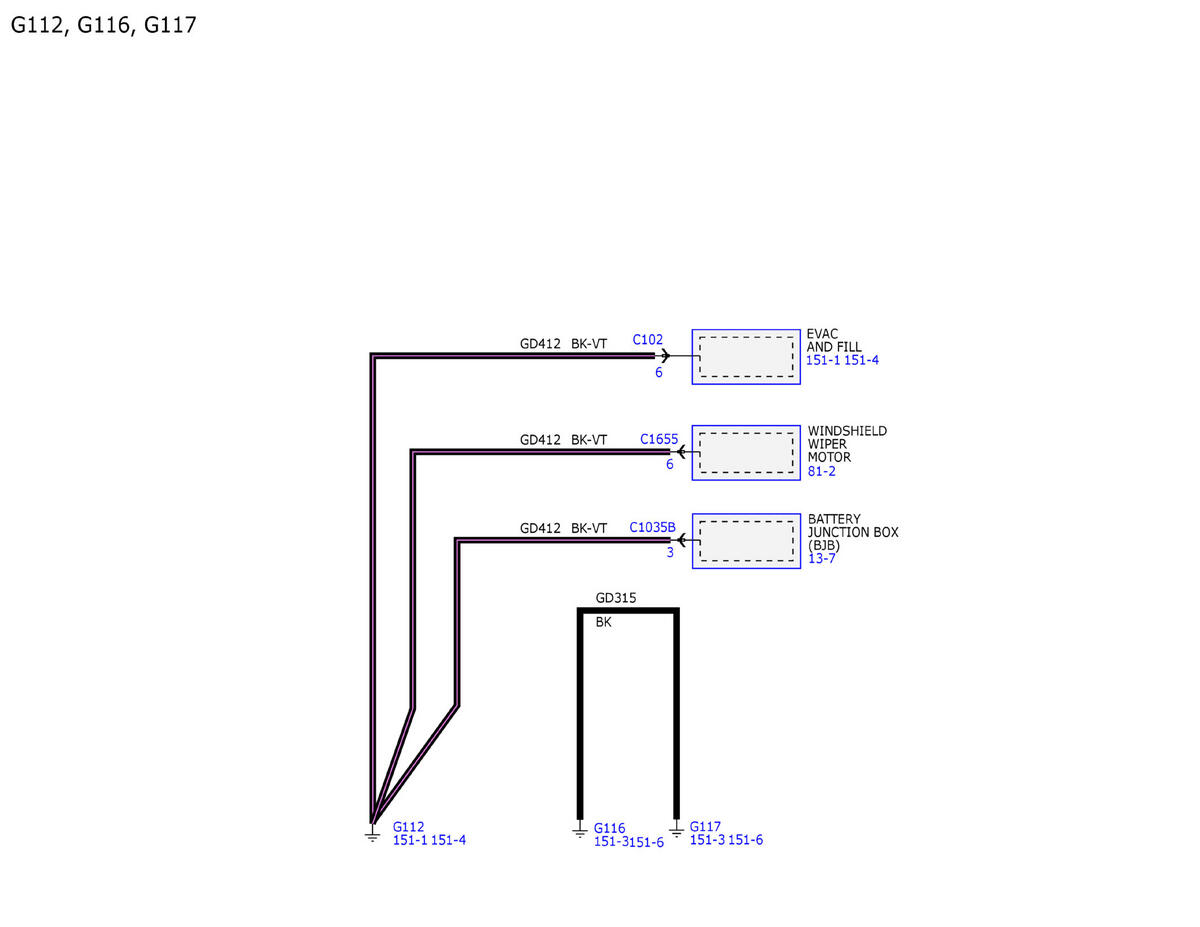

GFDWR254122Courtesy of FORD MOTOR COMPANY

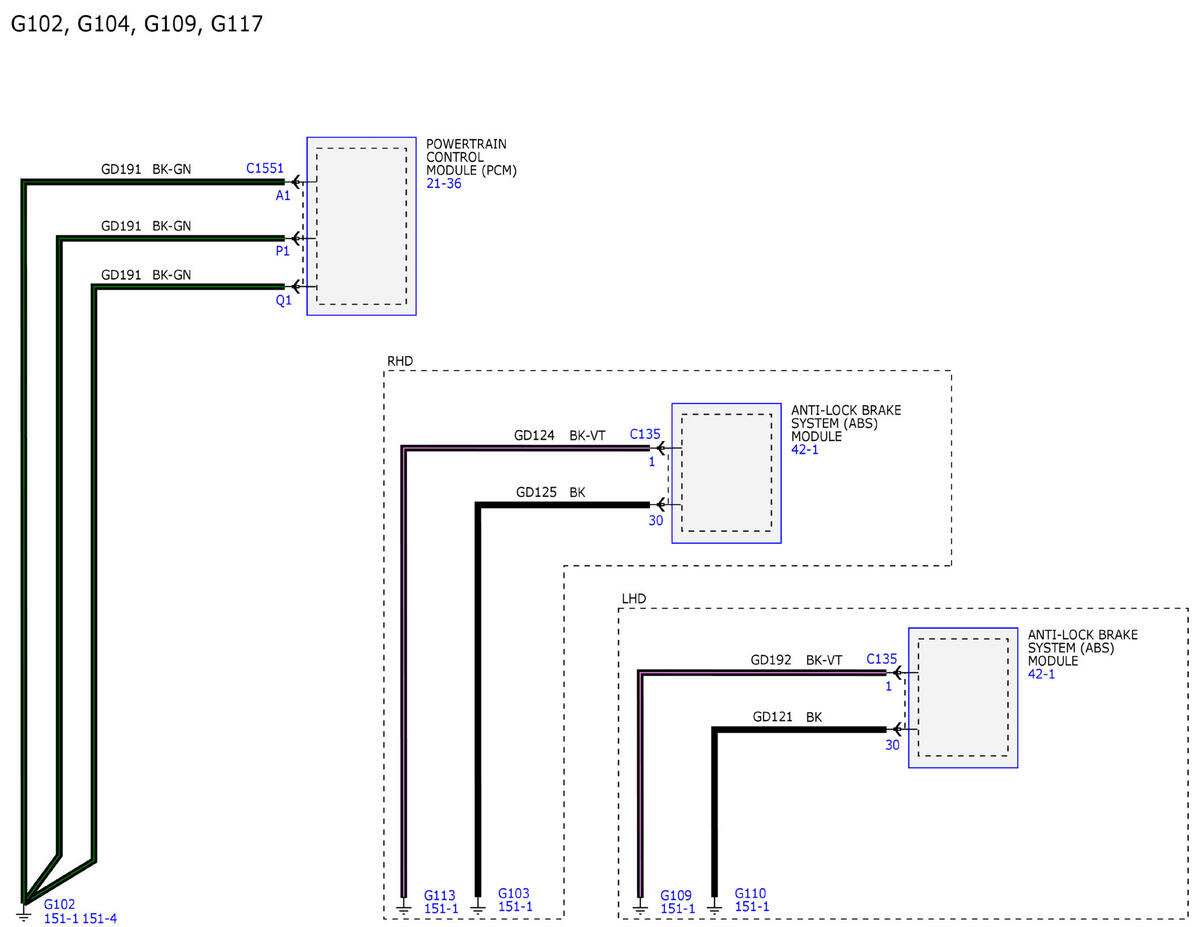

GFDWR254123Courtesy of FORD MOTOR COMPANY

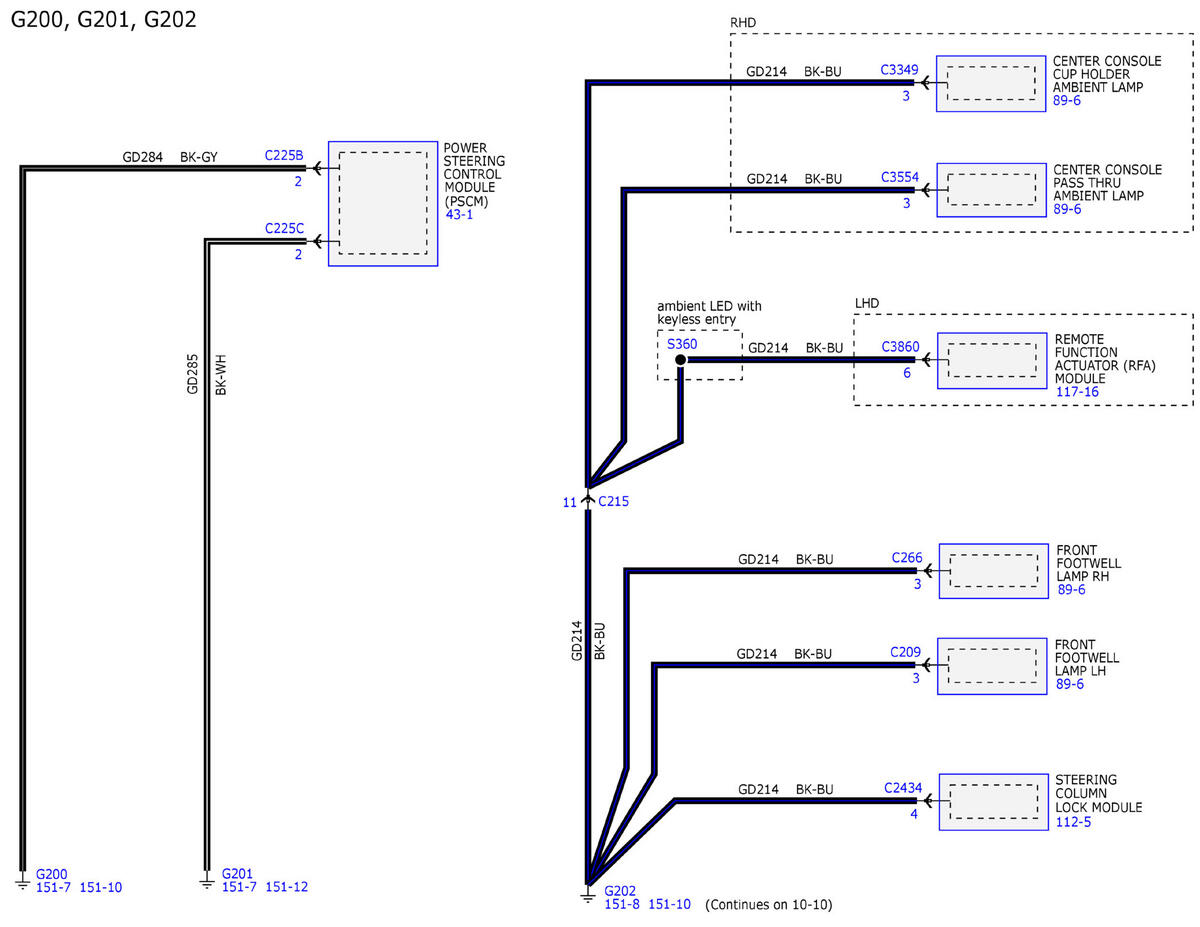

GFDWR254124Courtesy of FORD MOTOR COMPANY

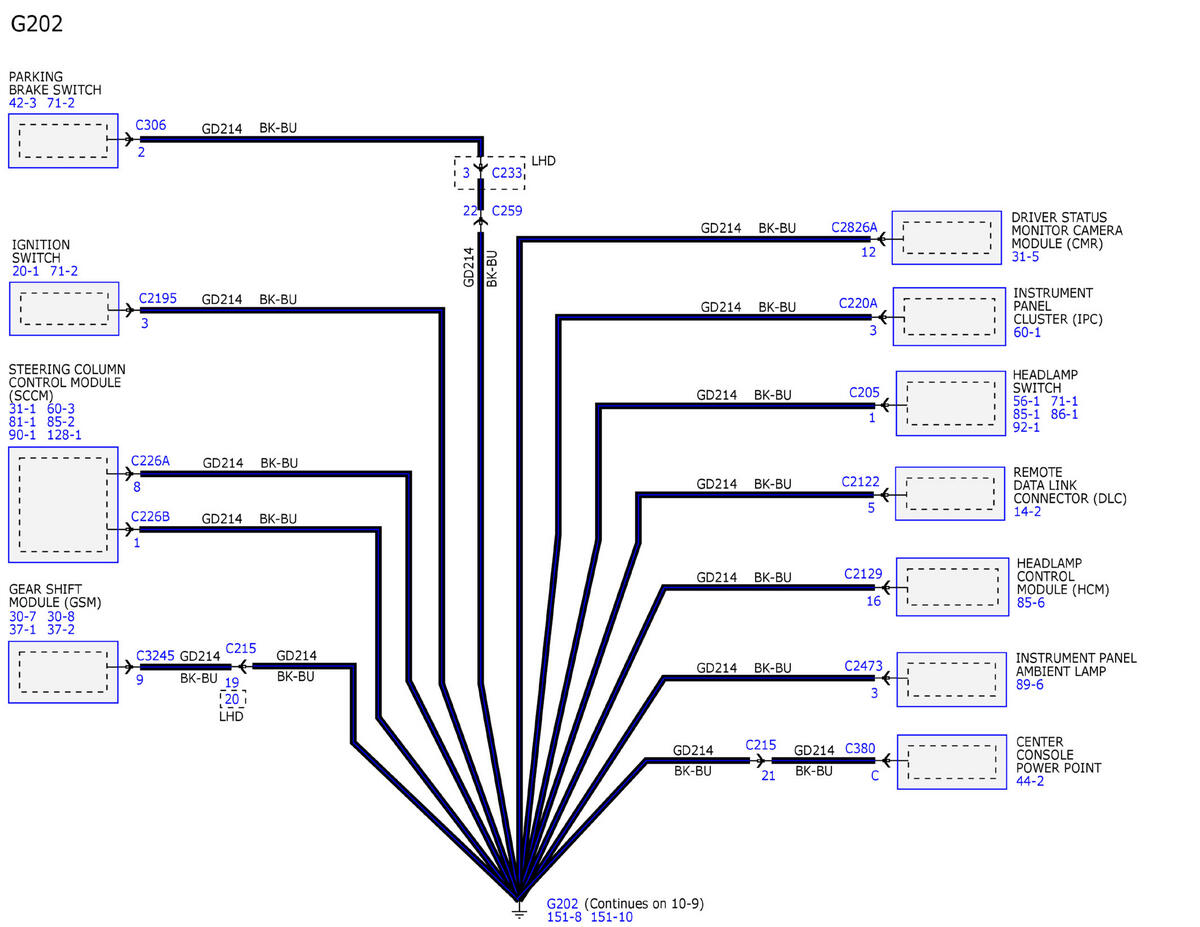

GFDWR254098Courtesy of FORD MOTOR COMPANY
GFDWR254099Courtesy of FORD MOTOR COMPANY

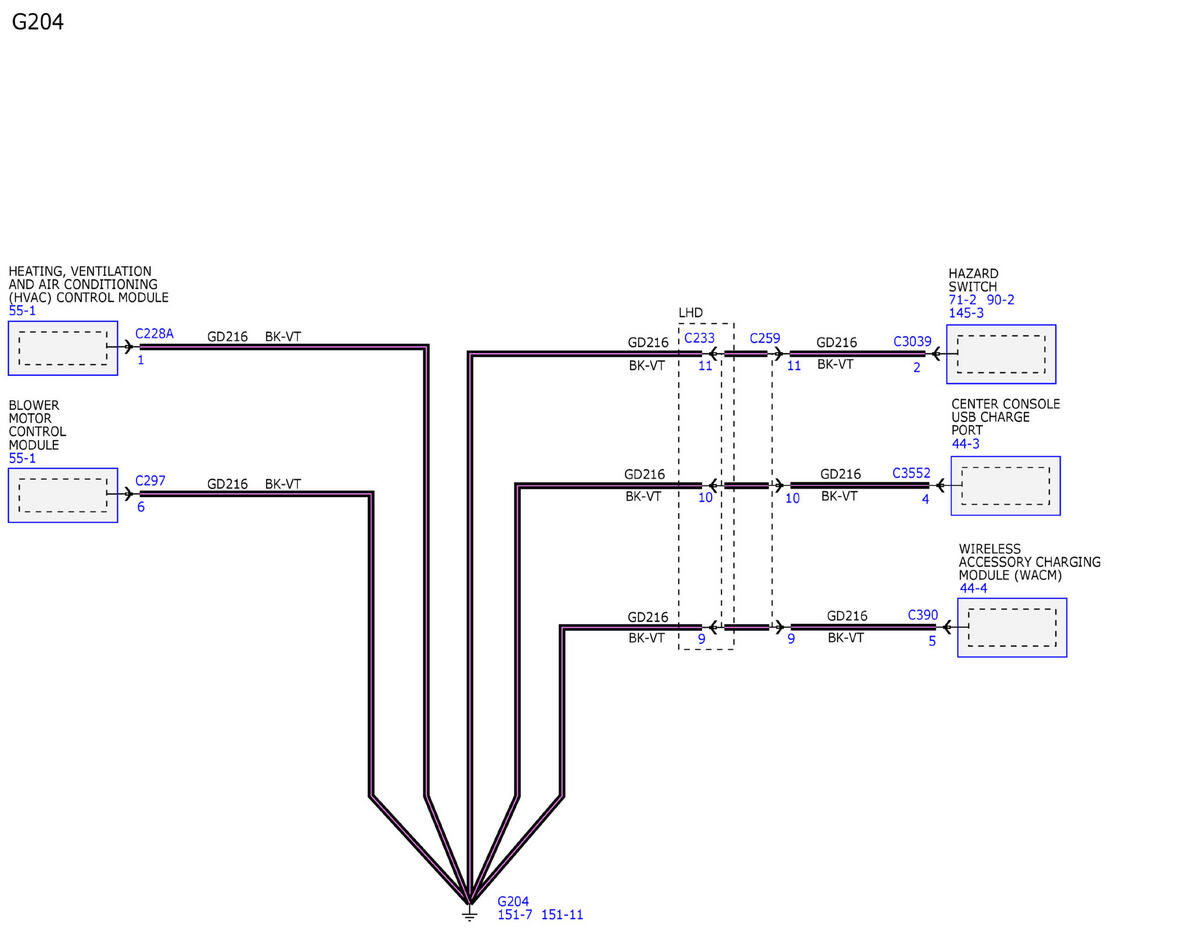

GFDWR254100Courtesy of FORD MOTOR COMPANY

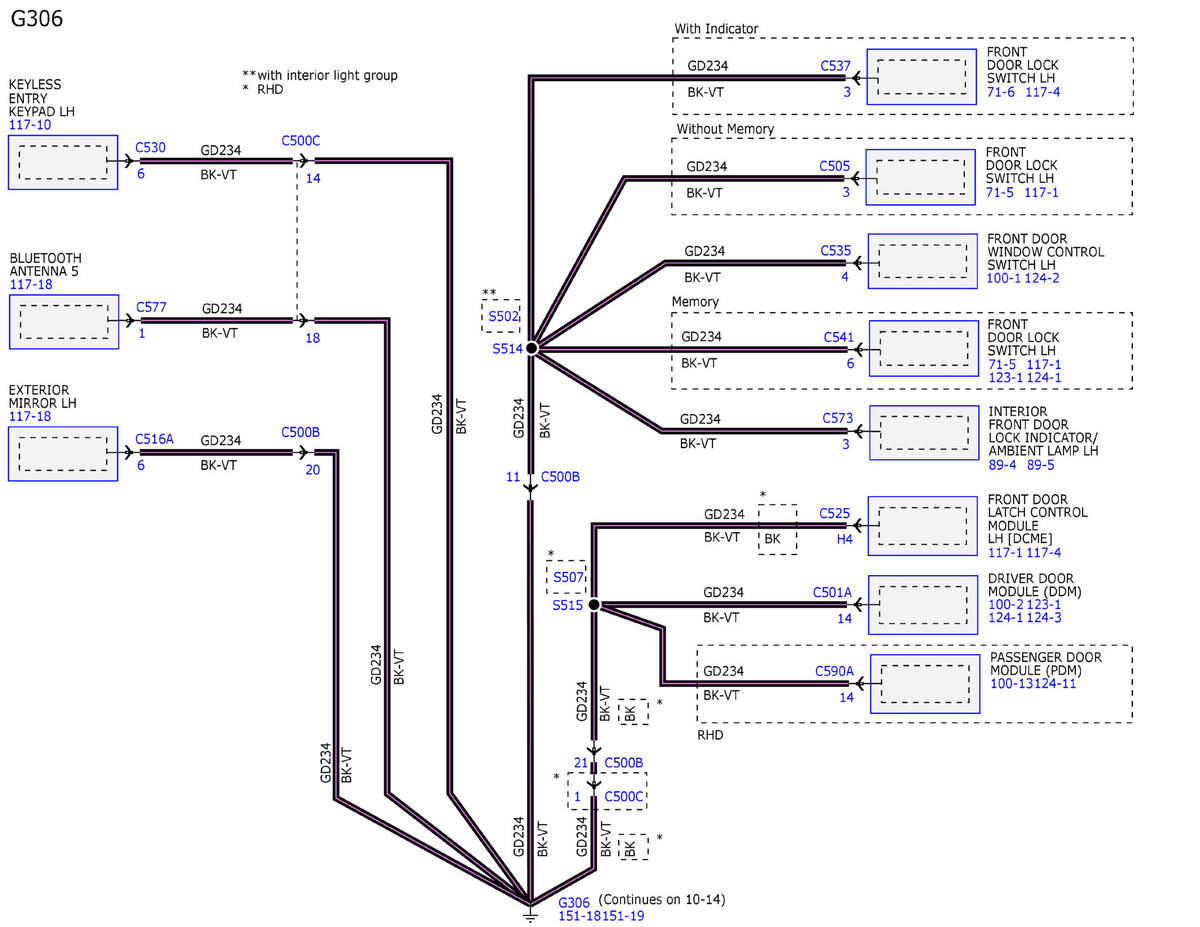

GFDWR254101Courtesy of FORD MOTOR COMPANY

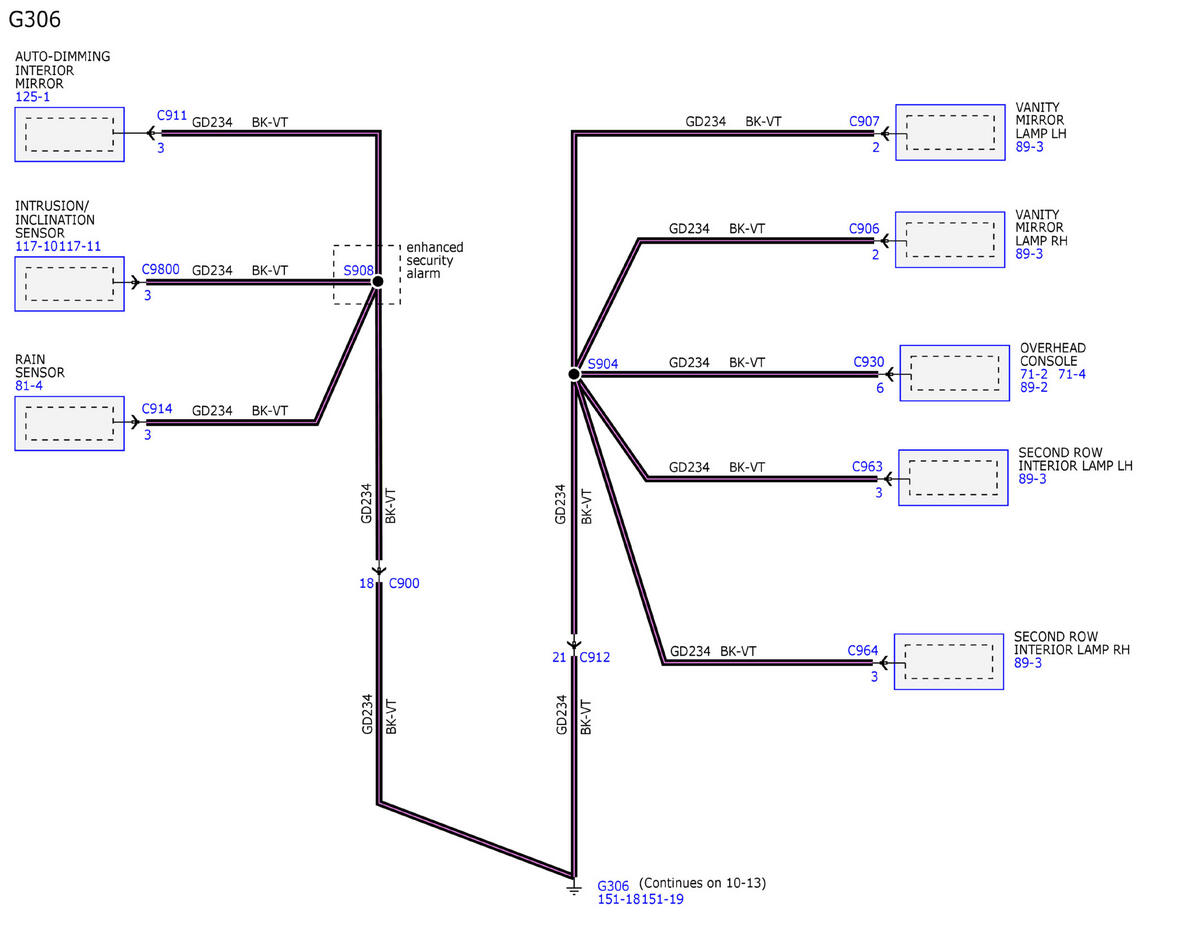

GFDWR254102Courtesy of FORD MOTOR COMPANY

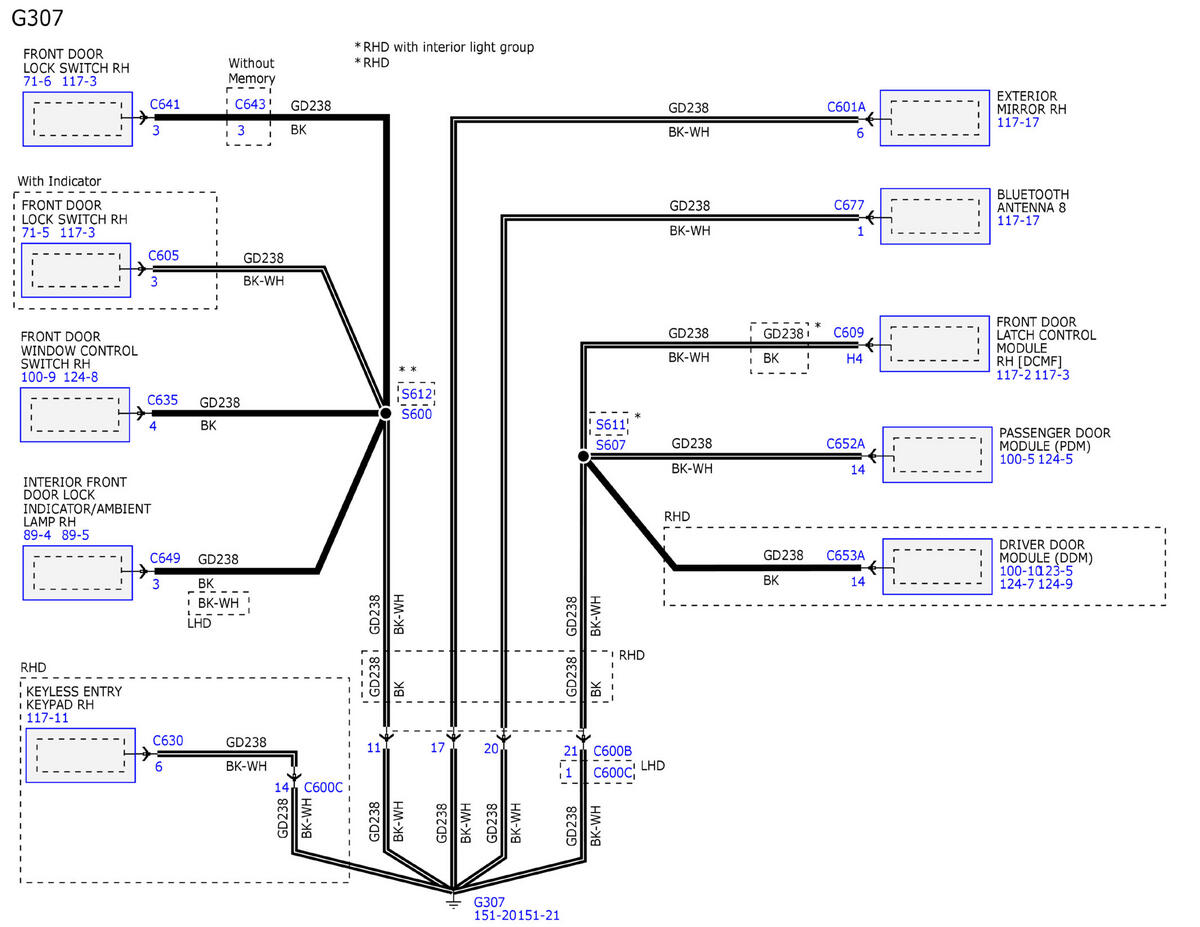

GFDWR254103Courtesy of FORD MOTOR COMPANY

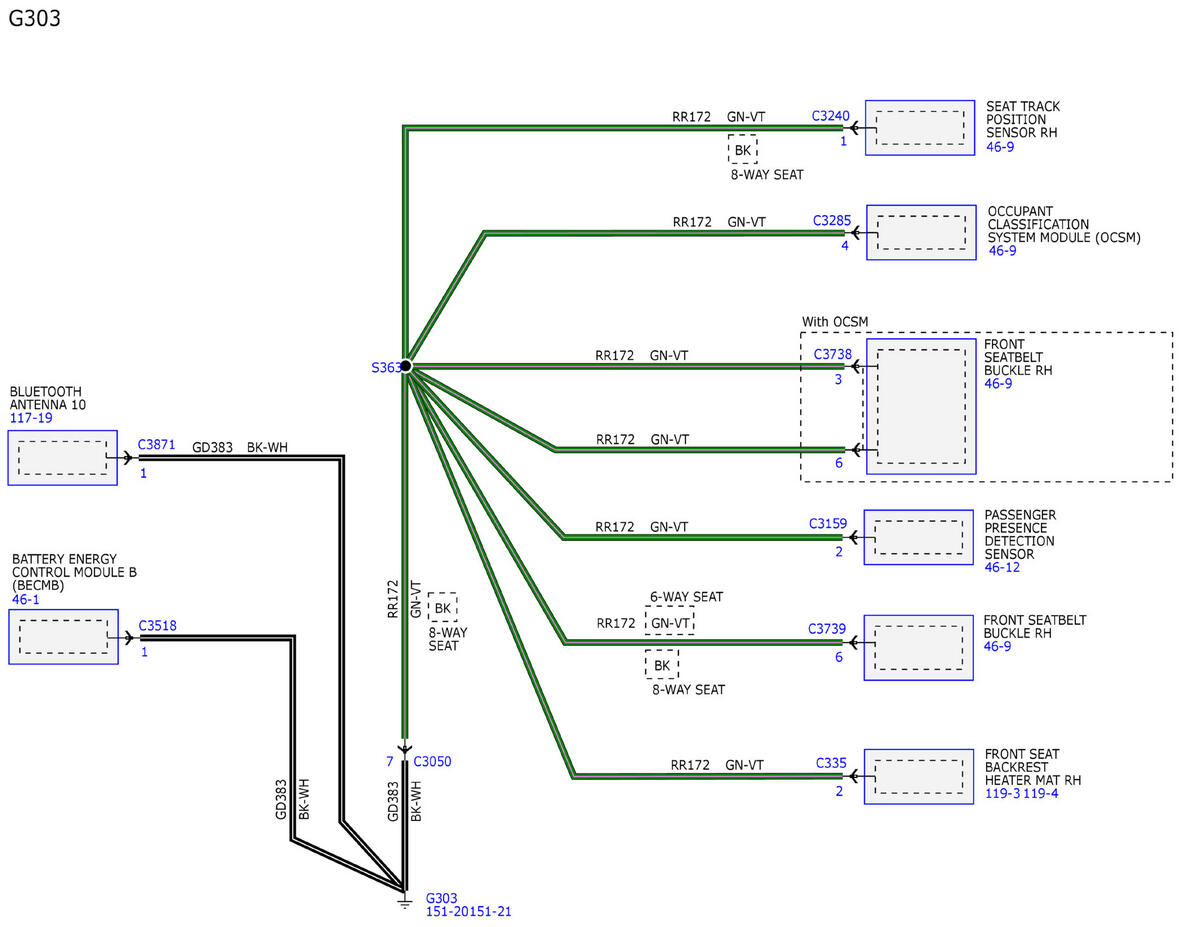

GFDWR254104Courtesy of FORD MOTOR COMPANY

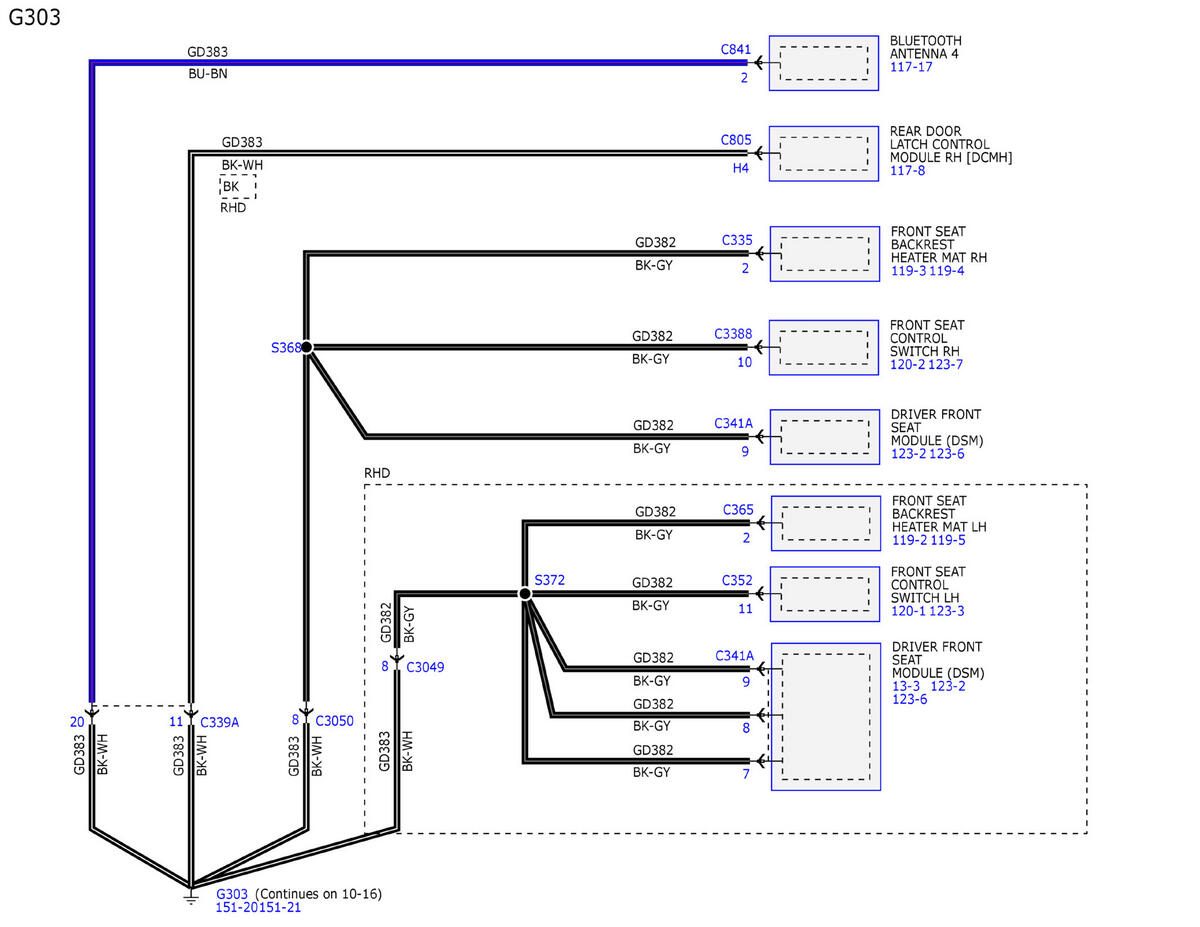

GFDWR254105Courtesy of FORD MOTOR COMPANY

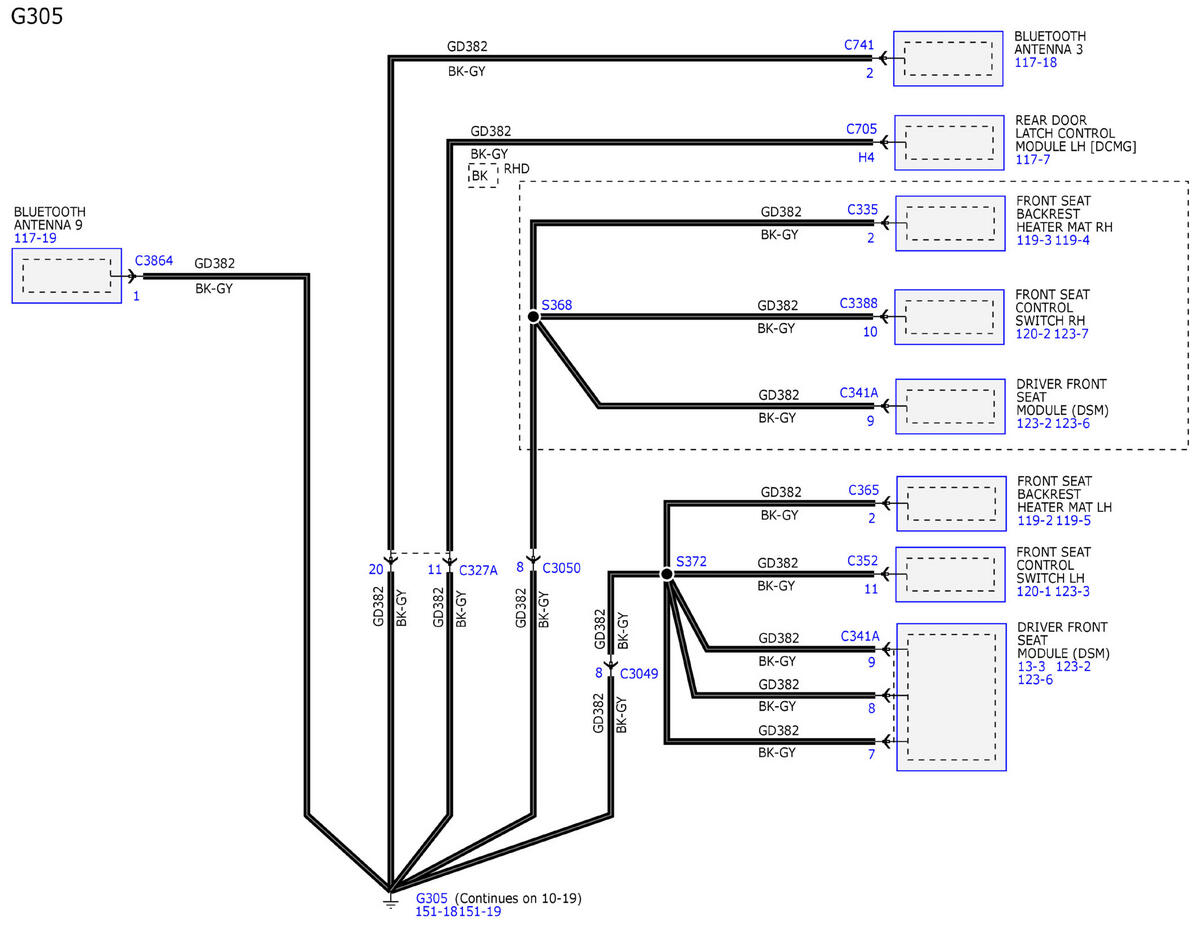

GFDWR254106Courtesy of FORD MOTOR COMPANY

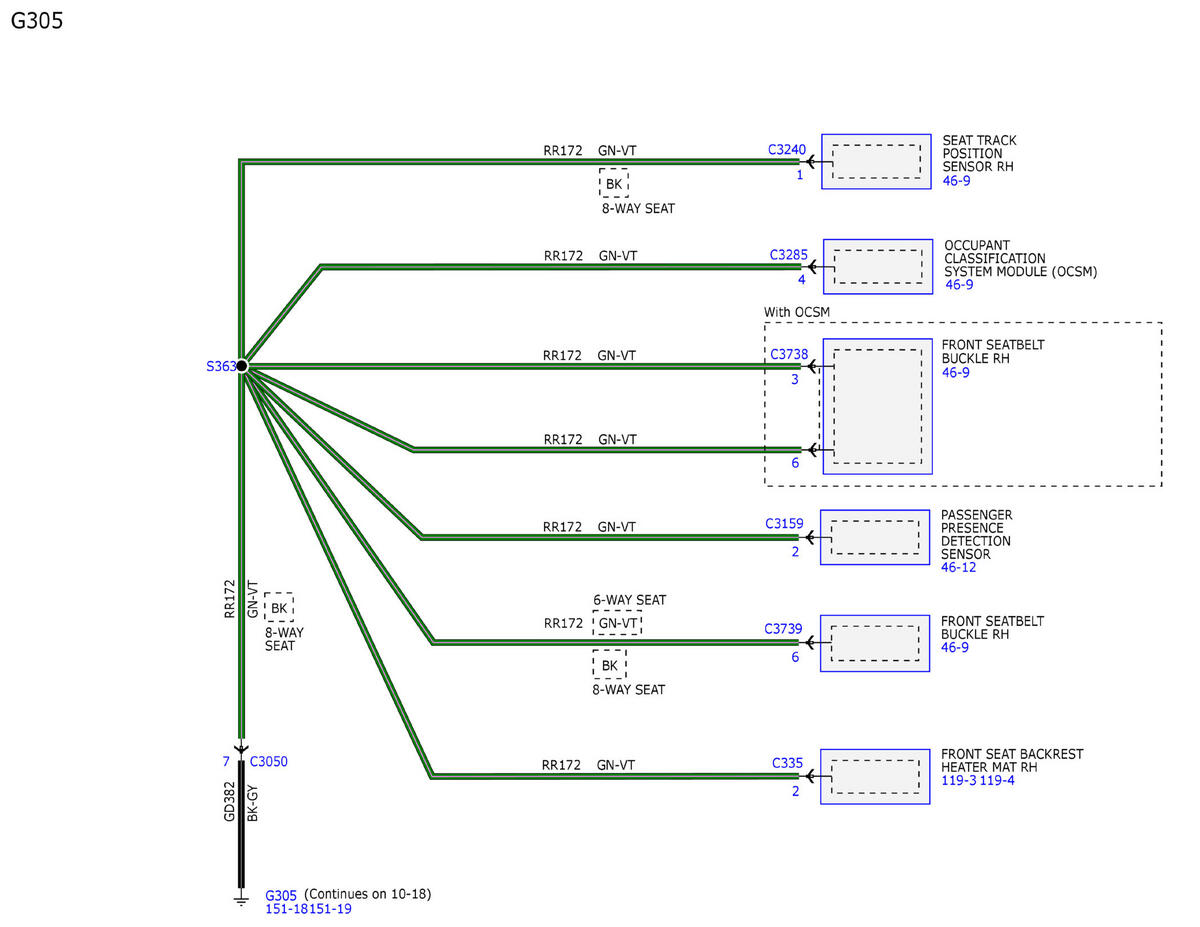

GFDWR254107Courtesy of FORD MOTOR COMPANY

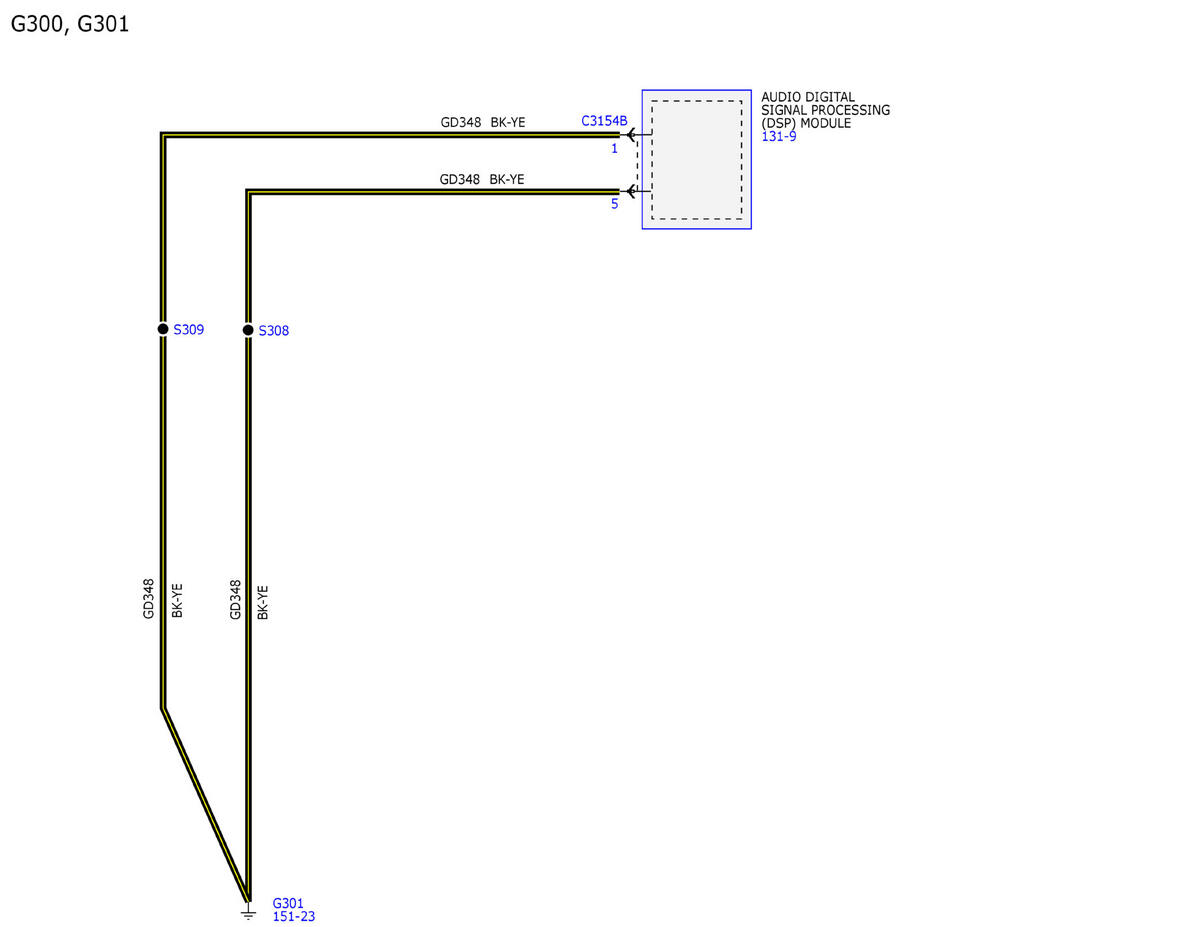

GFDWR254109Courtesy of FORD MOTOR COMPANY

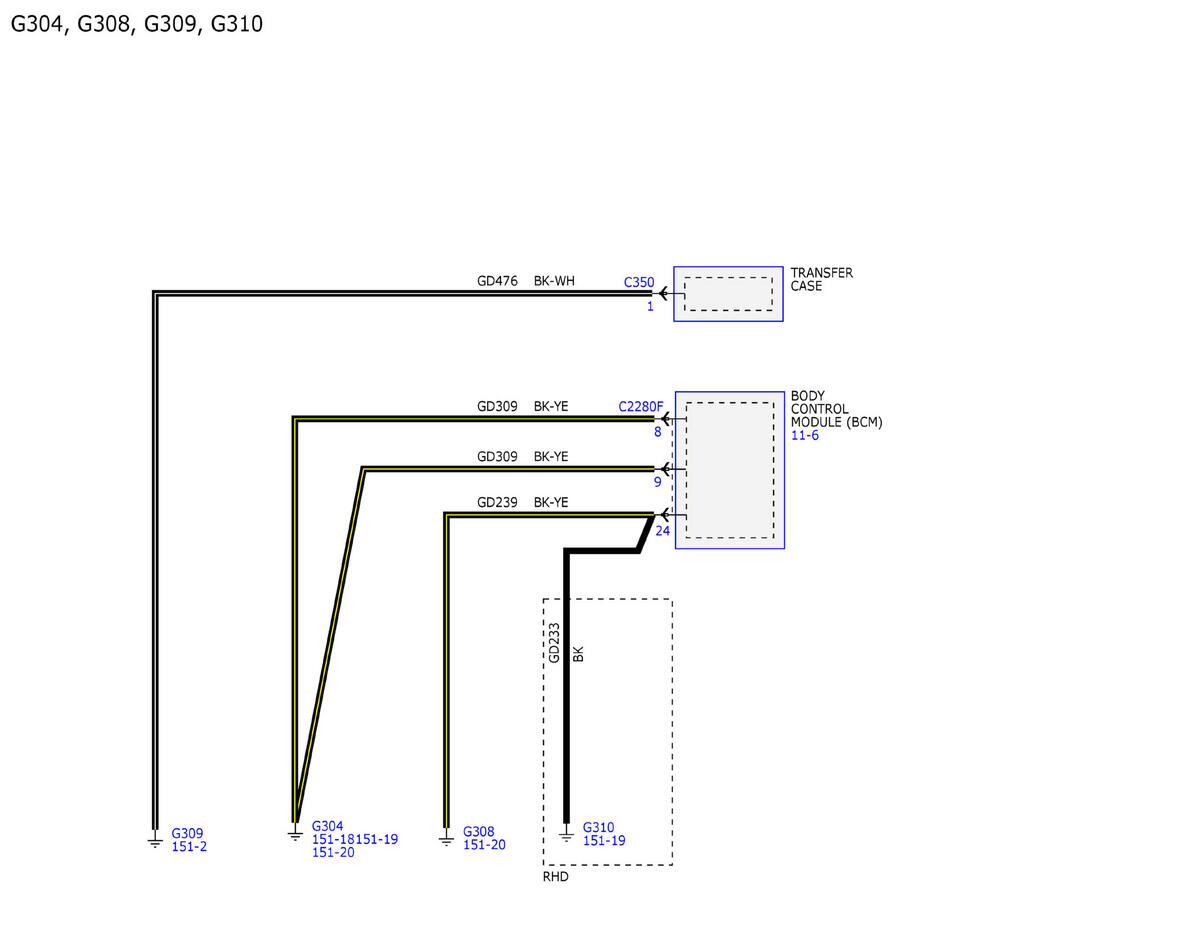

GFDWR254110Courtesy of FORD MOTOR COMPANY

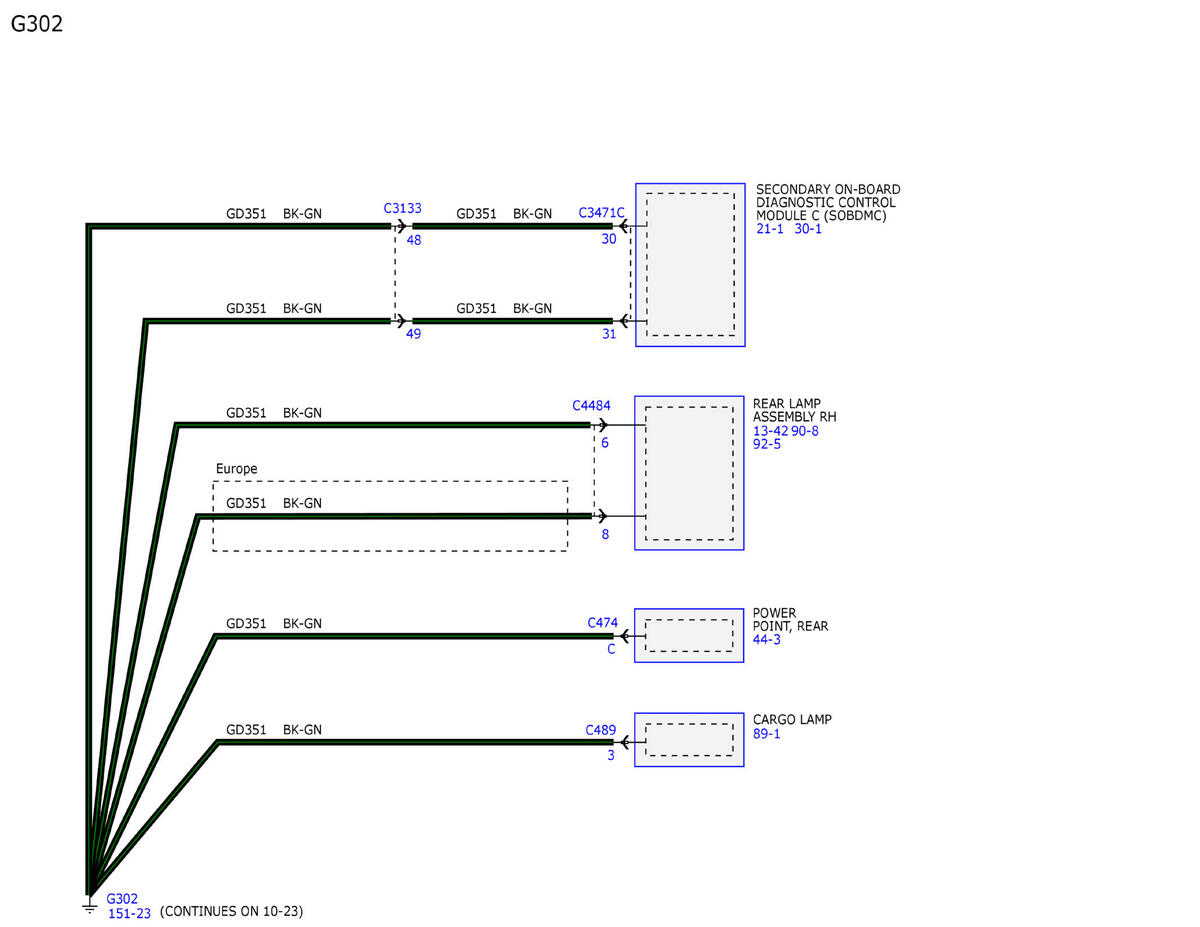

GFDWR254111Courtesy of FORD MOTOR COMPANY

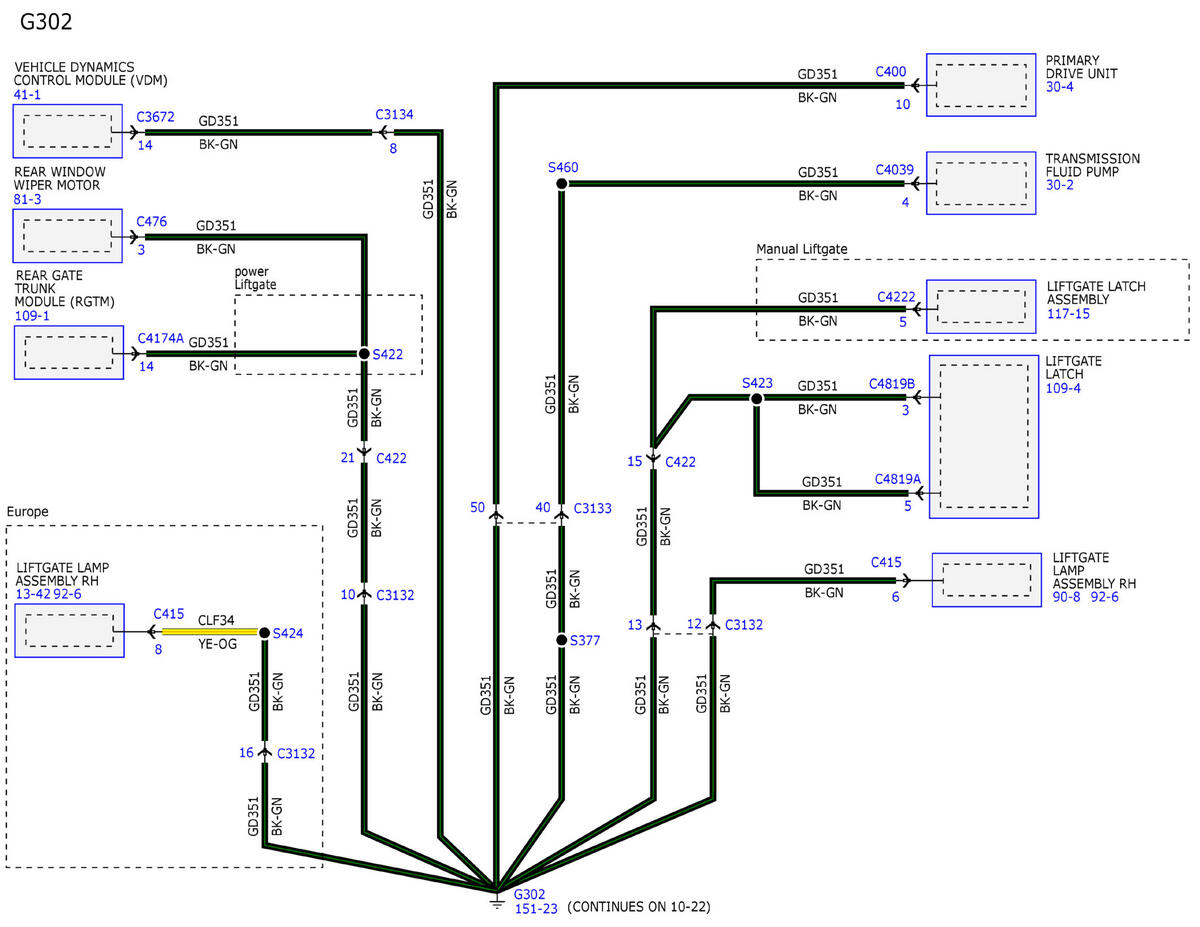

GFDWR254112Courtesy of FORD MOTOR COMPANY

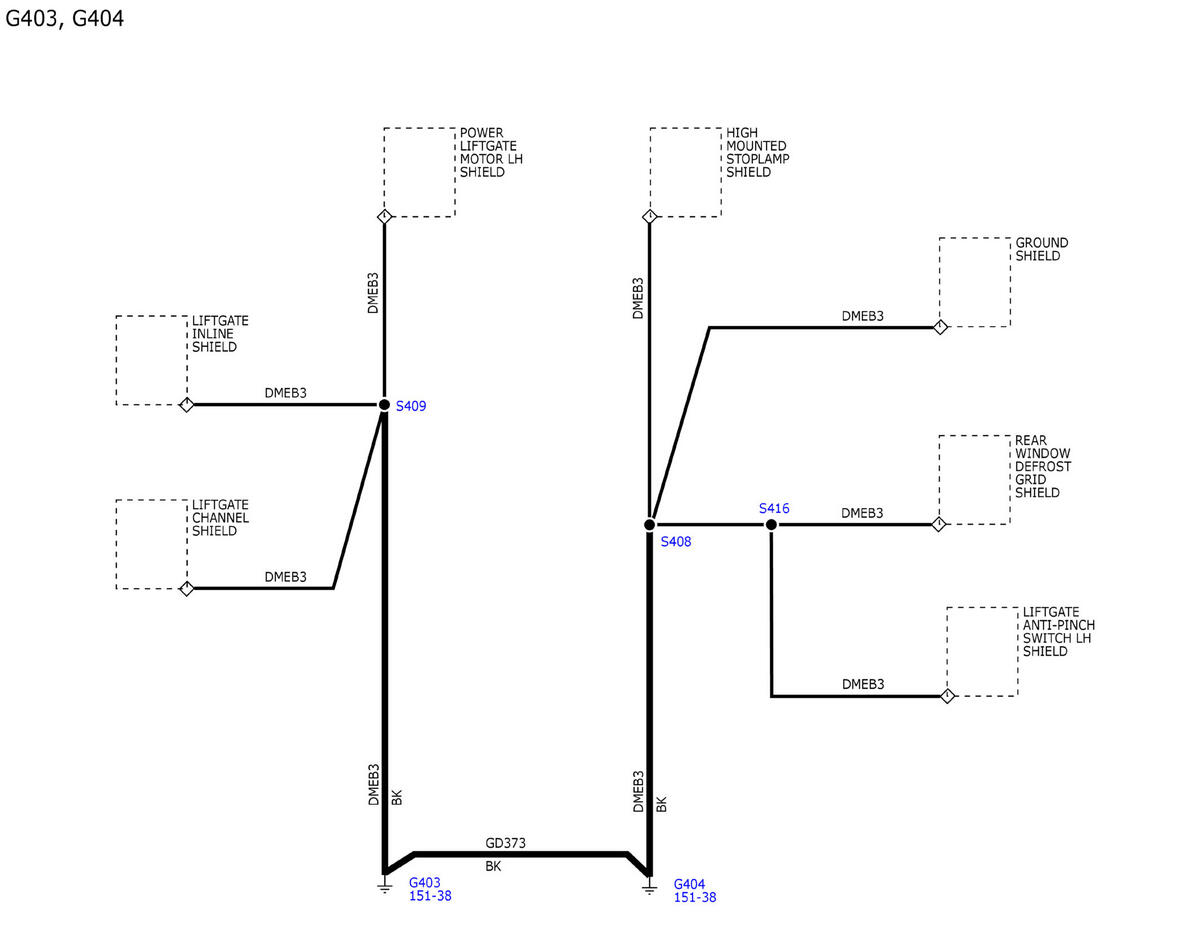

GFDWR254113Courtesy of FORD MOTOR COMPANY

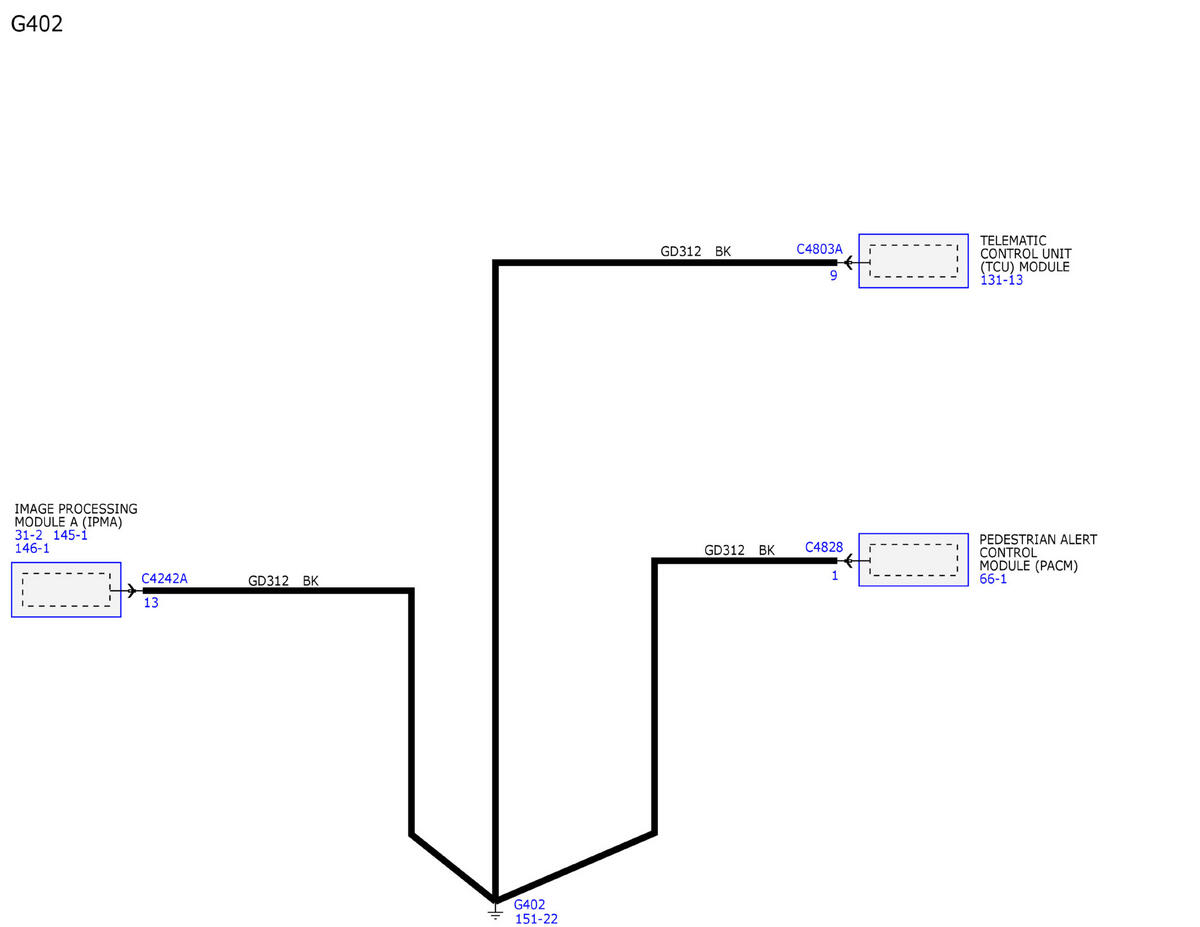

GFDWR254114Courtesy of FORD MOTOR COMPANY

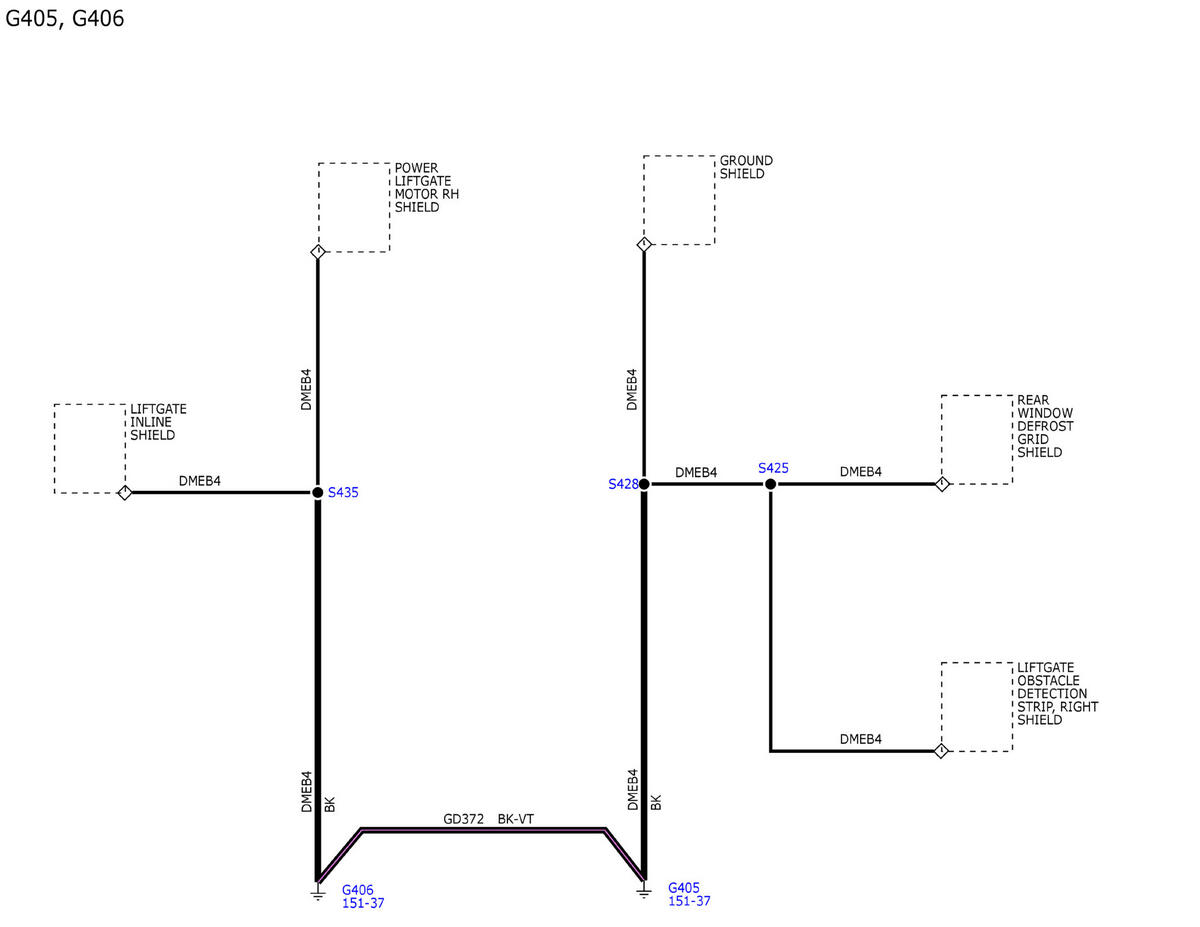

GFDWR254115Courtesy of FORD MOTOR COMPANY

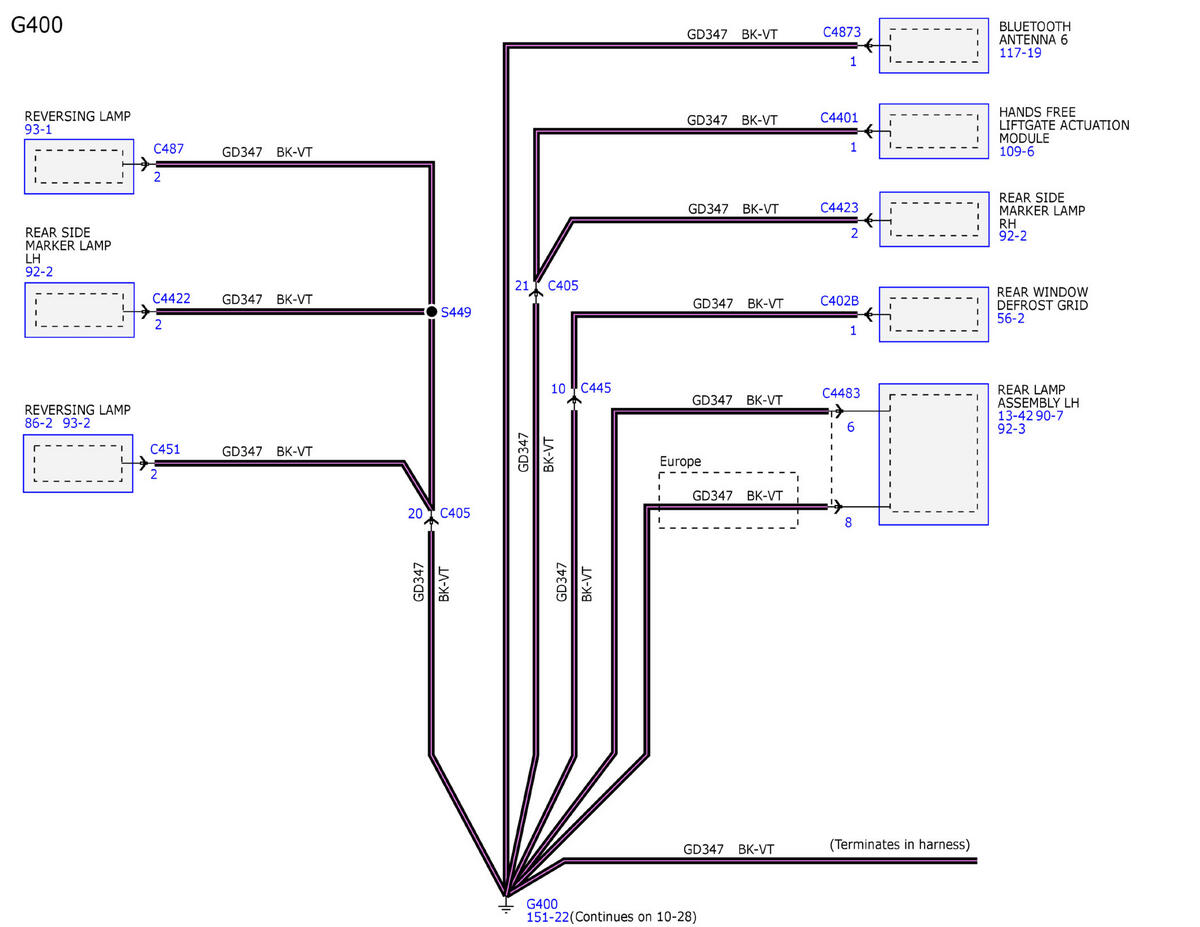

GFDWR254116Courtesy of FORD MOTOR COMPANY

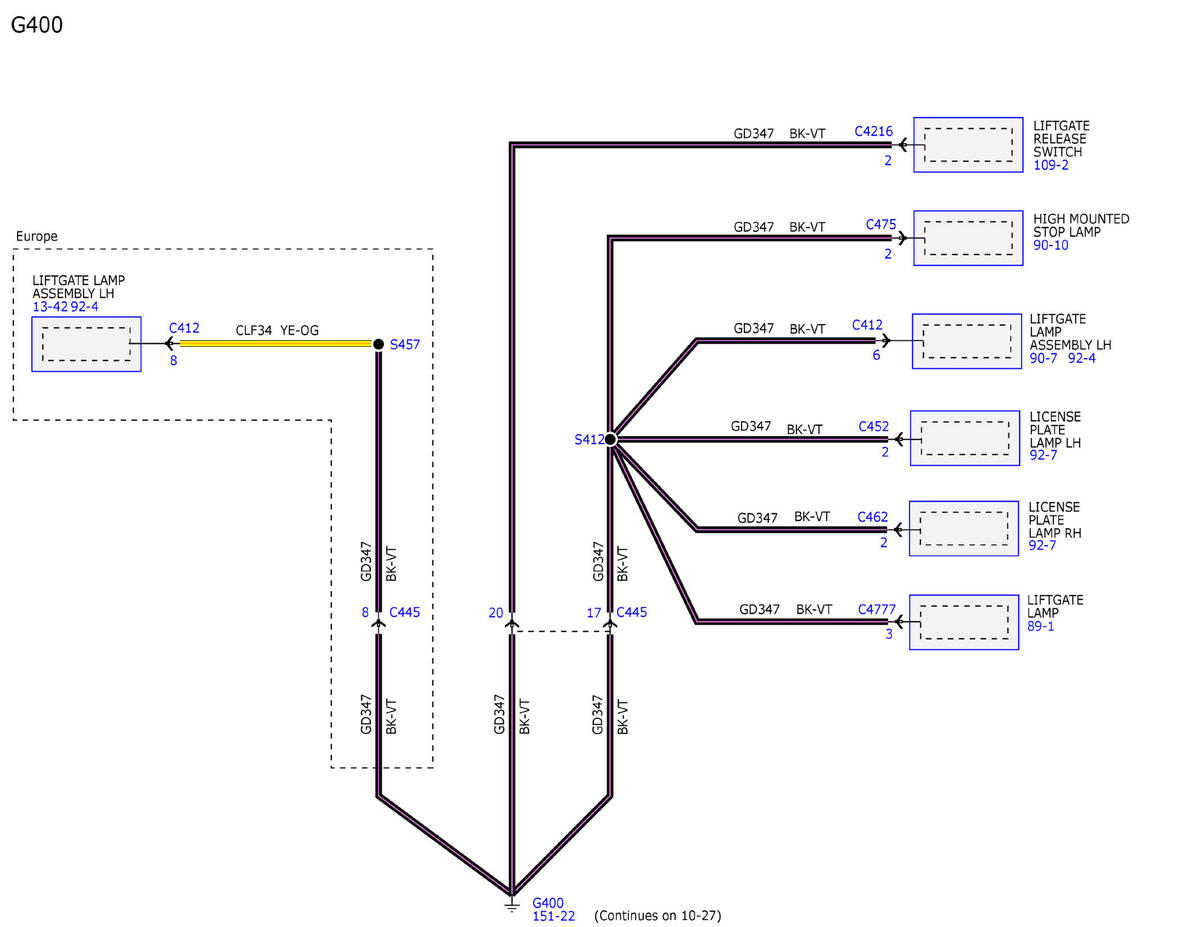

GFDWR254117Courtesy of FORD MOTOR COMPANY
