Pedestrian Alert Control Module (PACM): Removal

WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

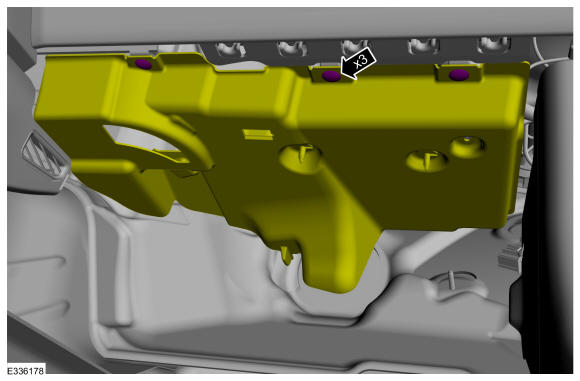

  1. Remove the pin-type retainers and position aside the RH lower instrument panel closeout trim panel.
    GFD736918Courtesy of FORD MOTOR COMPANY

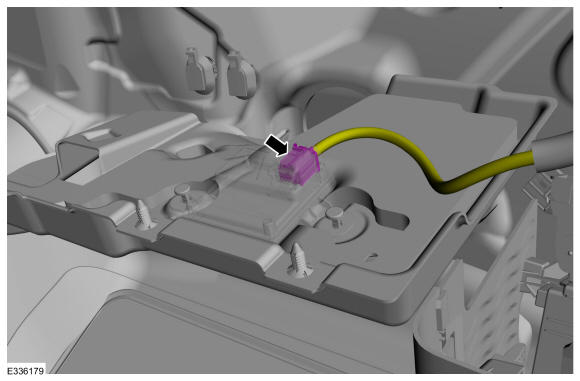

  2. Disconnect the electrical connector.
    GFD736919Courtesy of FORD MOTOR COMPANY

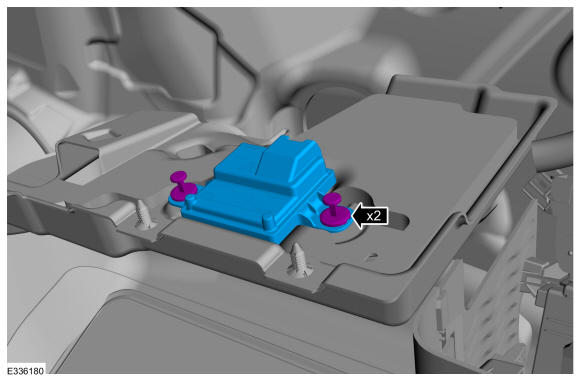

  3. Remove the push pins and the PACM.
GFD736920Courtesy of FORD MOTOR COMPANY
