Fuel Charging and Controls - Component Location
2. 7L EcoBoost

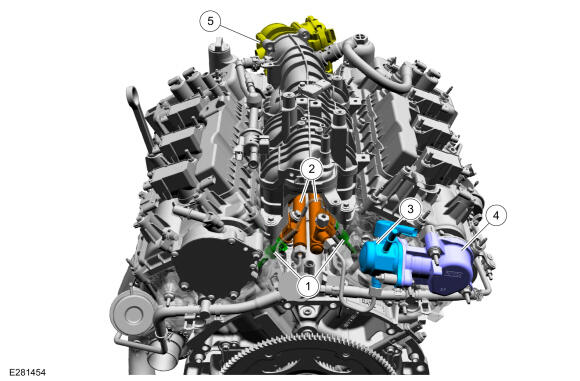

| Item | Description |
|---|---|
| 1 | Fuel injectors Refer to: Fuel Injectors |
| 2 | Fuel rails Refer to: Fuel Rail |
| 3 | High-pressure fuel pump Refer to: High-Pressure Fuel Pump |
| 4 | High-pressure fuel pump drive unit Refer to: High-Pressure Fuel Pump Drive Unit |
| 5 | Throttle body Refer to: Throttle Body |
Fuel Pump Driver Module

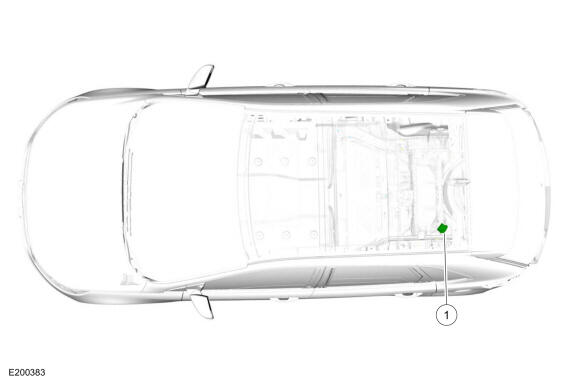

| Item | Description |
|---|---|
| 1 | Fuel pump driver module Refer to: Fuel Pump Driver Module (FPDM) Comments: The fuel pump driver module is attached to the underside of the rear floor above the rear subframe on the left side. |
