Component Testing

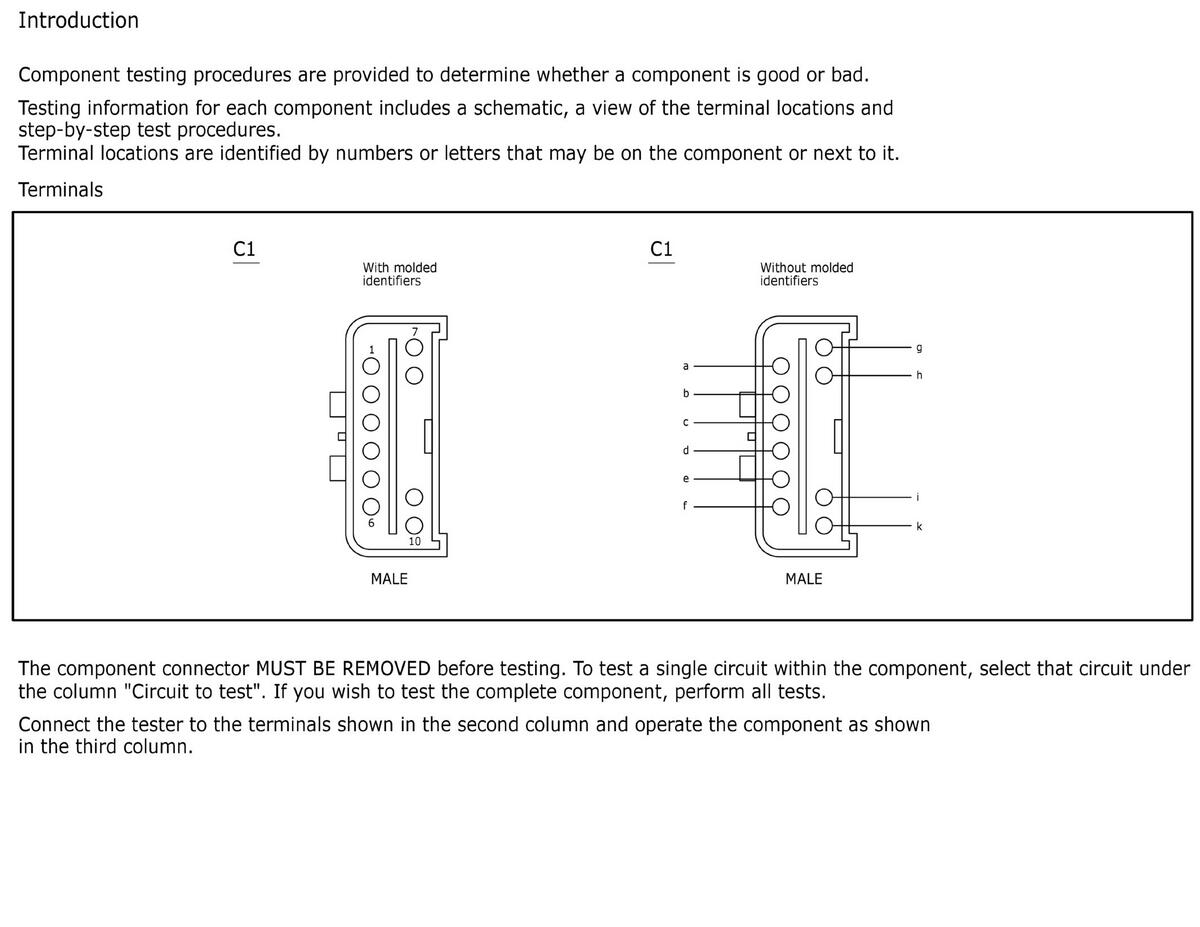

Fig 1: No Caption
GFDWR239388Courtesy of FORD MOTOR COMPANY

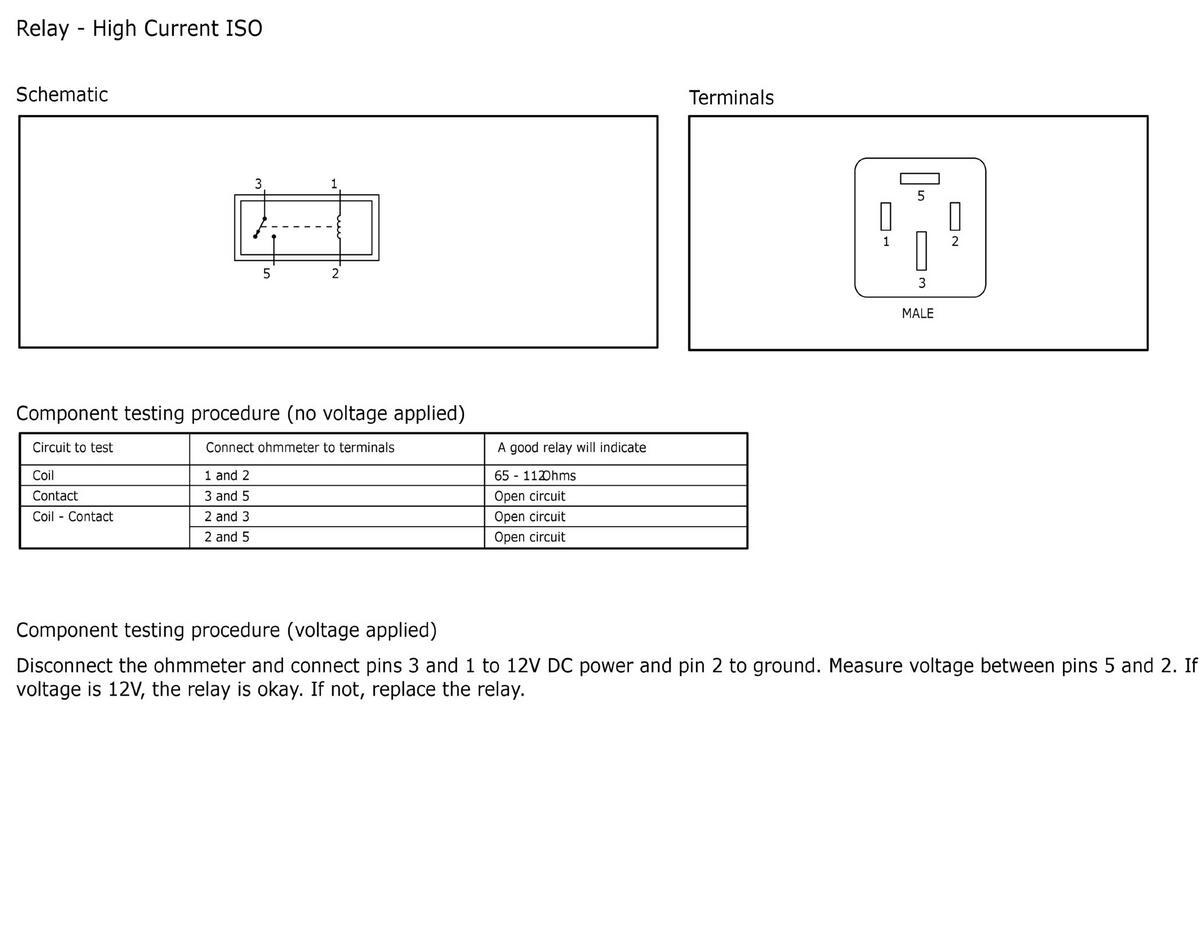

Fig 2: No Caption
GFDWR239389Courtesy of FORD MOTOR COMPANY

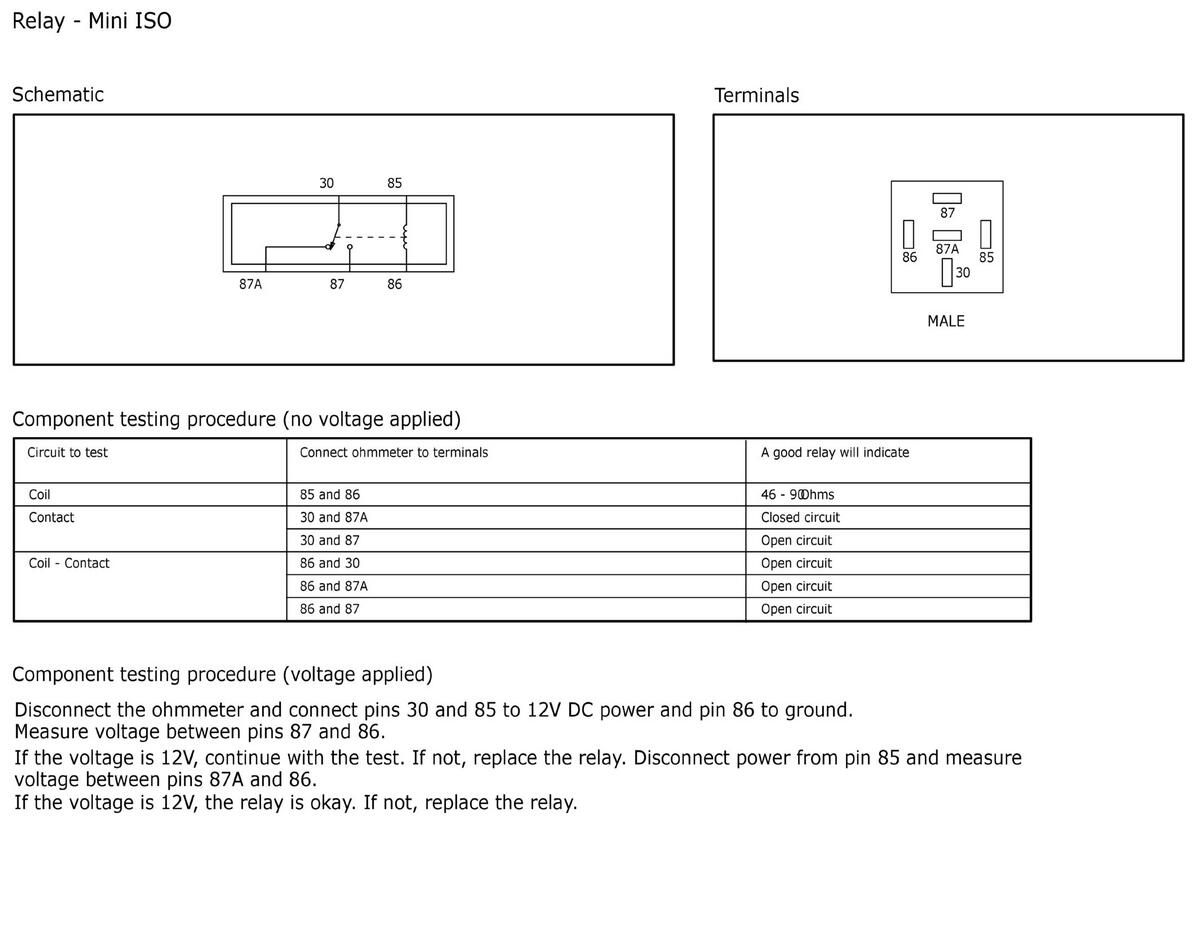

Fig 3: No Caption
GFDWR239390Courtesy of FORD MOTOR COMPANY

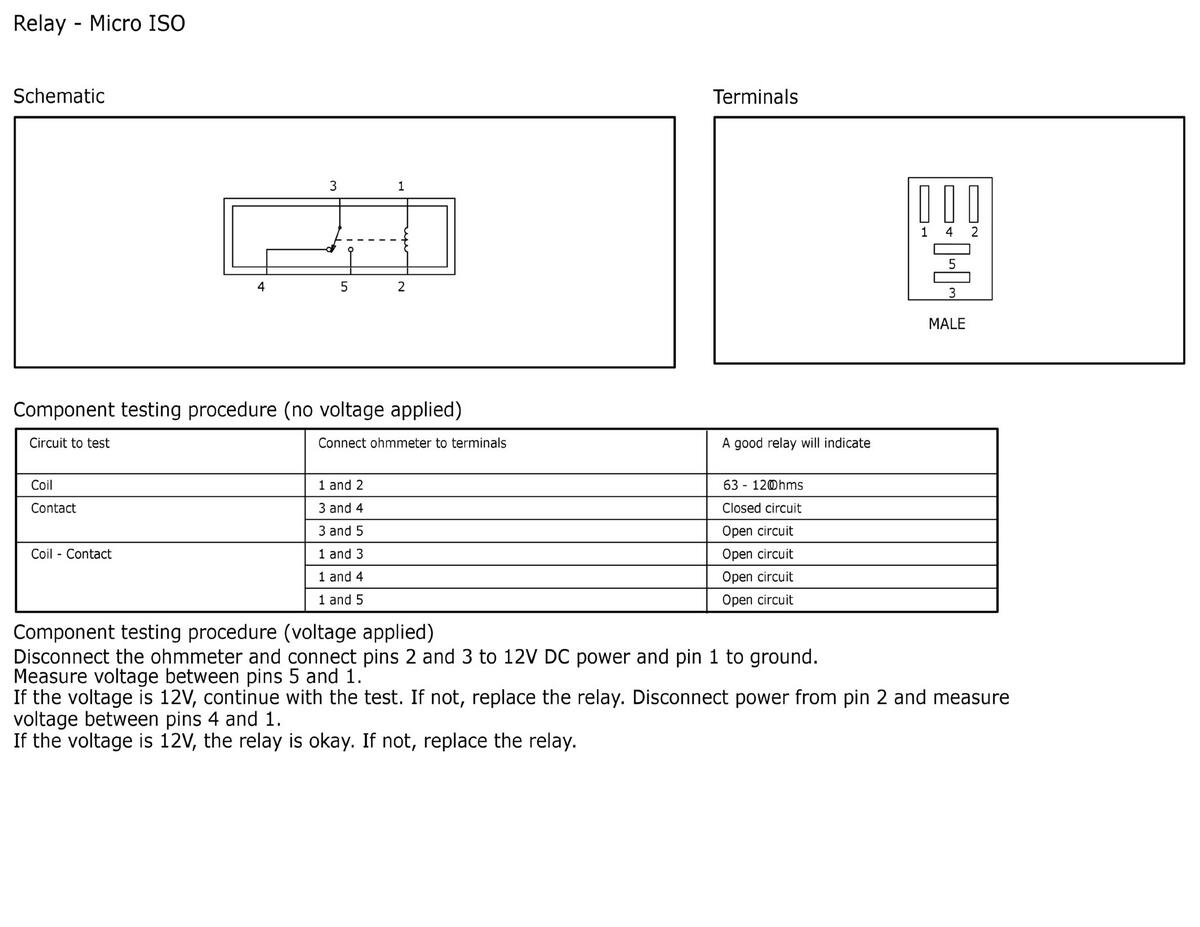

Fig 4: No Caption
GFDWR239391Courtesy of FORD MOTOR COMPANY

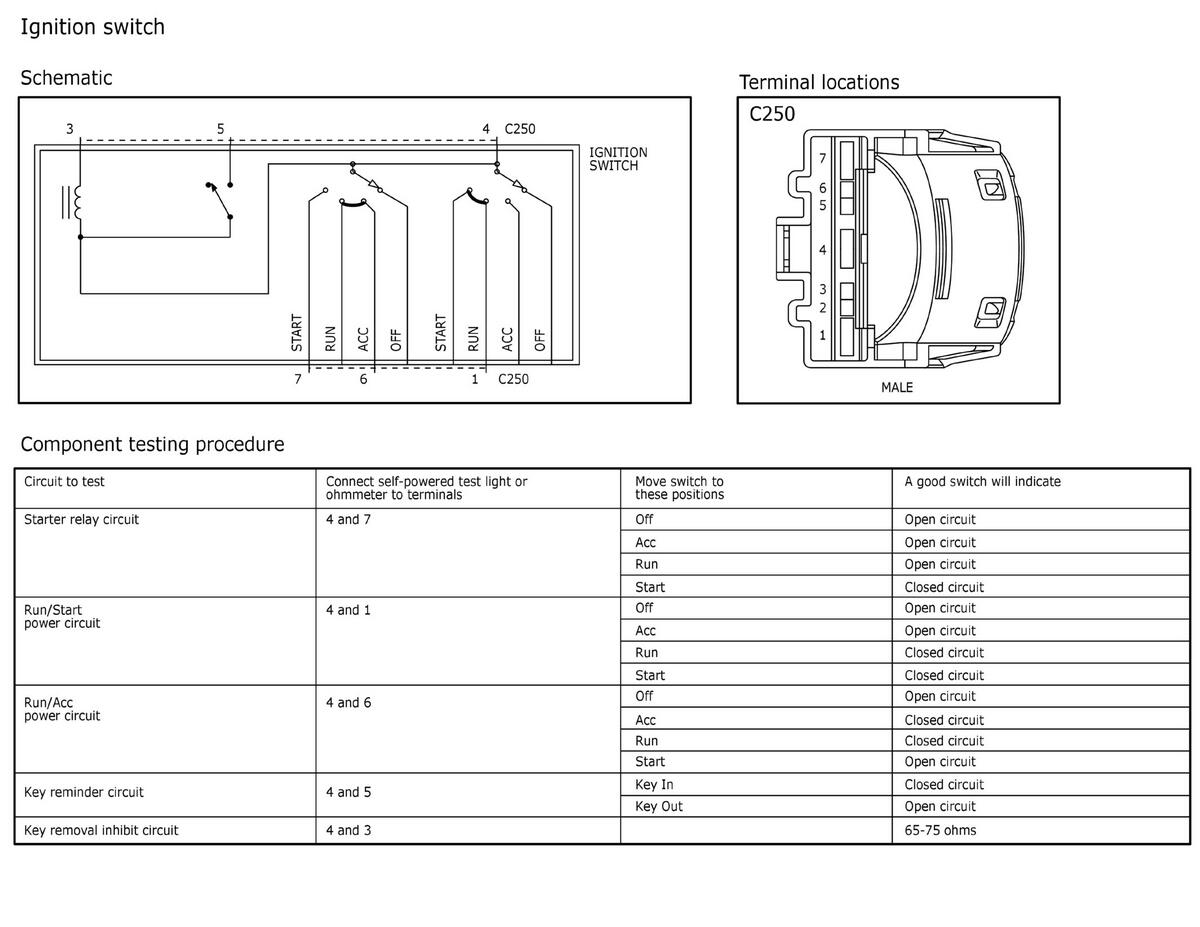

Fig 5: No Caption
GFDWR239392Courtesy of FORD MOTOR COMPANY

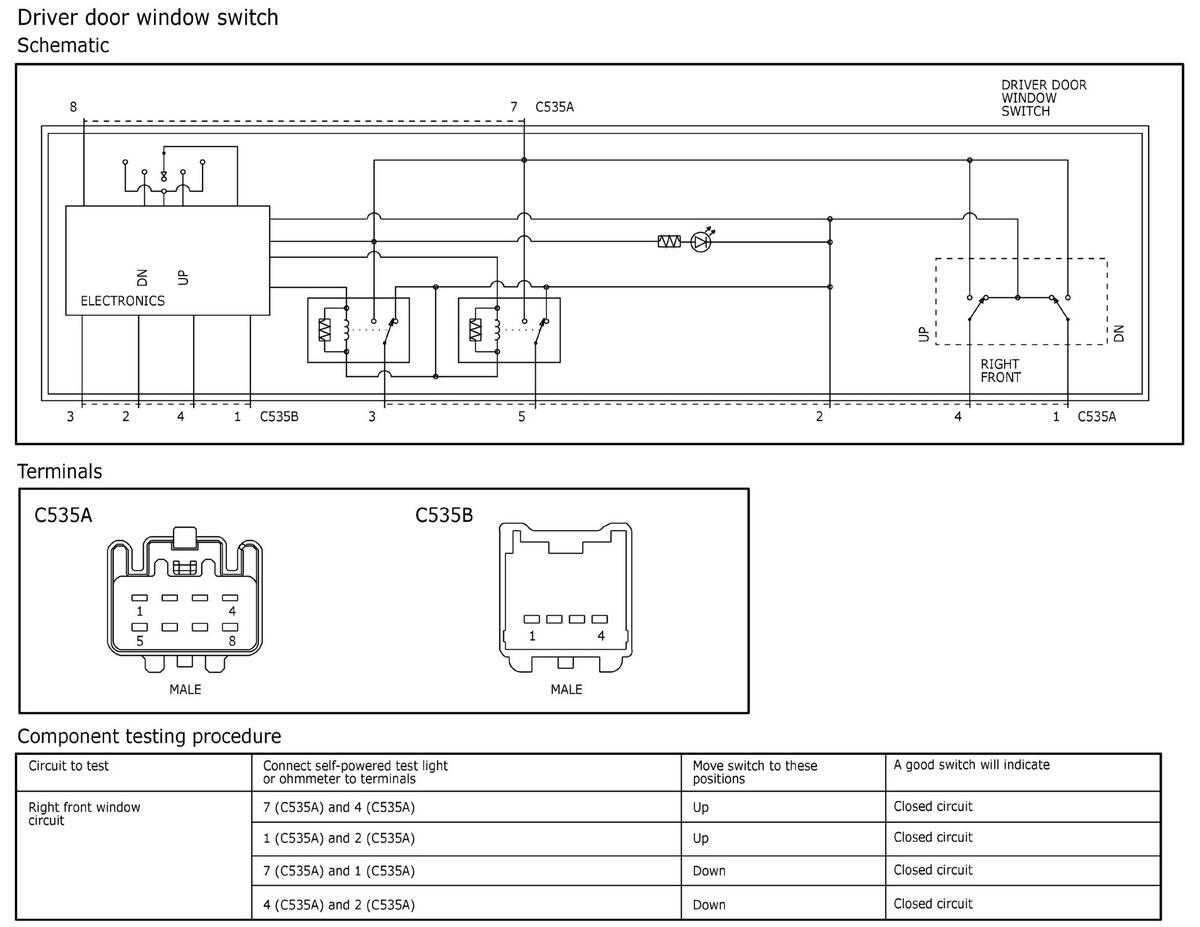

Fig 6: No Caption
GFDWR239393Courtesy of FORD MOTOR COMPANY

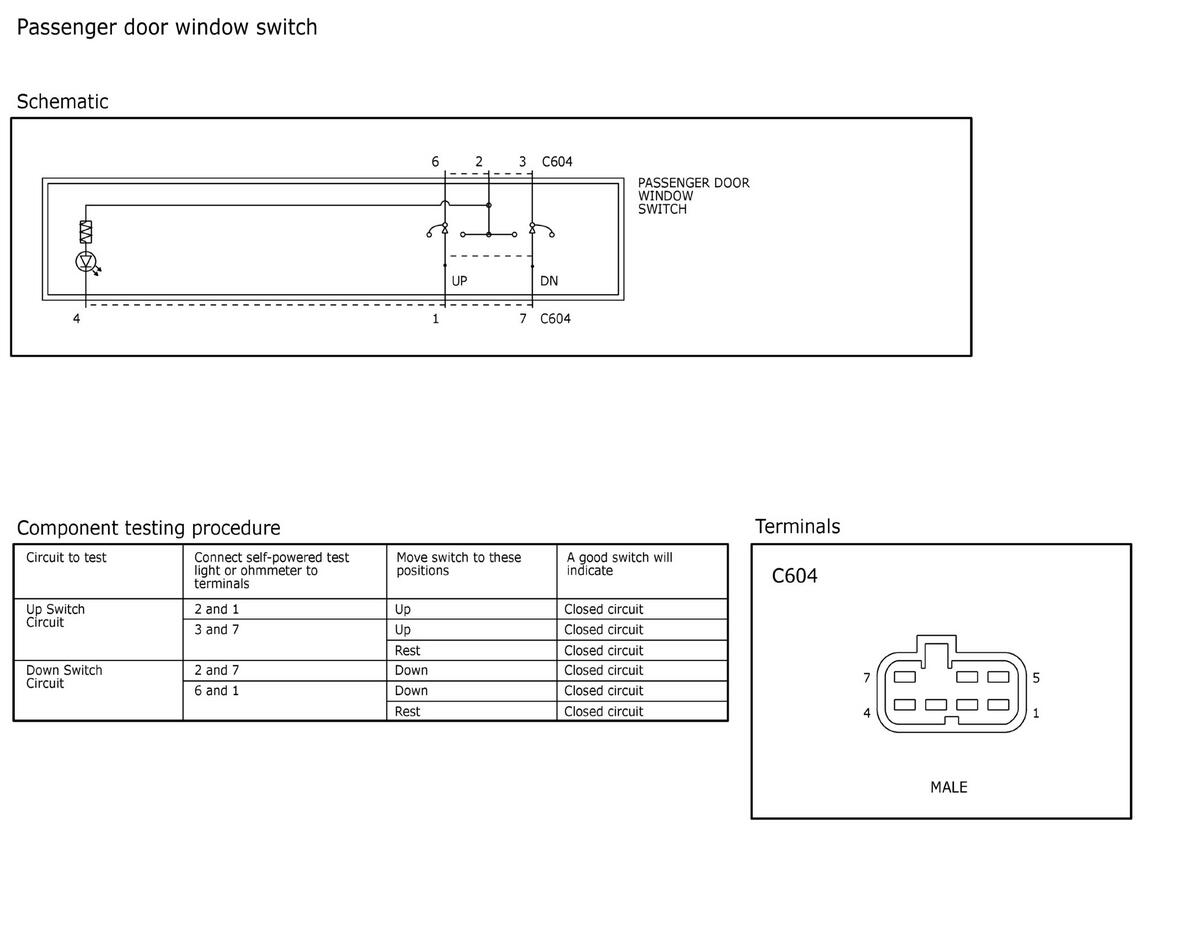

Fig 7: No Caption
GFDWR239394Courtesy of FORD MOTOR COMPANY

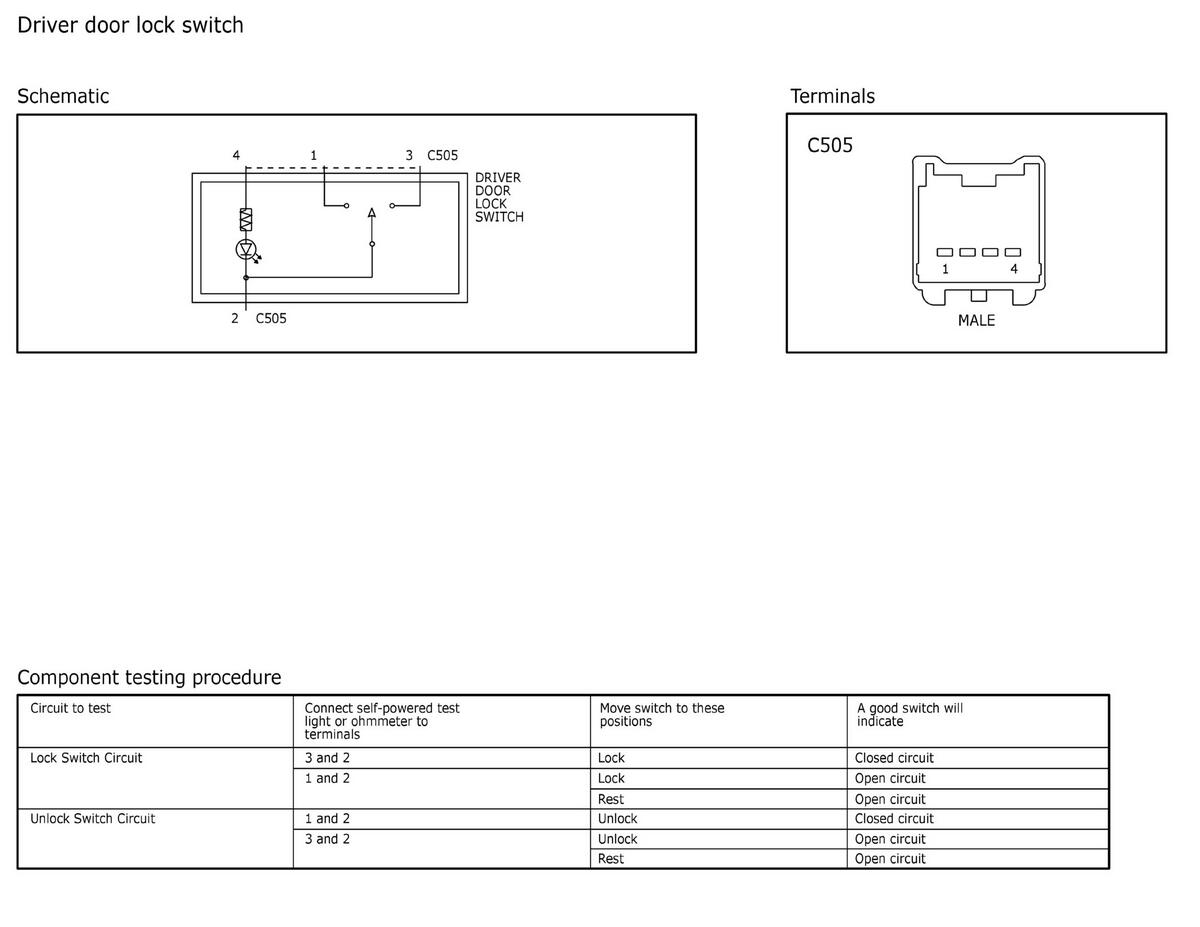

Fig 8: No Caption
GFDWR239395Courtesy of FORD MOTOR COMPANY

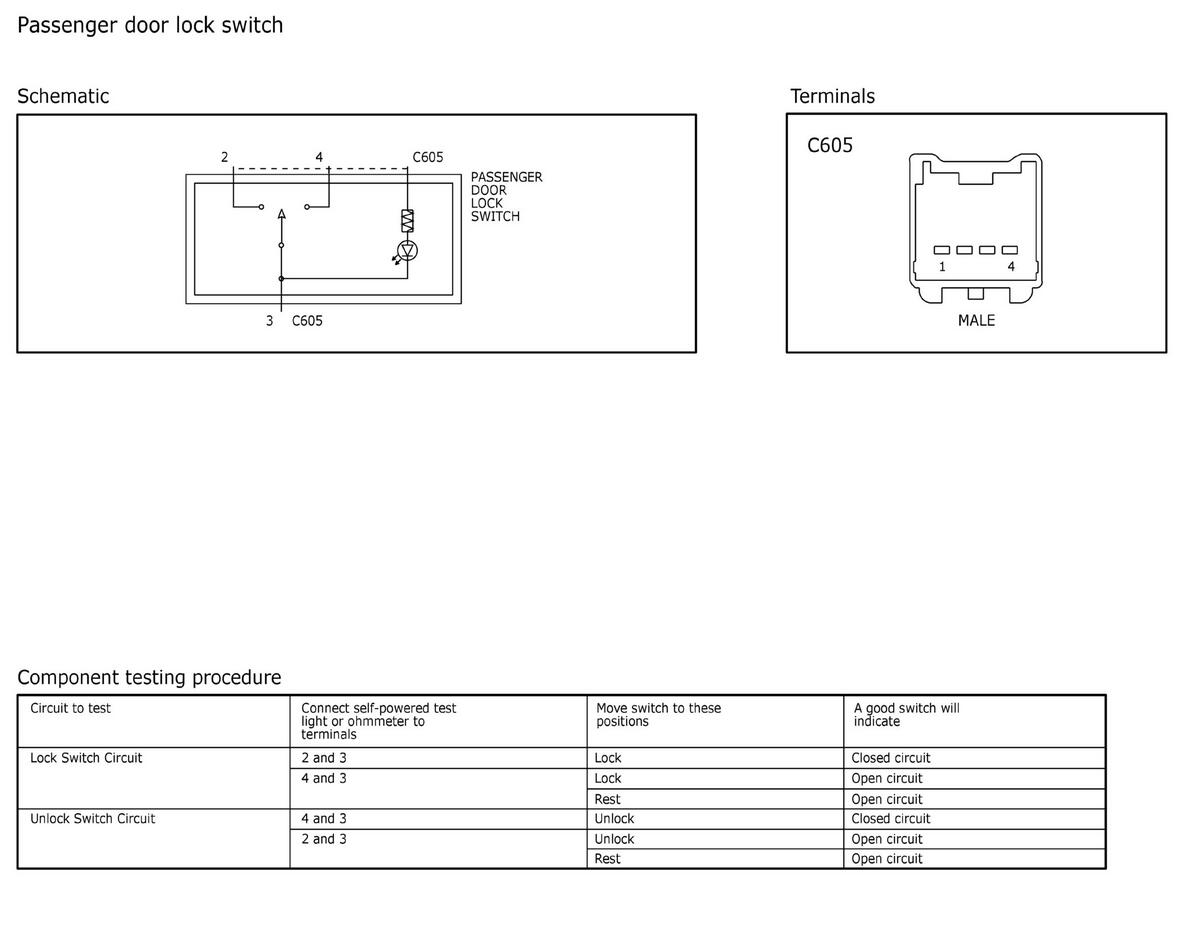

Fig 9: No Caption
GFDWR239396Courtesy of FORD MOTOR COMPANY
Fig 10: No Caption
GFDWR239397Courtesy of FORD MOTOR COMPANY

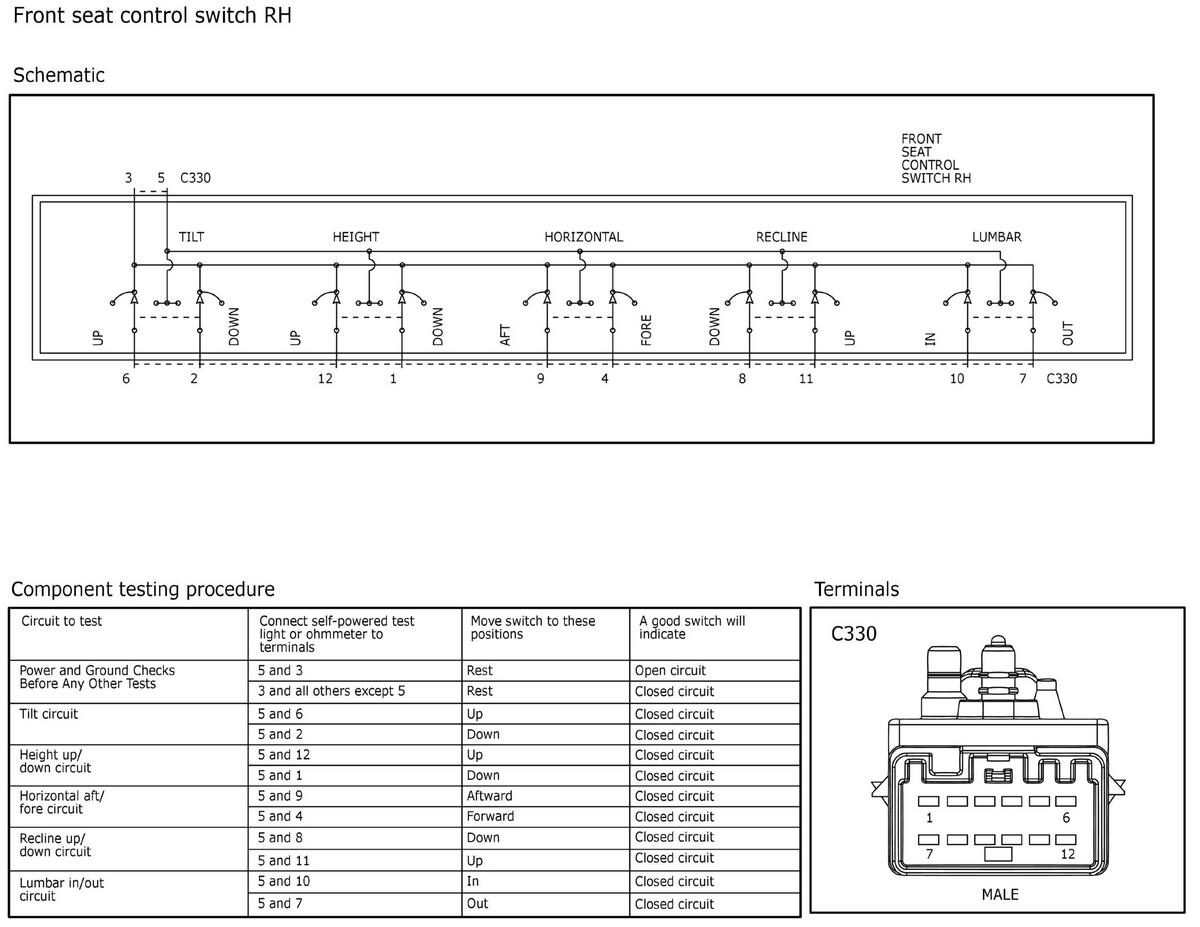

Fig 11: No Caption
GFDWR239398Courtesy of FORD MOTOR COMPANY

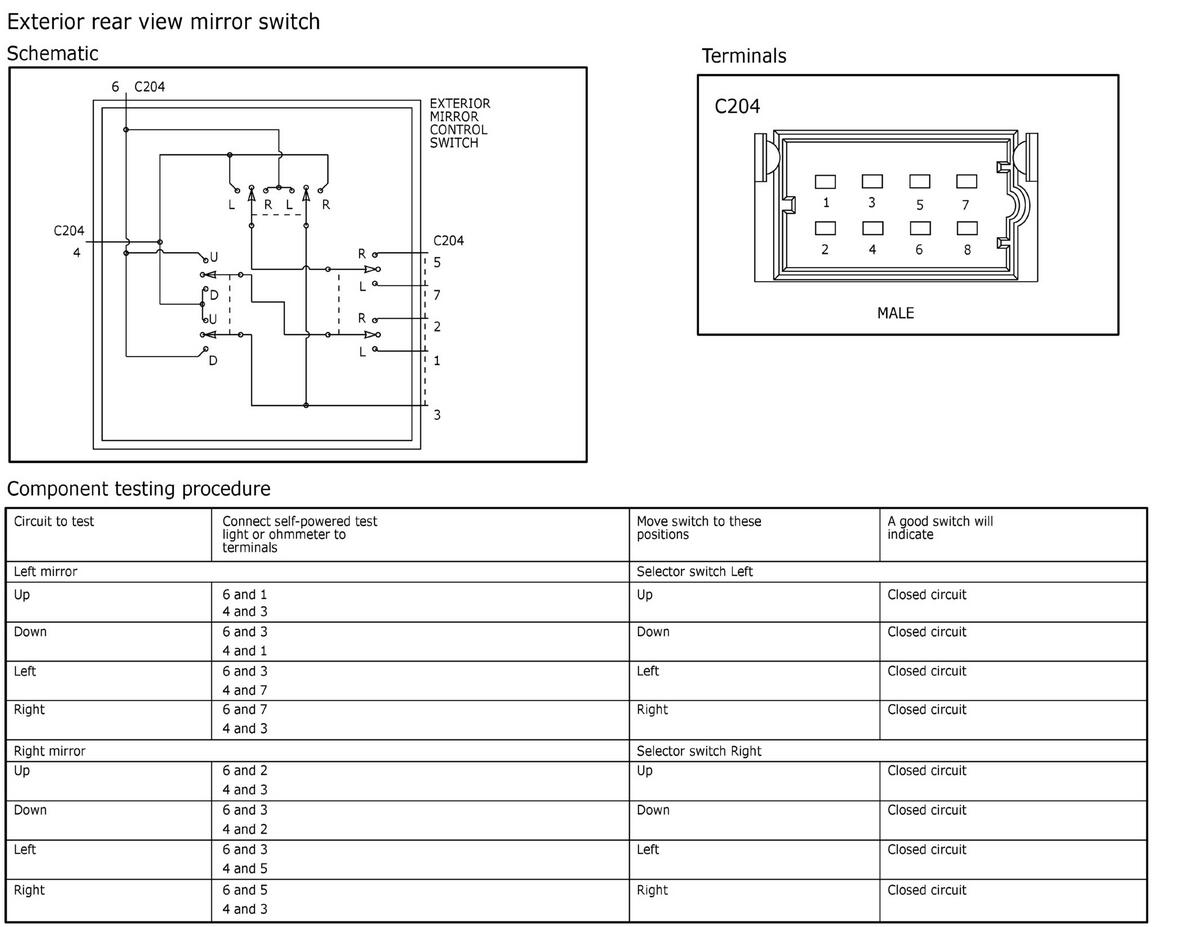

Fig 12: No Caption
GFDWR239399Courtesy of FORD MOTOR COMPANY
