Section 9 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

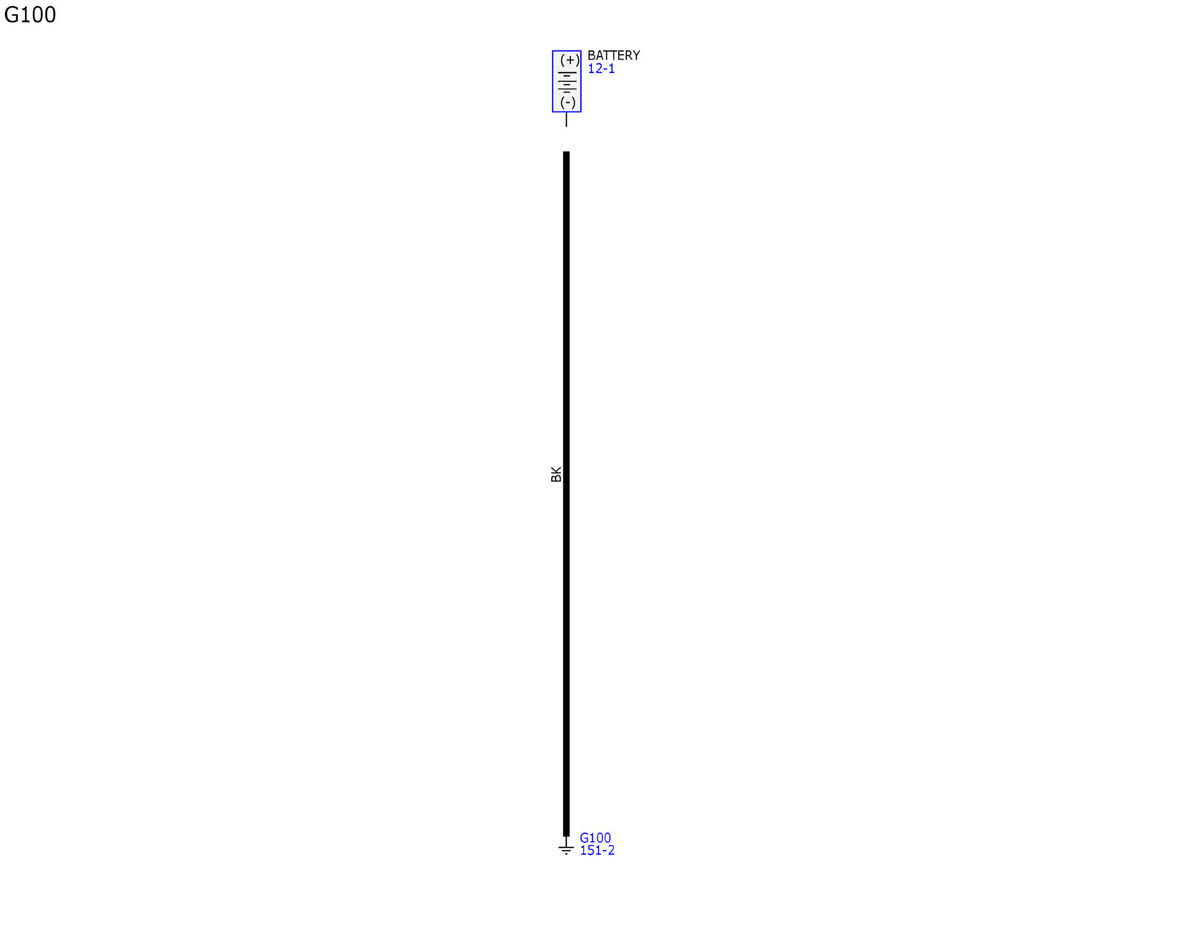

GFDWR232874Courtesy of FORD MOTOR COMPANY

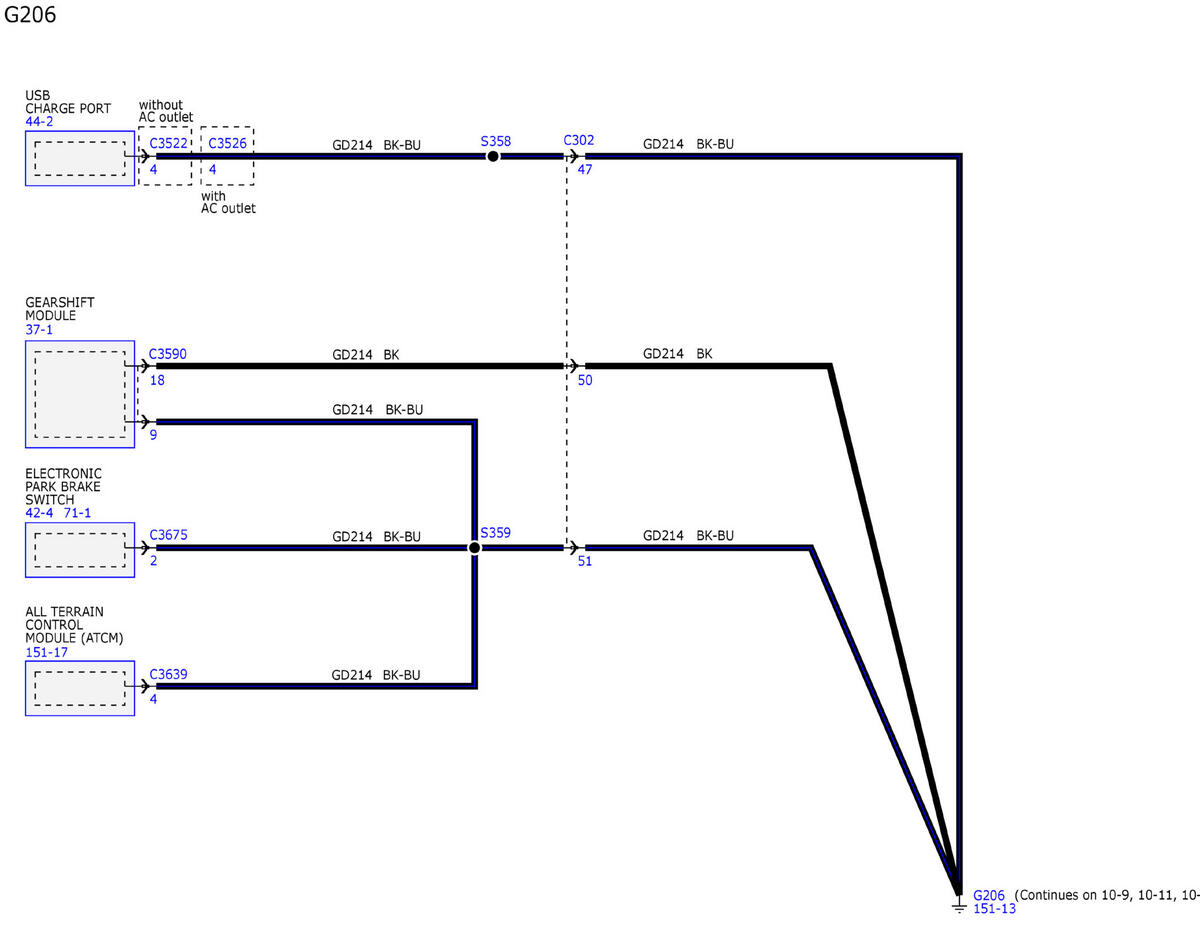

GFDWR232875Courtesy of FORD MOTOR COMPANY

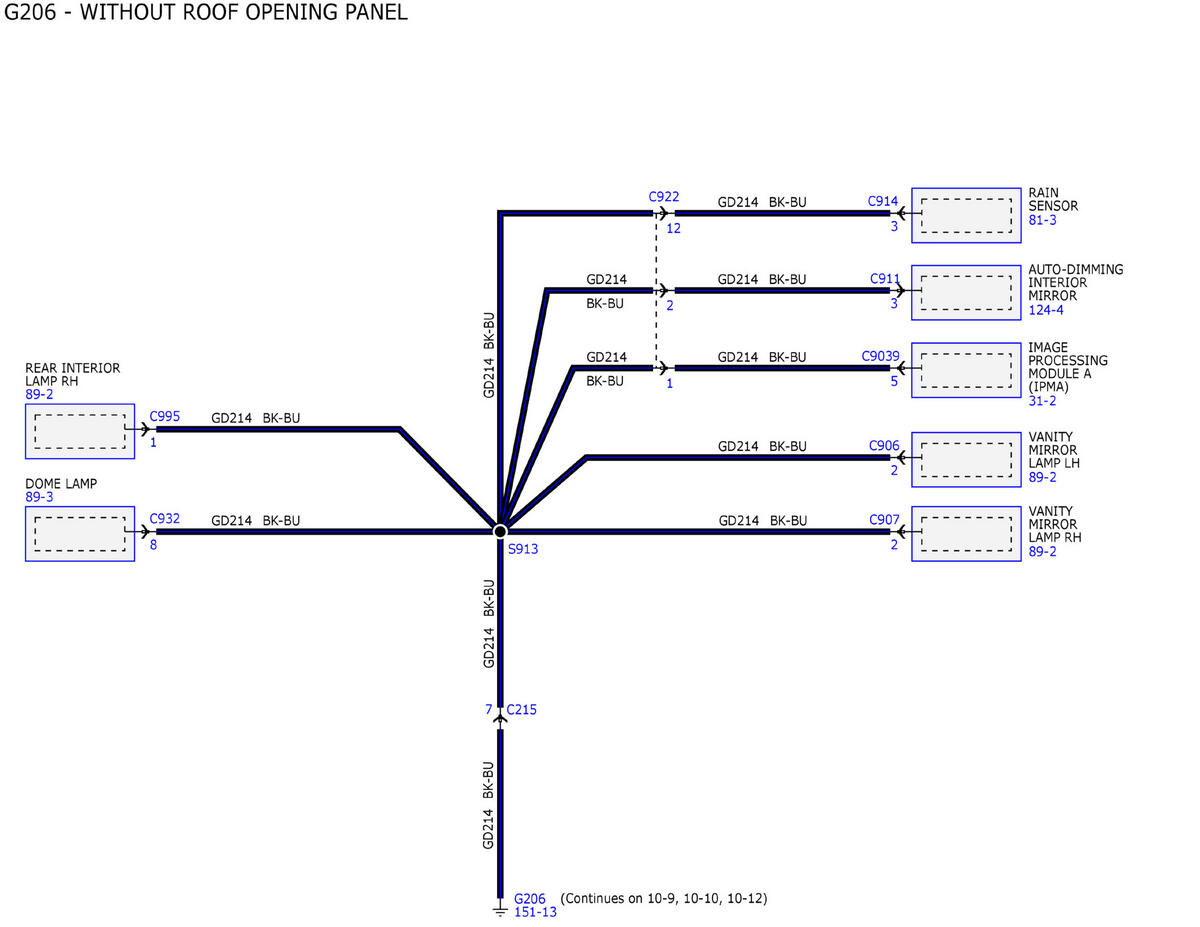

GFDWR232876Courtesy of FORD MOTOR COMPANY

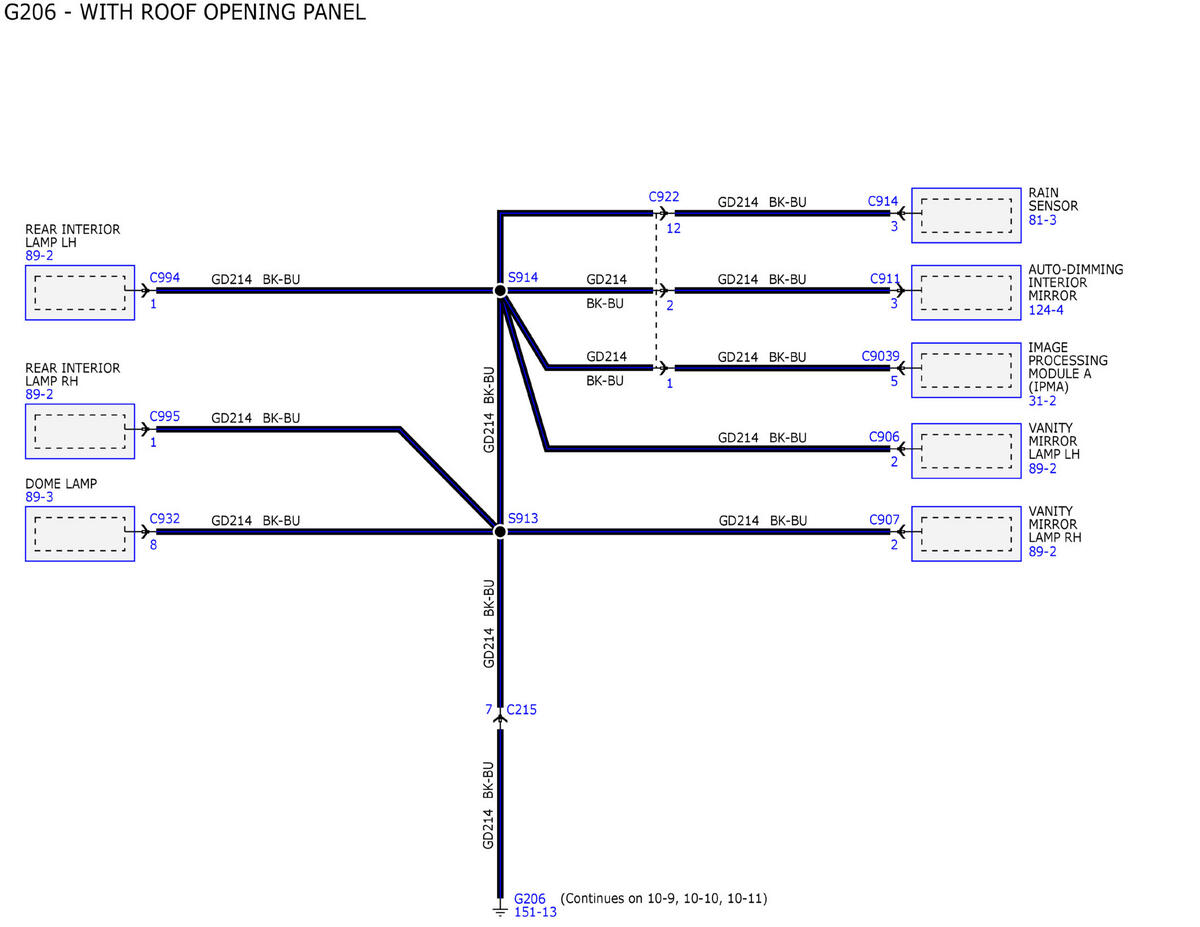

GFDWR232877Courtesy of FORD MOTOR COMPANY

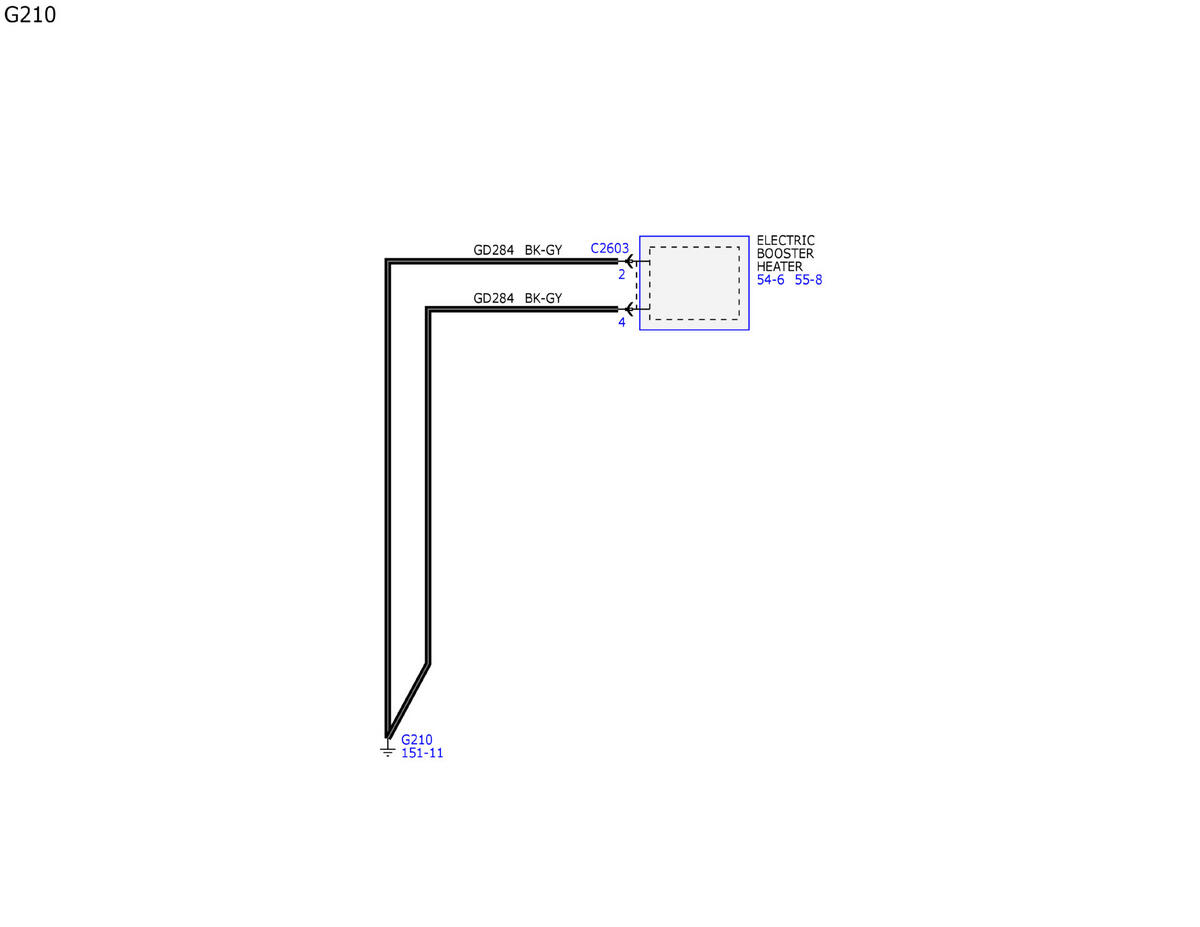

GFDWR232878Courtesy of FORD MOTOR COMPANY

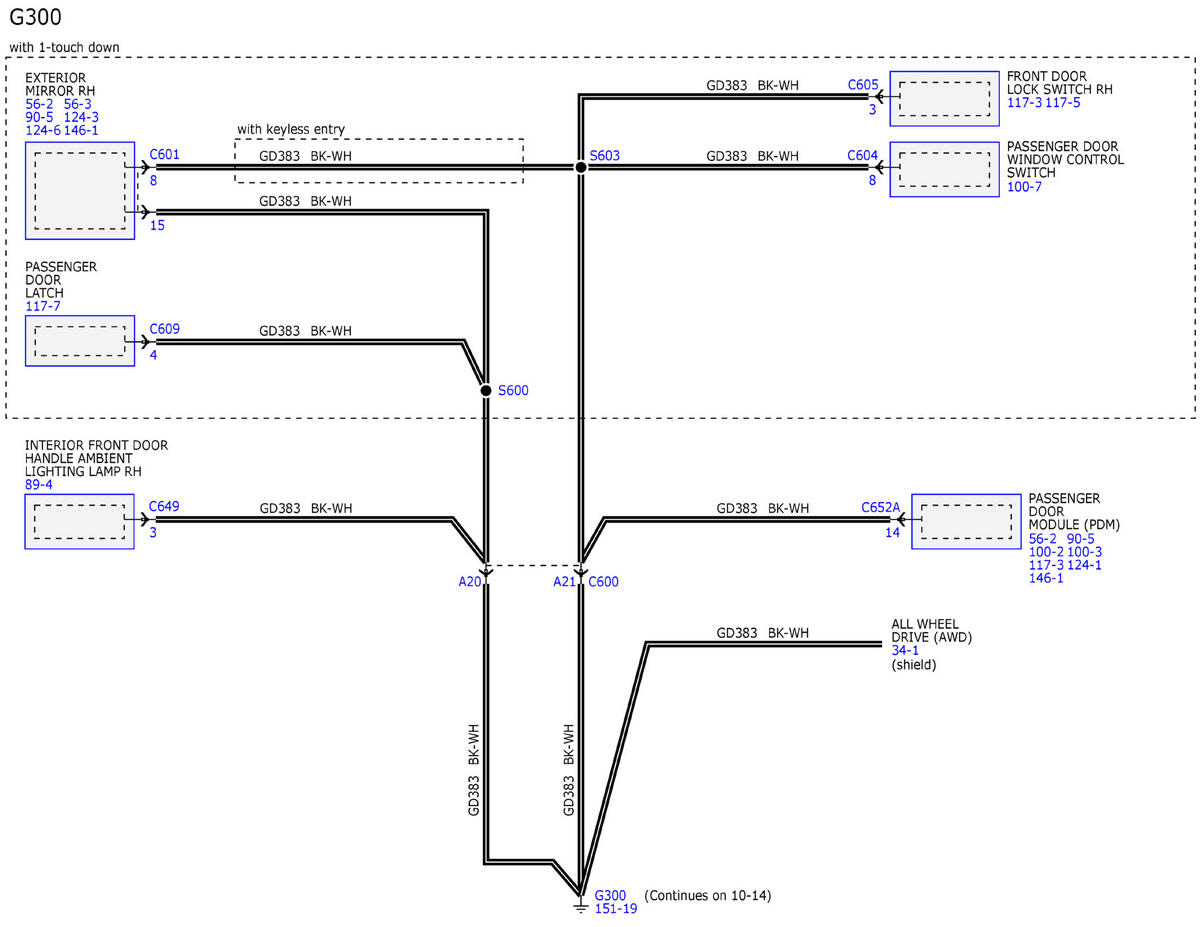

GFDWR232879Courtesy of FORD MOTOR COMPANY

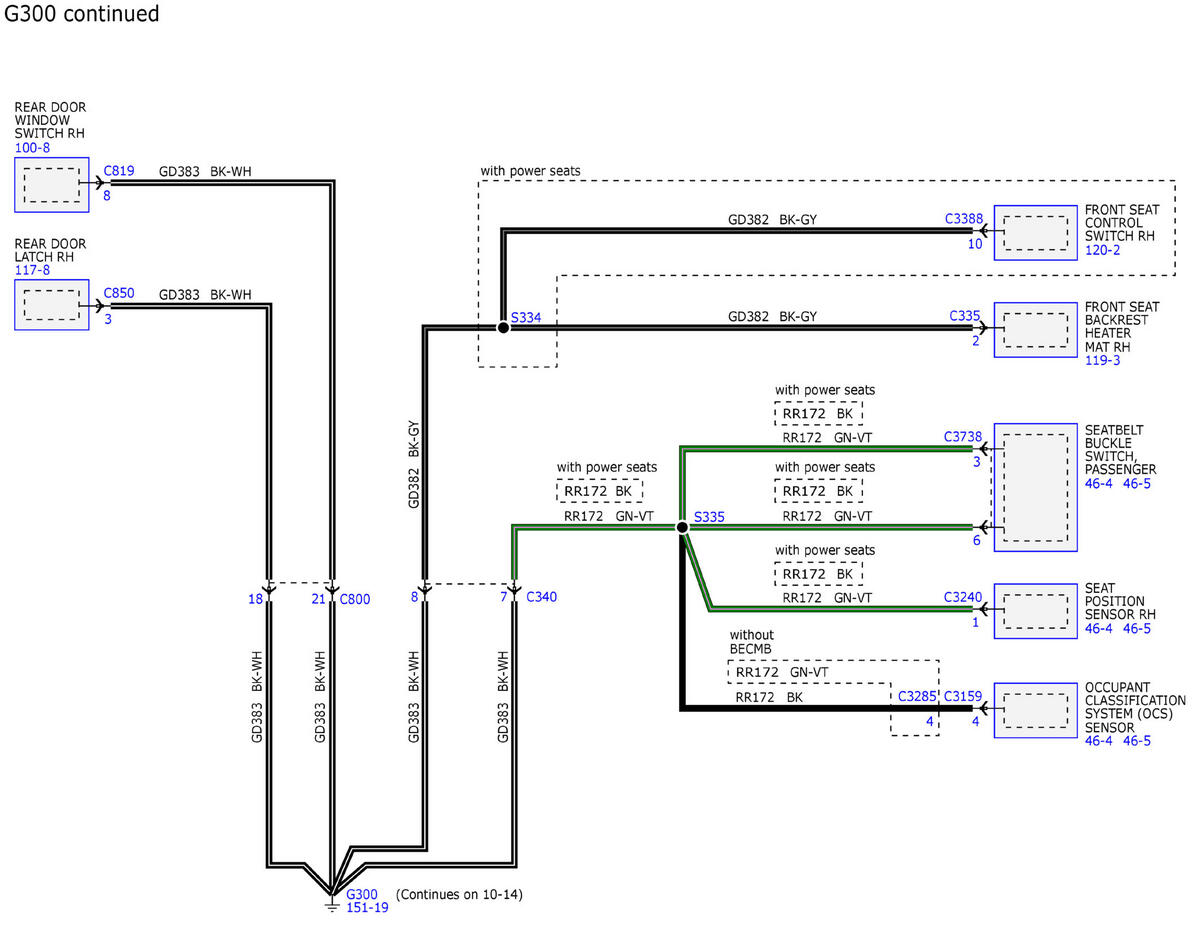

GFDWR232880Courtesy of FORD MOTOR COMPANY

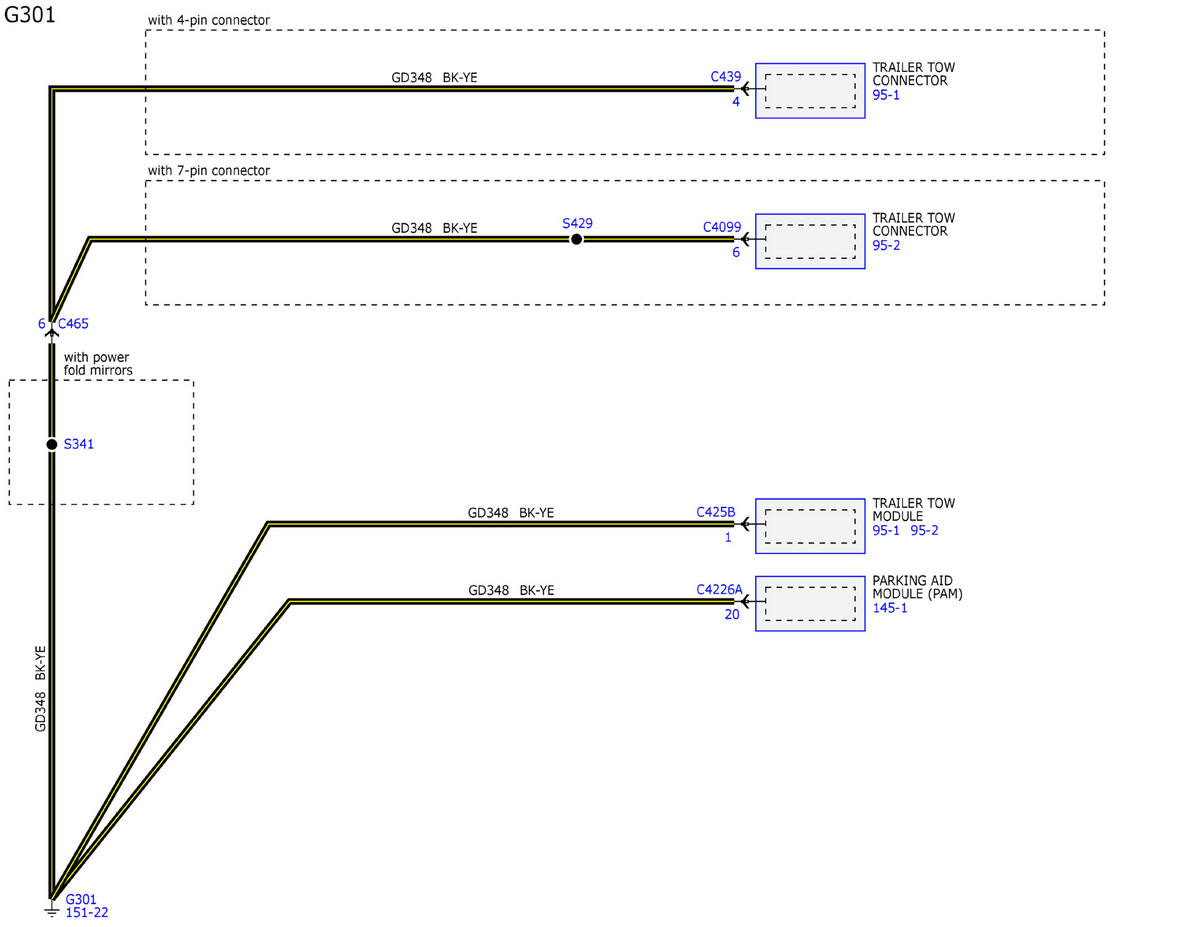

GFDWR232881Courtesy of FORD MOTOR COMPANY

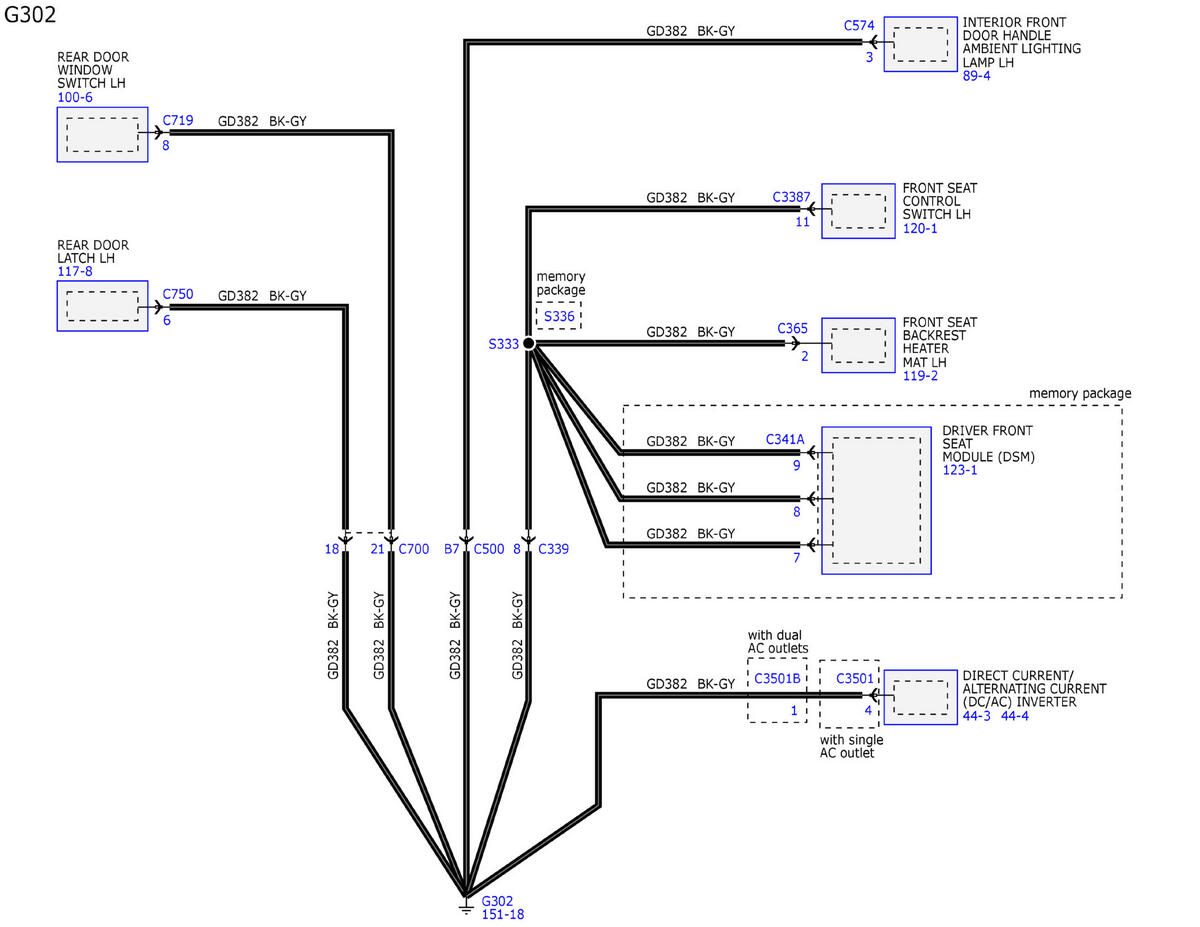

GFDWR232882Courtesy of FORD MOTOR COMPANY

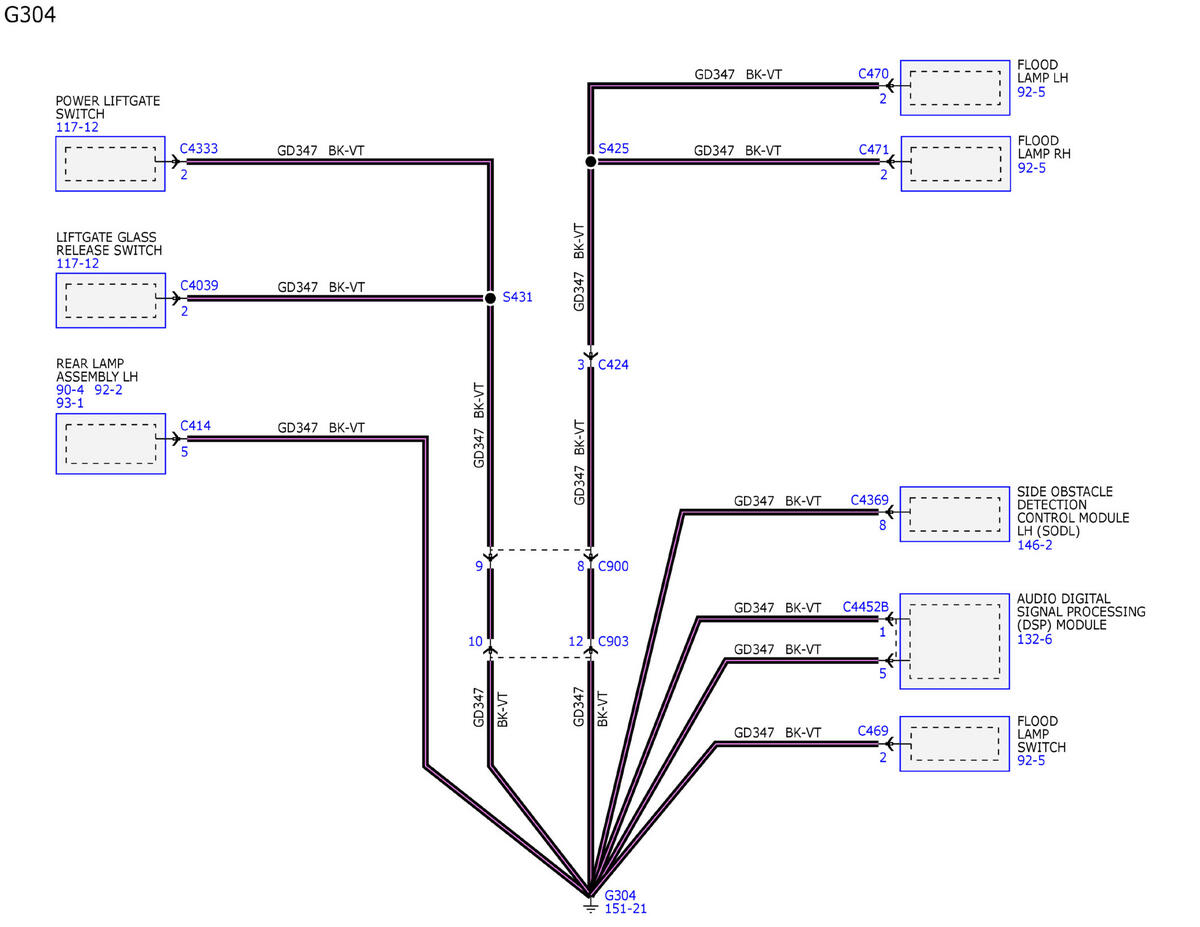

GFDWR232883Courtesy of FORD MOTOR COMPANY

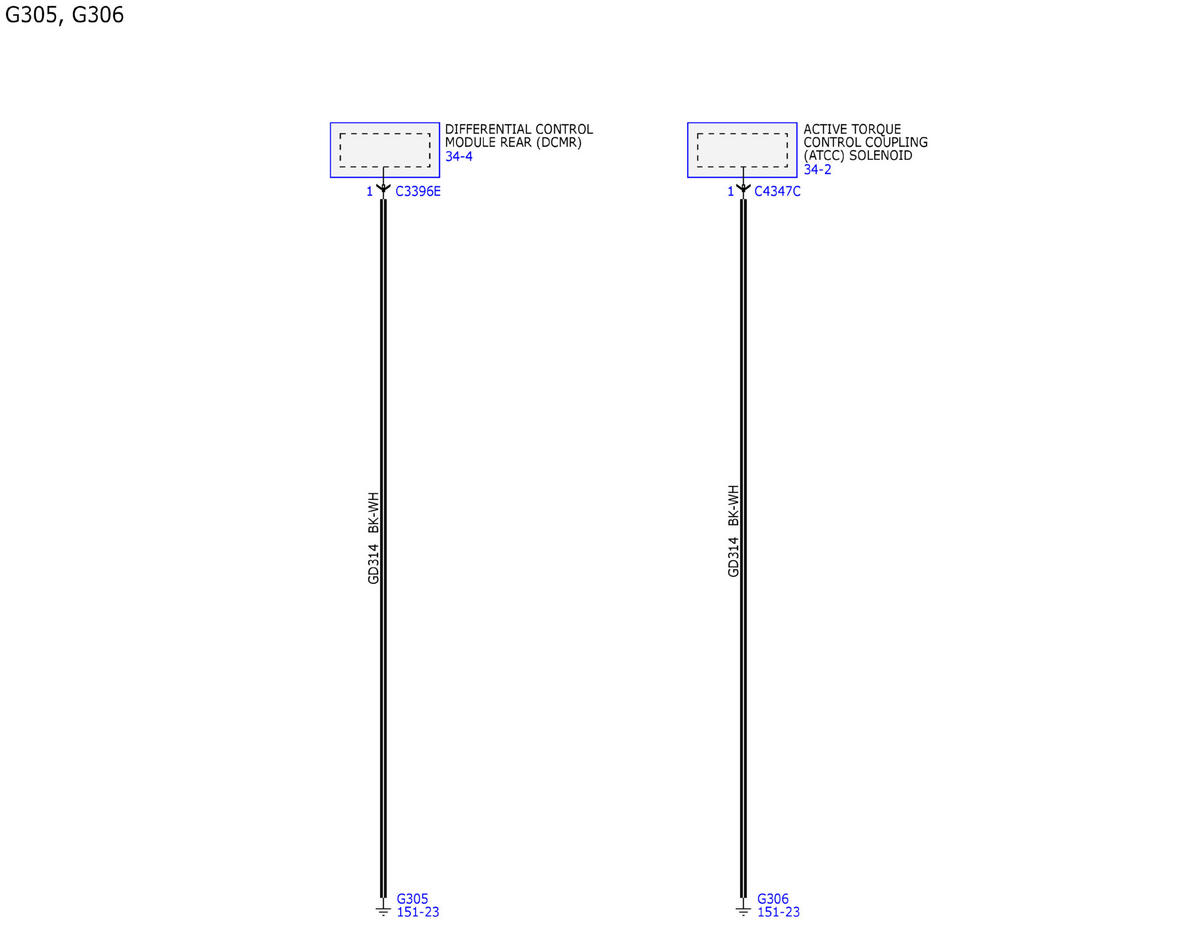

GFDWR232884Courtesy of FORD MOTOR COMPANY

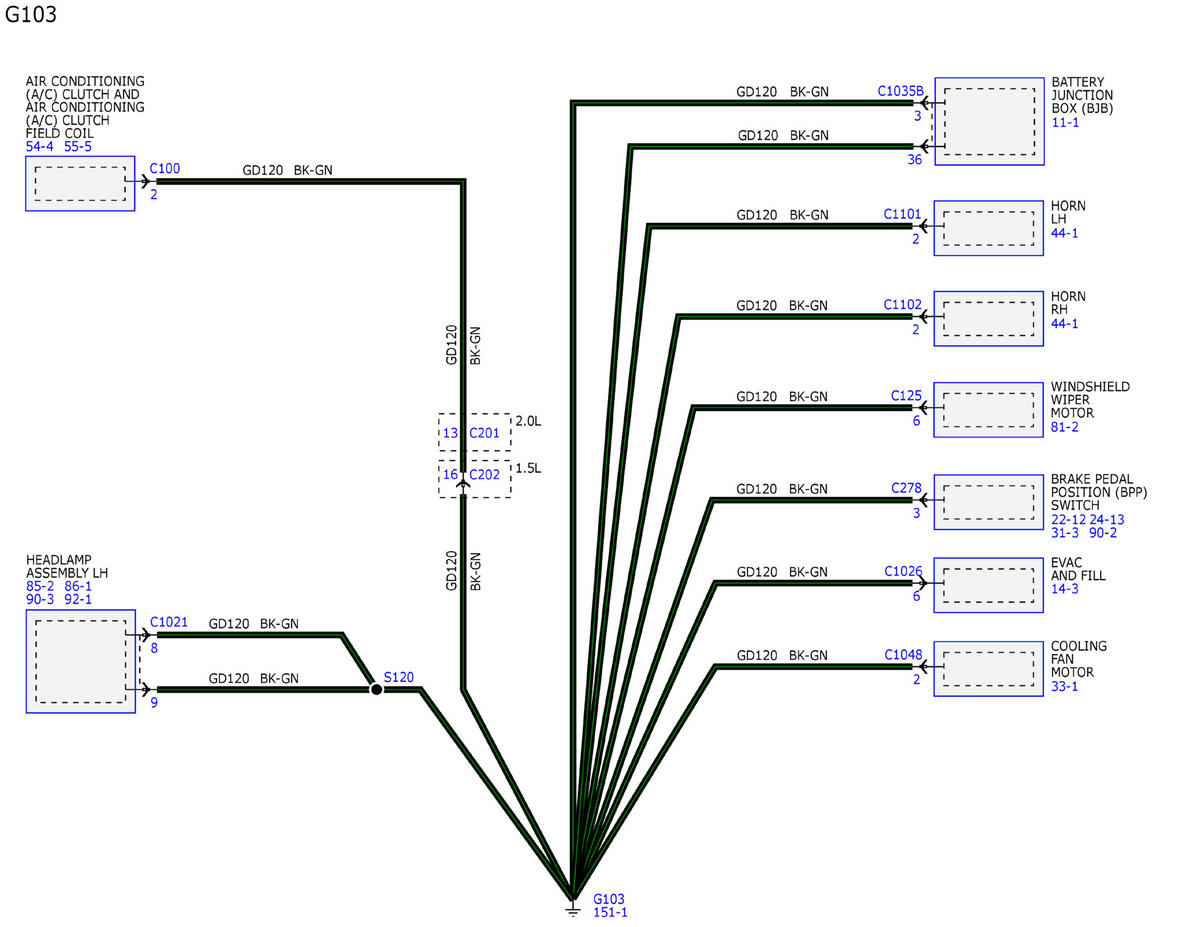

GFDWR232885Courtesy of FORD MOTOR COMPANY

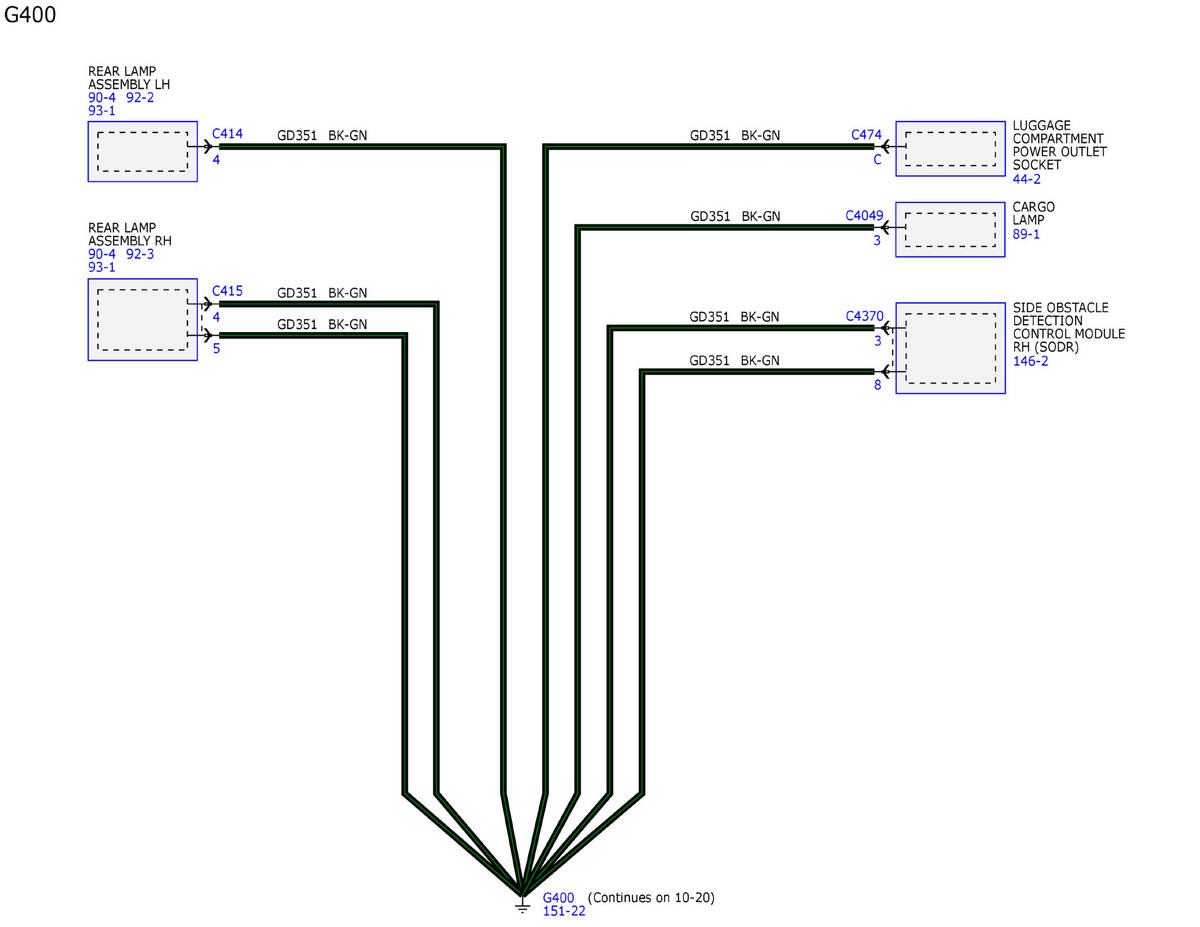

GFDWR232886Courtesy of FORD MOTOR COMPANY

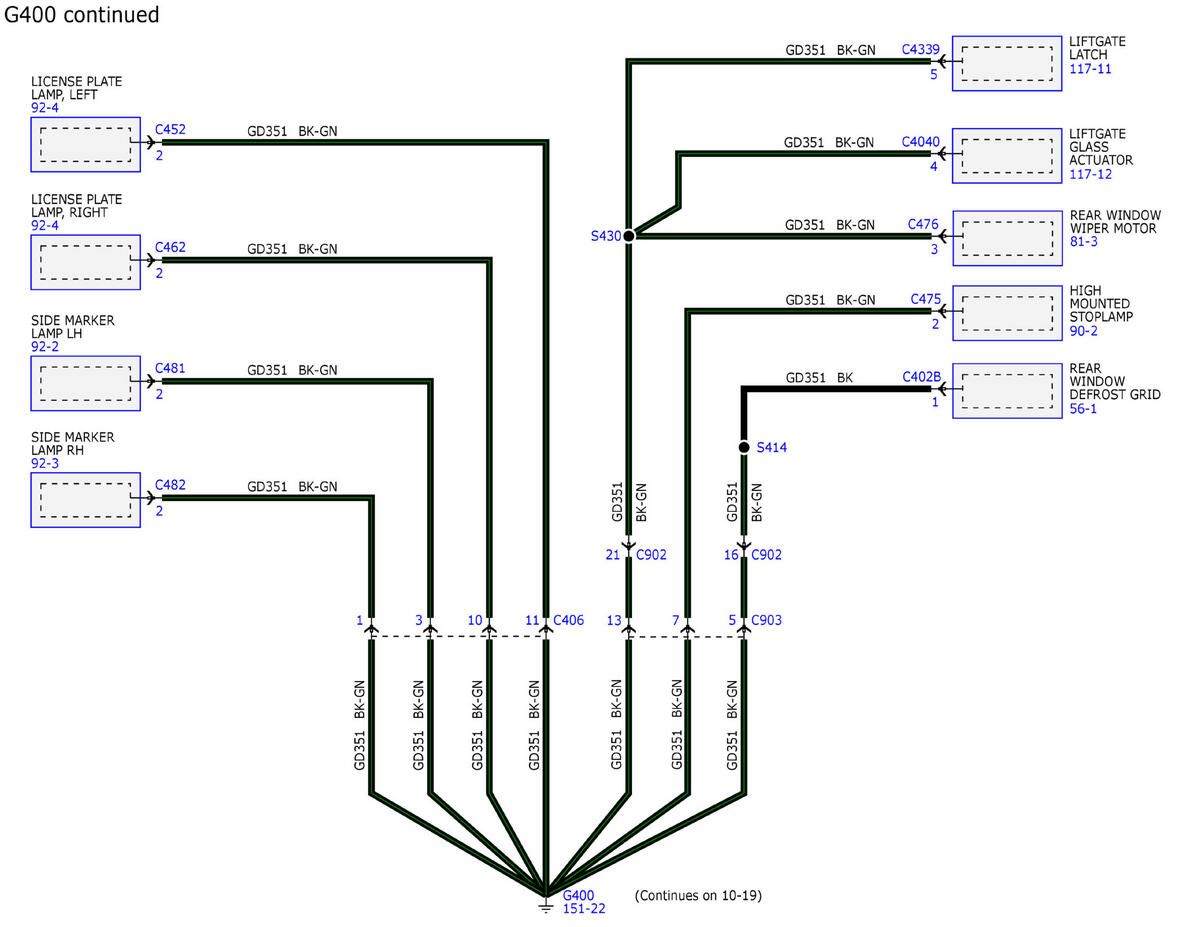

GFDWR232887Courtesy of FORD MOTOR COMPANY

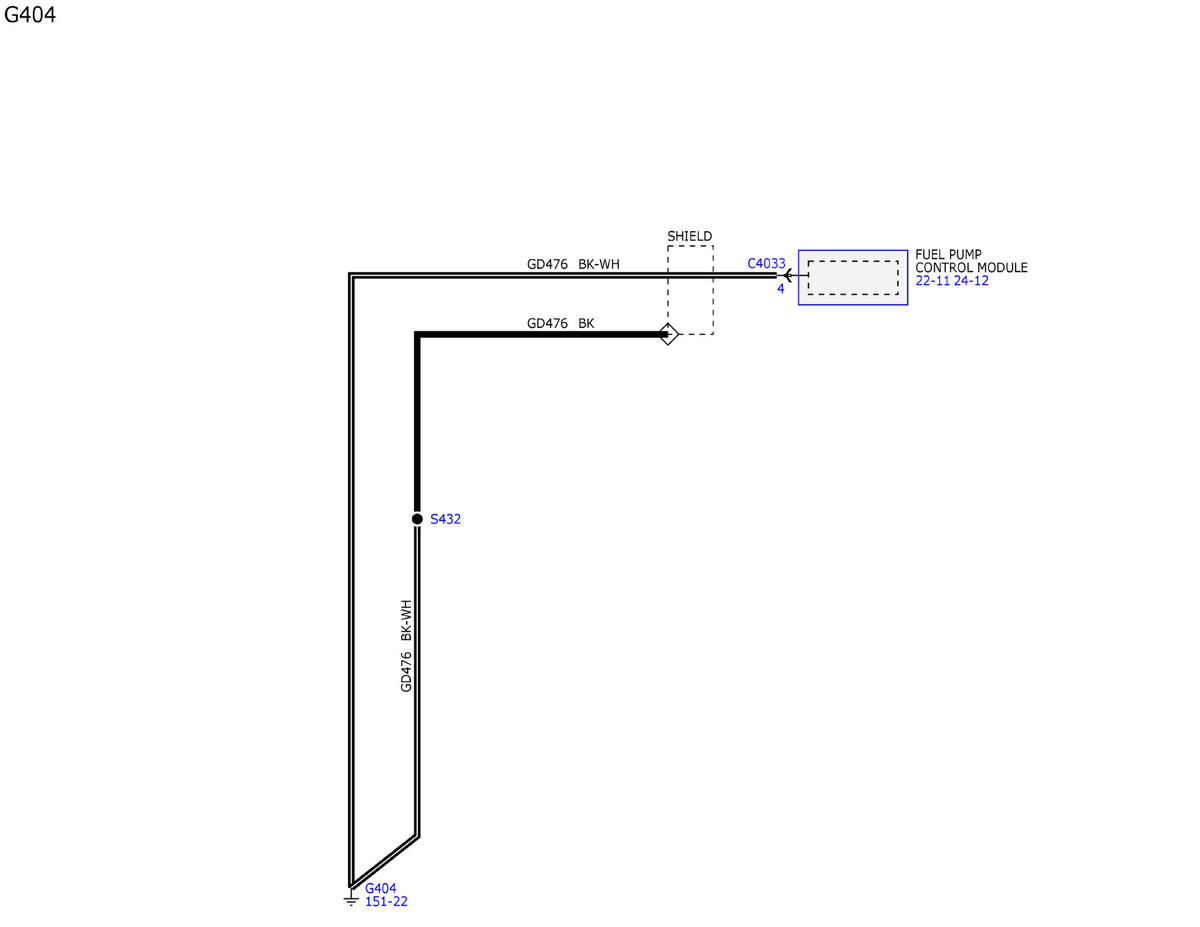

GFDWR232888Courtesy of FORD MOTOR COMPANY

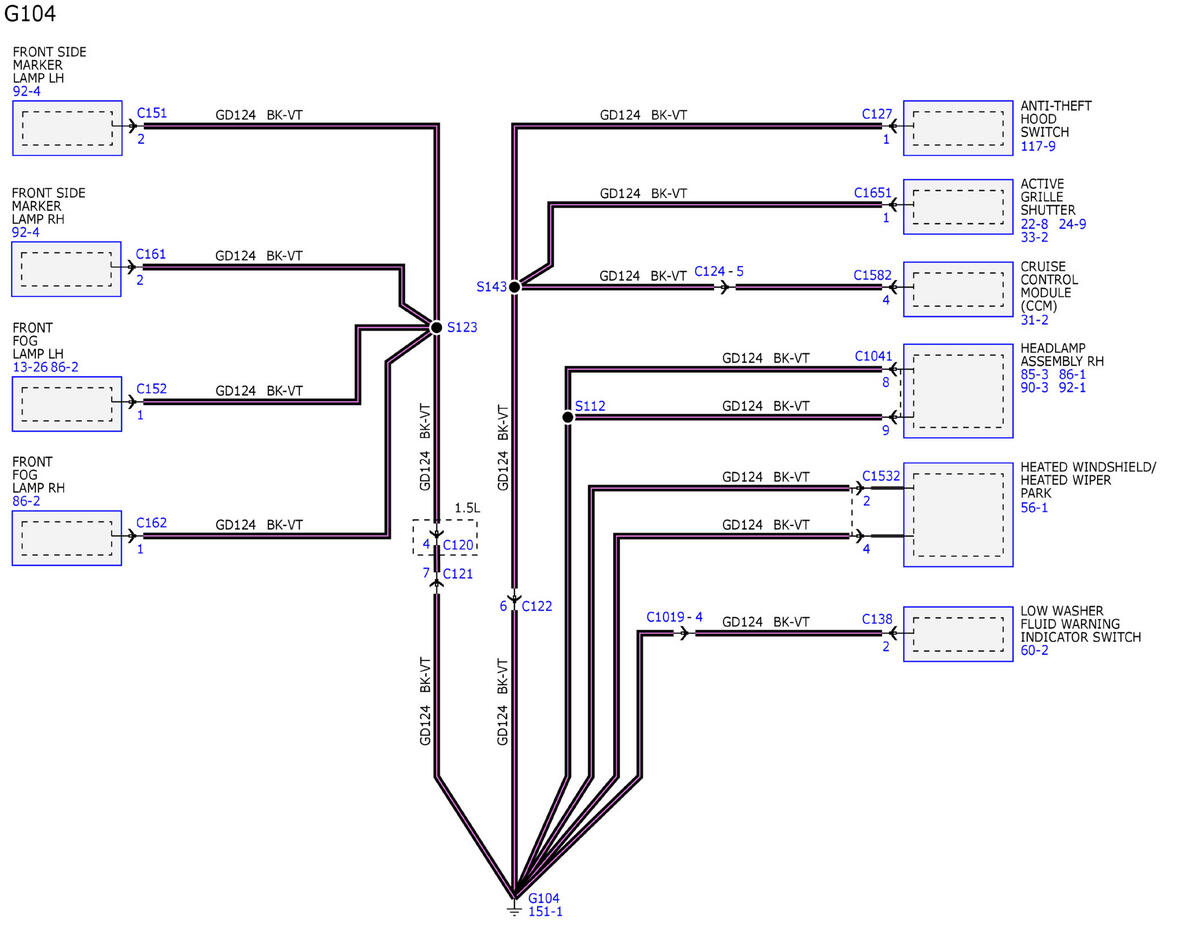

GFDWR232889Courtesy of FORD MOTOR COMPANY

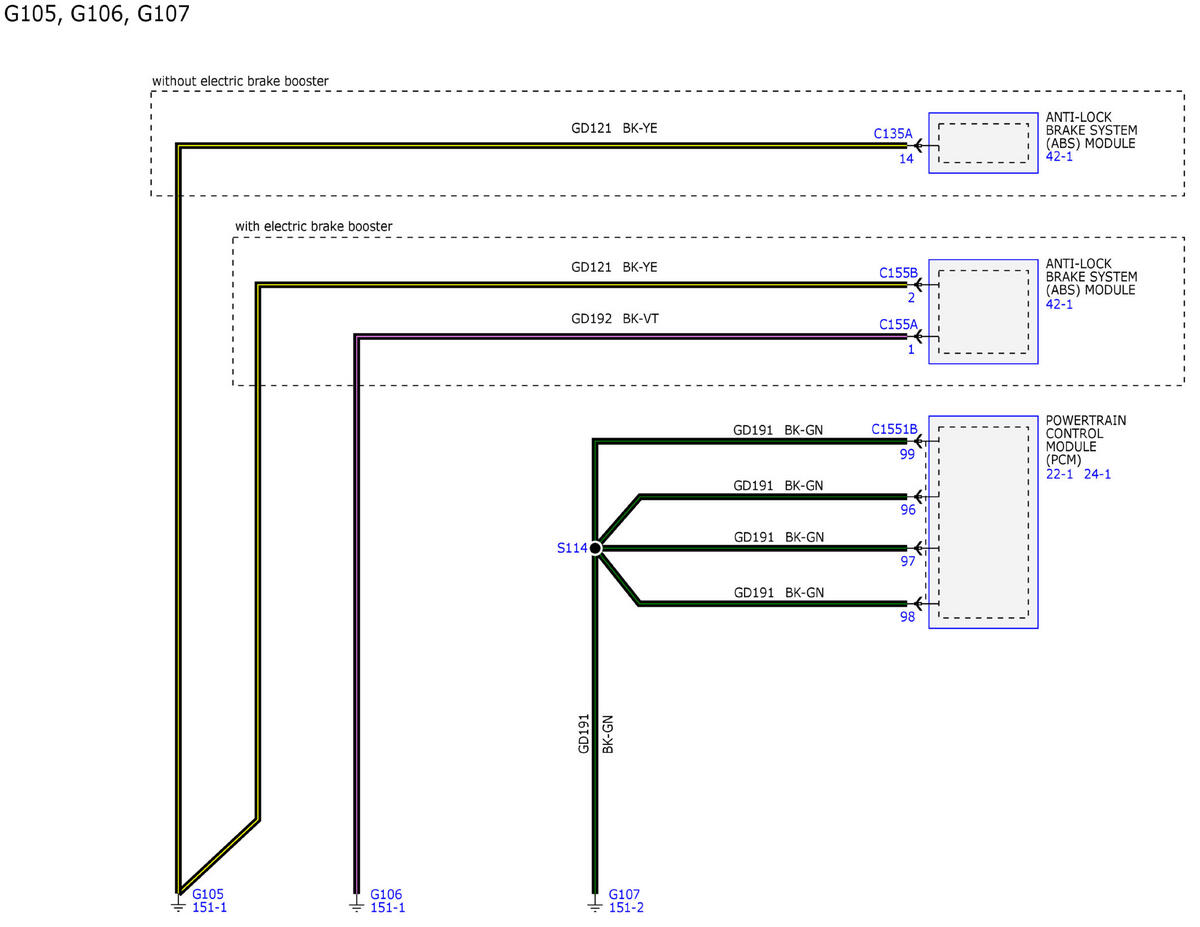

GFDWR232890Courtesy of FORD MOTOR COMPANY

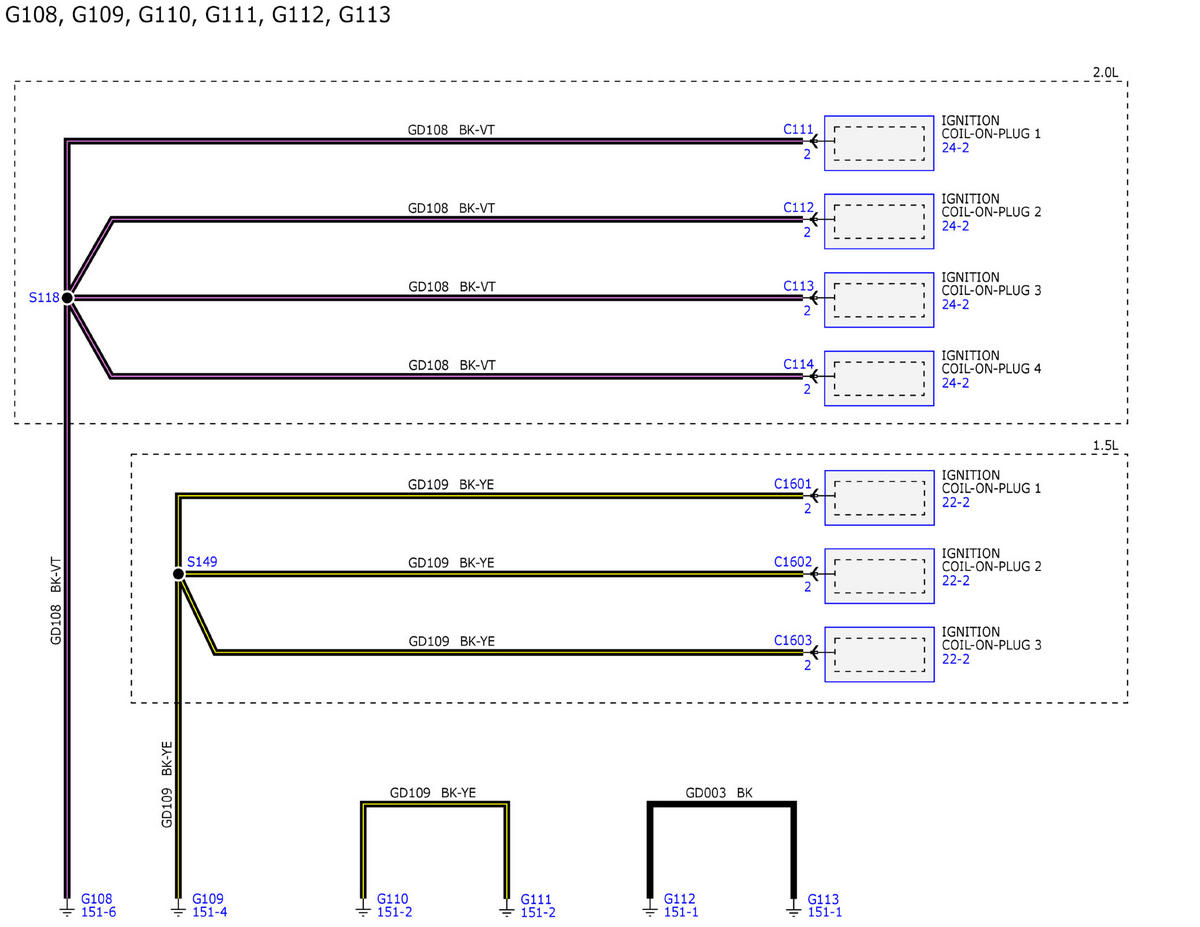

GFDWR232891Courtesy of FORD MOTOR COMPANY

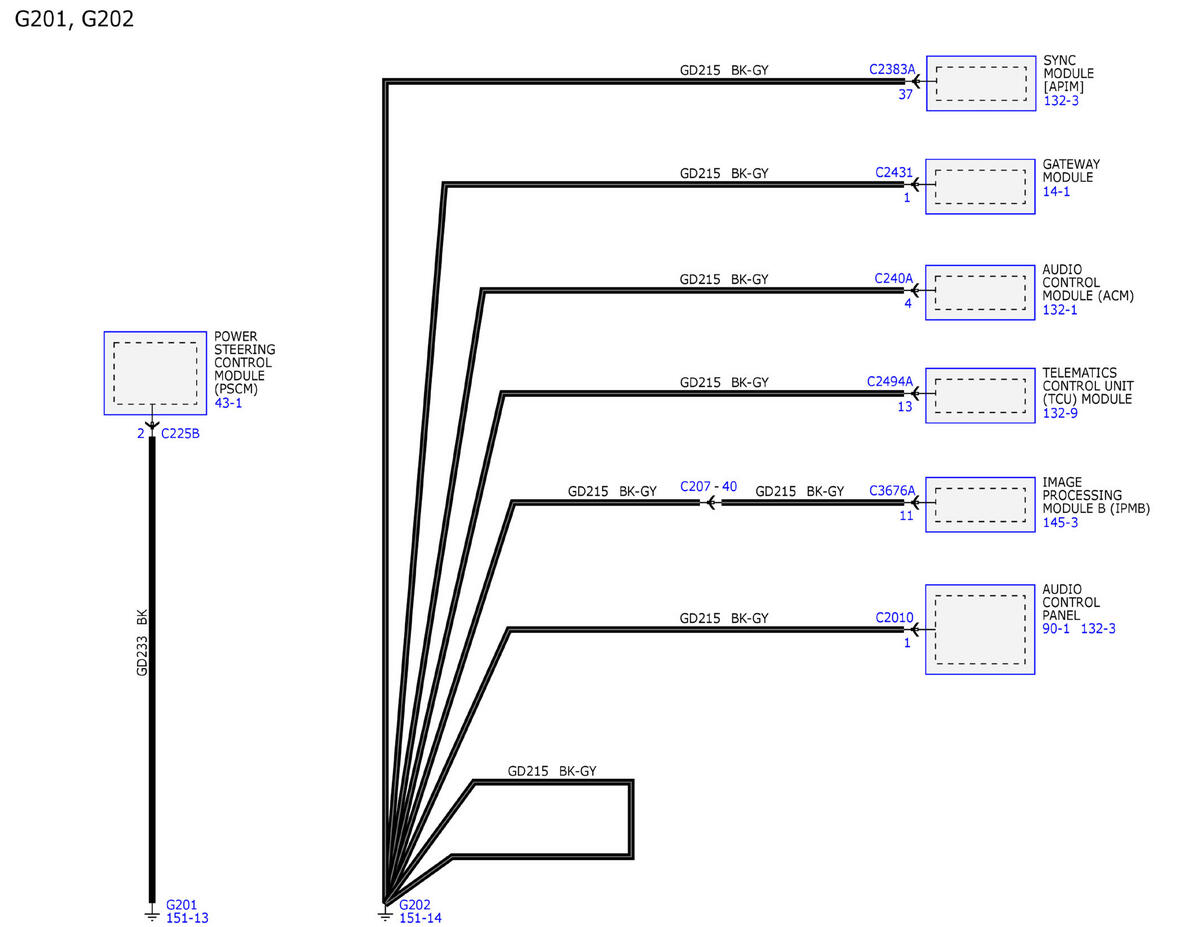

GFDWR232892Courtesy of FORD MOTOR COMPANY

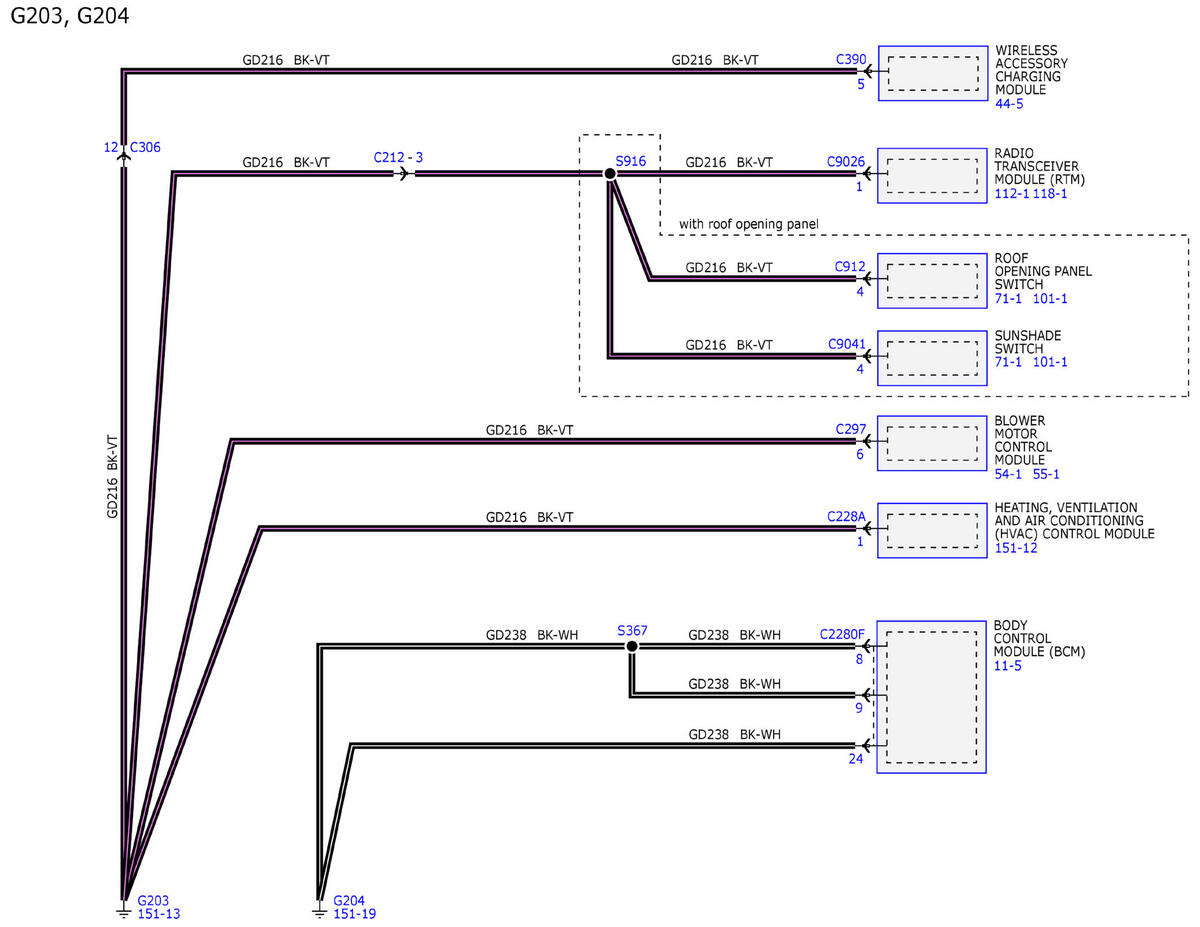

GFDWR232893Courtesy of FORD MOTOR COMPANY

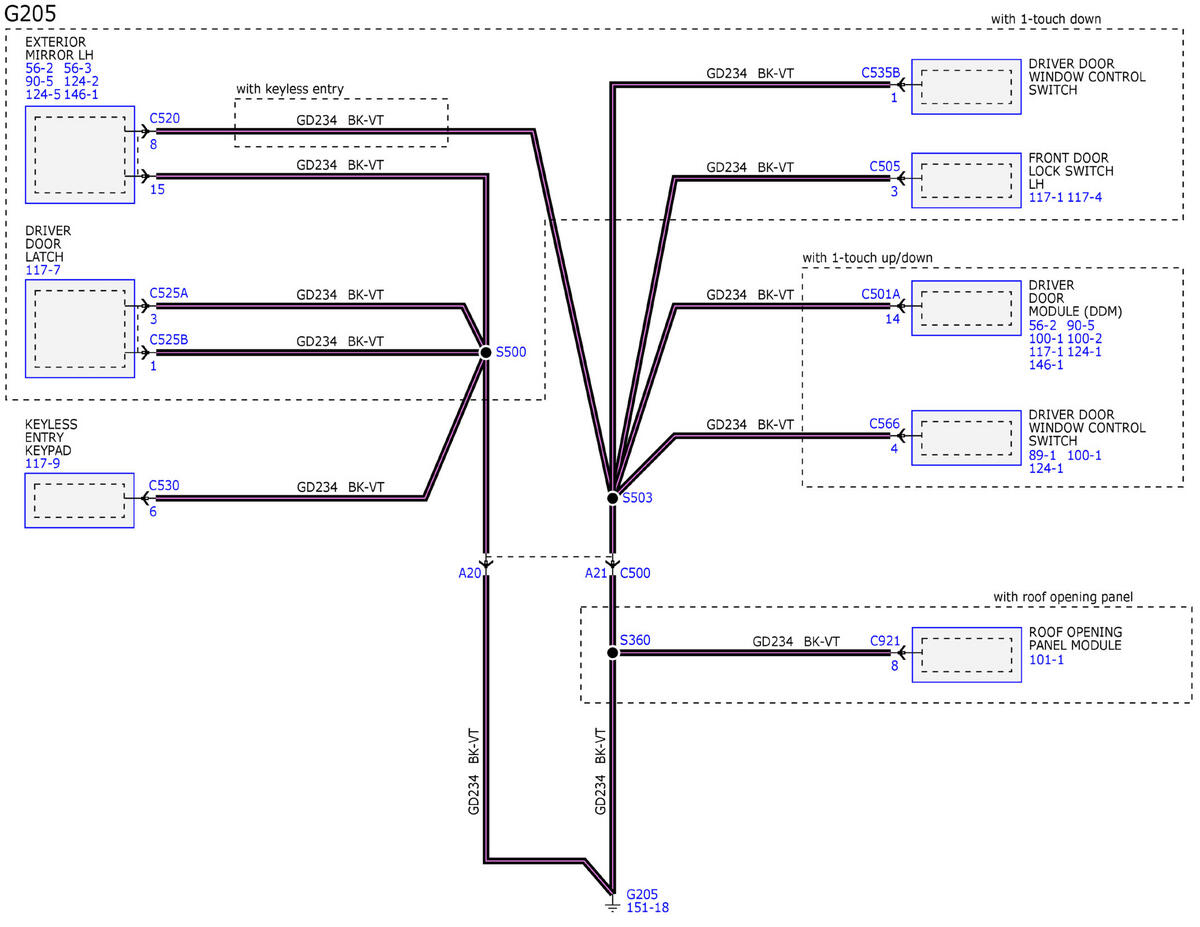

GFDWR232894Courtesy of FORD MOTOR COMPANY

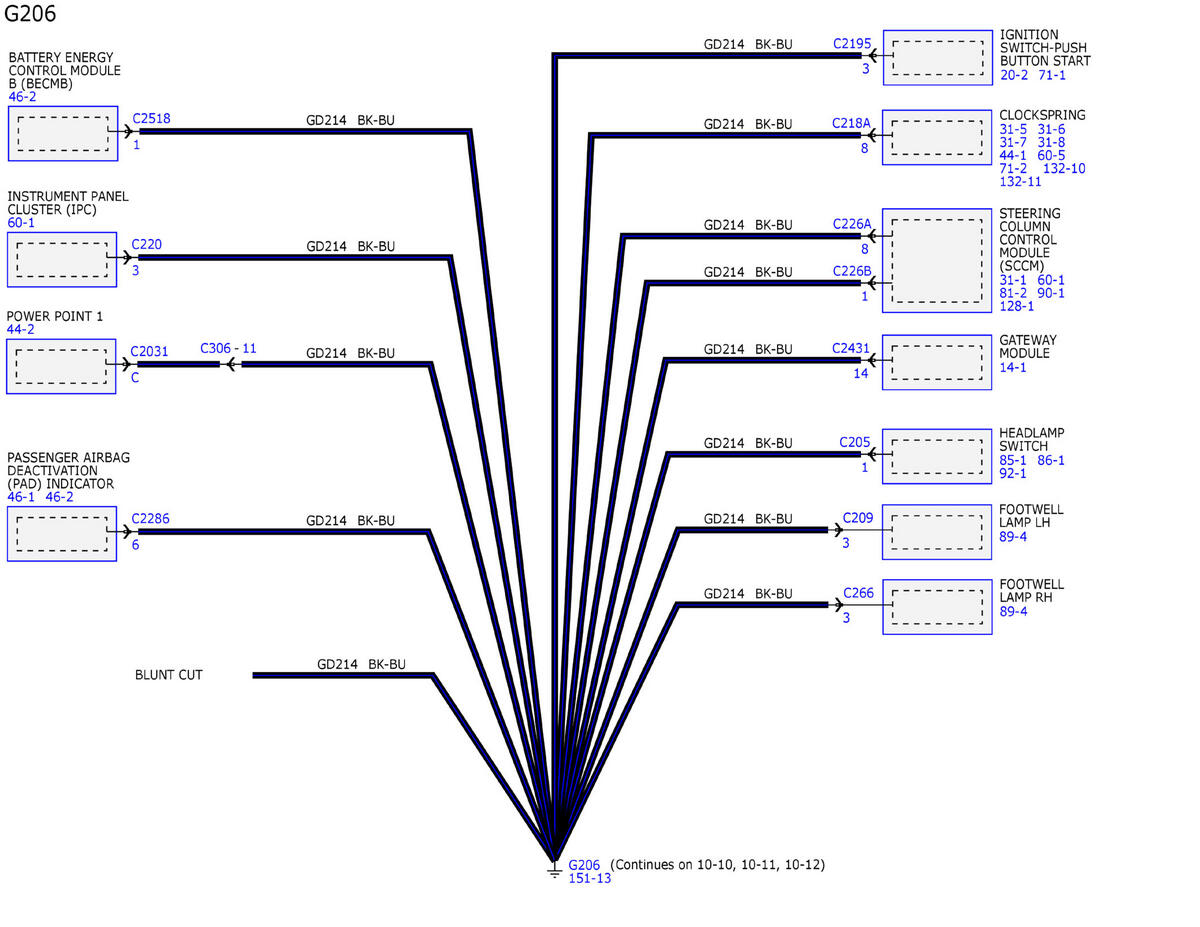

GFDWR232895Courtesy of FORD MOTOR COMPANY
