Section 178 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.

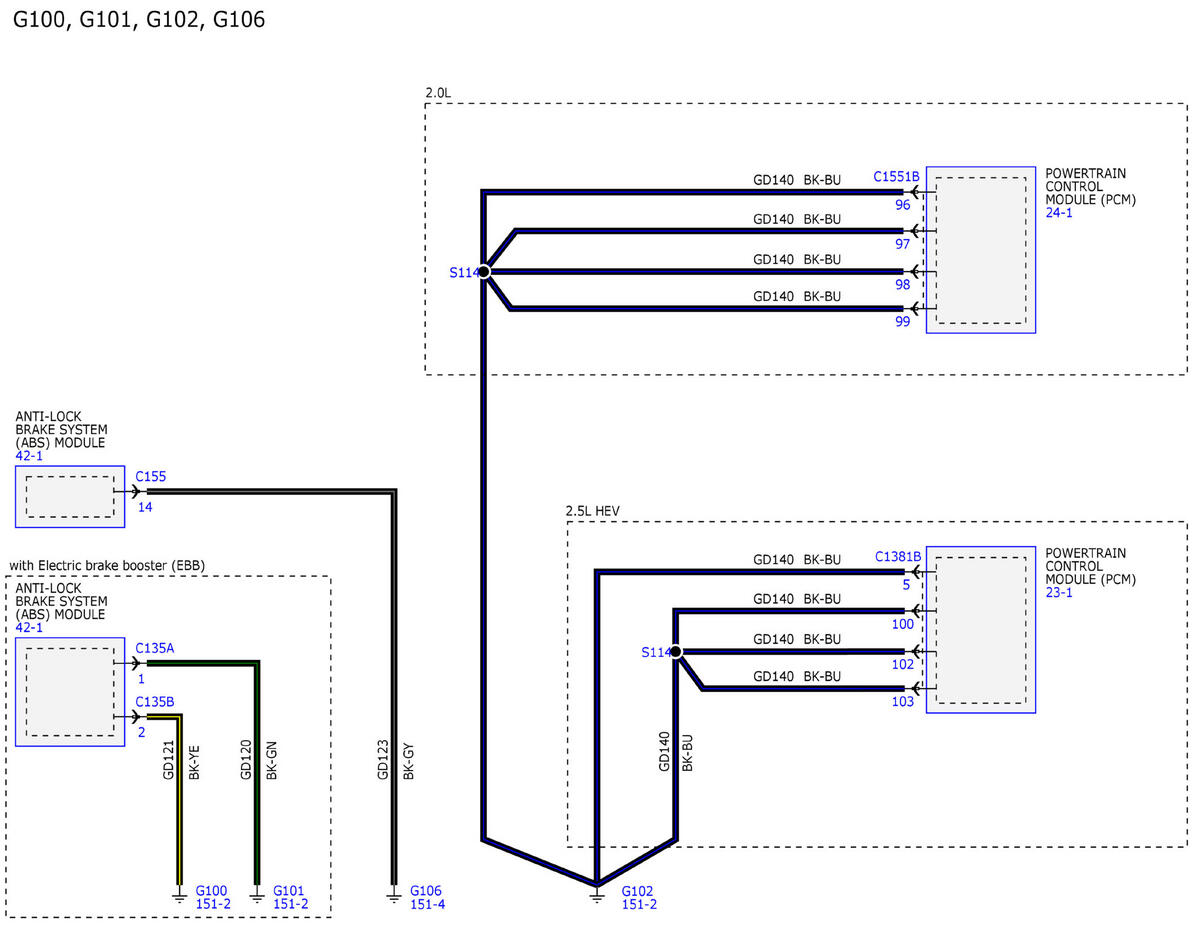

GFDWR240787Courtesy of FORD MOTOR COMPANY

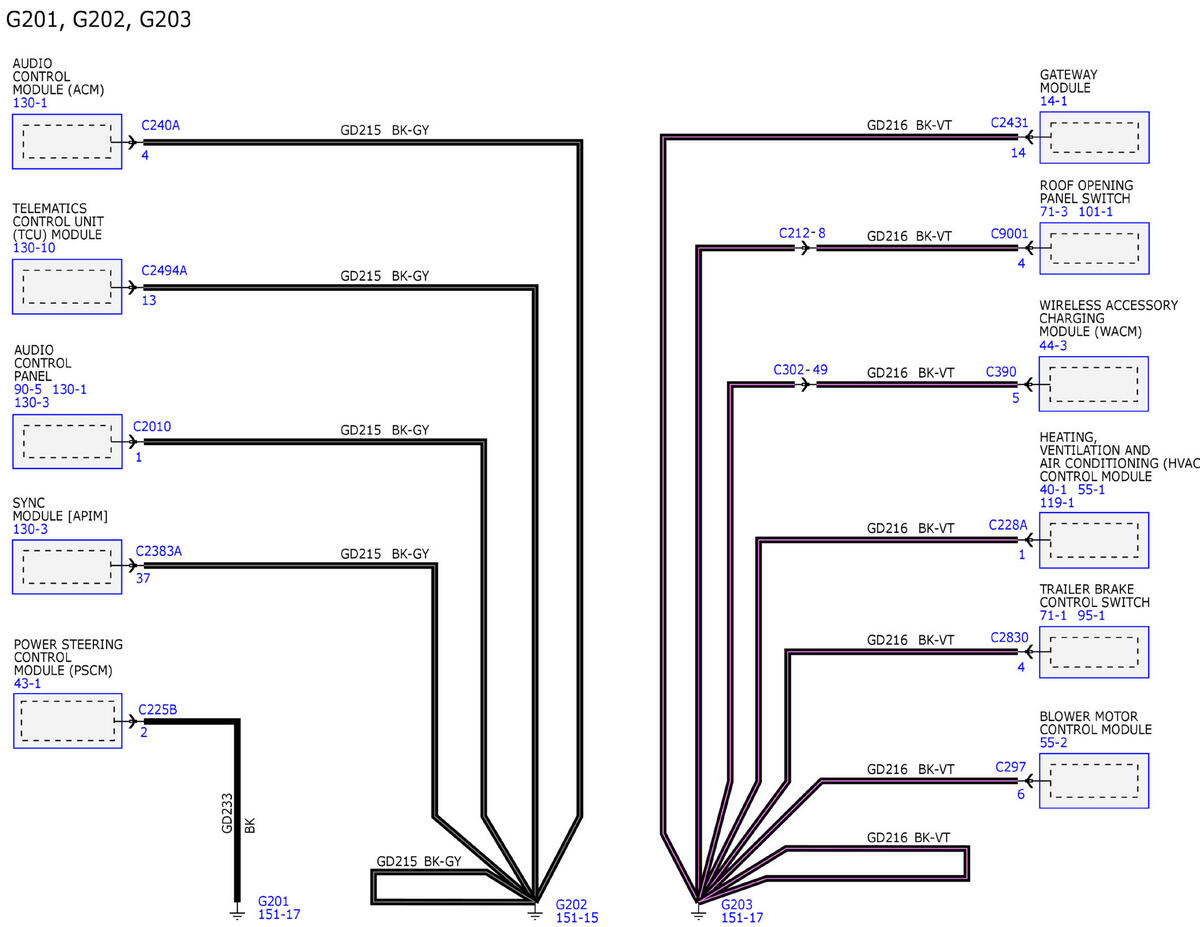

GFDWR240788Courtesy of FORD MOTOR COMPANY

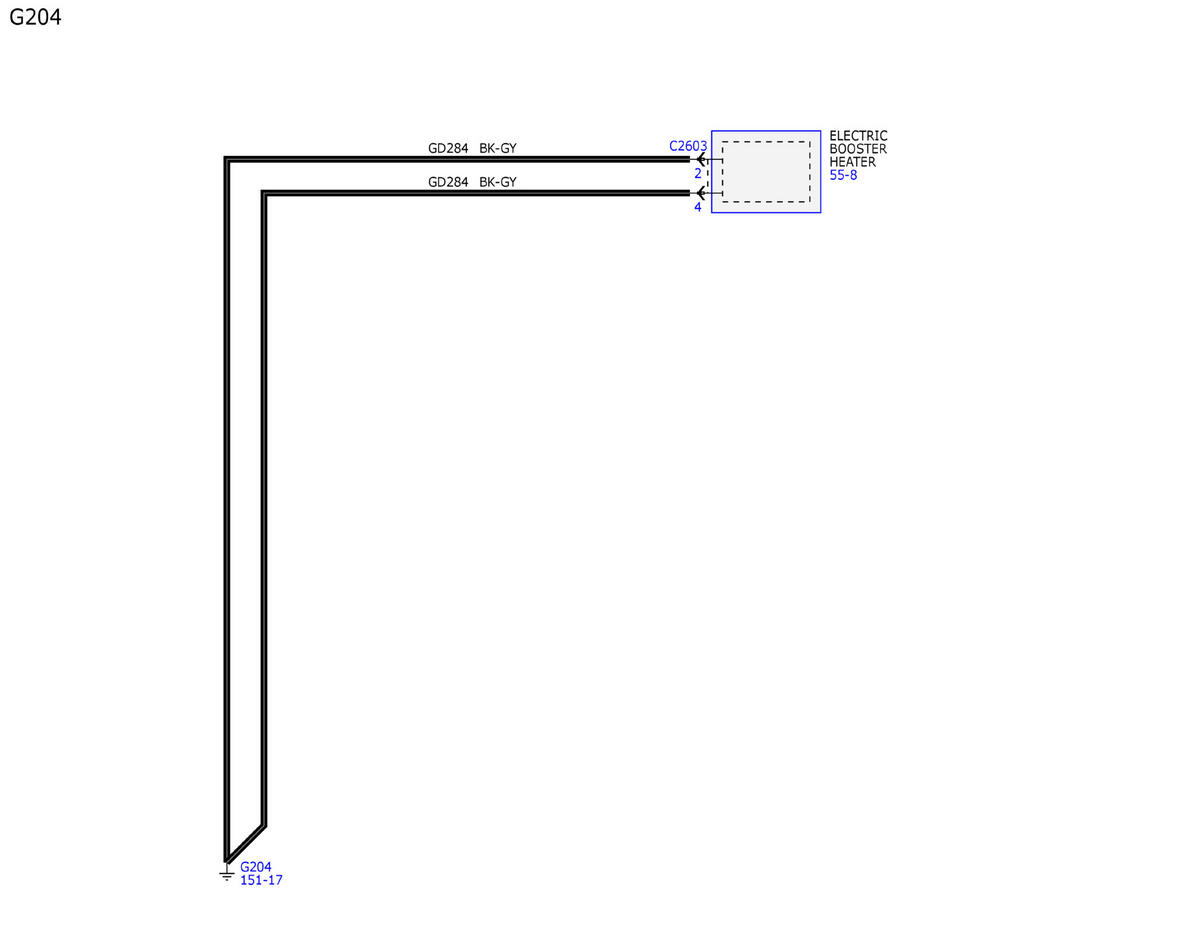

GFDWR240789Courtesy of FORD MOTOR COMPANY

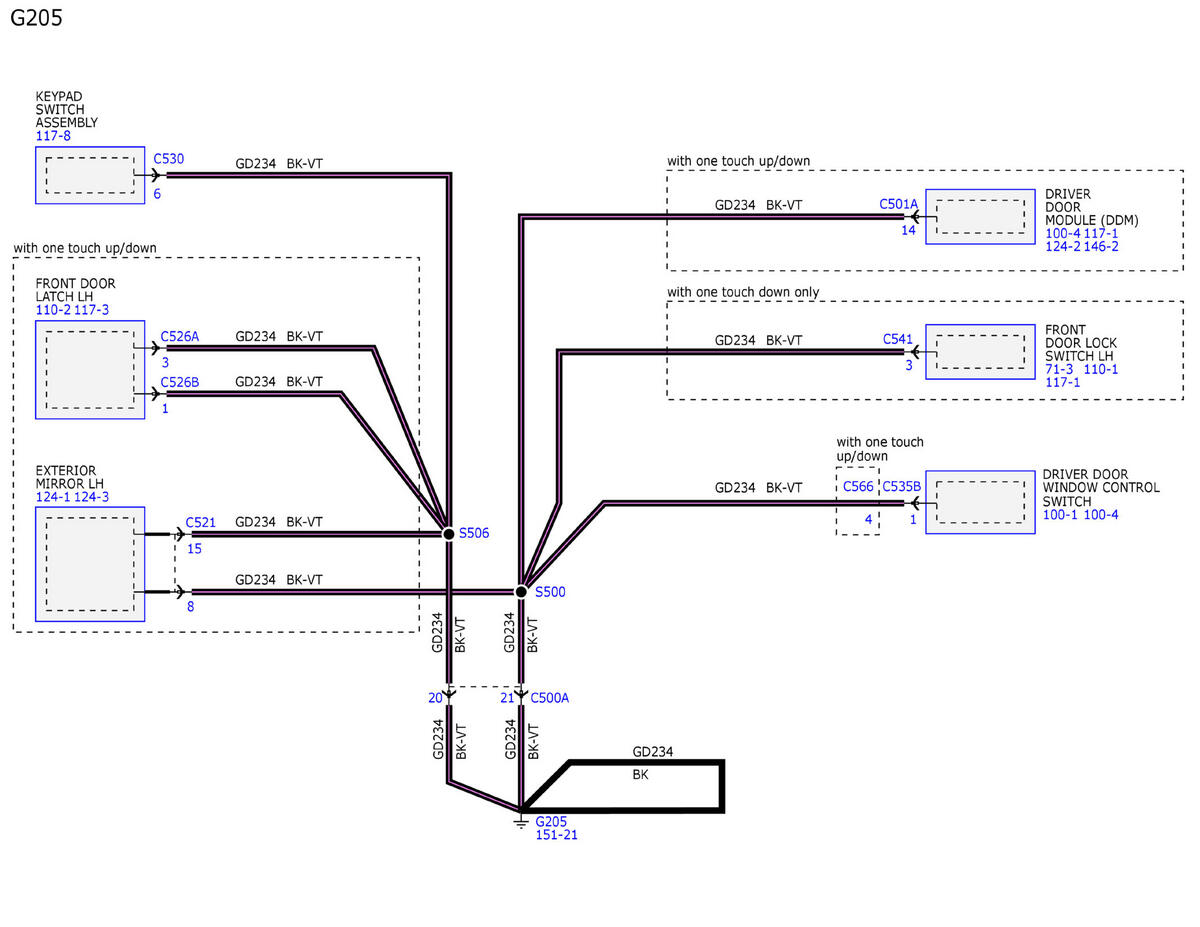

GFDWR240790Courtesy of FORD MOTOR COMPANY

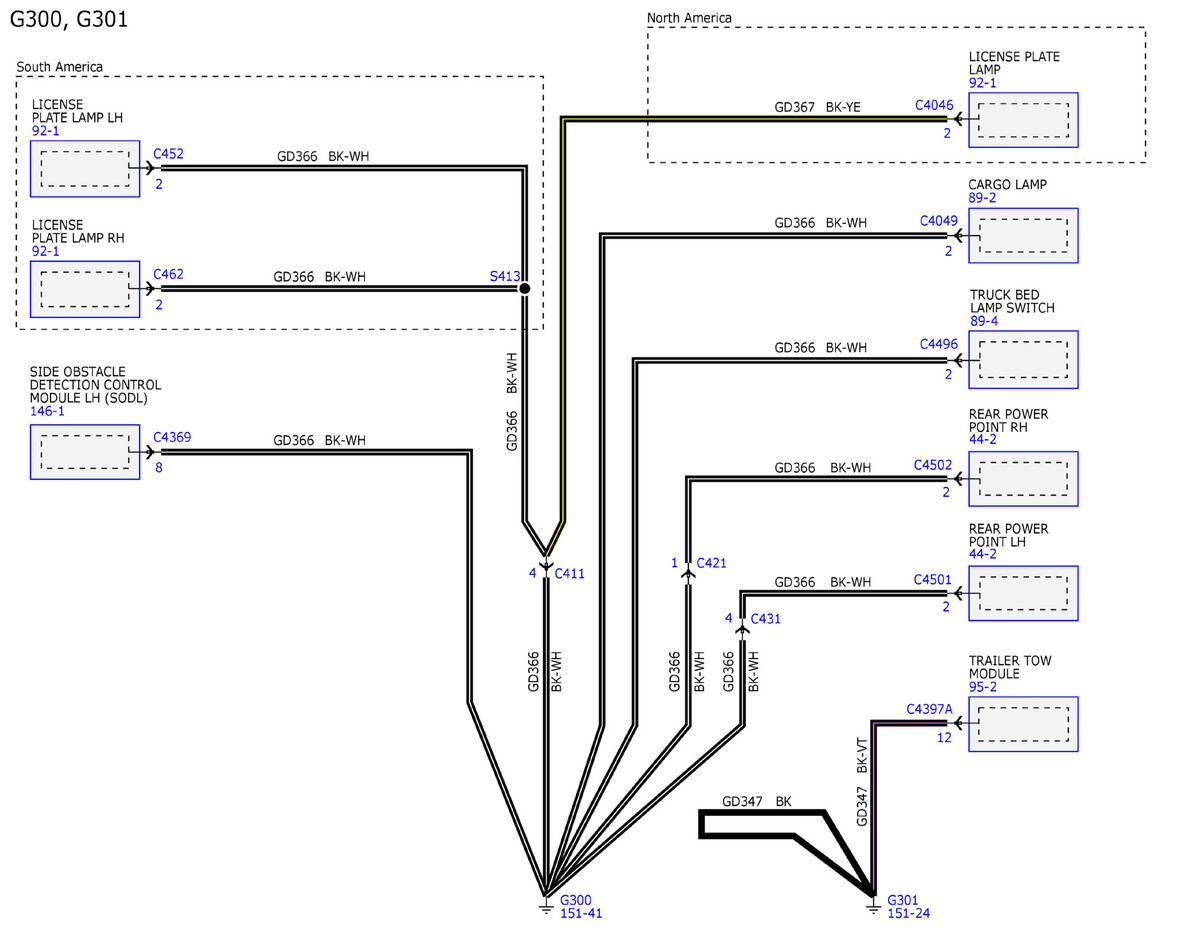

GFDWR240791Courtesy of FORD MOTOR COMPANY

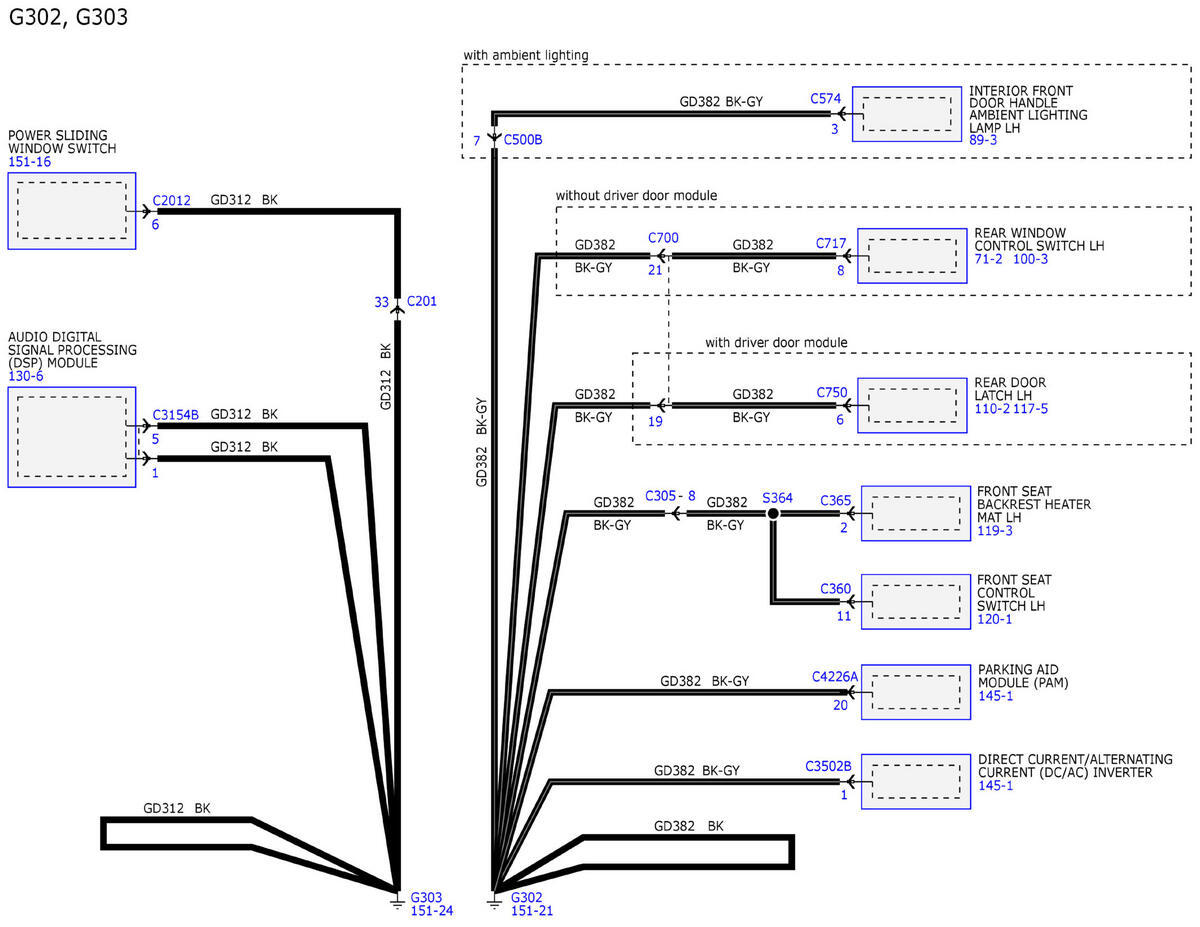

GFDWR240792Courtesy of FORD MOTOR COMPANY

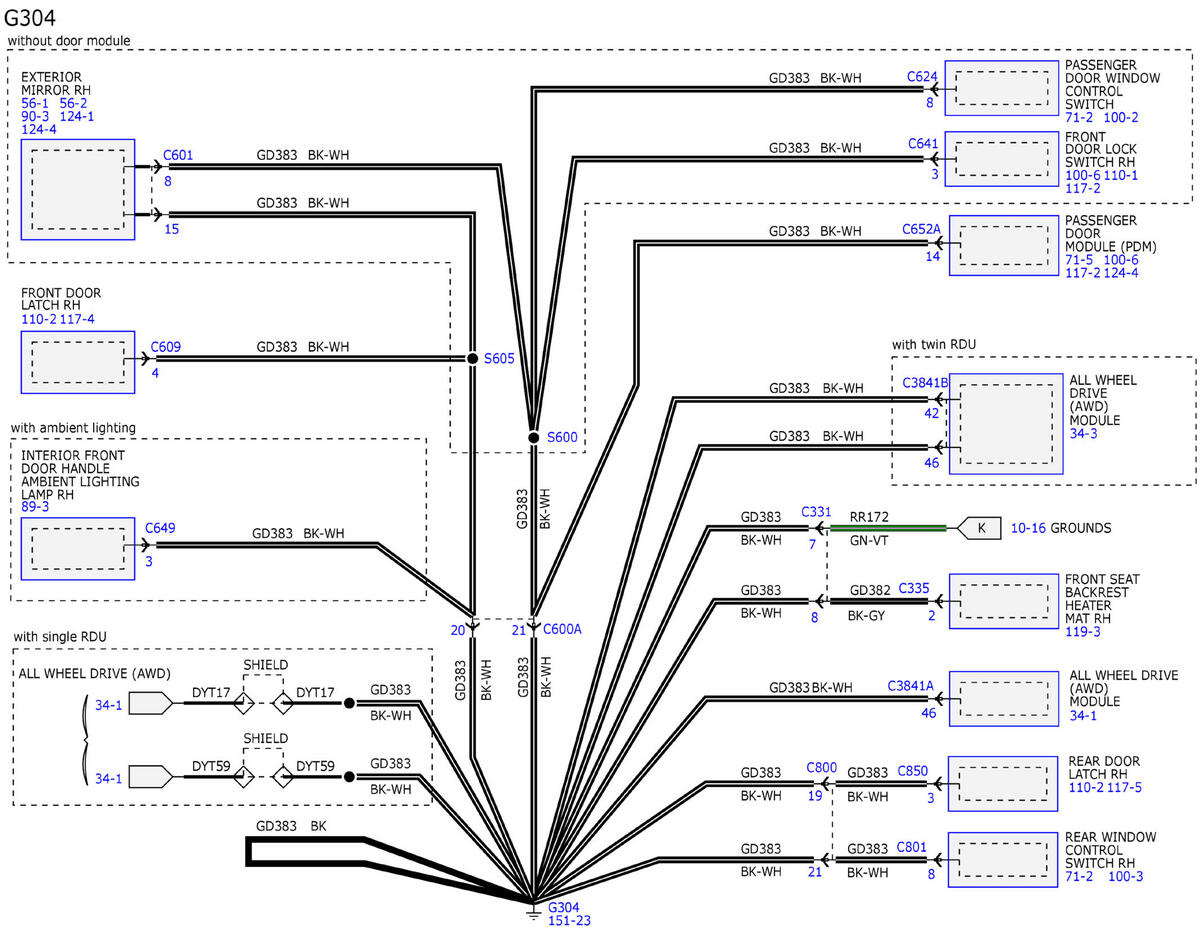

GFDWR240793Courtesy of FORD MOTOR COMPANY

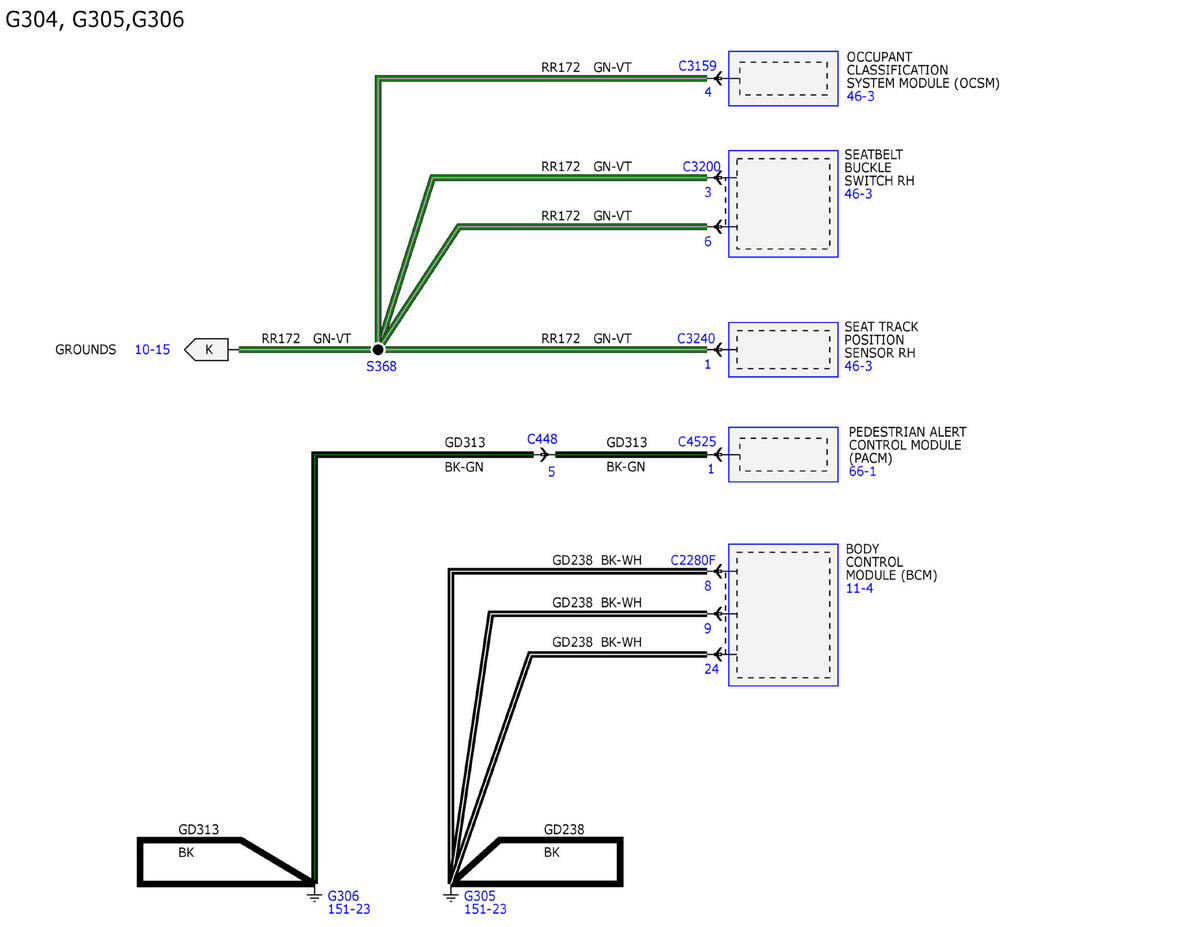

GFDWR240794Courtesy of FORD MOTOR COMPANY

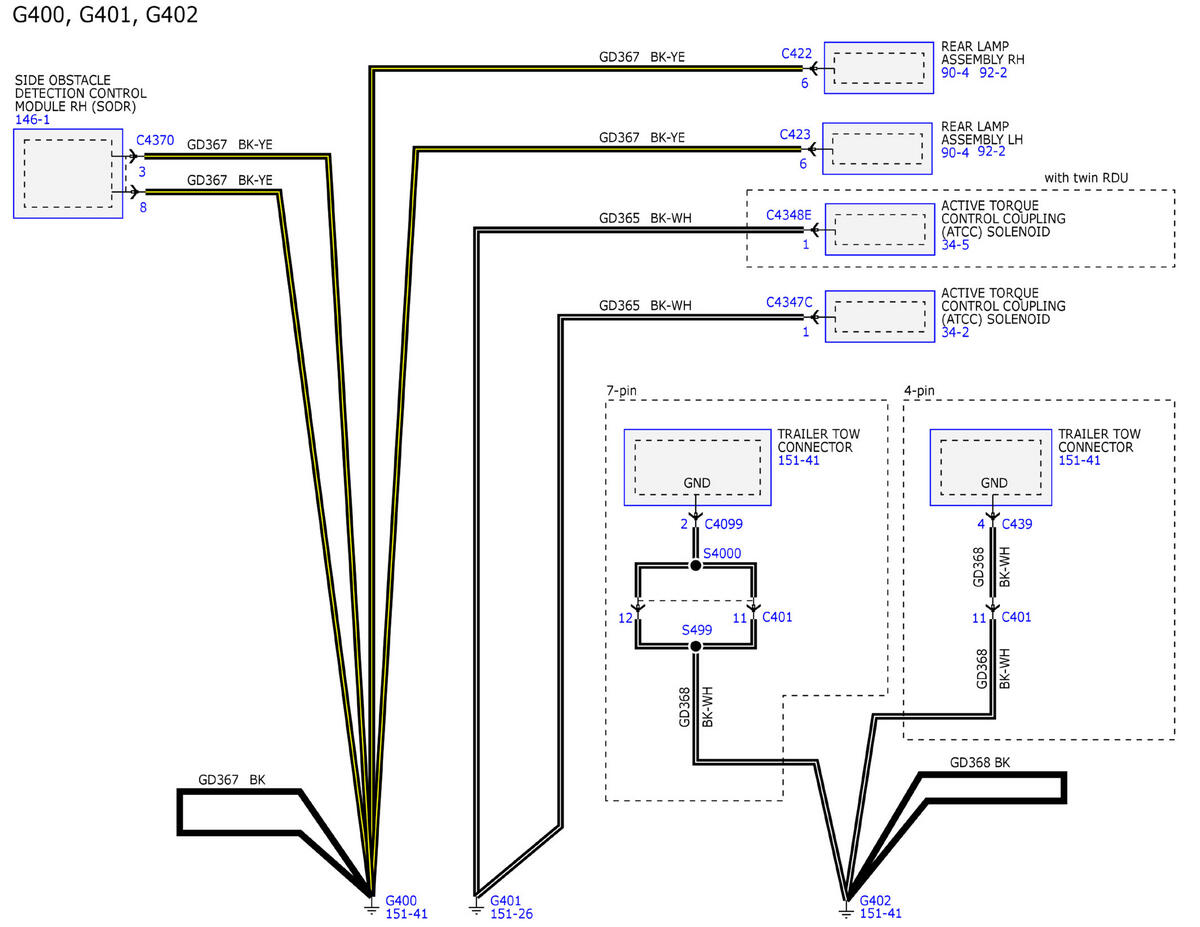

GFDWR240795Courtesy of FORD MOTOR COMPANY

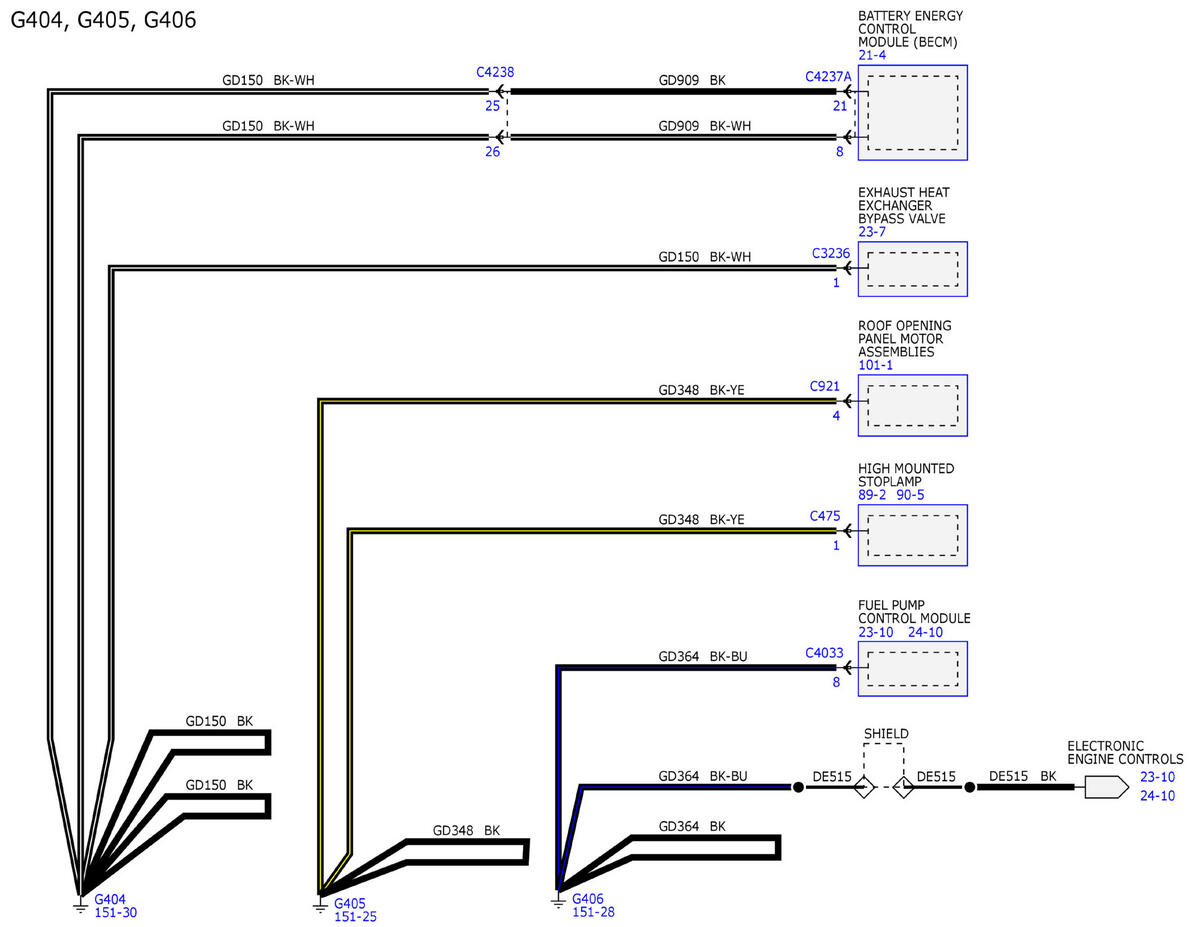

GFDWR240796Courtesy of FORD MOTOR COMPANY

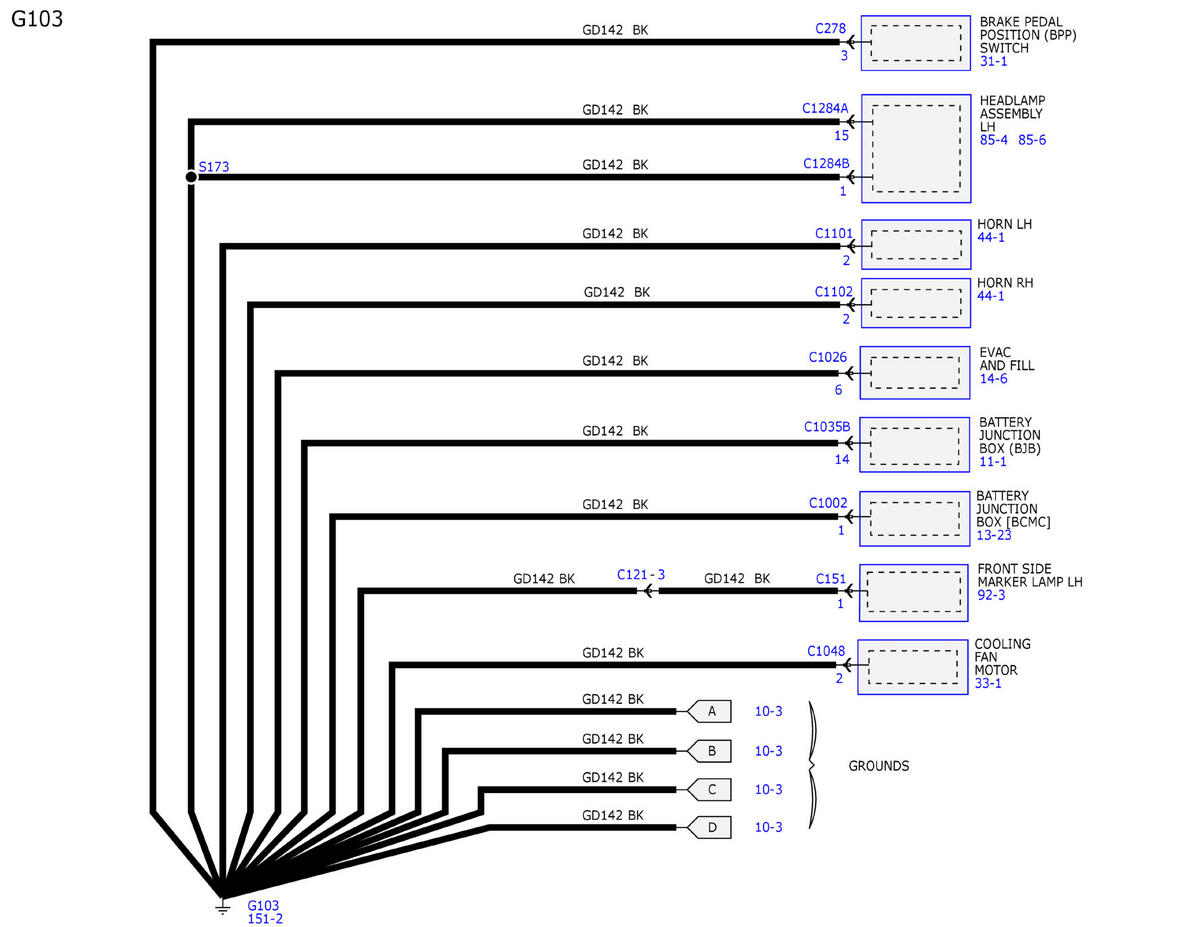

GFDWR240797Courtesy of FORD MOTOR COMPANY

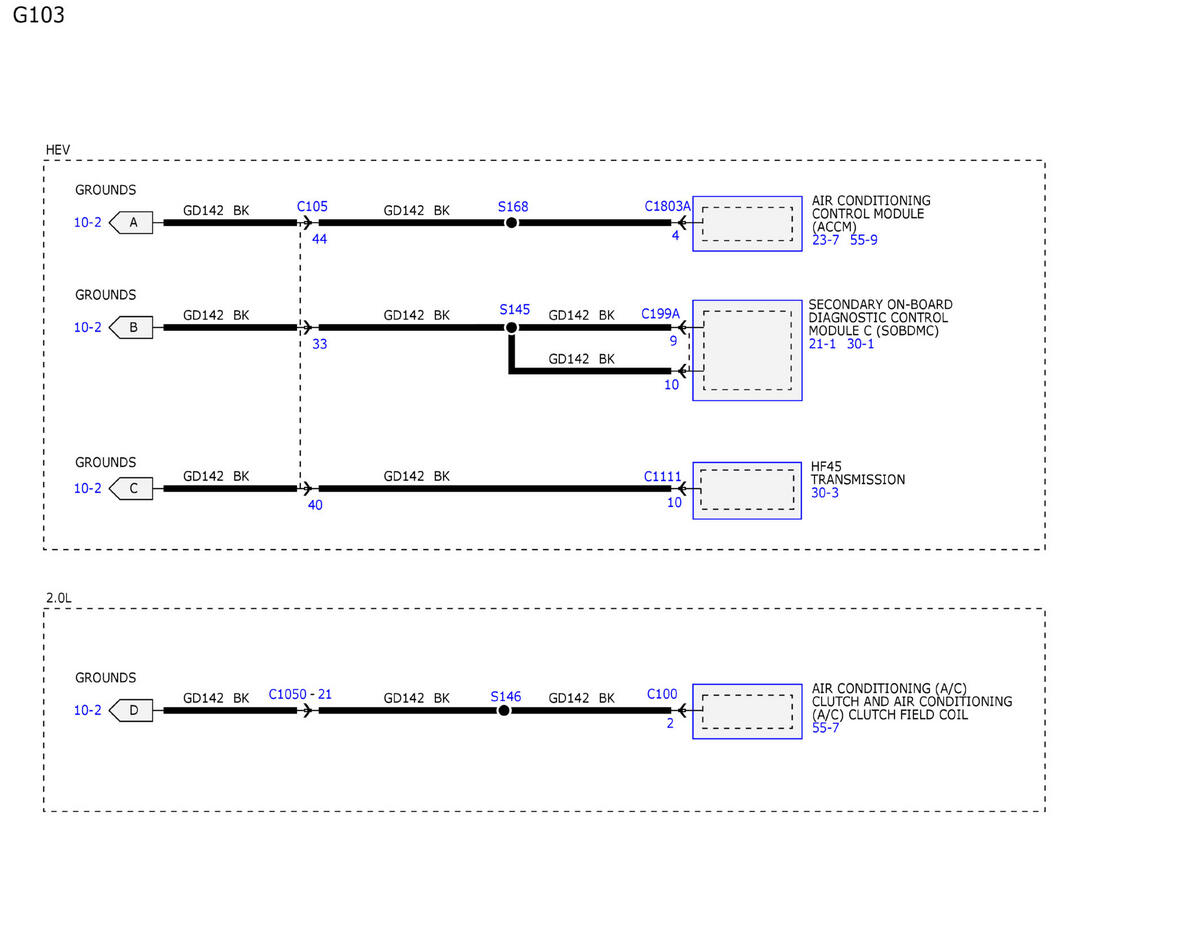

GFDWR240798Courtesy of FORD MOTOR COMPANY

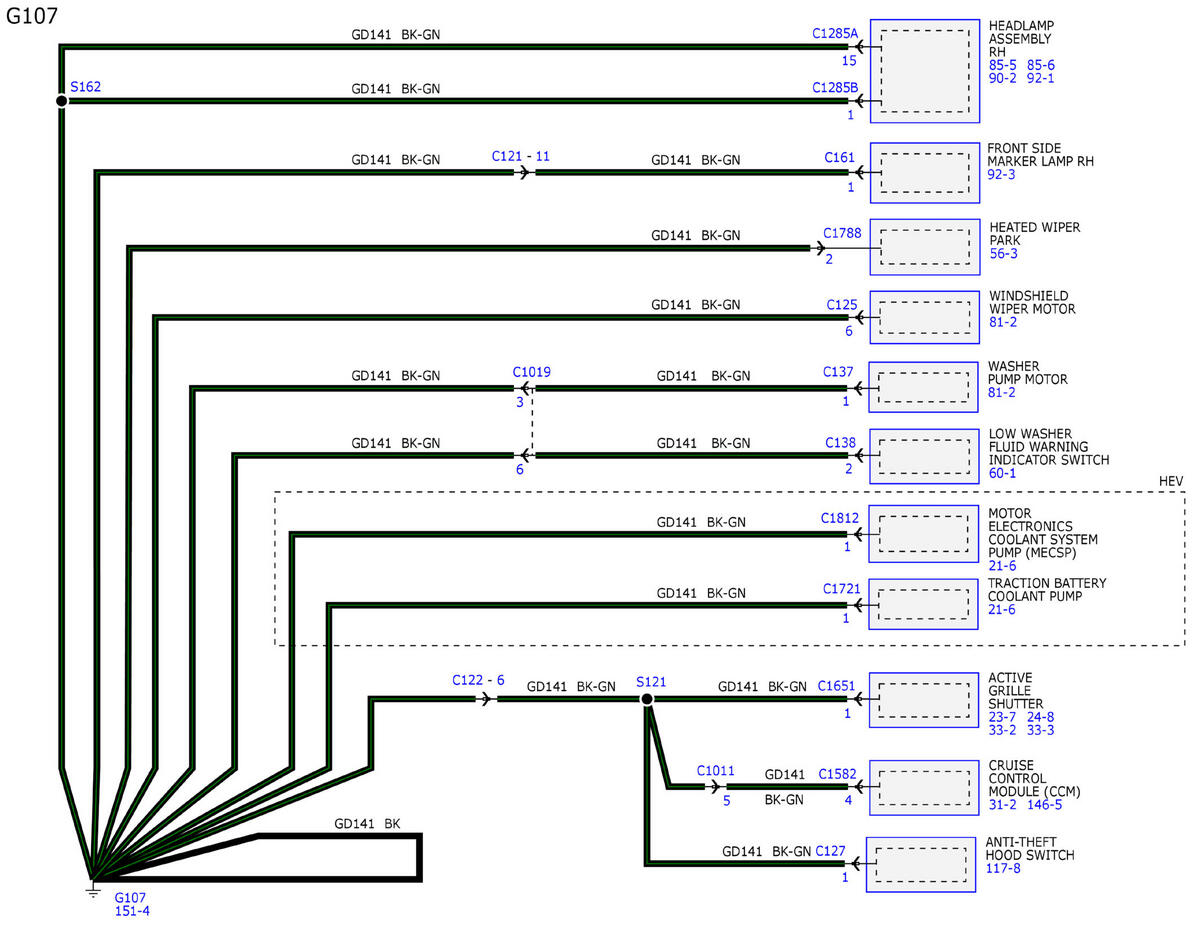

GFDWR240799Courtesy of FORD MOTOR COMPANY

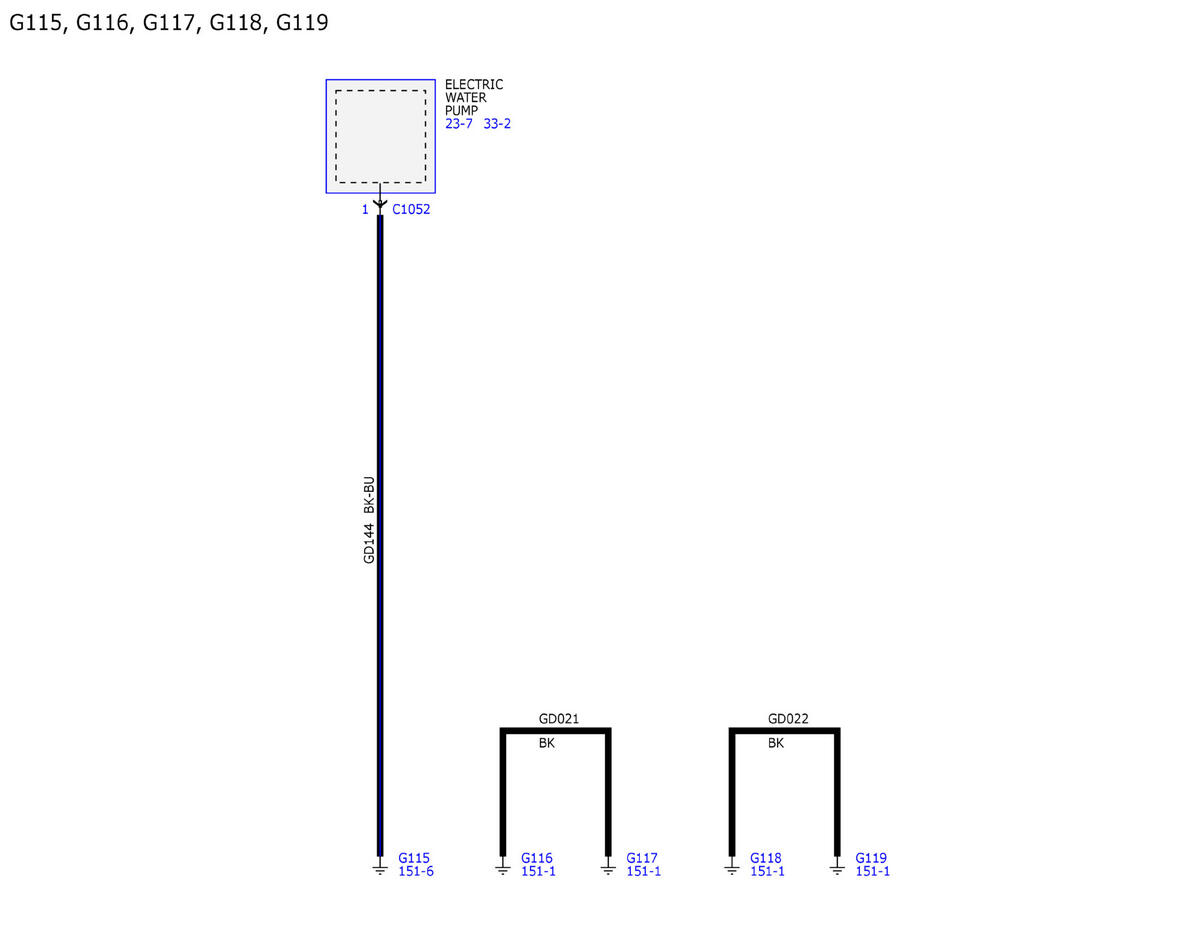

GFDWR240800Courtesy of FORD MOTOR COMPANY

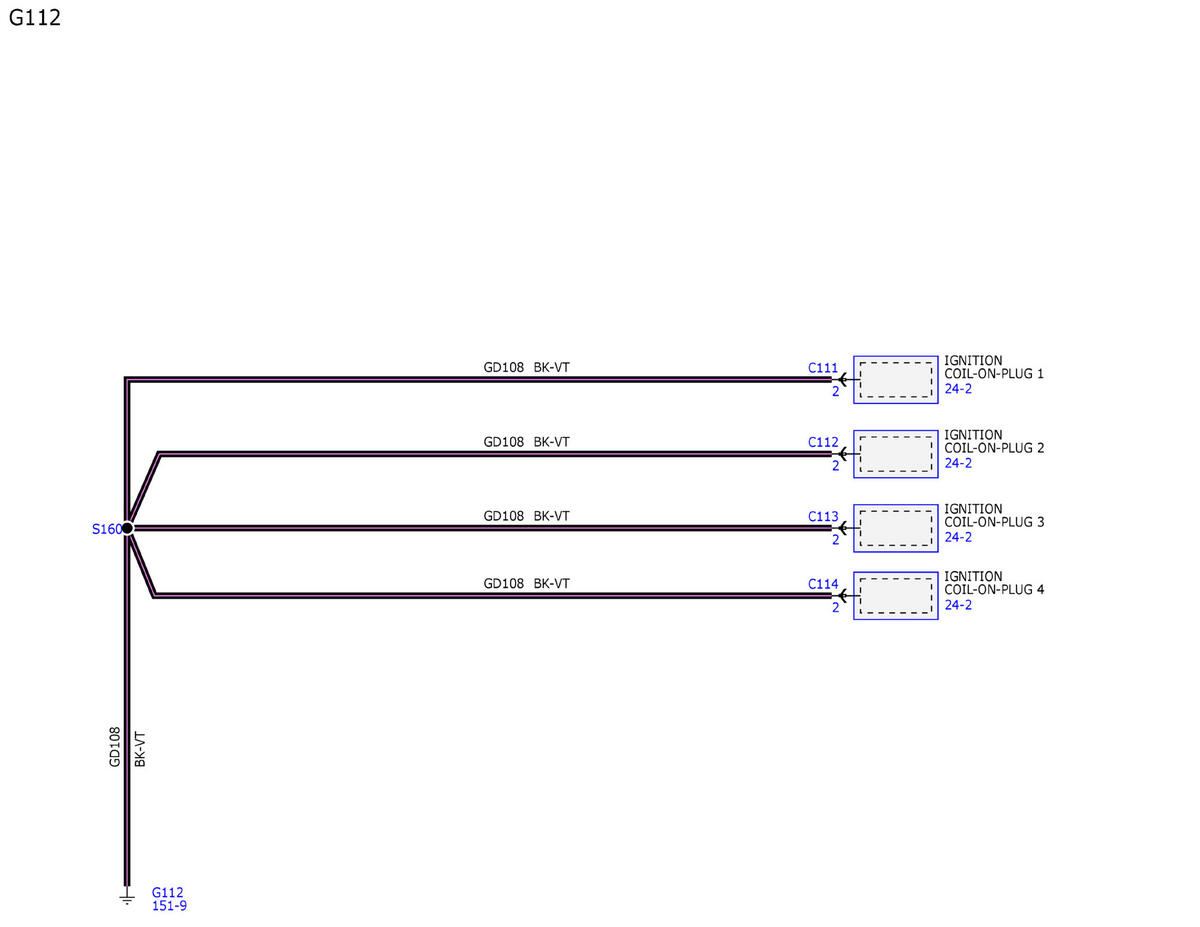

GFDWR240801Courtesy of FORD MOTOR COMPANY

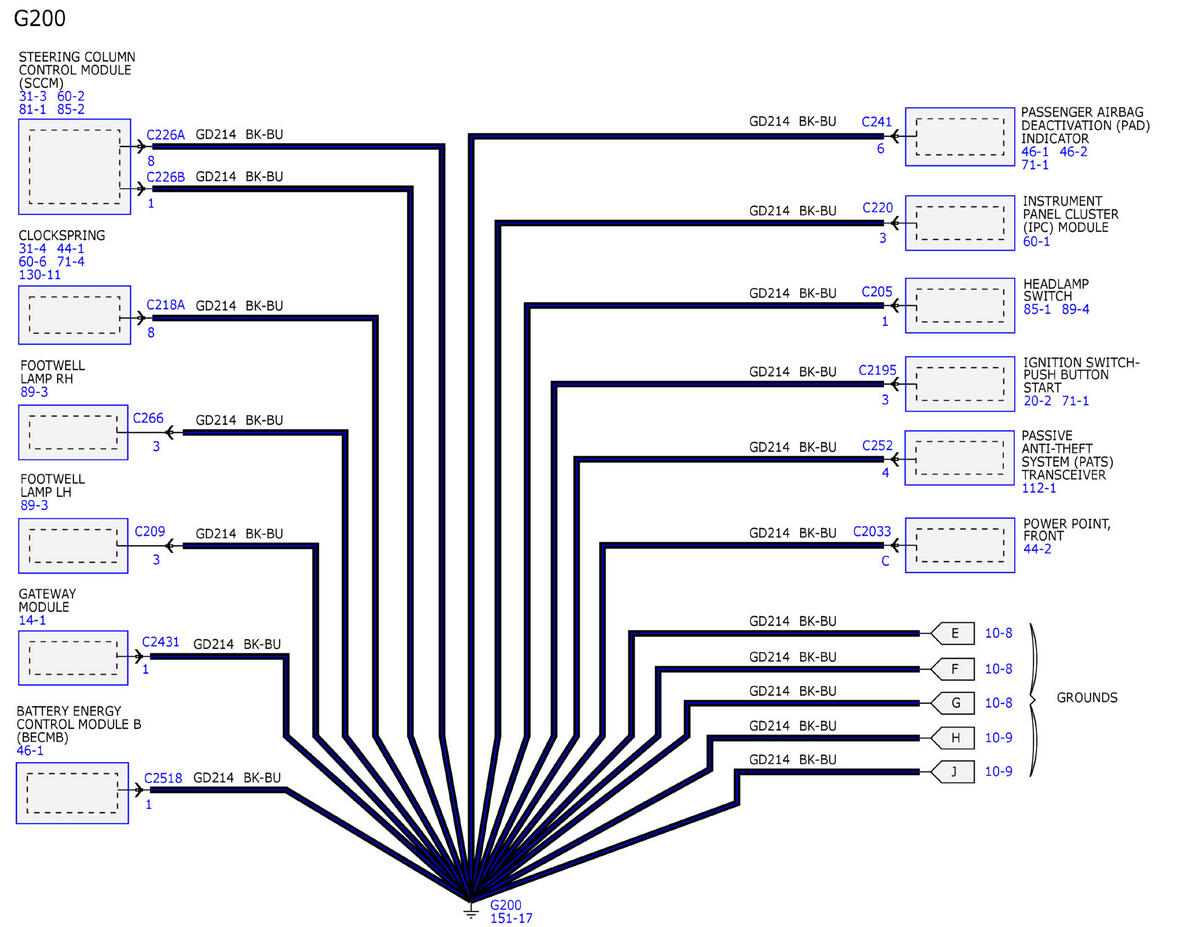

GFDWR240802Courtesy of FORD MOTOR COMPANY

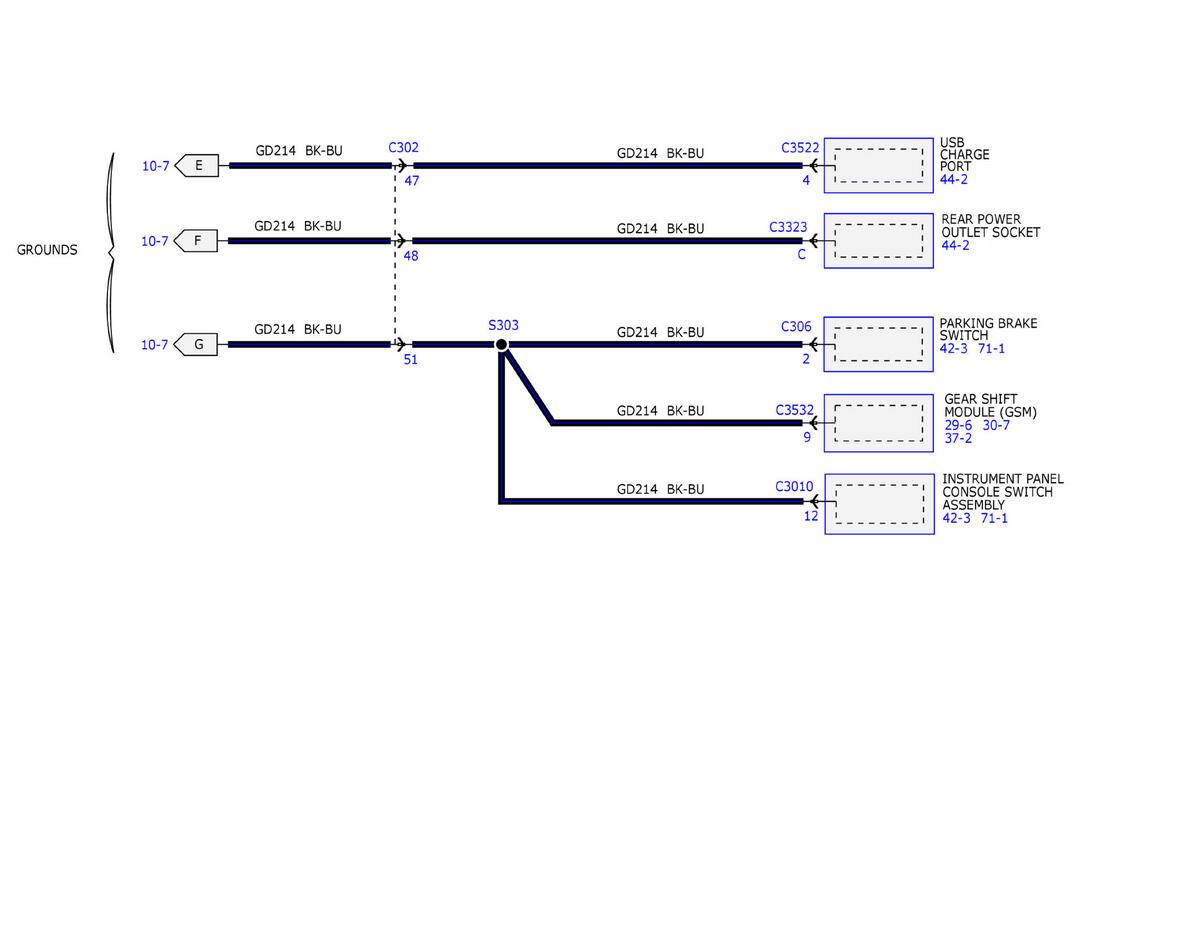

GFDWR240803Courtesy of FORD MOTOR COMPANY

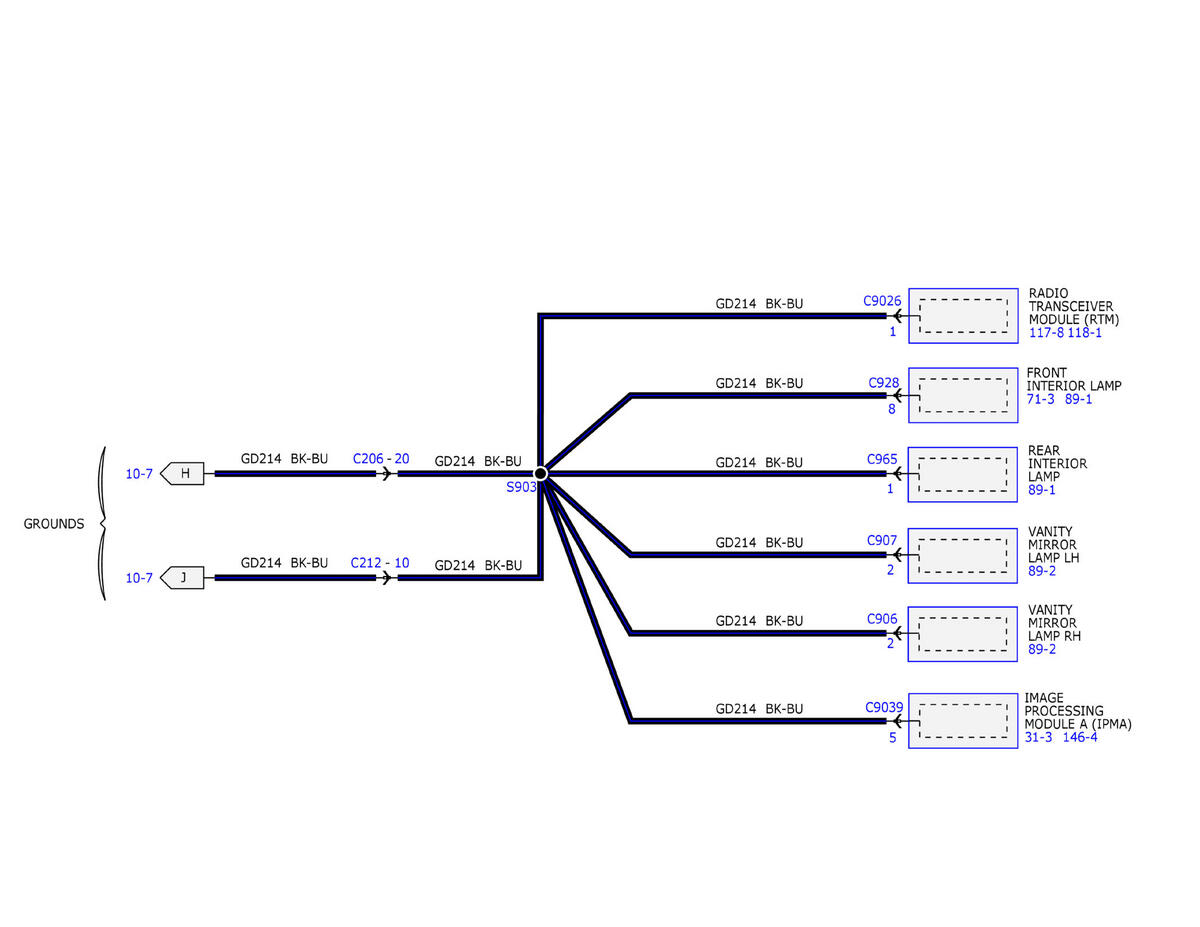

GFDWR240804Courtesy of FORD MOTOR COMPANY
