Powertrain Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Powertrain/Drivetrain Mount Neutralizing

Adjustment

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
2. 1. Remove the bolts and the front deflector.

   Courtesy of FORD MOTOR COMPANY

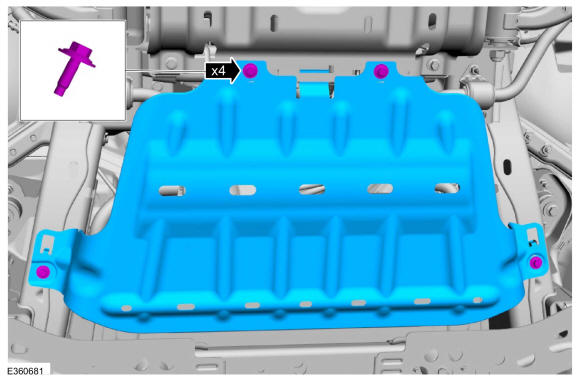

3. Remove the bolts and front undershield.

   Courtesy of FORD MOTOR COMPANY

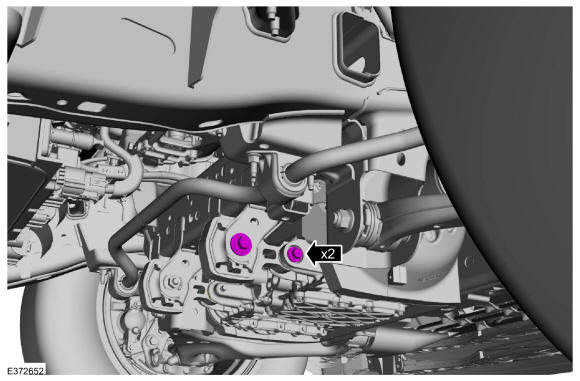

4. Loosen, but do not remove the roll RH restrictor fasteners. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

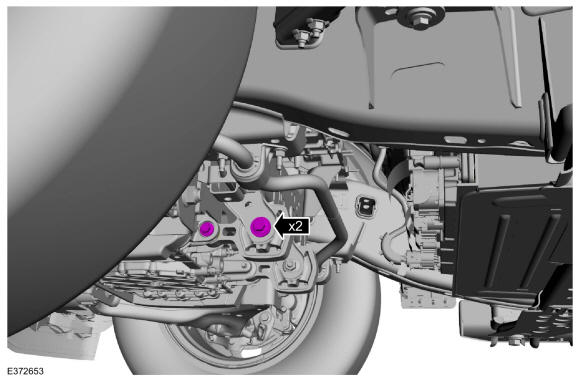

5. Loosen, but do not remove the roll LH restrictor fasteners. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

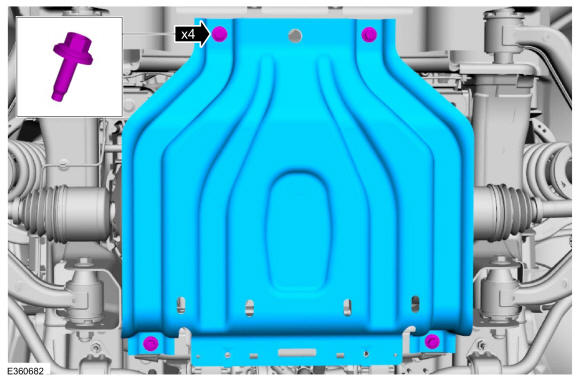

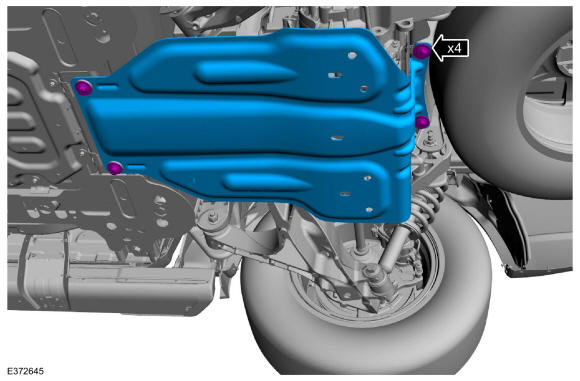

6. Remove the fasteners and rear undershield.

   Courtesy of FORD MOTOR COMPANY

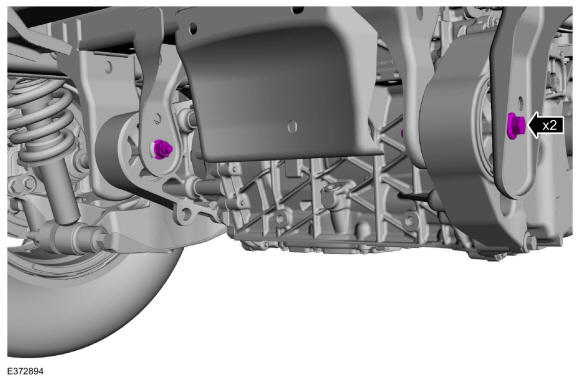

7. Loosen, but do not remove the rear electric drive assembly fasteners.

   Courtesy of FORD MOTOR COMPANY

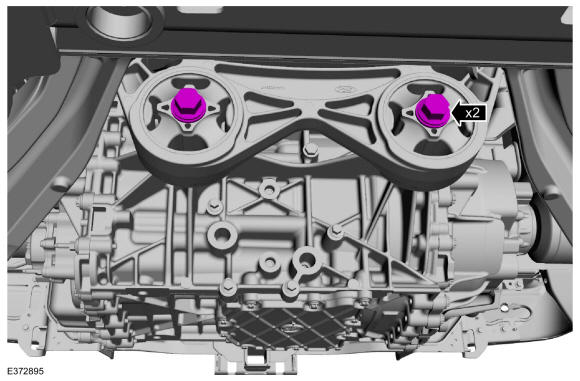

8. Loosen, but do not remove the rear electric drive assembly fasteners.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

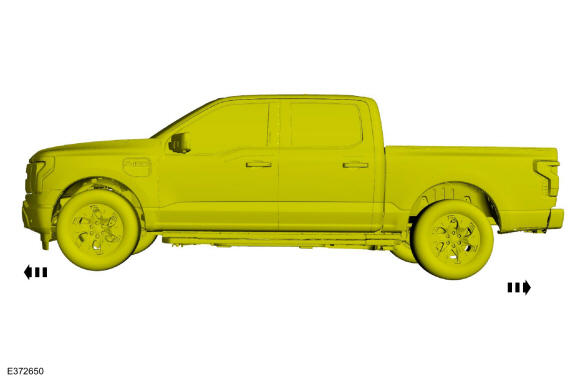

   Rest the vehicle on the ground. Rock the vehicle on the parking pawl to neutralize the mounts.

   Courtesy of FORD MOTOR COMPANY

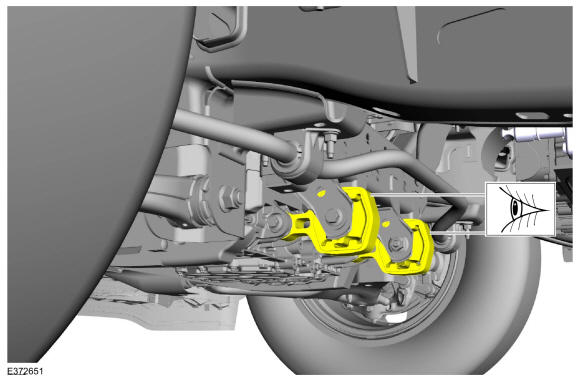

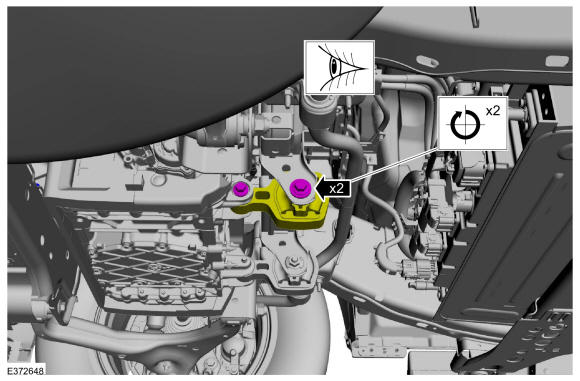

10. Inspect the roll restrictor for preloading or binding around the clevis. The roll restrictor should be straight.

    Courtesy of FORD MOTOR COMPANY

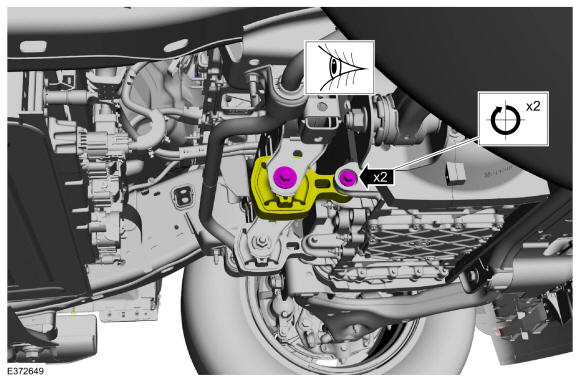

11. Tighten the roll restrictor fasteners.

    Torque:Front electric drive assembly bolt : 92 lb.ft (125 Nm)Frame bolt : 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Tighten the roll restrictor fasteners.

    Torque:Front electric drive assembly bolt : 92 lb.ft (125 Nm)Frame bolt : 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the front undershield.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

14. 1. Install the front deflector.

       Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

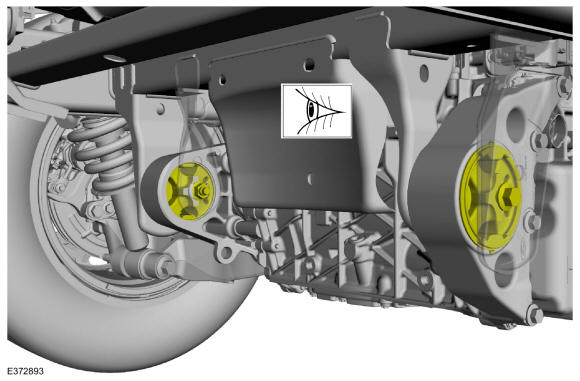

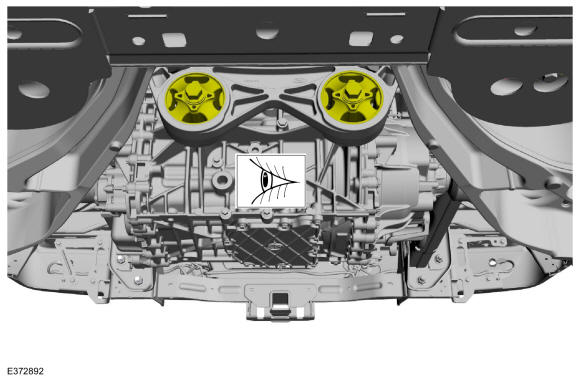

15. Inspect the rear electric drive assembly fasteners for bolt interference and verify the mounts are not twisted or preloaded.

    Courtesy of FORD MOTOR COMPANY

16. Inspect the rear electric drive assembly fasteners for bolt interference and verify the mounts are not twisted or preloaded.

    Courtesy of FORD MOTOR COMPANY

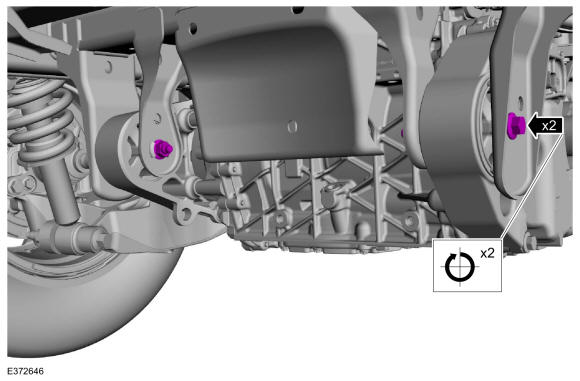

17. Tighten the rear electric drive assembly fasteners.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

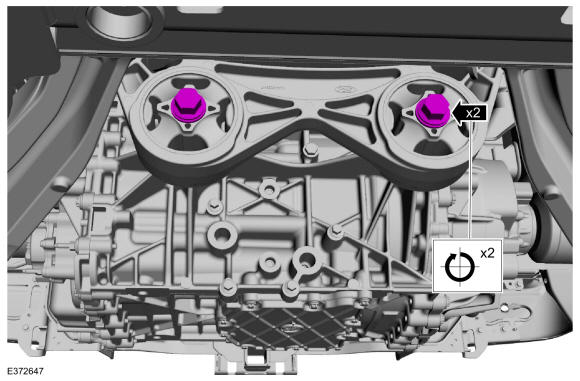

18. Tighten the rear electric drive assembly fasteners.

    Torque: 221 lb.ft (300 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the rear undershield.

    Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
