Vehicle Dynamics Control Module (VDM): Removal
NOTE:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
NOTE:
Removal steps in this procedure may contain installation details.
- Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: The PMI process must begin with the current VDM installed. If the current VDM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the VDM following the on-screen instructions.

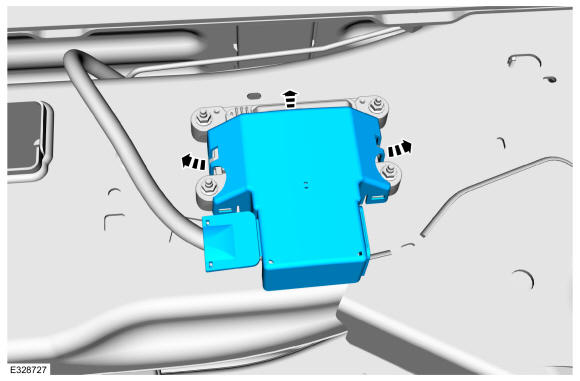

- Remove the VDM cover.

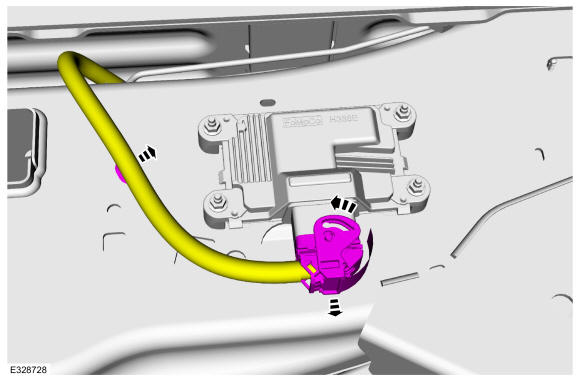

- Disconnect the VDM electrical connector, release the clip and position the harness aside.
-
NOTE: The VDM is mounted to the outside of the LH frame rail.

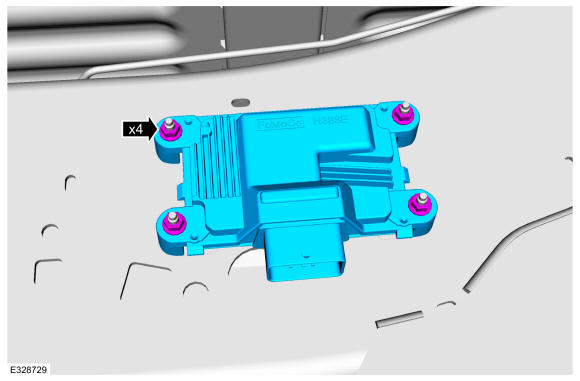

Remove the VDM nuts and remove the VDM.
Torque
: 80 lb.in (9 Nm)
